GTH10 linear spindle mechanical module
GTH10
GCM specializes in manufacturing and providing solutions for Linear Spindle Mechanisms, Linear Spindle Modules, and Linear Slide Bearings.
Quantity:
Our linear slide bearing is an advanced mechanical device that utilizes an innovative linear motion actuators, providing efficient and precise linear motion solutions for various applications. This module Our linear motion actuators is an advanced mechanical device that utilizes an innovative linear spindle mechanism, providing efficient and precise linear motion solutions for various applications. This module combines advanced technology with reliable design, delivering excellent performance and reliability to our customers.
| specification | ||||||
| Capability | Repeatability(mm) | ±0.01 | ||||
| Screw Lead(mm) | 5 | 10 | 20 | 32 | ||
| Maximum Speed(mm/s) | 250 | 500 | 1000 | 1600 | ||
| Maximum Payload | Horizontal(mm) | 50 | 30 | 18 | 5 | |
| Vertical(mm) | 12 | 8 | 3 | / | ||
| Rated Thrust(mm) | 341 | 170 | 85 | 53 | ||
| Stroke Pitch(mm) | 100-1050mm 50mm pitch | |||||

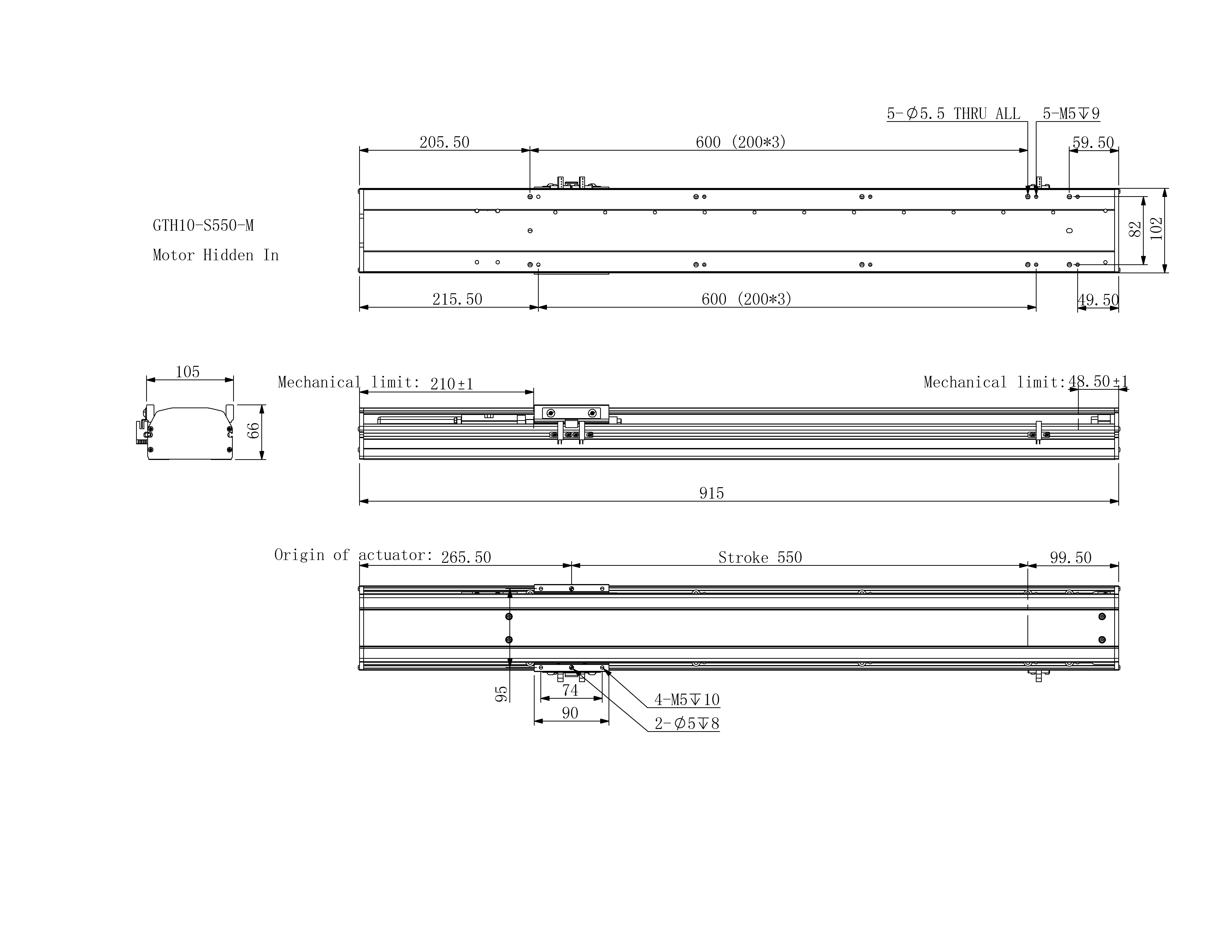

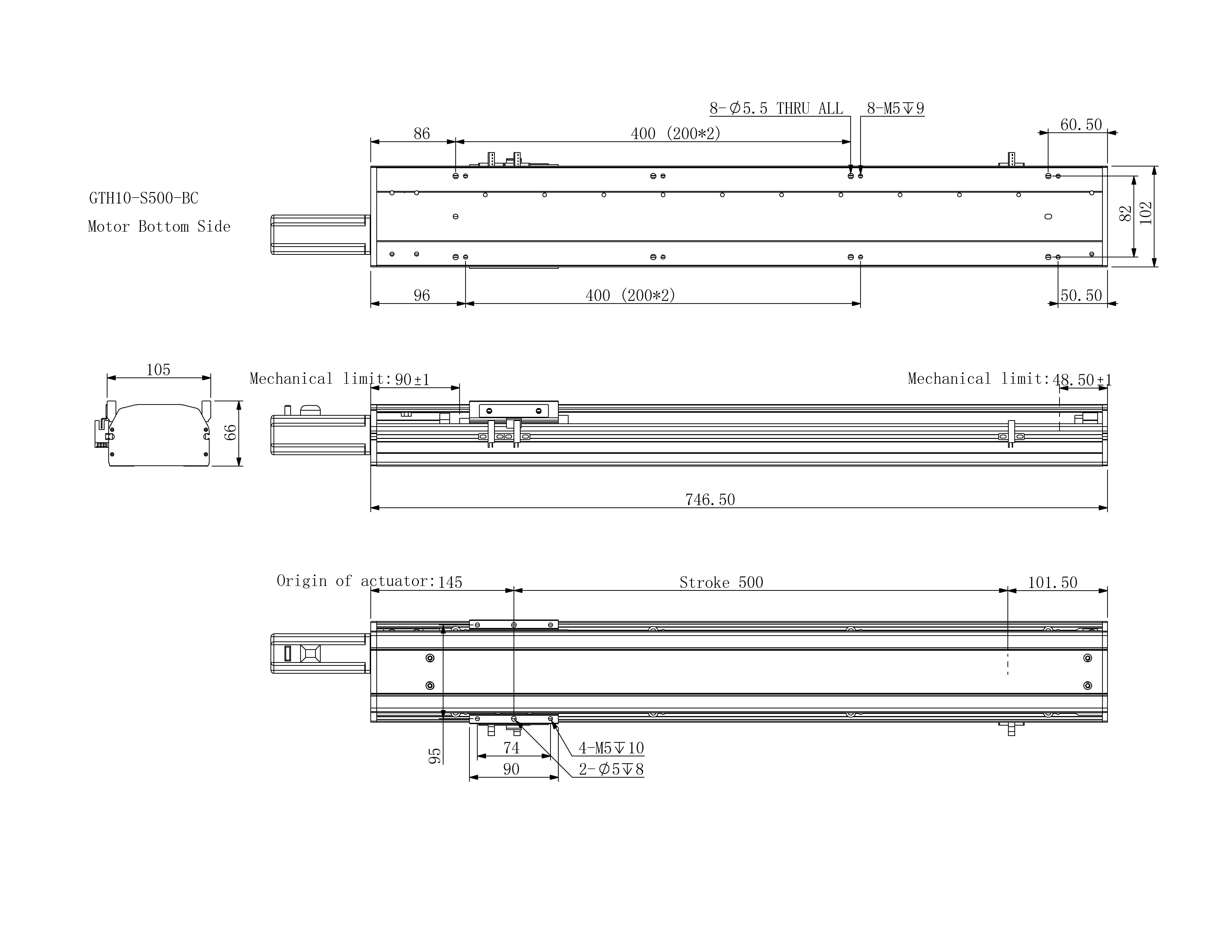

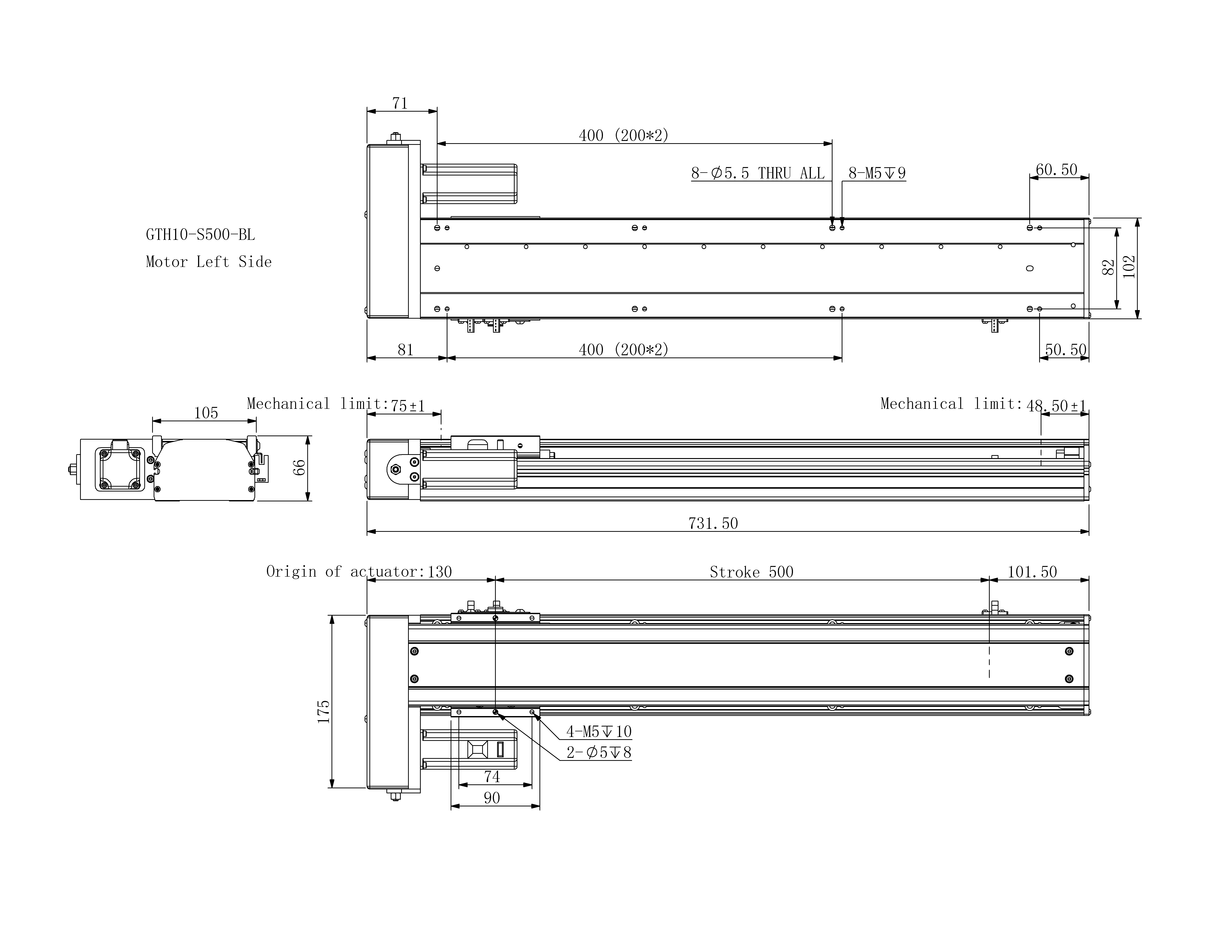

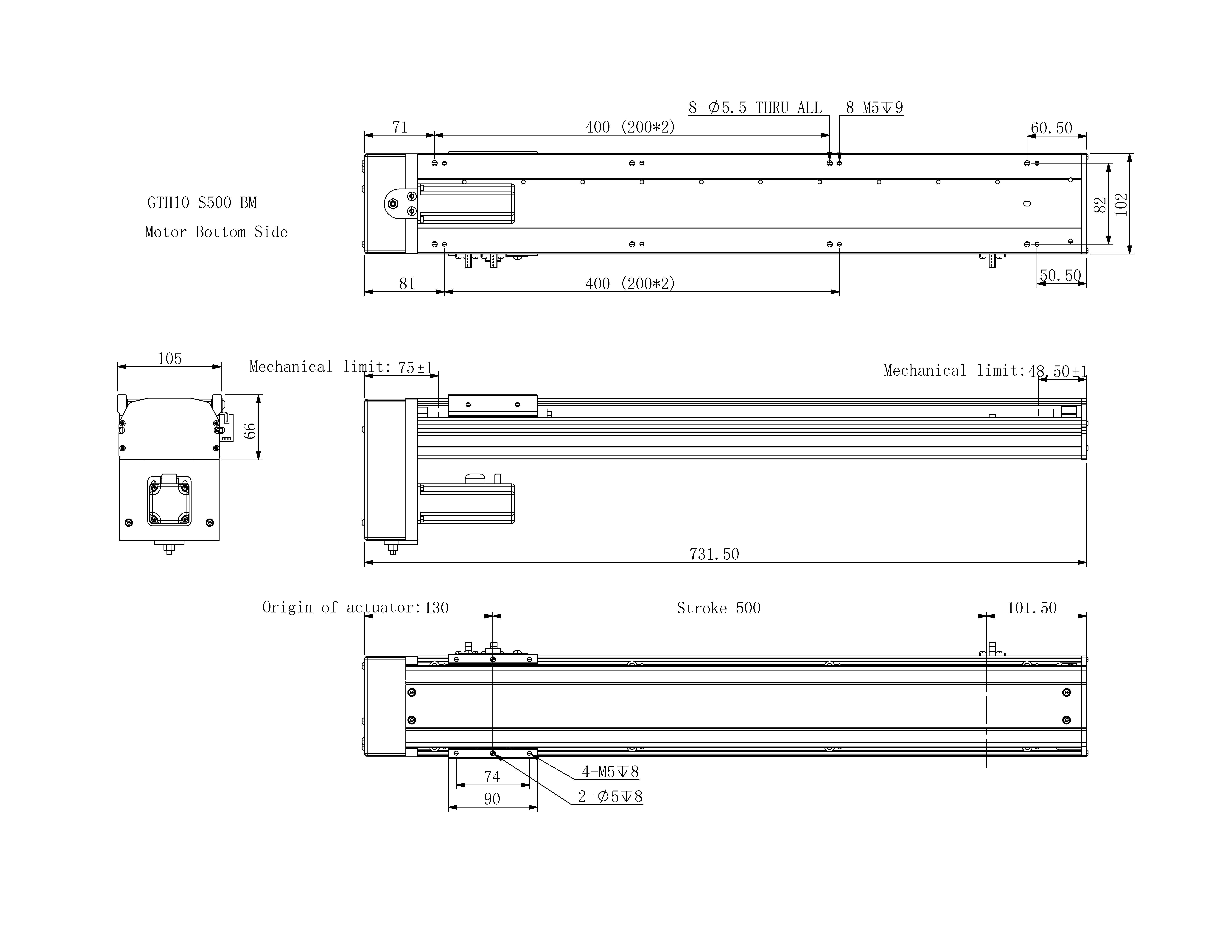

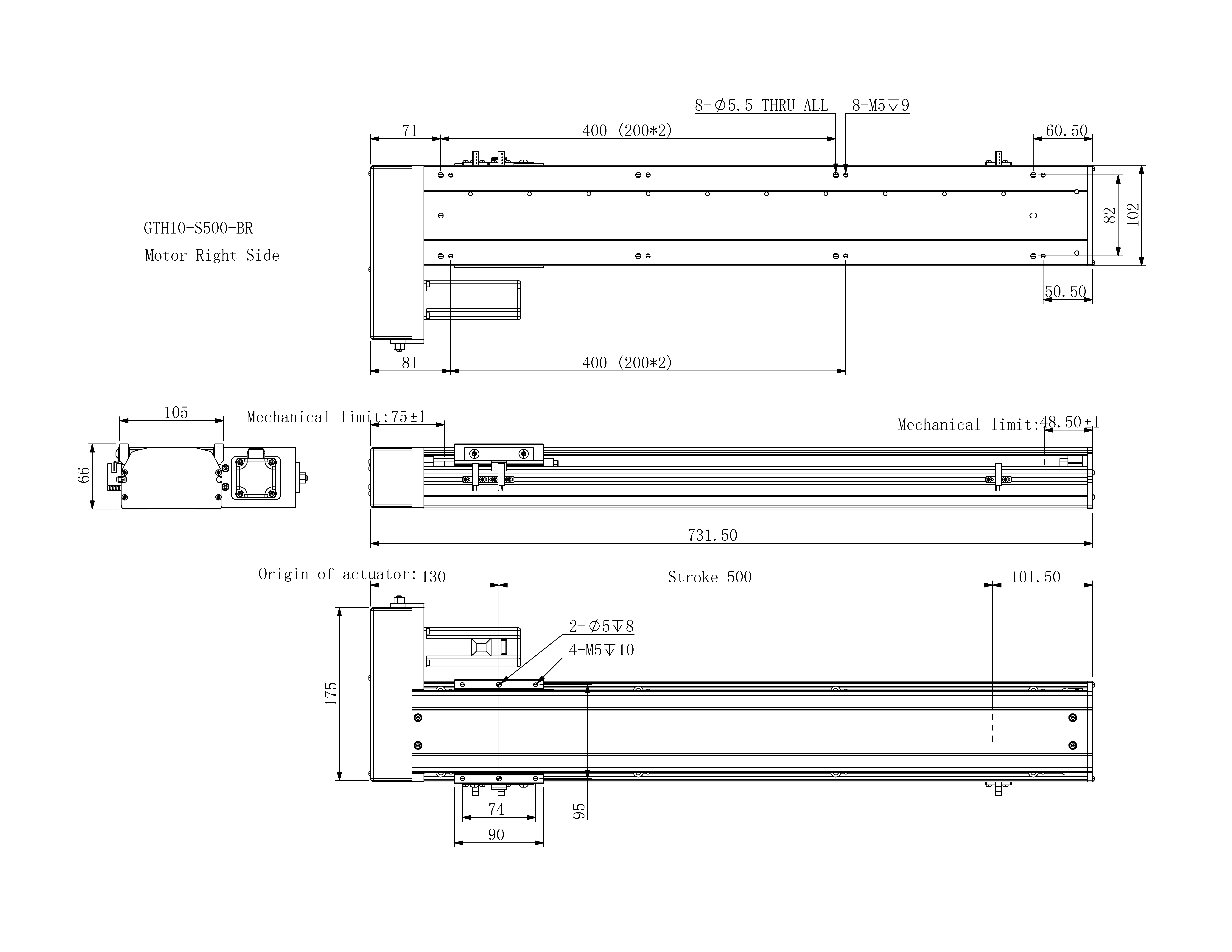

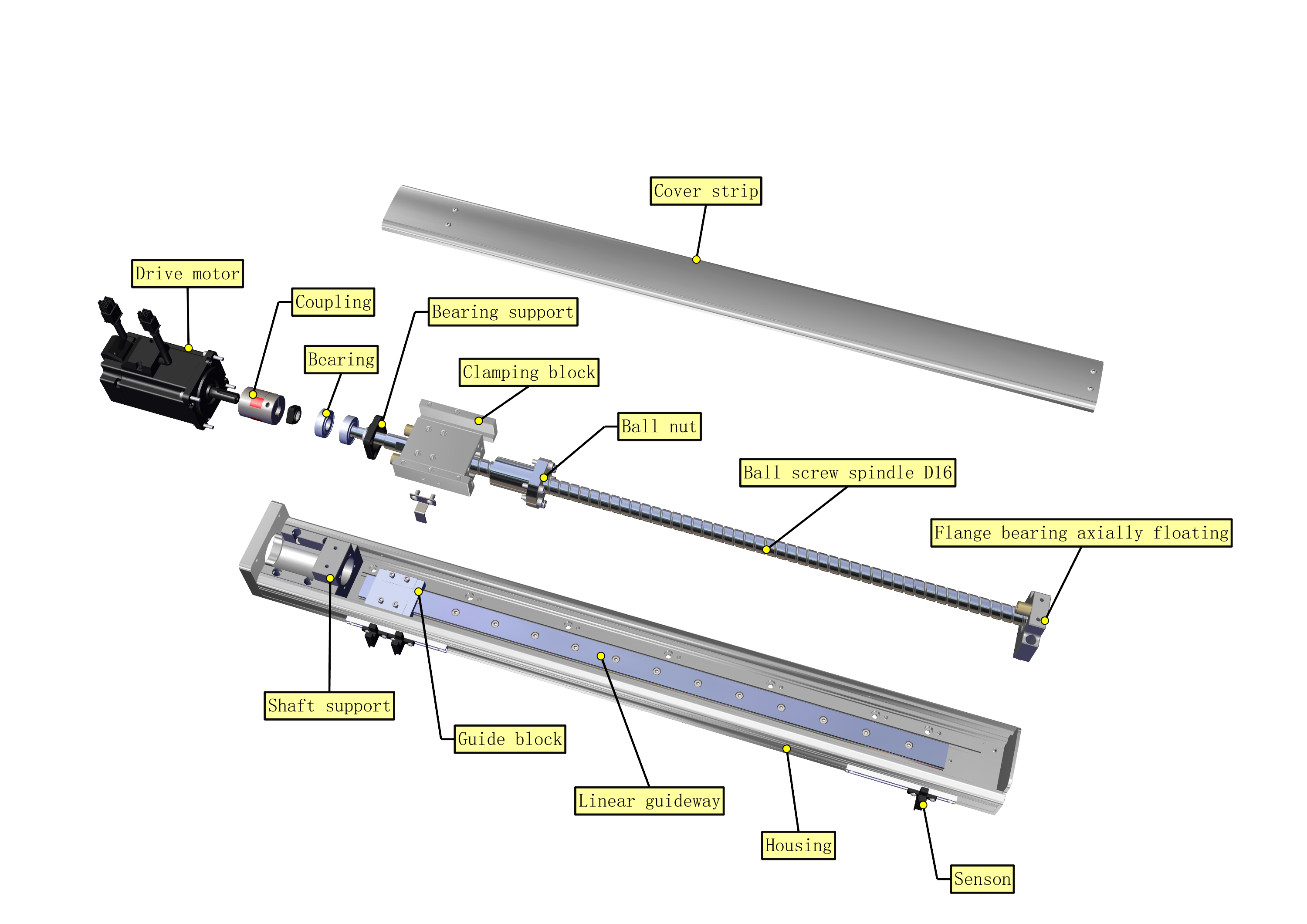

| Parts | Ac servo Motor output (W) | 100 | ||||
| Ball screw diameter φ(mm) | C7 φ16 | |||||
| High Rigidity Linear Guide(mm) | 20x15.5 | |||||
| Coupling(mm) | 8x10 | |||||
| Home sensor | Outside | Omoron EE-sx672(NPN) | ||||
| Inside | Omoron EE-sx674(NPN) | |||||

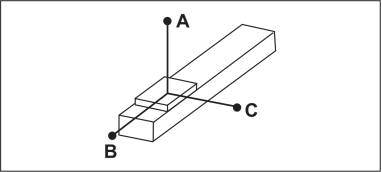

| Allowable Overhang （N.M) | ||||
| Horizontal Installation | A | B | C | |
| lead 5 | 30kg | 547 | 24 | 42 |
| 40kg | 391 | 29 | 29 | |
| 50kg | 298 | 22 | 21 | |
| lead 10 | 15kg | 521 | 84 | 80 |
| 25kg | 298 | 47 | 44 | |
| 30kg | 242 | 37 | 35 | |
| lead 20 | 5kg | 675 | 224 | 193 |
| 10kg | 330 | 107 | 93 | |
| 18kg | 175 | 55 | 48 | |
| lead 32 | 3kg | 486 | 259 | 198 |
| 5kg | 288 | 152 | 116 | |
| / | / | / | / | |
| Allowable Overhang （N.M) | ||||
| Wall Installation | A | B | C | |
| lead 5 | 10kg | 52 | 53 | 670 |
| 20kg | 35 | 35 | 455 | |
| 50kg | 21 | 22 | 298 | |
| lead 10 | 10kg | 124 | 131 | 770 |
| 20kg | 58 | 61 | 382 | |
| 30kg | 35 | 37 | 242 | |
| lead 20 | 6kg | 160 | 185 | 562 |
| 12kg | 76 | 88 | 272 | |
| 18kg | 48 | 55 | 175 | |
| lead 32 | 2kg | 300 | 393 | 733 |
| 5kg | 116 | 152 | 288 | |
| / | / | / | / | |
| Allowable Overhang （N.M) | |||
| Vertical Installation | A | C | |
| lead 5 | 5kg | 310 | 310 |
| 8kg | 192 | 192 | |
| 12kg | 129 | 129 | |
| lead 10 | 4kg | 344 | 344 |
| 8kg | 172 | 172 | |
| / | / | / | |
| lead 20 | 2kg | 546 | 546 |
| 3kg | 364 | 364 | |
| / | / | / | |
Static Loading Moment ： MY=110(N.M) ; MP=110(N.M) ；MR =120(N.M).
Explore our professional linear motion actuators products featuring high-quality linear slide bearings. Our offerings are known for their affordability and exceptional cost-performance ratio, ensuring you get top-notch performance without breaking the bank

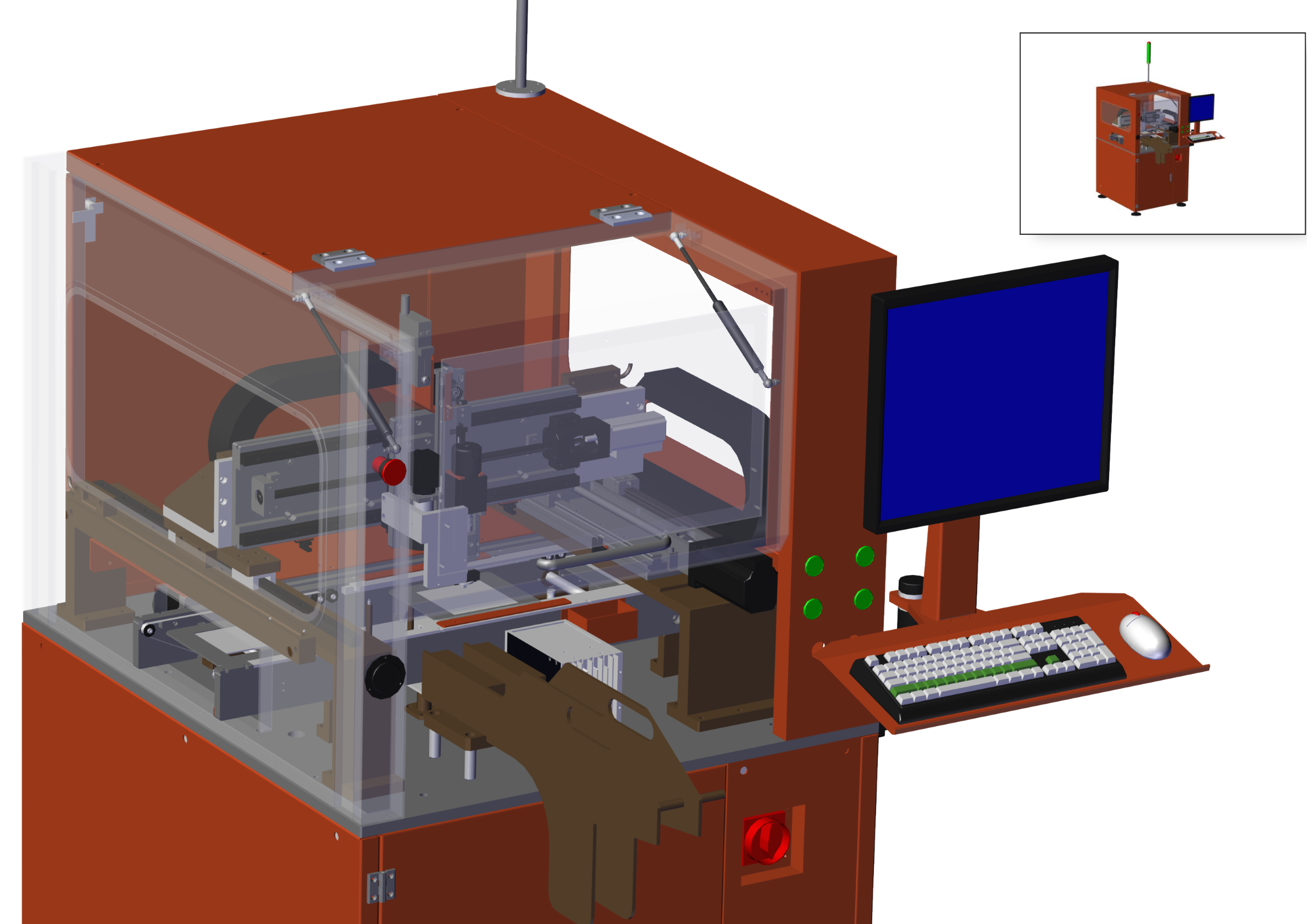

This example showcases our linear motion actuators and linear slide bearings used in assembling electronic components. It highlights their superior positioning accuracy, stability, and notable noise reduction, demonstrating their exceptional performance and advantages.
