GTH12 CGM Linear Spindle Module Linear
GTH12
CGM specializes in researching and developing Linear Spindle Modules and other linear movement products, offering high-precision linear motion solutions.
Quantity:
lines in motion，Linear Spindle Mechanism
OurCGM linear movement stands out for its outstanding performance, high-precision lines in motion, and reliable design. It provides customers with an advanced, versatile solution for linear motion, designed to meet the high demands of various industries. We are committed to delivering cutting-edge technology and excellent service to ensure our customers maintain a leading position in the competitive market.
OurCGM linear movement stands out for its outstanding performance, high-precision lines in motion, and reliable design. It provides customers with an advanced, versatile solution for linear motion, designed to meet the high demands of various industries. We are committed to delivering cutting-edge technology and excellent service to ensure our customers maintain a leading position in the competitive market.
| specification | ||||||
| Capability | Repeatability(mm) | ±0.01 | ||||
| Screw Lead(mm) | 5 | 10 | 20 | 32 | ||
| Maximum Speed(mm/s) | 250 | 500 | 1000 | 1600 | ||
| Maximum Payload | Horizontal(mm) | 50 | 30 | 18 | 5 | |
| Vertical(mm) | 12 | 8 | 3 | / | ||
| Rated Thrust(mm) | 341 | 170 | 85 | 53 | ||
| Stroke Pitch(mm) | 100-1050mm 50mm pitch | |||||
| Parts | Ac servo Motor output (W) | 200 | ||||
| Ball screw diameter φ(mm) | C7 φ16 | |||||
| High Rigidity Linear Guide(mm) | 15x12.5 | |||||
| Coupling(mm) | 10x14 | |||||
| Home sensor | Outside | Omoron EE-sx672(NPN) | ||||
| Inside | Omoron EE-sx674(NPN) | |||||
| Allowable Overhang （N.M) | ||||

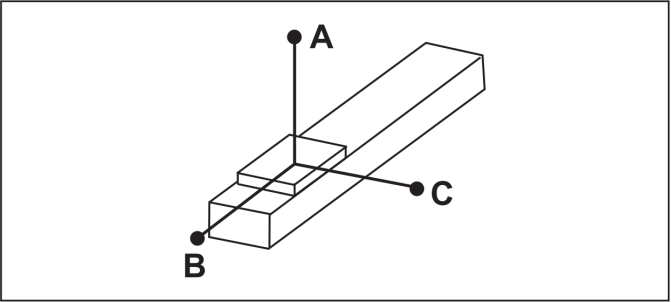

| Horizontal Installation | A | B | C | |
| lead 5 | 30kg | 882 | 65 | 78 |
| 40kg | 606 | 43 | 51 | |
| 50kg | 437 | 29 | 35 | |
| lead 10 | 15kg | 875 | 138 | 157 |
| 25kg | 485 | 73 | 83 | |
| 30kg | 386 | 56 | 64 | |
| lead 20 | 5kg | 1160 | 384 | 386 |
| 10kg | 561 | 180 | 181 | |
| 18kg | 288 | 88 | 89 | |
| lead 32 | 3kg | 822 | 444 | 385 |
| 5kg | 492 | 255 | 224 | |
| / | / | / | / | |
| Allowable Overhang （N.M) | ||||

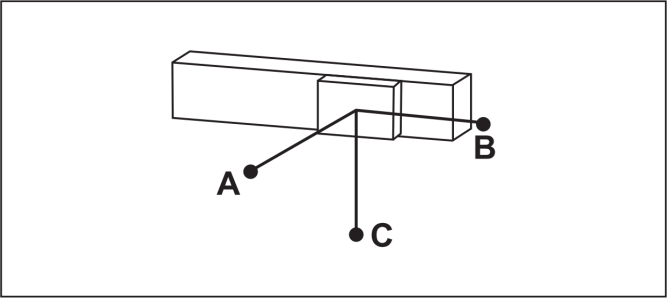

| Wall Installation | A | B | C | |
| lead 5 | 25kg | 100 | 84 | 1102 |
| 35kg | 63 | 52 | 725 | |
| 50kg | 35 | 29 | 433 | |
| lead 10 | 10kg | 250 | 221 | 1311 |
| 20kg | 110 | 97 | 633 | |
| 30kg | 64 | 56 | 385 | |
| lead 20 | 6kg | 317 | 316 | 955 |
| 12kg | 147 | 144 | 455 | |
| 18kg | 89 | 88 | 288 | |
| lead 32 | 2kg | 591 | 682 | 1256 |
| 5kg | 224 | 255 | 488 | |
| / | / | / | / | |
| Allowable Overhang （N.M) | |||
| Vertical Installation | A | C | |
| lead 5 | 5kg | 544 | 544 |
| 8kg | 341 | 341 | |
| 12kg | 227 | 227 | |
| lead 10 | 4kg | 606 | 606 |
| 8kg | 303 | 303 | |
| / | / | / | |
| lead 20 | 2kg | 961 | 961 |
| 3kg | 639 | 639 | |
| / | / | / | |
Static Loading Moment MY=110(N.M) ; MP=120(N.M) ； MR =120(N.M).
Experience the excellence of our lines in motion products, offering superior positioning accuracy and affordability. Our commitment to service and professionalism shines through in our highly integrated product design, ensuring easy maintenance and simple installation for your convenience.
