GTH17M Linear Spindle axes
GTH17M
CGM high-precision, dust-resistant ball screw stage mechanical module. With exceptional technology assurance, worry-free precise control. Comprehensive dust-resistant design creates a clean, efficient working environment, showcasing outstanding performance.
Quantity:
This series of screw mechanical modules is characterized by high precision and stability. The screw-driven modules easily meet the demands for high-precision applications, ensuring stable operation to guarantee the lifespan and assembly quality of screws and sliders. Primarily applied in automated fields such as work positioning, gripping, handling, insertion, electronic component assembly, and positioning of circuit boards and wafer boxes. Widely utilized by diverse industries in the automation sector. For specific details, please refer to the description below.
| specification | ||||||
| Capability | Repeatability(mm) | ±0.01 | ||||
| Screw Lead(mm) | 5 | 10 | 20 | 32 | ||
| Maximum Speed(mm/s) | 200 | 400 | 800 | 1280 | ||
| Maximum Payload | Horizontal(mm) | 120 | 95 | 50 | 35 | |
| Vertical(mm) | 40 | 25 | 15 | 12 | ||
| Rated Thrust(mm) | 2563 | 1281 | 640 | 400 | ||
| Stroke Pitch(mm) | 800-2200mm 50mm pitch | |||||
| Parts | Ac servo Motor output (W) | 750 | ||||
| Ball screw diameter φ(mm) | C7 φ16 | |||||
| High Rigidity Linear Guide(mm) | 20x15.5 | |||||
| Coupling(mm) | 12x14 | |||||
| Home sensor | Outside | Omoron EE-sx672(NPN) | ||||

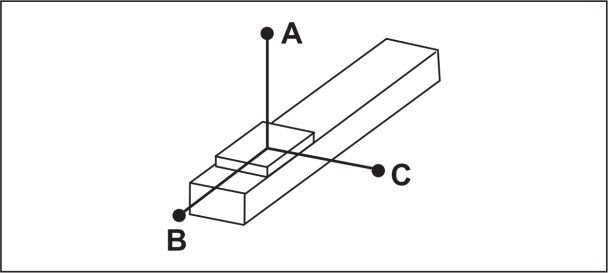

| Allowable Overhang （N.M) | ||||
| Horizontal Installation | A | B | C | |
| lead 5 | 70kg | 2092 | 162 | 208 |
| 90kg | 1555 | 117 | 149 | |
| 120kg | 1080 | 78 | 100 | |
| lead 10 | 60kg | 1107 | 172 | 208 |
| 75kg | 848 | 130 | 156 | |
| 95kg | 637 | 94 | 114 | |
| lead 20 | 20kg | 1498 | 491 | 520 |
| 30kg | 973 | 313 | 334 | |
| 50kg | 550 | 172 | 182 | |
| lead 32 | 10kg | 1311 | 692 | 625 |
| 20kg | 633 | 326 | 195 | |
| 35kg | 339 | 169 | 156 | |
| Allowable Overhang （N.M) | ||||
| Wall Installation | A | B | C | |
| lead 5 | 75kg | 190 | 148 | 1191 |
| 95kg | 140 | 108 | 1450 | |
| 120kg | 100 | 78 | 1080 | |
| lead 10 | 60kg | 188 | 156 | 1008 |
| 80kg | 144 | 119 | 788 | |
| 95kg | 114 | 94 | 637 | |
| lead 20 | 25kg | 408 | 382 | 1180 |
| 35kg | 280 | 262 | 825 | |
| 50kg | 182 | 172 | 550 | |
| lead 32 | 15kg | 408 | 449 | 860 |
| 25kg | 320 | 252 | 495 | |
| 35kg | 156 | 169 | 339 | |

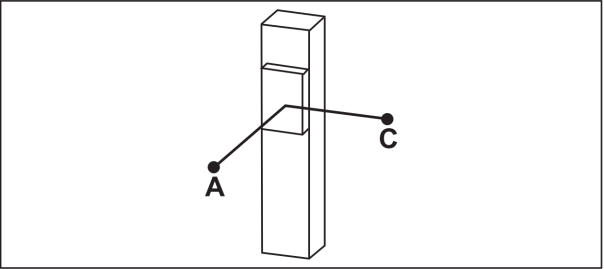

| Allowable Overhang （N.M) | |||
| Vertical Installation | A | C | |
| lead 5 | 15kg | 940 | 970 |
| 22kg | 640 | 640 | |
| 40kg | 350 | 350 | |
| lead 10 | 10kg | 1248 | 1248 |
| 14kg | 894 | 894 | |
| 25kg | 499 | 499 | |
| lead 20 | 7kg | 1417 | 1417 |
| 10kg | 993 | 993 | |
| 15kg | 660 | 660 | |
| lead 32 | 5kg | 1255 | 1255 |
| 8kg | 785 | 785 | |
| 12kg | 525 | 525 | |
Static Loading Moment： MY=552(N.M)；MP=552(N.M)； MR=638(N.M).
