GTH22 linear spindle mechanical module
GTH22
CGM's compact mechanical module ingeniously integrates the motor and drive system, sensors, and a mechanical structure comprising gears, connecting rods, bearings, and other mechanical components. This forms an efficient physical framework that coordinates motion and achieves various functions.
Quantity:
Technical Introduction to the Linear Spindle Module
Our Linear Spindle Module stands out for its outstanding performance, high-precision linear motion, and reliable design, establishing an advanced and versatile solution for linear motion. This innovative design aims to meet the urgent demands for high performance across various industries, emphasizing the key features of the Linear Spindle Mechanism. We are committed to providing cutting-edge technology and excellent service, ensuring our customers maintain a leading position in the fiercely competitive market. The module incorporates a powerful 400W servo motor, ensuring stability and reliability in motion.
Our Linear Spindle Module stands out for its outstanding performance, high-precision linear motion, and reliable design, establishing an advanced and versatile solution for linear motion. This innovative design aims to meet the urgent demands for high performance across various industries, emphasizing the key features of the Linear Spindle Mechanism. We are committed to providing cutting-edge technology and excellent service, ensuring our customers maintain a leading position in the fiercely competitive market. The module incorporates a powerful 400W servo motor, ensuring stability and reliability in motion.

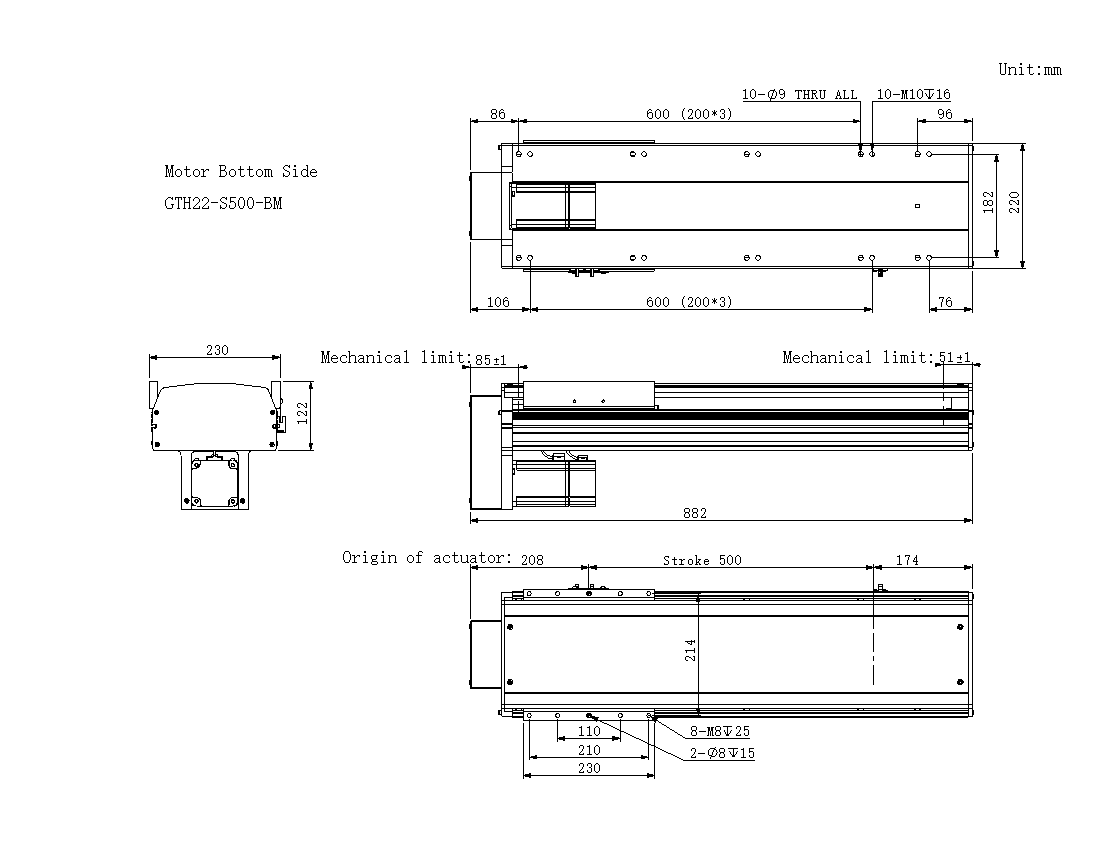

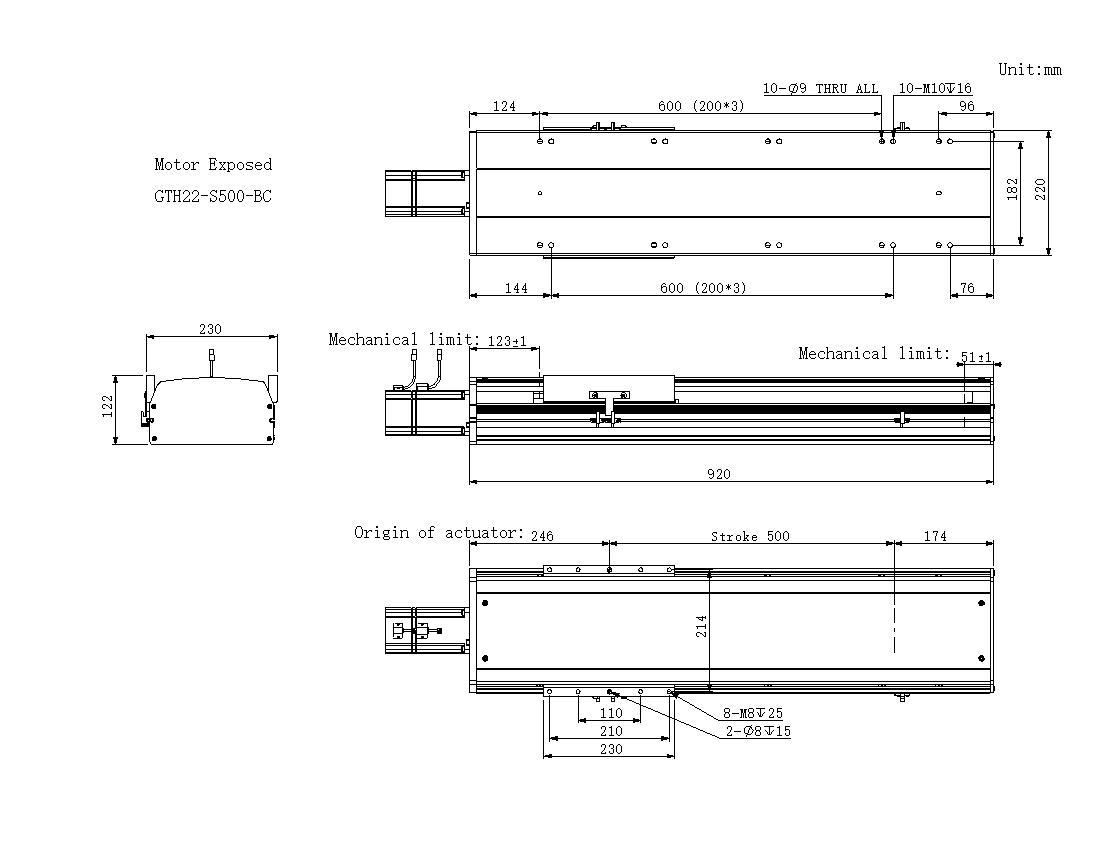

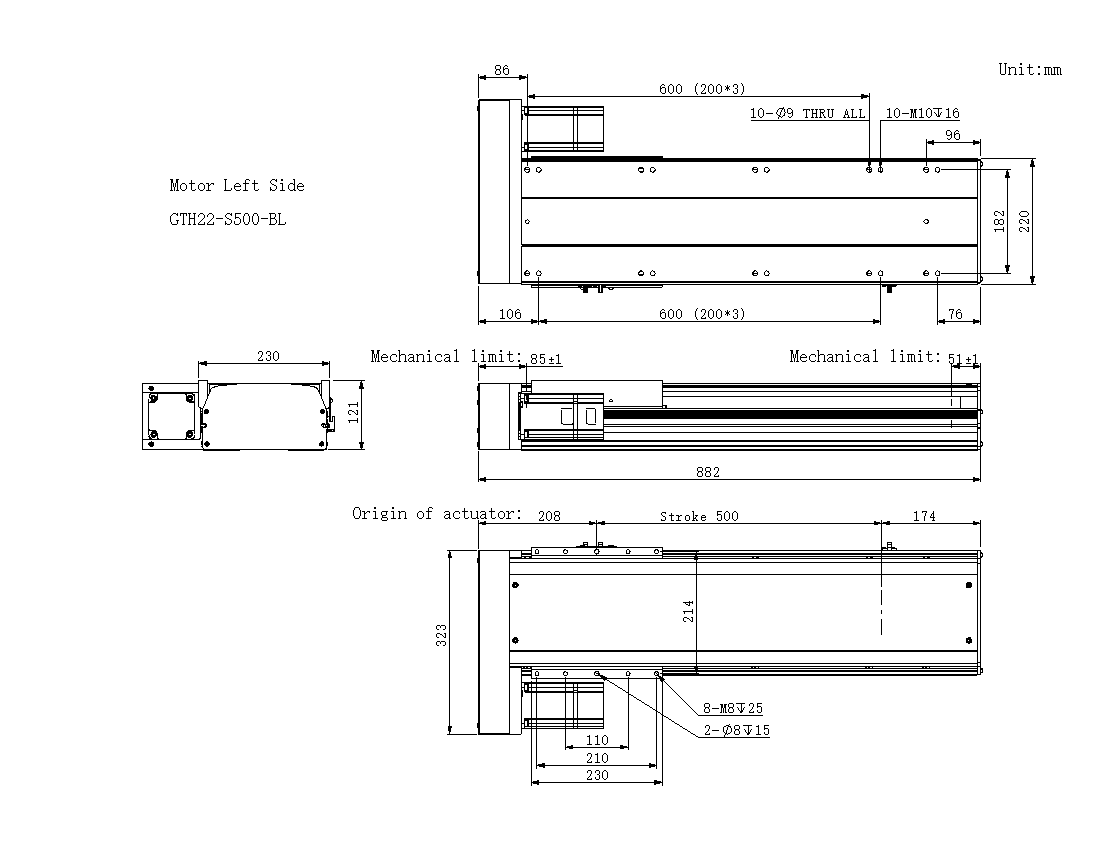

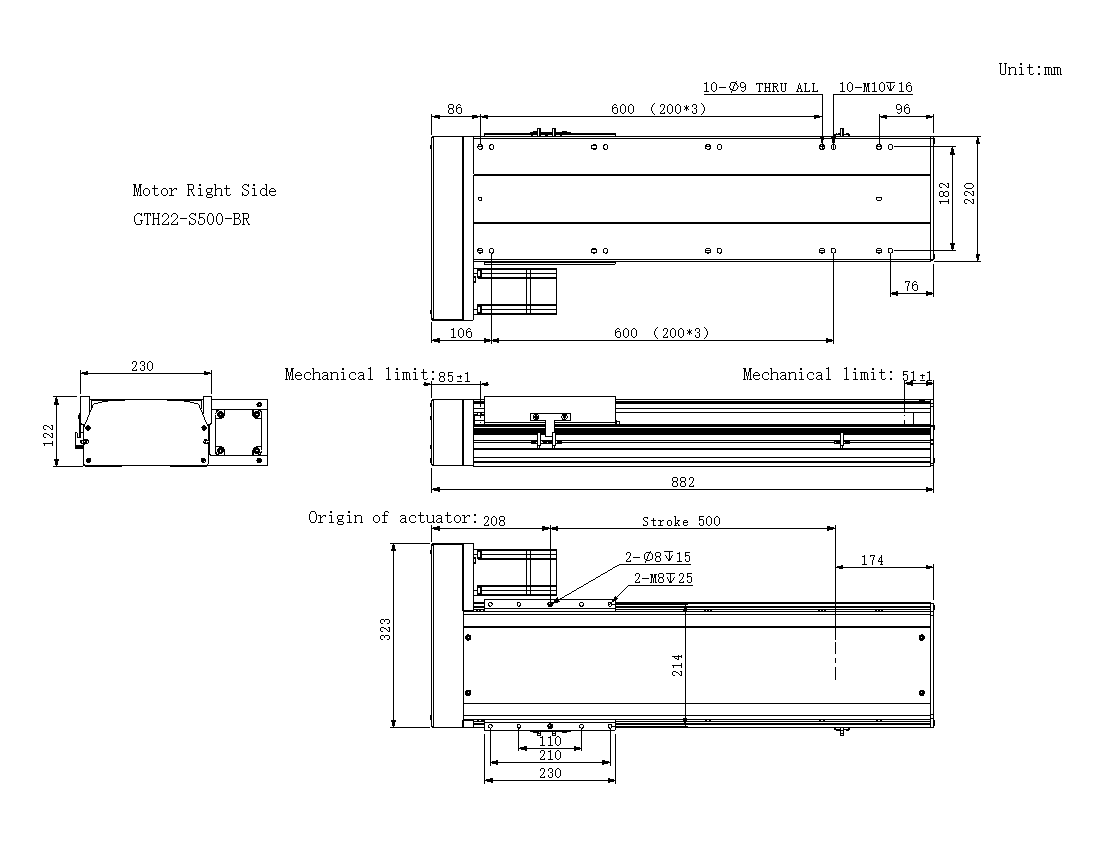

Technical Specifications
Please refer to the table below for detailed technical specifications of our Linear Spindle Module:
Please refer to the table below for detailed technical specifications of our Linear Spindle Module:
| specification | ||||||
| Capability | Repeatability(mm) | ±0.01 | ||||
| Screw Lead(mm) | 5 | 10 | 20 | 40 | ||
| Maximum Speed(mm/s) | 200 | 400 | 800 | 1600 | ||
| Maximum Payload | Horizontal(mm) | 130 | 130 | 85 | 43 | |
| Vertical(mm) | 50 | 40 | 25 | 12 | ||
| Rated Thrust(mm) | 2563 | 1281 | 640 | 320 | ||
| Stroke Pitch(mm) | 850-2400mm 50mm pitch | |||||
| Parts | Ac servo Motor output (W) | 750 | ||||
| Ball screw diameter φ(mm) | C7 φ20 | |||||
| High Rigidity Linear Guide(mm) | 23x18 | |||||
| Coupling(mm) | 12x19 | |||||
| Home sensor | Outside | Omoron EE-sx672(NPN) | ||||

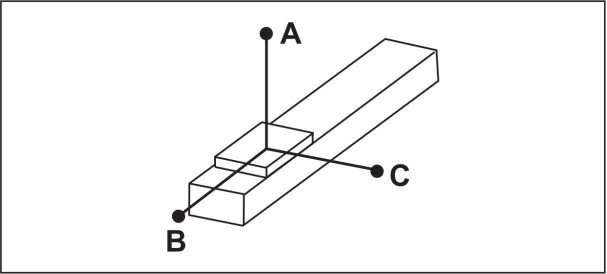

| Allowable Overhang （N.M) | ||||
| Horizontal Installation | A | B | C | |
| lead 5 | 80kg | 3311 | 411 | 403 |
| 100kg | 2534 | 320 | 308 | |
| 130kg | 2113 | 228 | 221 | |
| lead 10 | 70kg | 2700 | 430 | 394 |
| 90kg | 2022 | 320 | 294 | |
| 130kg | 1311 | 198 | 184 | |
| lead 20 | 40kg | 2044 | 662 | 558 |
| 60kg | 1316 | 417 | 352 | |
| 85kg | 886 | 272 | 231 | |
| lead 40 | 20kg | 1180 | 766 | 533 |
| 25kg | 927 | 599 | 418 | |
| 43kg | 510 | 318 | 224 | |

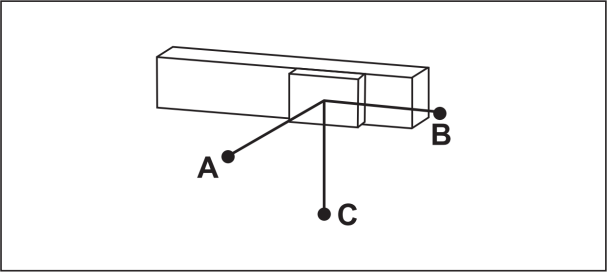

| Allowable Overhang （N.M) | ||||
| Wall Installation | A | B | C | |
| lead 5 | 85kg | 370 | 288 | 3066 |
| 105kg | 288 | 299 | 2389 | |
| 130kg | 221 | 228 | 2113 | |
| lead 10 | 75kg | 368 | 398 | 2515 |
| 95kg | 277 | 300 | 1926 | |
| 130kg | 184 | 198 | 1328 | |
| lead 20 | 45kg | 490 | 582 | 1805 |
| 65kg | 321 | 381 | 1204 | |
| 85kg | 231 | 272 | 886 | |
| lead 40 | 25kg | 418 | 601 | 930 |
| 35kg | 286 | 408 | 644 | |
| 43kg | 224 | 318 | 510 | |

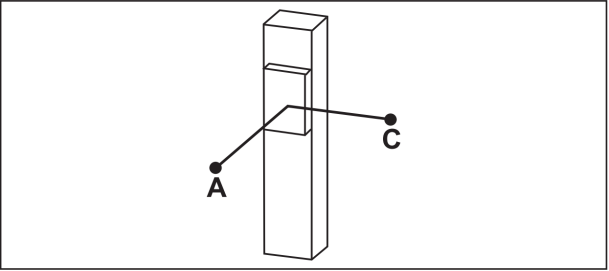

| Allowable Overhang （N.M) | |||
| Vertical Installation | A | C | |
| lead 5 | 30kg | 1301 | 1301 |
| 40kg | 977 | 977 | |
| 50kg | 781 | 781 | |
| lead 10 | 20kg | 1735 | 1735 |
| 30kg | 1156 | 1156 | |
| 40kg | 867 | 867 | |
| lead 20 | 15kg | 1835 | 1835 |
| 20kg | 1376 | 1376 | |
| 25kg | 1101 | 1101 | |
| lead 40 | 7kg | 1943 | 1943 |
| 12kg | 1133 | 1133 | |
| / | / | / | |
MY=1254(N.M) ; MP=1254(N.M) ； MR =908(N.M).
