GTH22M Linear Spindle axes
GTH22M
Looking for top-quality motorized linear stages? Our company specializes in the professional production of motorized linear stages, delivering unparalleled precision and highly concentrated design. Explore our range of products designed to meet your exacting requirements for accuracy and performance.
Quantity:
This series of motorized linear stages is characterized by high precision and stability. The screw-driven modules easily meet the demands for high-precision applications, ensuring stable operation to guarantee the lifespan and assembly quality of screws and sliders. Primarily applied in automated fields such as work positioning, gripping, handling, insertion, electronic component assembly, and positioning of circuit boards and wafer boxes. Widely utilized by diverse industries in the automation sector. For specific details, please refer to the description below. （motorized linear stages）
| specification | ||||||
| Capability | Repeatability(mm) | ±0.01 | ||||
| Screw Lead(mm) | 5 | 10 | 25 | 40 | ||
| Maximum Speed(mm/s) | 250 | 500 | 1250 | 2000 | ||
| Maximum Payload | Horizontal(mm) | 150 | 150 | 105 | 43 | |
| Vertical(mm) | 55 | 45 | 20 | 12 | ||
| Rated Thrust(mm) | 2565 | 1281 | 640 | 320 | ||
| Stroke Pitch(mm) | 100-1250mm 50mm pitch | |||||
| Parts | Ac servo Motor output (W) | 750 | ||||
| Ball screw diameter φ(mm) | C7 φ25 | C7 φ20 | ||||
| High Rigidity Linear Guide(mm) | 23x18 | |||||
| Coupling(mm) | 17x19 | 12x19 | ||||
| Home sensor | Outside | Omoron EE-sx672(NPN) | ||||
| Inside | Omoron EE-sx674(NPN) | |||||

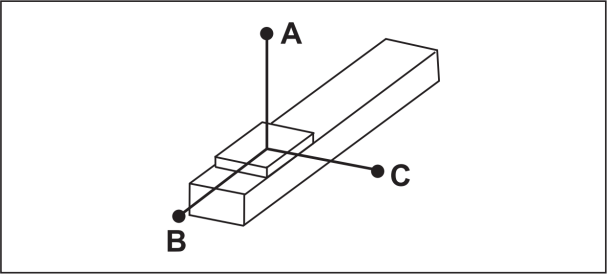

| Allowable Overhang （N.M) | ||||
| Horizontal Installation | A | B | C | |
| lead 5 | 100kg | 5000 | 633 | 577 |
| 125kg | 3880 | 491 | 431 | |
| 150kg | 3357 | 396 | 347 | |
| lead 10 | 100kg | 3220 | 563 | 474 |
| 125kg | 2554 | 434 | 367 | |
| 150kg | 2113 | 349 | 295 | |
| lead 25 | 65kg | 1522 | 614 | 458 |
| 85kg | 1136 | 451 | 336 | |
| 105kg | 893 | 350 | 262 | |
| lead 40 | 18kg | 2445 | 1616 | 1052 |
| 30kg | 1436 | 938 | 613 | |
| 43kg | 978 | 630 | 412 | |
| Allowable Overhang （N.M) | ||||
| Wall Installation | A | B | C | |
| lead 5 | 110kg | 500 | 569 | 4500 |
| 130kg | 412 | 469 | 3711 | |
| 150kg | 347 | 396 | 3357 | |
| lead 10 | 110kg | 427 | 503 | 2900 |
| 130kg | 351 | 414 | 2444 | |
| 150kg | 295 | 349 | 2113 | |
| lead 25 | 70kg | 420 | 564 | 1404 |
| 90kg | 315 | 420 | 1066 | |
| 105kg | 262 | 350 | 893 | |
| lead 40 | 15kg | 1272 | 1955 | 2948 |
| 24kg | 778 | 1190 | 1813 | |
| 43kg | 412 | 630 | 978 | |
| Allowable Overhang （N.M) | |||
| Vertical Installation | A | C | |
| lead 5 | 30kg | 2355 | 2355 |
| 40kg | 1768 | 1768 | |
| 55kg | 1288 | 1288 | |
| lead 10 | 25kg | 2505 | 2505 |
| 35kg | 1795 | 1795 | |
| 45kg | 1396 | 1396 | |
| lead 25 | 15kg | 2711 | 2711 |
| 20kg | 2033 | 2033 | |
| / | / | / | |
| lead 40 | 7kg | 3511 | 3511 |
| 12kg | 2055 | 2055 | |
| / | / | / | |
Static Loading Moment： MY=2052(N.M)；MP=2052(N.M)； MR=1810(N.M).

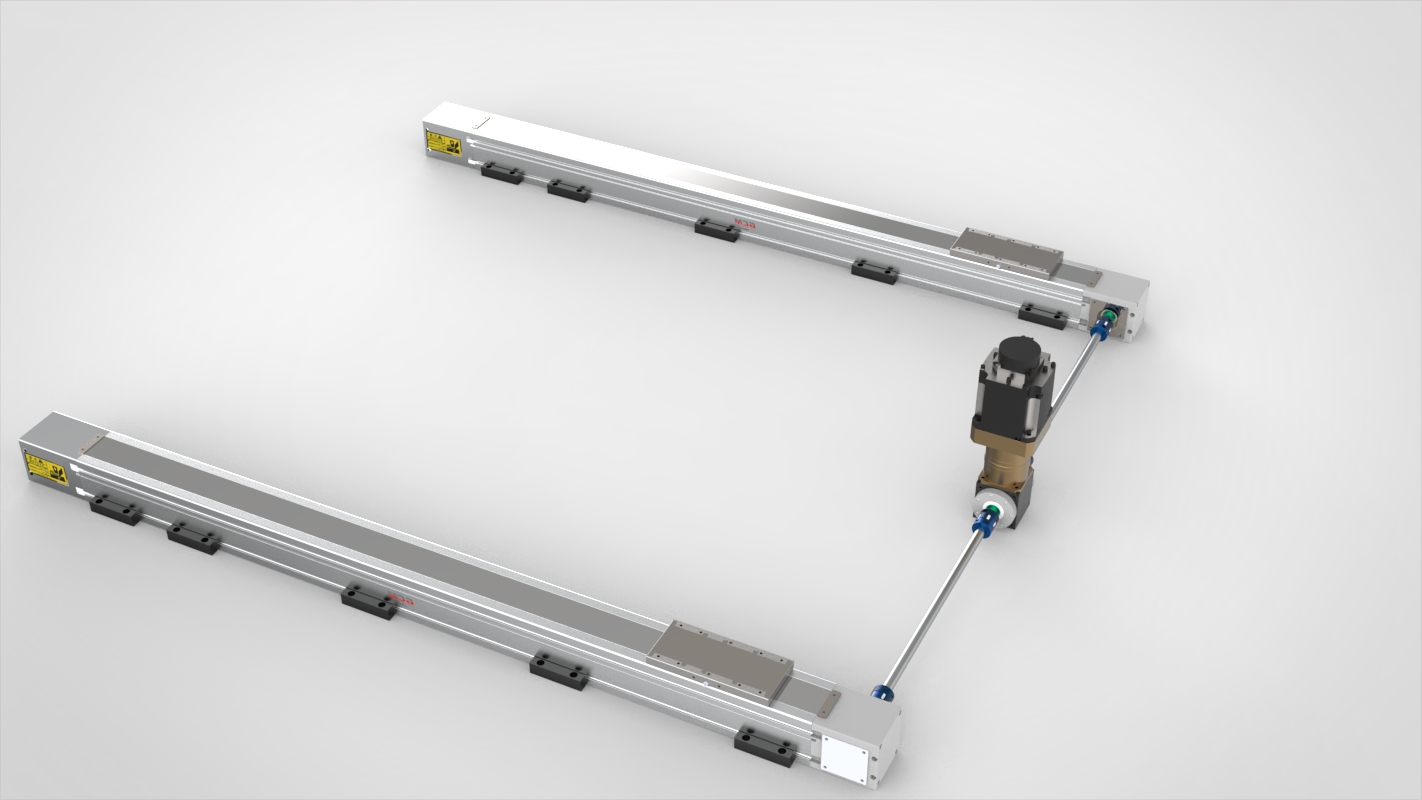

This example highlights the application of motorized linear stages in synchronous drive shafts. Using two motorized linear stages combined and driven by servo motors enables synchronized operation, enhancing mechanical parameters such as torque.
Our motorized linear stages can be customized with various driving methods, including servo motor drive or stepper motor drive, to meet customer requirements for precision, speed, and force.
