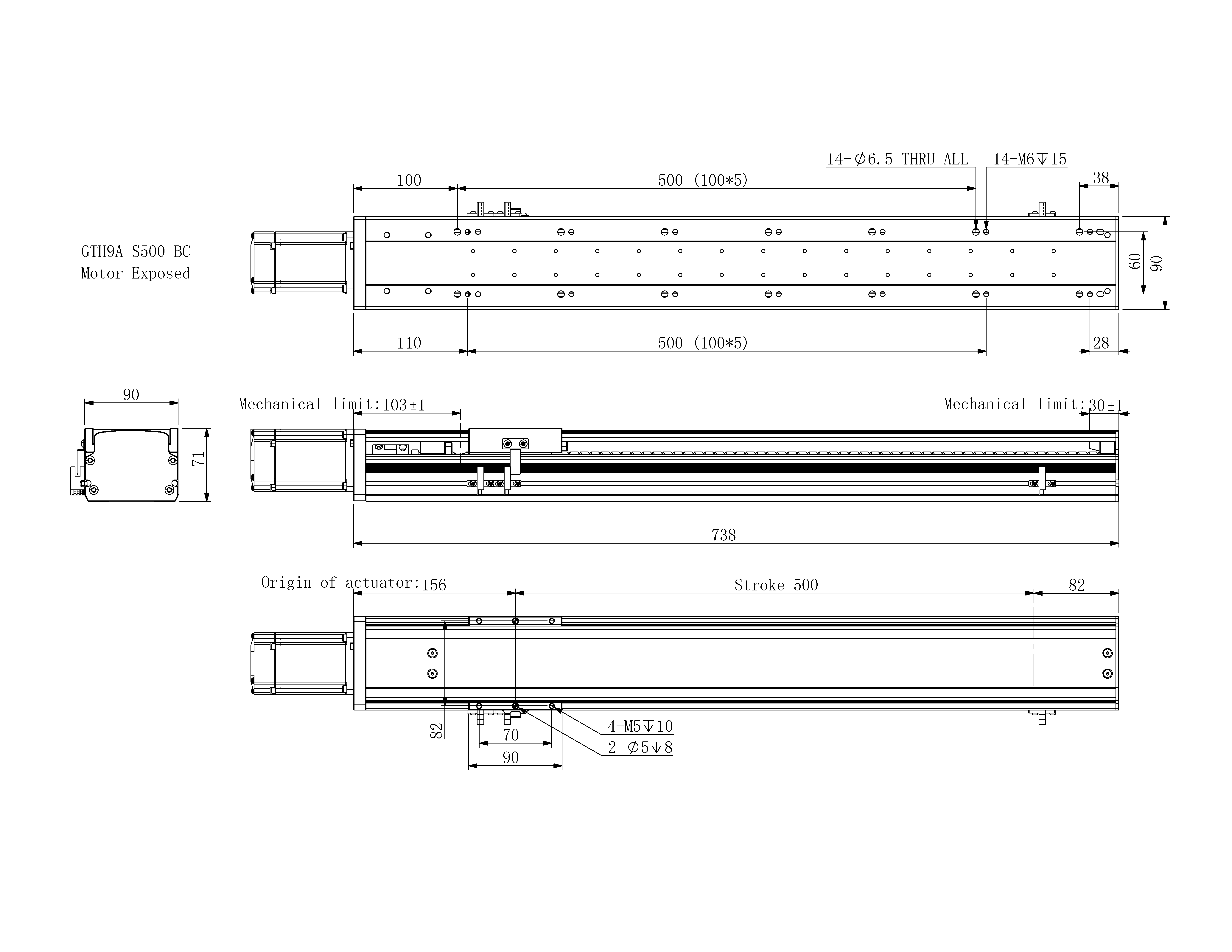

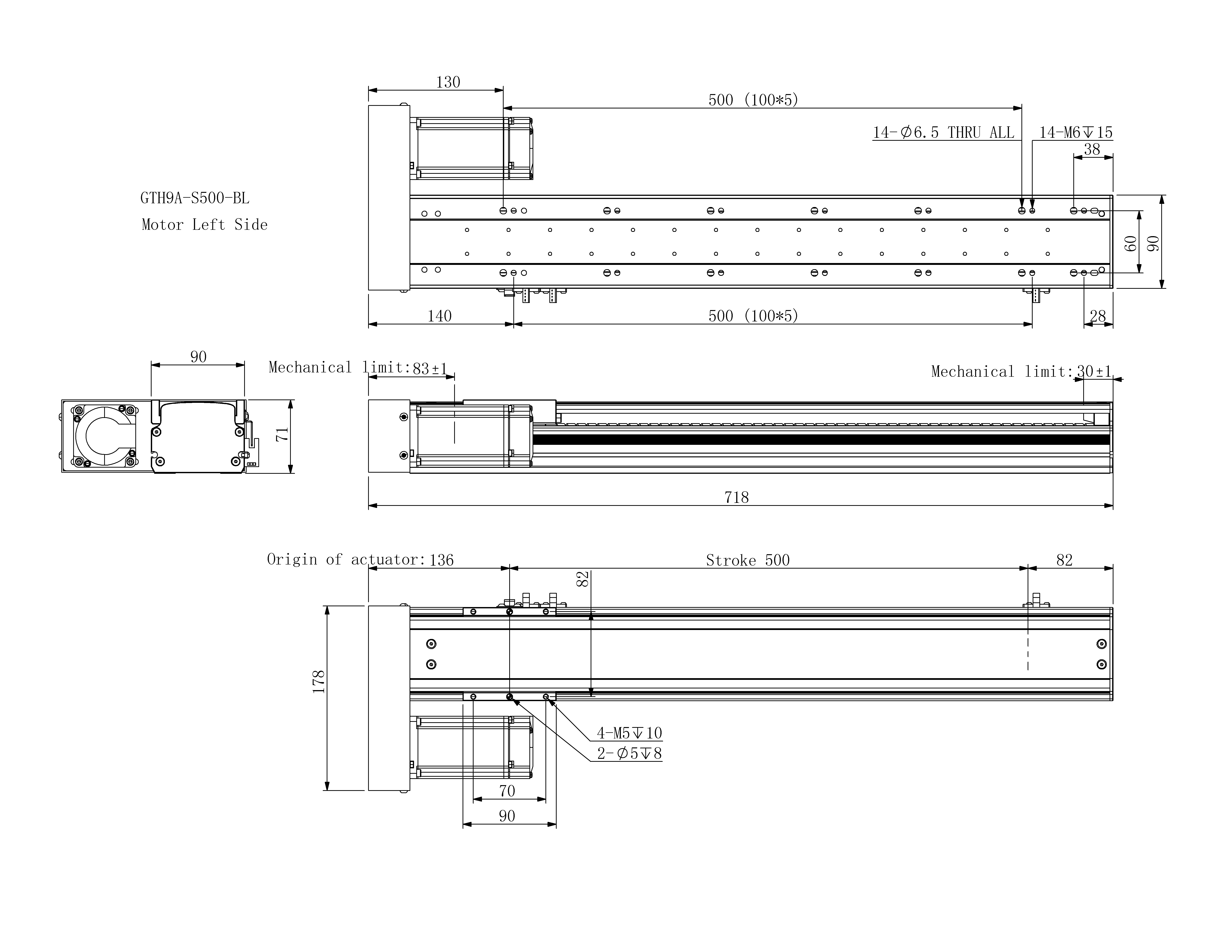

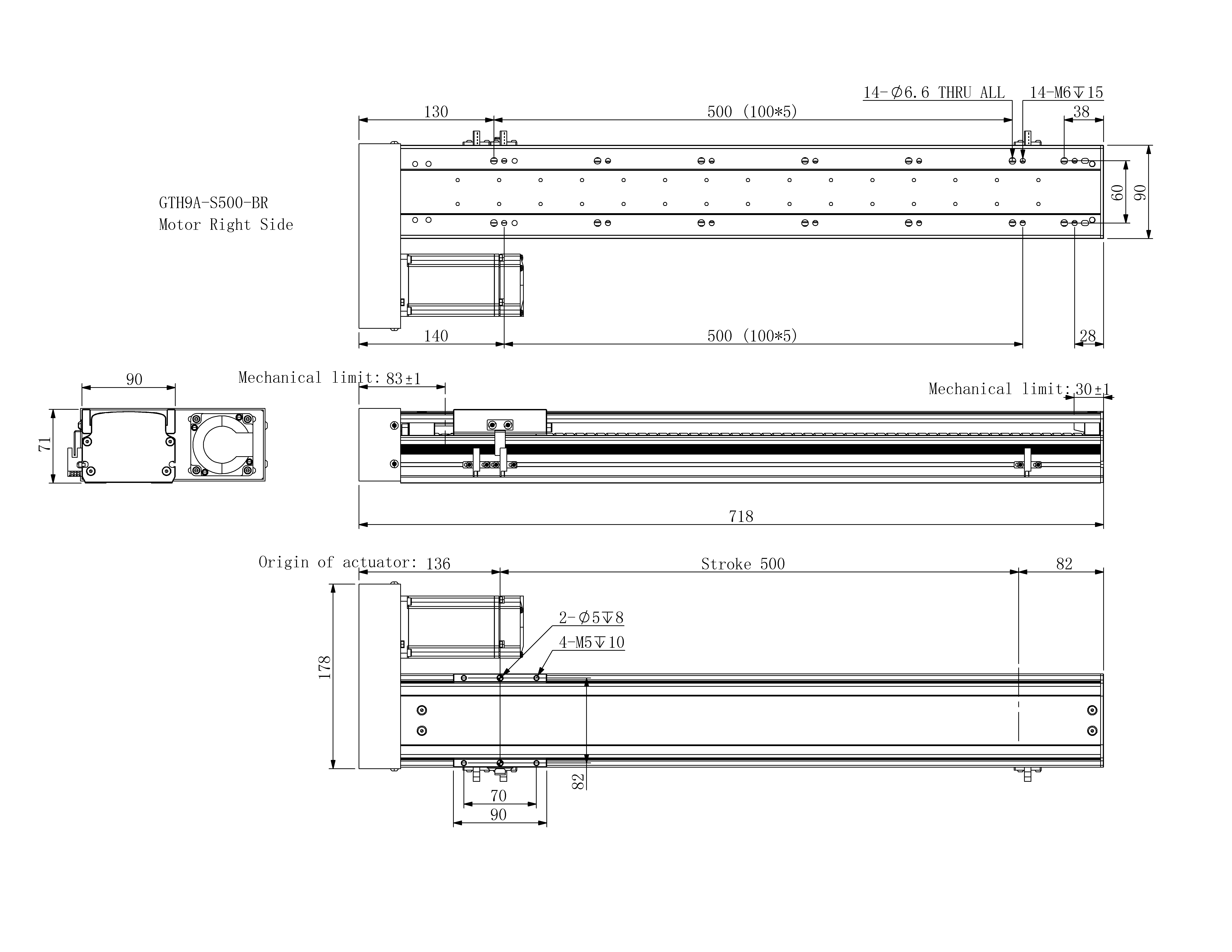

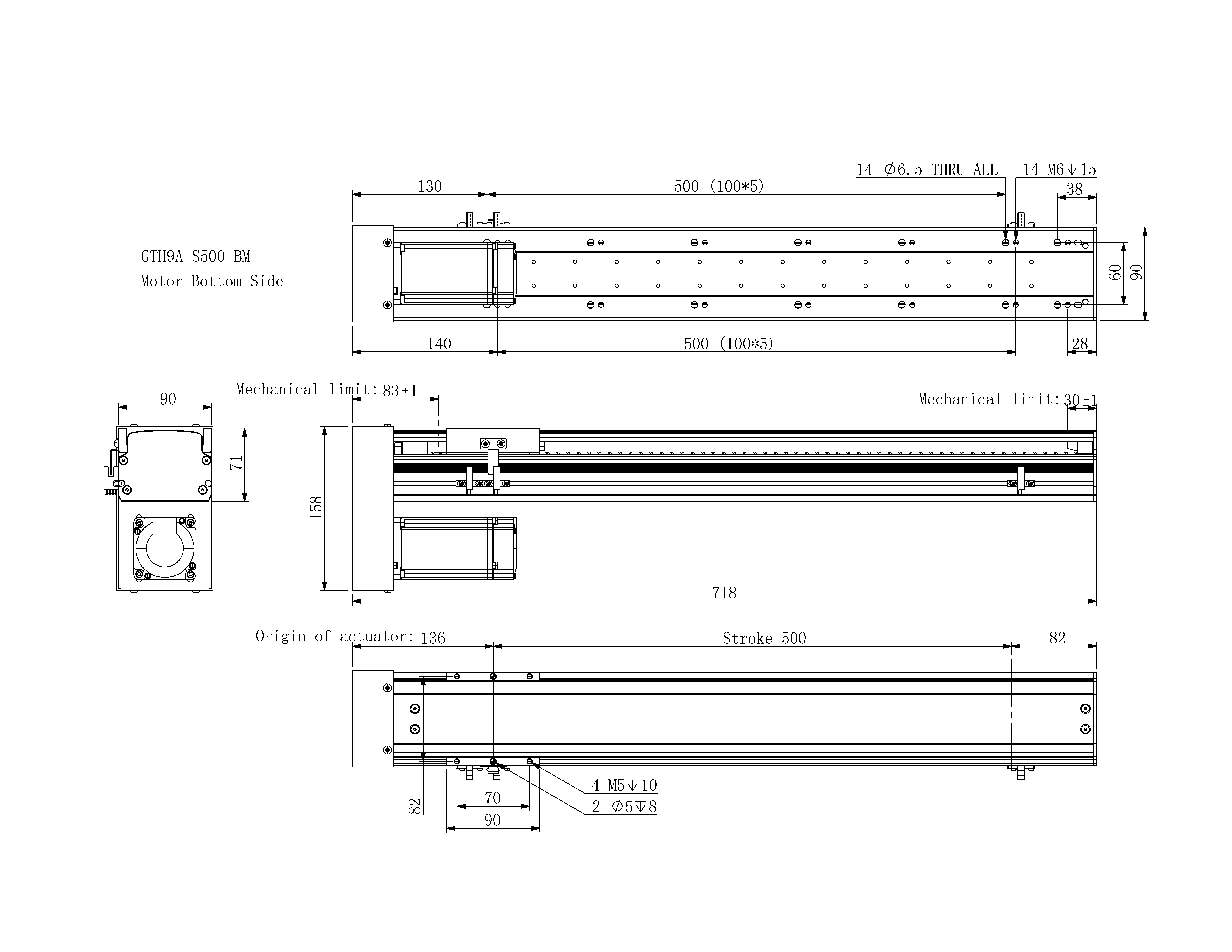

GTH9A linear spindle mechanical module
GTH9A
CGM's pride lies in its series of compact high-precision mechanical modules, featuring key components named Linear Spindle Module and Linear Spindle Mechanism. This module series is equipped with a robust 200W servo motor and integrates various axis control functions, providing rapid response and outstanding positioning accuracy. These key features endow users with excellent performance and comprehensive operational advantages.
Quantity:
CGM's pride lies in its series of compact high-precision mechanical modules, featuring key components named Linear Spindle Module and Linear Spindle Mechanism. This module series is equipped with a robust 200W servo motor and integrates various axis control functions, providing rapid response and outstanding positioning accuracy. These key features endow users with excellent performance and comprehensive operational advantages.
| specification | ||||||
| Capability | Repeatability(mm) | ±0.01 | ||||
| Screw Lead(mm) | 5 | 10 | 20 | 32 | ||
| Maximum Speed(mm/s) | 250 | 500 | 1000 | 1600 | ||
| Maximum Payload | Horizontal(mm) | 40 | 32 | 18 | 12 | |
| Vertical(mm) | 16 | 8 | 5 | 3 | ||
| Rated Thrust(mm) | 339 | 168 | 123 | 85 | ||
| Stroke Pitch(mm) | 100-1000mm 50mm pitch | |||||

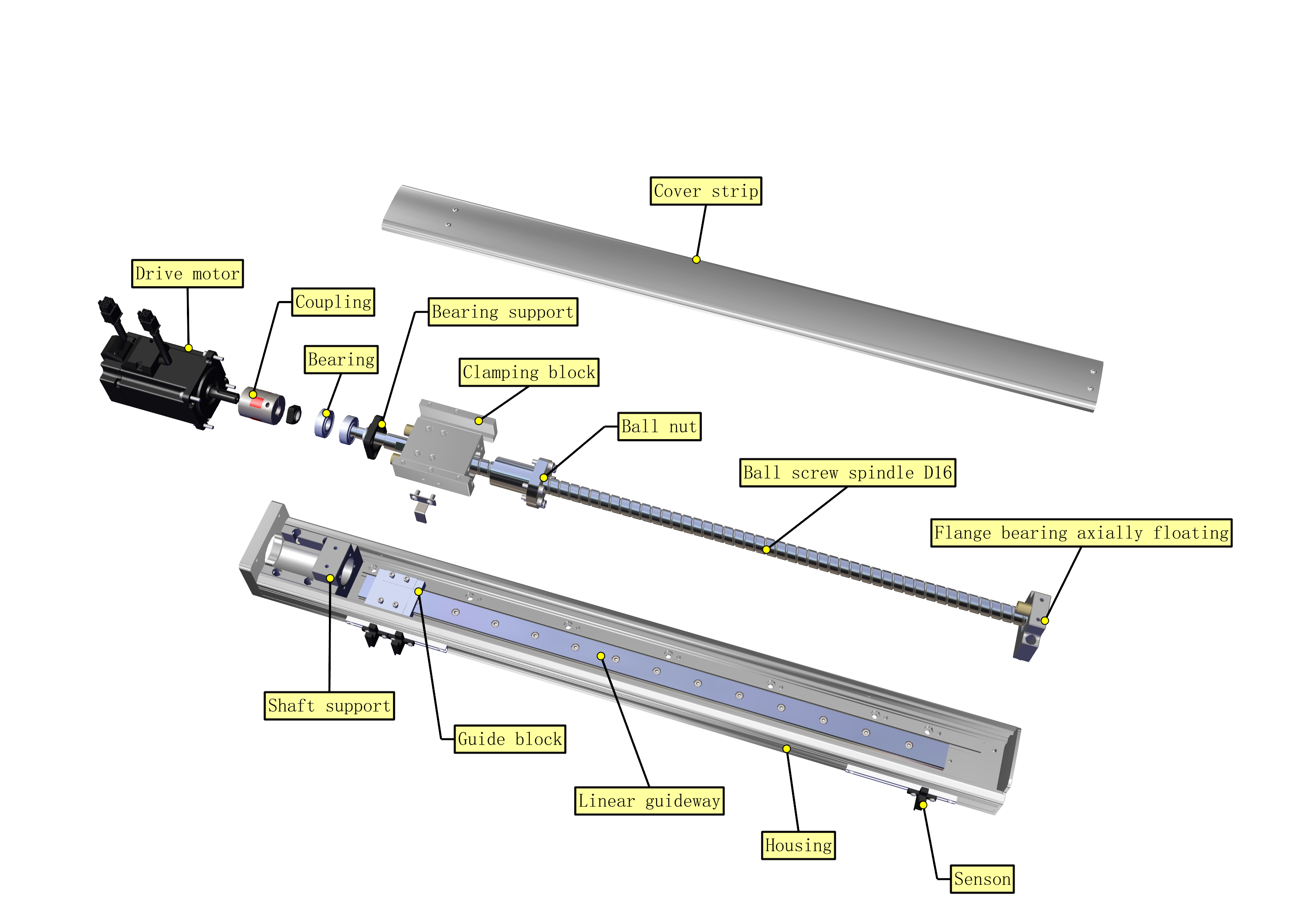

| Parts | Ac servo Motor output (W) | 200 | ||||
| Ball screw diameter φ(mm) | C7 φ16 | |||||
| High Rigidity Linear Guide(mm) | 42x9.5 | |||||
| Coupling(mm) | 10x14 | |||||
| Home sensor | Outside | Omoron EE-sx672(NPN) | ||||
| Allowable Overhang （N.M) | ||||

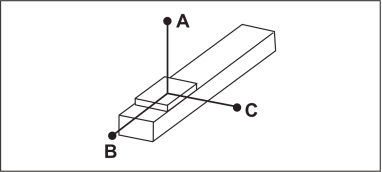

| Horizontal Installation | A | B | C | |
| lead 5 | 30kg | 424 | 24 | 25 |
| 50kg | 0 | 0 | 0 | |
| / | / | / | / | |
| lead 10 | 15kg | 394 | 76 | 79 |
| 25kg | 184 | 22 | 25 | |
| 30kg | 111 | / | / | |
| lead 20 | 5kg | 937 | 282 | 259 |
| 10kg | 487 | 121 | 116 | |
| 22kg | 236 | 40 | 44 | |
| lead 32 | 5kg | 940 | 285 | 264 |
| 10kg | 490 | 125 | 120 | |
| 15kg | 240 | 45 | 48 | |
| Allowable Overhang （N.M) | ||||

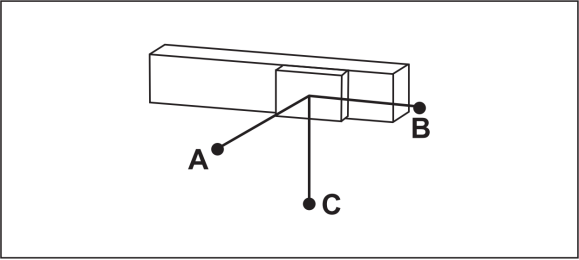

| Wall Installation | A | B | C | |
| lead 5 | 10kg | 105 | 50 | 1400 |
| 20kg | 22 | 0 | 538 | |
| 30kg | 0 | 0 | 0 | |
| lead 10 | 10kg | 100 | 50 | 545 |
| 20kg | 20 | 0 | 221 | |
| 30kg | 0 | 0 | 0 | |
| lead 20 | 5kg | 116 | 58 | 605 |
| 10kg | 24 | 0 | 253 | |
| 22kg | 0 | 0 | 0 | |
| lead 32 | 5kg | 251 | 211 | 903 |
| 10kg | 97 | 49 | 436 | |
| 15kg | 0 | 0 | 153 | |
| Allowable Overhang （N.M) | |||
| Vertical Installation | A | C | |
| lead 5 | 5kg | 100 | 145 |
| 10kg | 50 | 90 | |
| 12kg | 23 | 23 | |
| lead 10 | 4kg | 335 | 375 |
| 6kg | 140 | 180 | |
| 8kg | 100 | 140 | |
| lead 20 | 1kg | 620 | 620 |
| 2kg | 680 | 680 | |
| 5kg | 310 | 350 | |
| lead 32 | 1kg | 580 | 580 |
| 2kg | 645 | 645 | |
| 3kg | 310 | 350 | |
MY=110(N.M) ; MP=120(N.M) ； MR =120(N.M).
