                            CGM Three-Axis Robotic Arm: A Perfect Fusion of Precision Grabbing and Efficient Operation

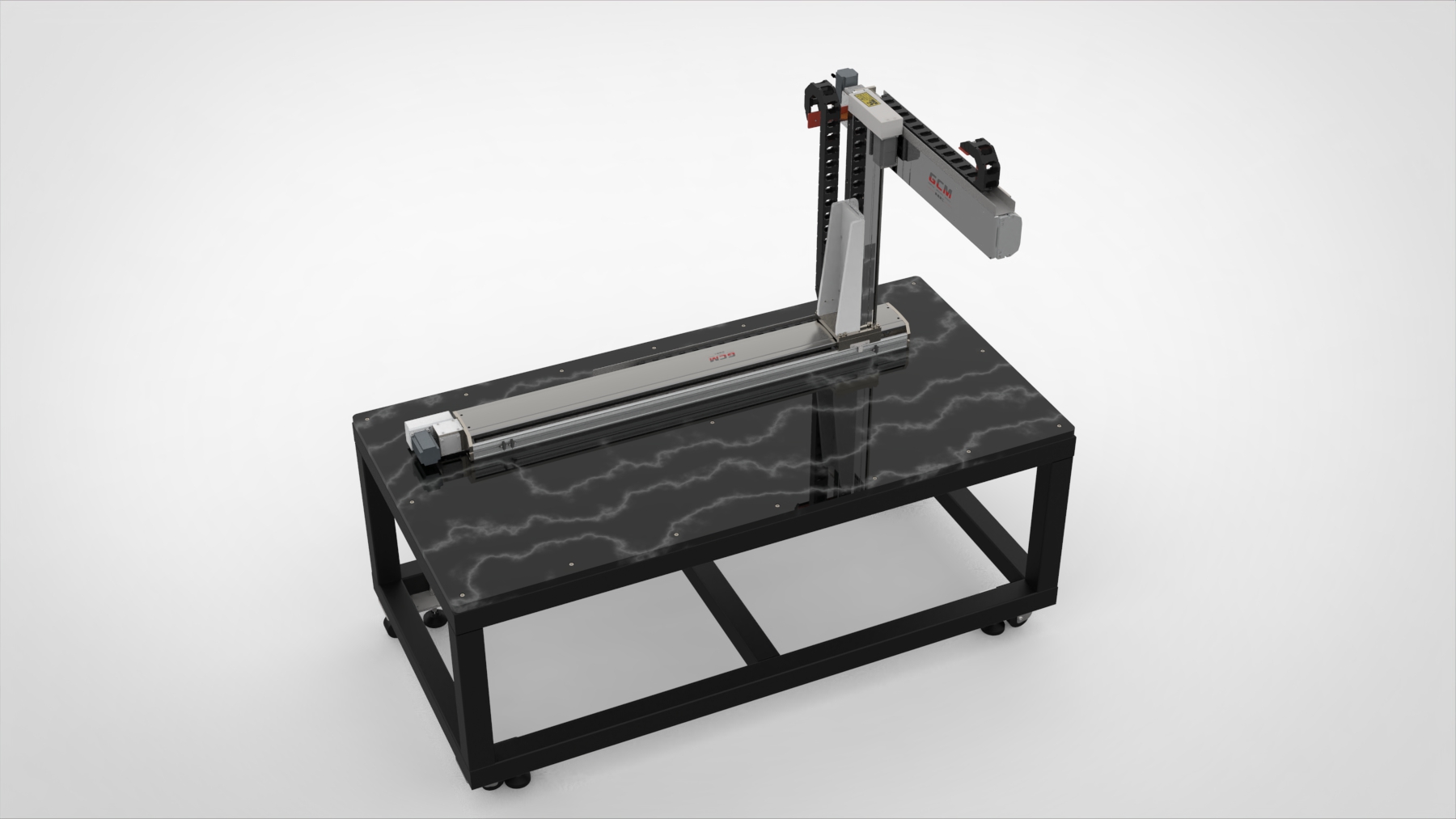

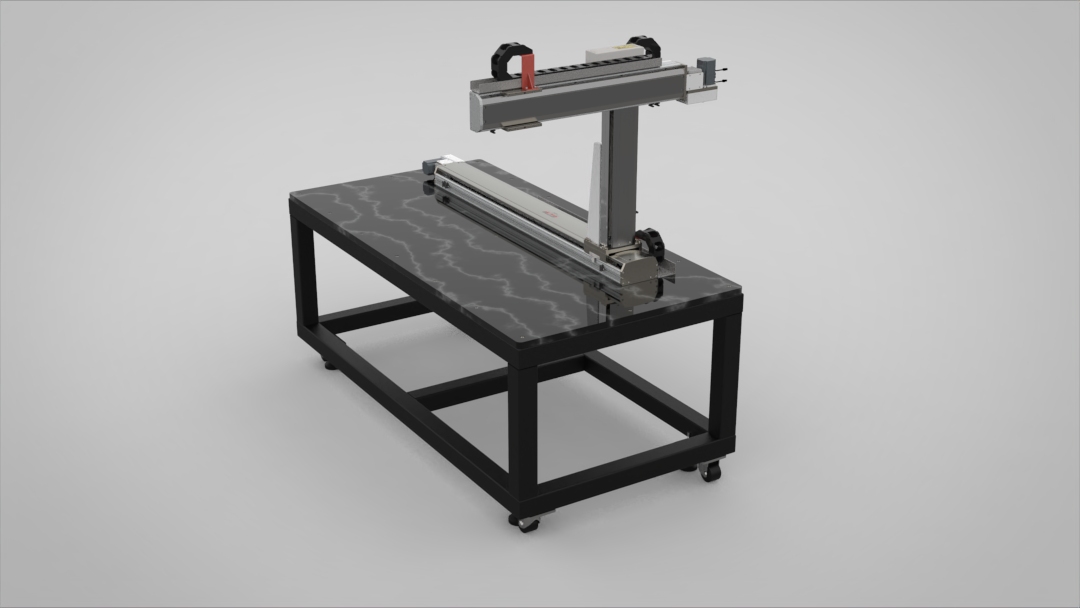

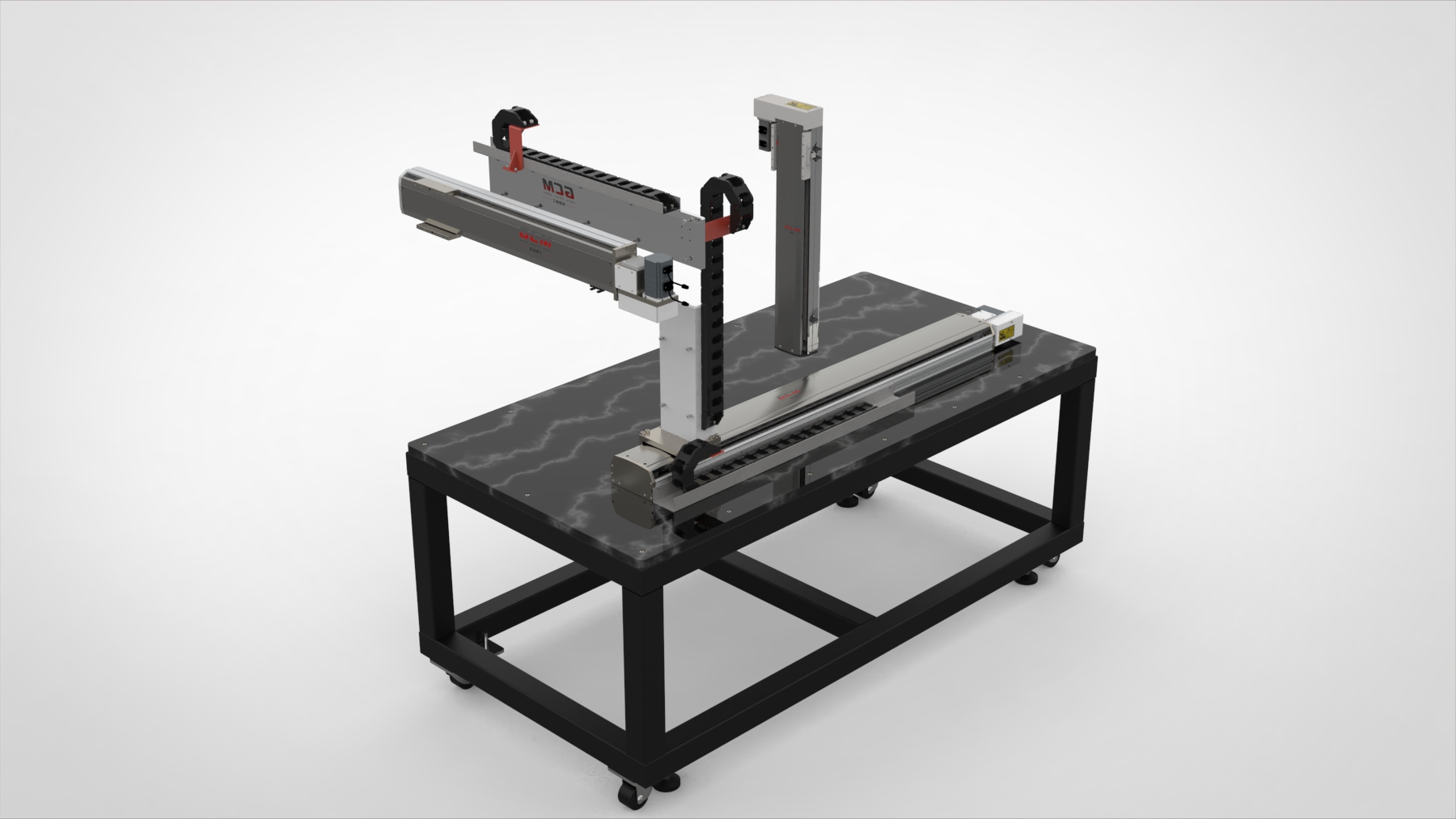

In today's automation landscape, robotic arms are becoming indispensable assistants on production lines. CGM takes pride in introducing an advanced three-axis robotic arm, seamlessly integrating Axis Portal technology with Z Lift design to deliver outstanding performance and flexibility for users.

Outstanding Performance of Axis Portal Technology

Horizontal Linear Belt Mechanical Module

CGM's three-axis robotic arm utilizes a horizontal linear belt mechanical module, providing exceptional precision and smoothness in horizontal movement. This module's design not only ensures a repeat accuracy within the range of ±0.04 but also, through the clever application of Axis Portal technology, guarantees the highest surface flatness of the connecting board, achieving exquisite engineering design.

Vertical Movement with Screw Rod Mechanical Module

To achieve vertical lifting functionality, we opted for the screw rod mechanical module. This design ensures the stability and precise control of Z Lift, allowing the robotic arm to easily adapt to the diverse requirements of different work scenarios. Precise control over tolerances ensures that the Z Lift's performance remains optimal at all times.

Powerful Grabbing Performance

Gripping Range and Weight-Bearing Capacity

CGM's three-axis robotic arm design takes into account various work requirements, offering a gripping range of up to a 300mm radius while being able to handle objects weighing up to 40KG. This robust gripping performance enables the robotic arm to tackle a variety of complex tasks, providing robust support for the efficient operation of production lines.

Efficient Motion Performance

Maximum Speed and AC Servo Motor Power

To ensure fast and precise operations, CGM's three-axis robotic arm boasts outstanding motion performance with a maximum speed of 1500/s. Equipped with a 400W AC servo motor, the robotic arm runs stably in various work scenarios. Additionally, it supports Ethercat bus communication, providing users with more flexible control and integration options.

Synergistic Design of Axis Portal and Z Lift

CGM's design of the three-axis robotic arm takes into full consideration the synergistic effect of Axis Portal technology and Z Lift. Through meticulous engineering design, the surface flatness of the connecting board and the lifting design of Z Lift are optimally unified, offering users a highly competitive solution.

In summary, CGM's three-axis robotic arm design fully showcases a profound understanding and unique insights into Axis Portal technology and Z Lift. Its outstanding performance, robust gripping capability, and efficient motion performance will provide customers with a more flexible and reliable automation solution.

For more detailed information about CGM's three-axis robotic arm, please visit our  www.linearguider.com
