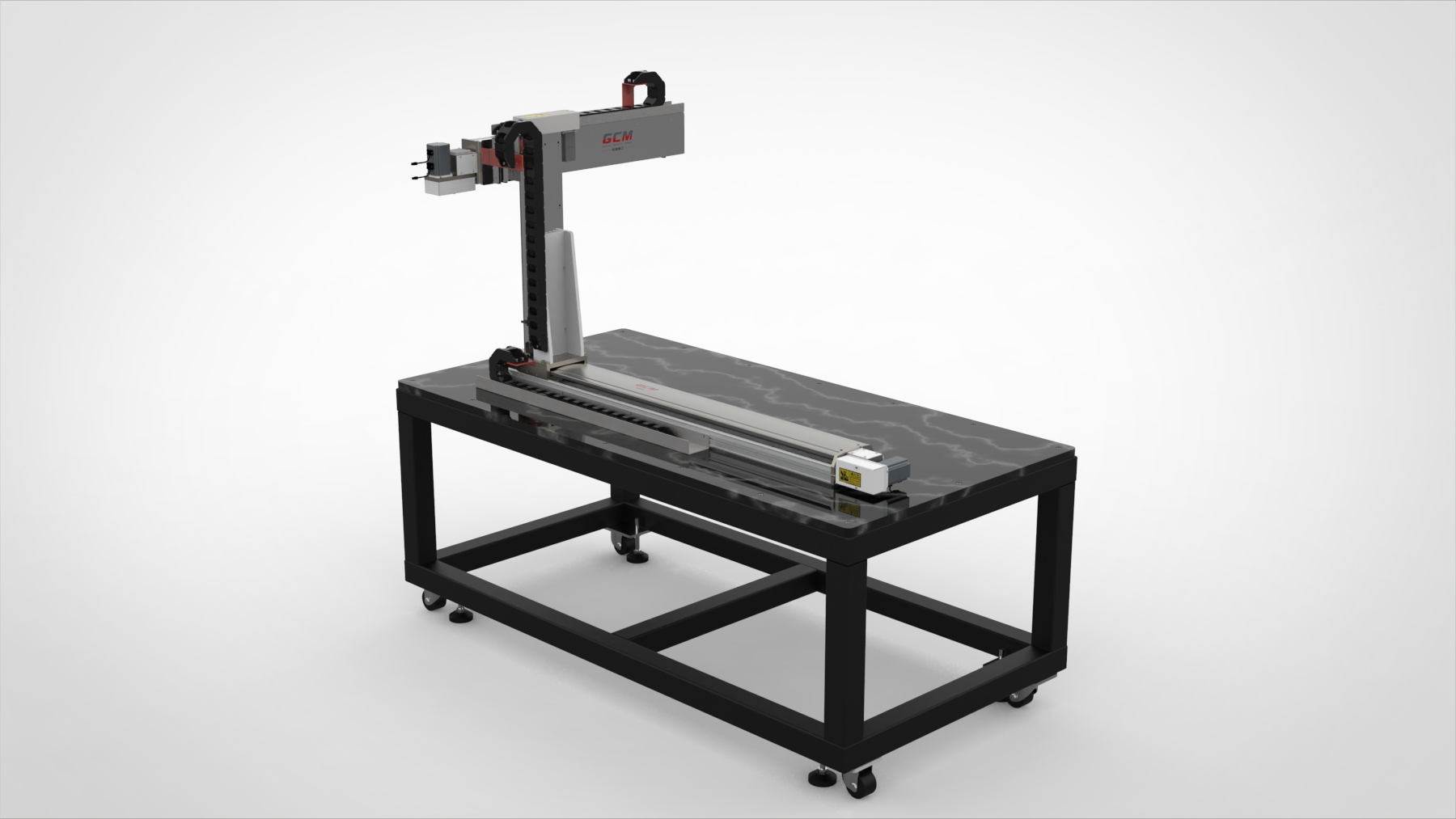

                                                   CGM Three-Axis Robotic Arm: The Perfect Fusion of Mechanical Precision and Advanced Technology

Introduction:

In an era where cutting-edge medical technologies and innovations continue to advance, CGM is proud to introduce its three-axis robotic arm as a standout player in this field. With the synergy of a horizontal linear belt mechanical module and a screw jack mechanical module, this system has achieved remarkable levels of precision, grasp range, payload capacity, speed, and communication capabilities.

1. Robust Mechanical Foundation:

During the design process of the three-axis robotic arm, CGM engineers conducted in-depth mechanical calculations and static mechanical computations. Through these calculations, the product's ability to maintain outstanding precision and stable operation over extended periods was ensured. Each critical component was rigorously selected to meet the high demands for precision and reliability in the field of cutting-edge medical technologies.

2. Technical Specifications:

• Horizontal Linear Belt Mechanical Module: Provides outstanding horizontal movement performance, forming a solid foundation for the robotic arm's flexibility and accuracy.

• Screw Jack Mechanical Module: Used for vertical movement, ensuring stability and reliability during height adjustments.

• Repeatability Precision: ±0.04, ensuring consistency in every motion, meeting the high requirements for precise operations in the medical field.

• Grasp Range: Radius of 300 millimeters, catering to the versatile needs of medical devices and laboratory equipment.

• Payload Capacity: Up to 40KG, suitable for handling heavy objects such as medical devices and reagent bottles.

• Maximum Speed: 1500/s, enabling rapid and accurate task completion in medical laboratory environments.

• AC Servo Motor Power: 400W, providing robust power support to the robotic arm.

• Communication Support: Compatible with Ethercat bus communication, facilitating efficient collaboration with other devices.

3. Medical Applications:

CGM's three-axis robotic arm has achieved significant success in the field of cutting-edge medical technologies and innovations. Its outstanding precision, efficient motion performance, and reliable communication capabilities make it an indispensable tool in medical laboratories and pharmaceutical factories. Researchers and engineers praise its minimal impact on experimental results, greatly enhancing experiment repeatability and accuracy.

Conclusion:

The CGM three-axis robotic arm stands as an outstanding representative of ball screws and actuators, combining advanced technology with a profound mechanical foundation. In the medical field, its superior performance injects new vitality into cutting-edge medical technologies and innovations, propelling medical research and pharmaceutical work forward. Feel free to visit www.linearguider.com for more information about our products.
