                CGM 2-Axis Platform: Precision and High Load Capacity Redefined

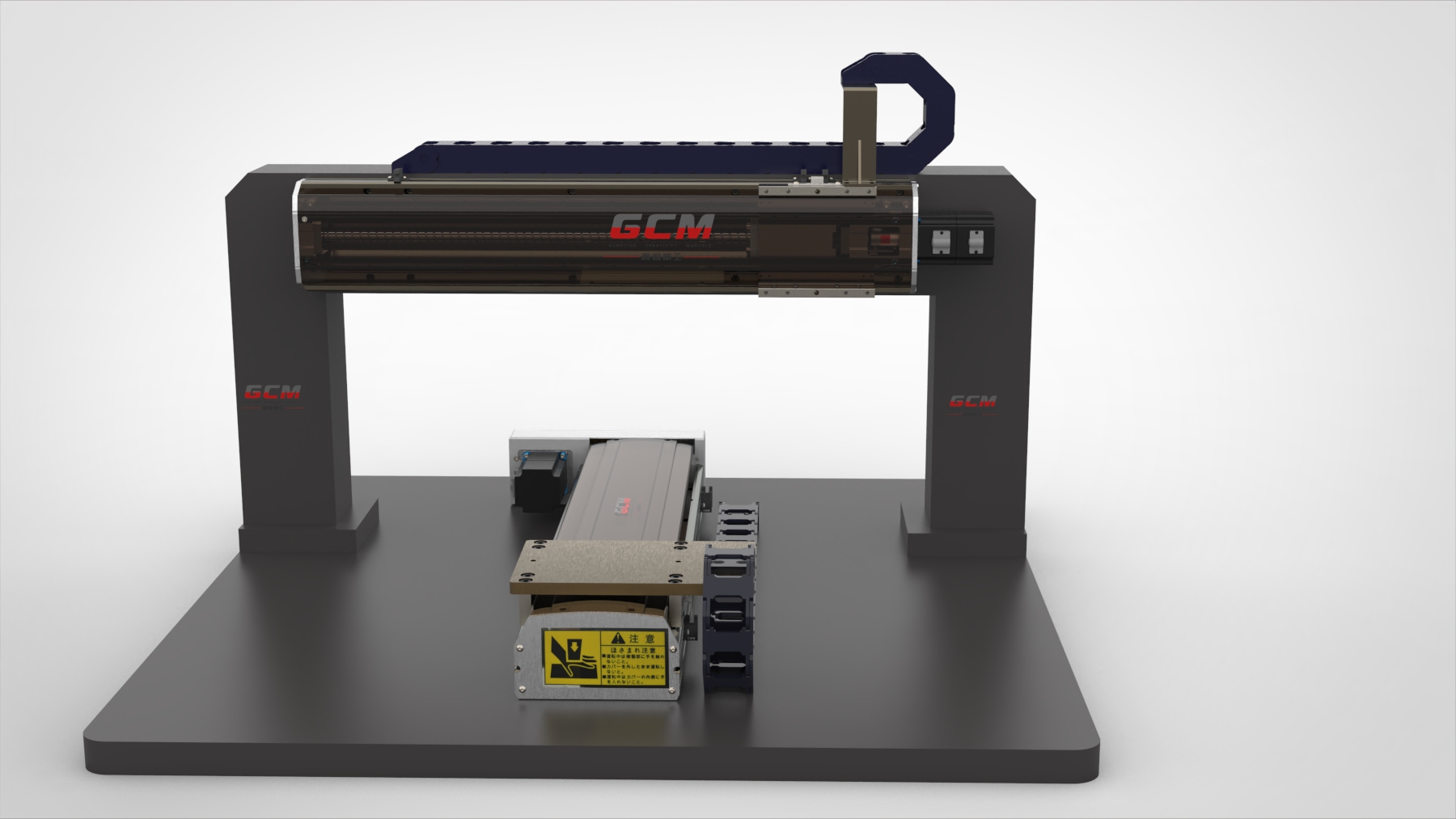

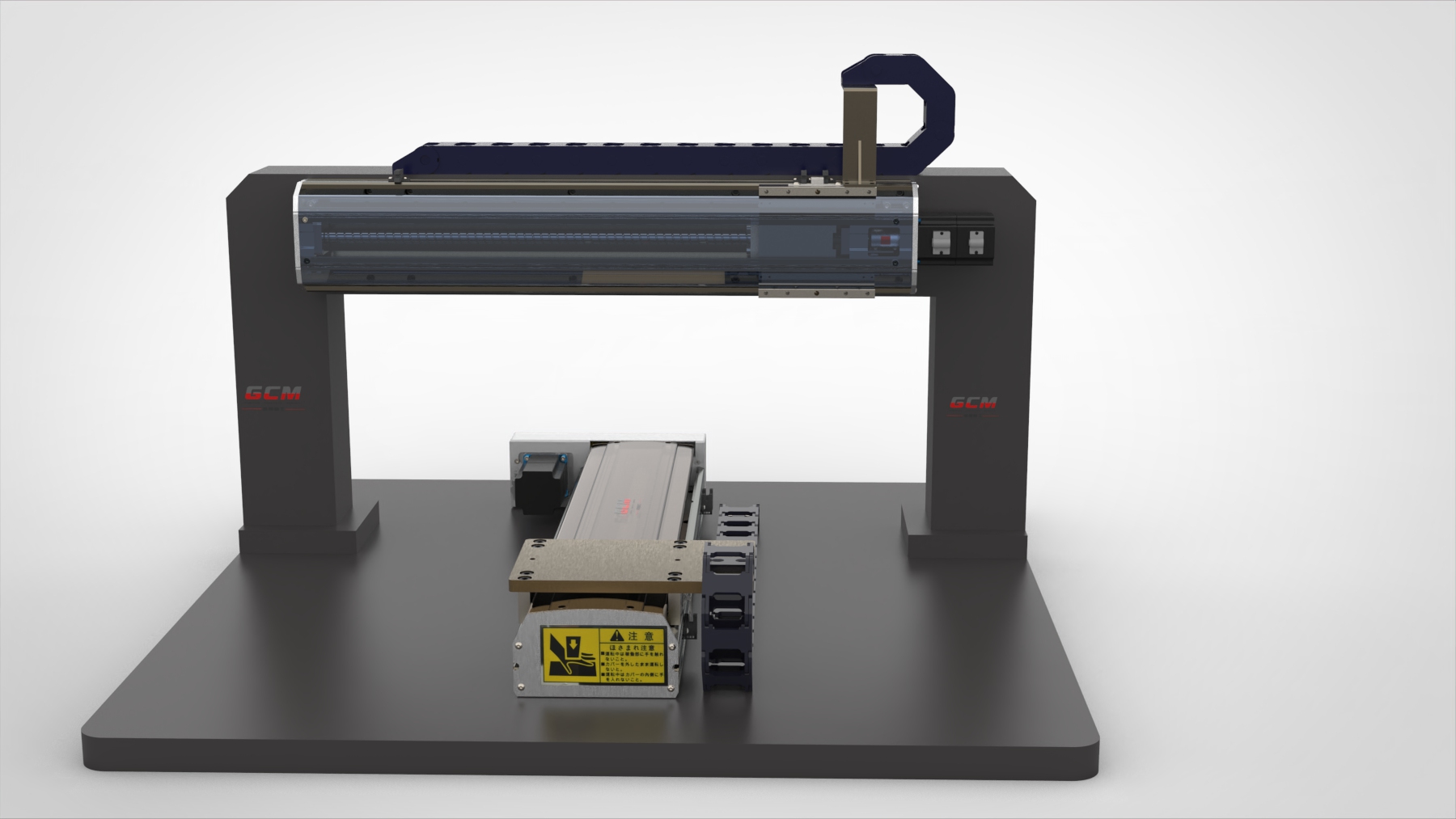

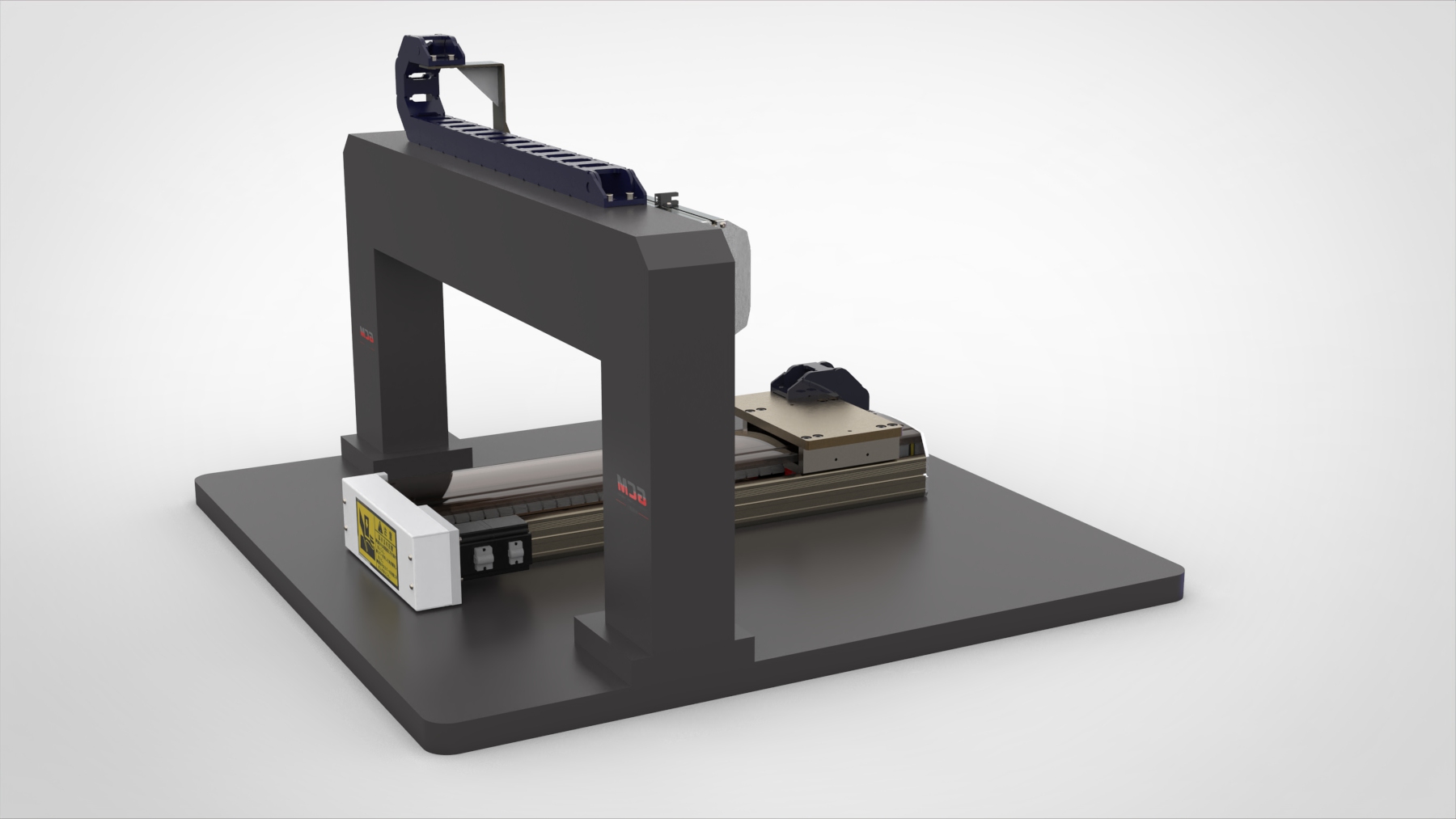

At CGM, we take pride in introducing an innovative 2-axis platform that elevates the precision and load capacity of robotic arms through the mechanical modules of the X and Z axes. Simultaneously, it delivers exceptional load-bearing capabilities within a compact installation space. Key parameters of this platform include a repeatability precision of ±0.04, a gripping range with a 300mm radius, a gripping weight capacity of 20kg, a maximum speed of 1500/s, a 400W AC servo motor power, and support for Ethercat bus communication.

The Mechanical Precision Marvel: Benefits of Camshaft Follower and Linear Carriage

Camshaft Follower

The camshaft follower stands out as a crucial component in our 2-axis platform, contributing to outstanding precision. With its intricate design, this device not only enhances trajectory control accuracy but also reduces friction and wear on the robotic arm, ensuring prolonged and reliable operation.

Critical Speed of Shaft

By meticulously calculating and optimizing the critical speed of the shaft, we guarantee stability and reliability during high-speed movements. This technology ensures that the robotic arm operates smoothly at its maximum speed of 1500/s, effectively preventing vibrations and resonance, thereby enhancing safety and control.

Linear Carriage

The linear carriage, another highlight of the 2-axis platform, adopts advanced linear guidance technology, providing the robotic arm with exceptional load capacity and longevity. This not only allows the robotic arm to withstand a gripping weight of 20kg but also ensures a stable repeatability precision within the ±0.04 range at a gripping radius of 300mm.

Powering the Motion: The Power System of CGM 2-Axis Platform

The 400W AC servo motor power delivers robust driving force to the robotic arm. This advanced power system not only supports high-speed movements but also ensures stable and efficient operation under various working conditions.

Advanced Communication Technology: Application of Ethercat Bus

To achieve efficient control and communication with the robotic arm, we have implemented Ethercat bus technology. This communication protocol not only enhances data transfer speed but also ensures real-time control response, enabling the robotic arm to excel in various application scenarios.

CGM's 2-axis platform represents the latest technological achievements in the field of robotic arms. Through the ingenious application of parameters such as the camshaft follower, critical speed of the shaft, and linear carriage, we offer users outstanding precision, load-bearing capacity, and reliability. The introduction of this innovative product will open up broader application prospects across industries, enhancing production efficiency and driving technological progress. Visit our official website www.linearguider.com for more information about the CGM 2-axis platform.
