Linear motors

GCM Linear motor

Alongside complete linear motor axes and linear motor axis systems, GCM also offers individual linear motor components for customised axis design. The linear motors consist of the primary part (forcer) with motor windings, and magnet tracks (stators) with permanent magnets. By combining several stators, travel distances of any length can be created. Similarly, several forcers can be operated on one linear motor axis. These can either be independently controlled on the axis, or be connected in parallel to increase feed power.

Quantity:

Contact Now

add to cart

CGM Linear Motor Module Overview

Introducing our cutting-edge CGM Linear Motor Module, a revolutionary advancement in linear motion technology. This module brings unparalleled benefits to various applications, providing a new dimension of performance and reliability.

Key Features:

Non-Contact Operation: The unique design ensures that the moving part does not make physical contact during operation, enhancing precision and reducing wear and tear.
High Stability and Speed: With exceptional stability and high-speed capabilities, the CGM Linear Motor Module redefines the standards of linear motion systems.
Error-Free Operation: The absence of backlash errors contributes to the overall accuracy and reliability of the linear motor module.
Linear Motor Drive: The module is driven by a linear motor, ensuring smooth operation, minimal wear, low maintenance, and an extended lifespan.
Grating Positioning/Magnetic Grating Positioning: The incorporation of grating and magnetic grating positioning technologies enhances precision and control.
Compact Modular Design: The CGM module features a compact and modular design, facilitating easy expansion and integration into various applications.

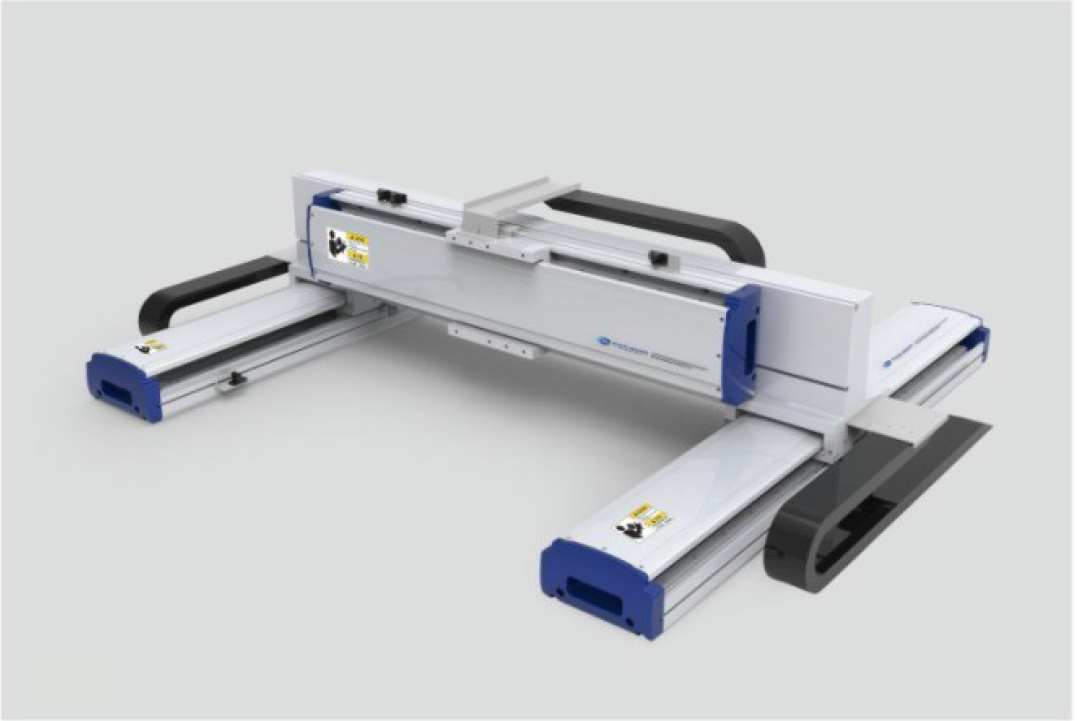

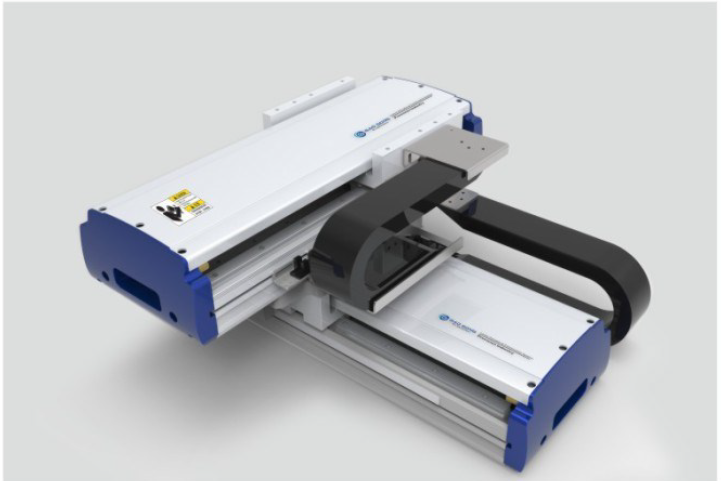

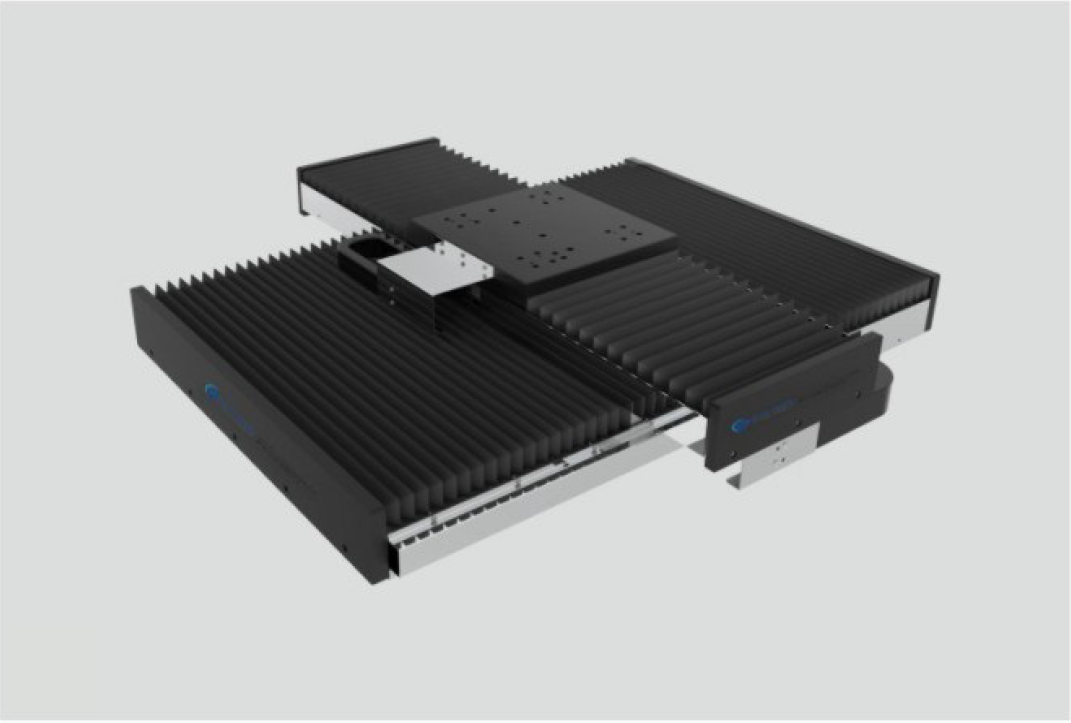

Versatile Assembly: Quick assembly capabilities allow for the creation of mechanical arms, XY cross platforms, and gantry systems with ease.
Coaxial Multiple Independent Actuators: The system supports multiple independent actuators with coaxial configurations, providing flexibility in applications.
Extended Travel Range: The linear motor module offers an extended travel range, with a maximum stroke reaching over 4 meters.
High Maximum Speed: Achieving speeds of over 5 meters per second, the CGM Linear Motor Module ensures rapid and efficient linear motion.

Advantages:

Seamless non-contact operation ensures precision and durability.
High stability and speed contribute to optimal performance.
Error-free operation enhances overall accuracy.
Linear motor drive guarantees smooth, low-maintenance operation.
Versatile applications with compact modular design.
Coaxial multiple actuators for flexible configurations.

Experience the future of linear motion technology with our CGM Linear Motor Module. Contact us to explore how this innovative solution can elevate the performance of your applications.
