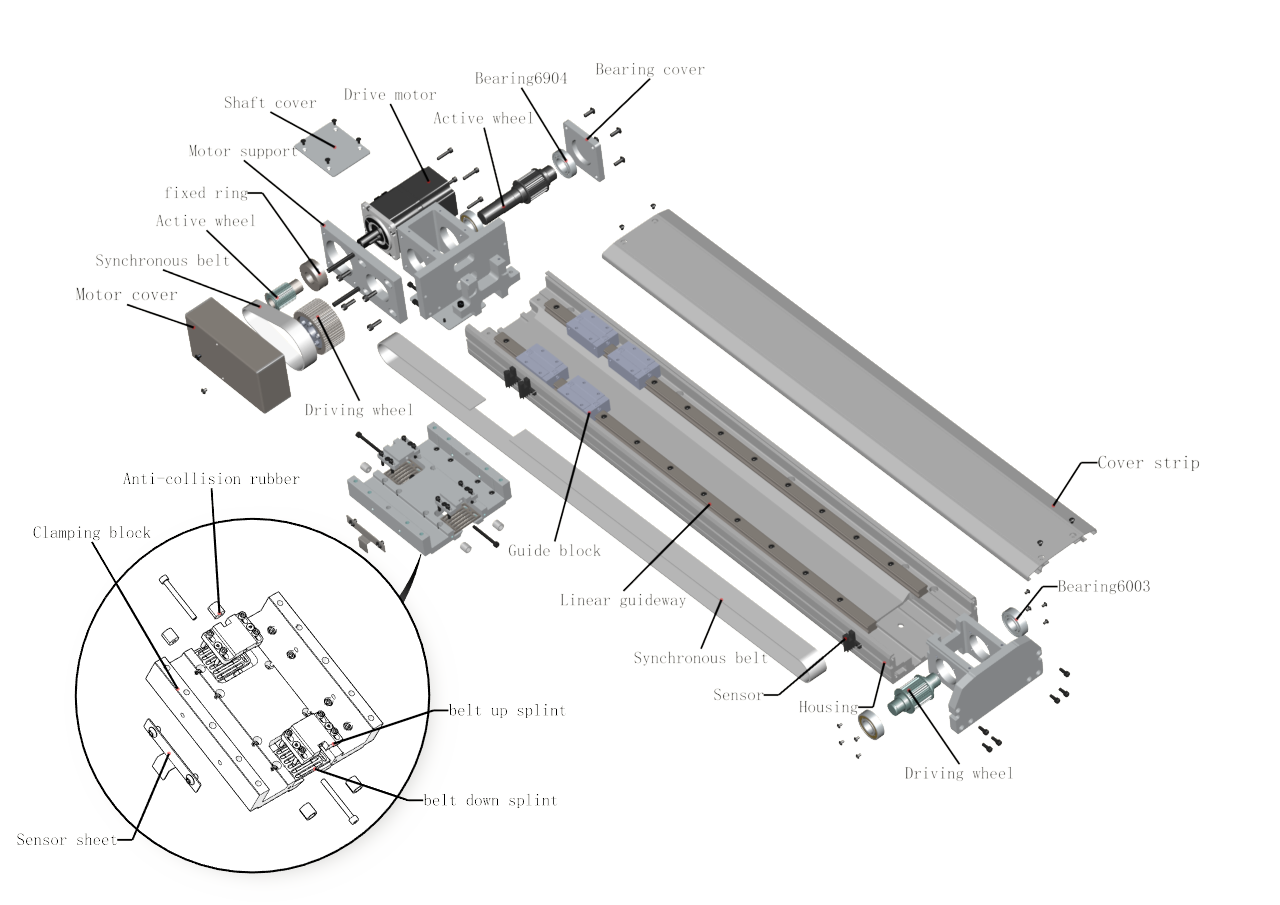

Belt drive linear module

                                                                                                 Specification Sheet: GCM Belt-Drive Linear Module

Product Overview: GCM's belt-drive linear module utilizes toothed belt drive technology to achieve high travel speeds and long travel distances. With millimeter-level stroke adjustability and a variety of options (such as steel cover strips, limit switches, distance measuring systems, and additional carriages in various sizes), the linear module can be individually tailored to specific application requirements.

Technical Specifications:

• Axis Profile:Aluminum
• Profile Width:120mm
• Drive Type: Toothed belt
• Repeatability:±0.04mm
• Max Speed: 800 mm/s
• Max Horizontal Carrying Weight:100KG
• Belt Width:20mm
• Origin Sensor: Omron EE-SX674 (NPN)
• Servo Motor: 750W, Brand: Panasonic, Japan

Features and Advantages:

1. High Travel Speeds and Long Distances: Utilizes toothed belt drive technology for high-speed and long-distance travel, suitable for various industrial applications.
2. Adjustable Stroke: Millimeter-level stroke adjustability allows for flexible adaptation to real-world requirements, enhancing versatility.
3. Multiple Options: Options like steel cover strips, limit switches, distance measuring systems, and various carriage sizes enable personalized configurations based on specific application needs.
4. High Repeatability: ±0.04mm repeatability ensures stable operation and precise positioning.
5. High Carrying Capacity: Maximum horizontal carrying weight of 100KG suits large-scale handling tasks in diverse industrial settings.
6. Origin Sensor and Servo Motor: Omron origin sensor (EE-SX674(NPN)) and Panasonic's 750W servo motor ensure reliability and stability.

Applications:

1. Automated Production Lines: Suitable for handling and positioning tasks in automated production lines, such as material loading and component handling on assembly lines.
2. CNC Machinery: Used for high-precision positioning and tool changes in CNC machinery applications.
3. Packaging Equipment: Enhances material conveying and positioning in packaging equipment, improving efficiency and accuracy.
4. Industrial Machinery: Applicable to positioning, handling, and adjustment tasks in various industrial machinery, including injection molding machines, stamping machines, and more.
