chemical liquid filter 201
201

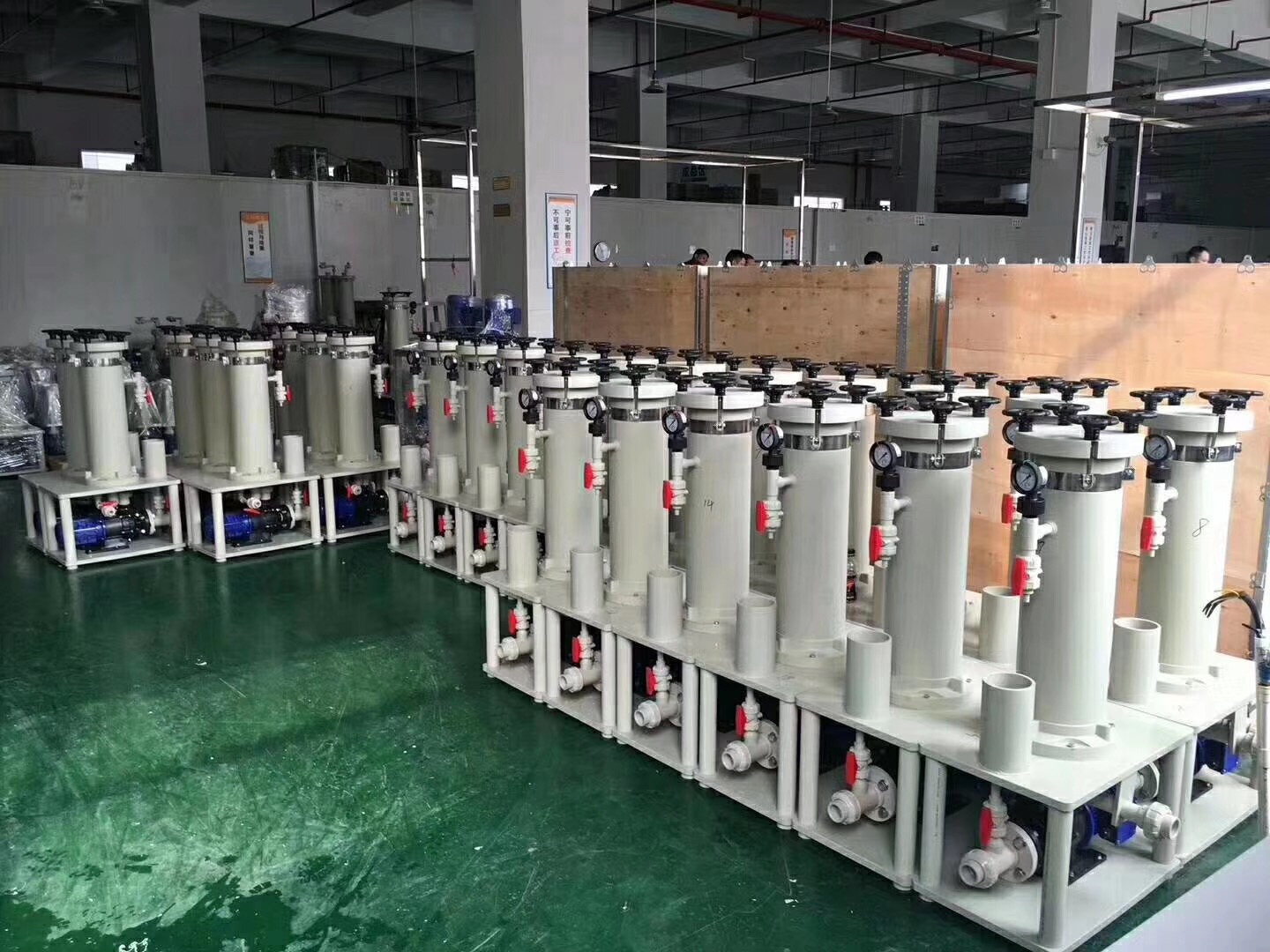

This chemical filter, made of PP, features a shaftless magnetic pump, high precision filtration, and a wide range of applications, including wastewater treatment and electrolyte circulation
Quantity:
Chemical Filter Product Specification
Features and Advantages:
- Made of injection-molded PP material, easy to assemble and maintain.
- Pump adopts shaftless magnetic design, no leakage issues.
- Suitable for different types of electroplating, with tank capacities ranging from 6000 to 25000 liters.
- Operating temperature up to 70°C.
- Offers various filter core designs such as cap-lock, plate-type, starfruit-type, and paper-type, ensuring high filtering precision.
- Utilizes contactless magnetic drive for pump and motor connection, enhancing corrosion resistance and extending service life.
Main Uses:
- Circulation and filtration of chemical or clean water
- Circulation of PCB process chemicals
- Circulation of various electroplating chemicals
- Conveying various acidic and alkaline liquids
- Circulation and filtration of wastewater treatment
- Circulation and filtration of electrolyte chemicals
- Circulation and filtration of medical wastewater
- Circulation and filtration of seawater for hydrogen production
Specifications:
- Inlet: 1-1/2''
- Outlet: 1-1/2''
- Filtering area: 1.5 square meters
- Number of filter tubes: 1, size 20'' * 6''
- Pump type: Magnetic chemical pump
- Power: 400W
- Supply voltage: AC 220V single phase (optional AC 110V single phase)
