Linkage module precision corsse table
MG110-S1200
The MG110-S1200 linkage module is a high-load, high-speed, high-precision linkage module designed specifically for transmission and positioning control in industrial automation equipment. It utilizes advanced technology and materials, ensuring outstanding performance and reliability, making it suitable for various industrial automation applications
Quantity:
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | MG110-S1200linkage module |

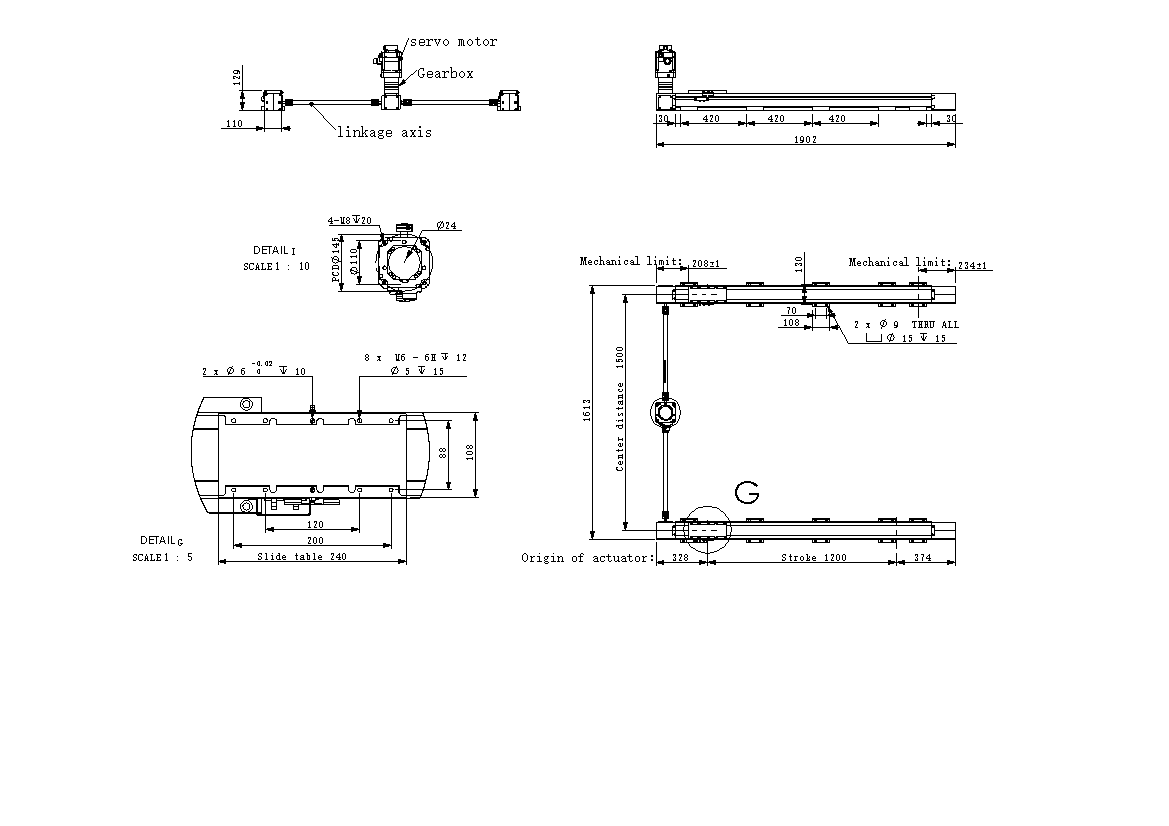

| Outer Dimensions | L1900W1610H129 (combined height) |
| Linkage Center Distance | 1500mm |
| Load | 150KG |
| Speed | 1200mm/s |
| Stroke | 1200mm |
| Lead | 250mm (5M*50 teeth) |
| Transmission Parts | 5M50 teeth synchronous wheel, belt |
| Guide Rail | GH25CA |
| Linkage Shaft | Shaft diameter 20mm |
| Coupler | P40-49-18-20 |
| Gearbox | Ratio 7 |
| Servo Motor | 4.77N.M (1KW2000R/MIN) |
| Sensor | Omron NPN672 |
| Repeatability | ±0.1MM |
Key Features
- High Load Capacity: Maximum load up to 150KG, suitable for heavy-duty equipment transmission and control.
- High-Speed Transfer: Maximum speed of 1200mm/s, improving production efficiency and response speed.
- High-Precision Positioning: Repeatability of ±0.1MM, ensuring accuracy and stability in every positioning.
- Space-Saving Design: Compact outer dimensions, suitable for installation in limited space equipment.
- Stability and Reliability: Utilizes high-quality transmission parts and servo motor for fast and stable operation.
- High Dustproof Level: Fully enclosed design structure for high dustproof level.
- y axis travel up to 15 Meters: Maximum travel distance of 15 meters for the Y-axis, meeting wide-range movement requirements.
Applications
- Mechanical machining equipment
- Automated production lines
- Medical equipment
- Electronics manufacturing
- Automotive industry
