PCB Graphic Electroplating Dual Output Rectifier
Dual output rectifier
PCB Graphic Electroplating Dual Output Rectifier: 400V input, adjustable 0-12V output, 0-2000A current, 92% efficiency, RS485 control, IP20 protection, air cooling, indoor use, precise regulation, improved electroplating.
Quantity:
Product Name: PCB Graphic Electroplating Dual Output Rectifier
Input Voltage: 400V AC, 3-Phase ±15%
Input Frequency:50/60Hz
Output Voltage: 0~12V (adjustable)
Output Current: 0~2000A (adjustable)
Conversion Efficiency:92%
Power Factor:>0.9

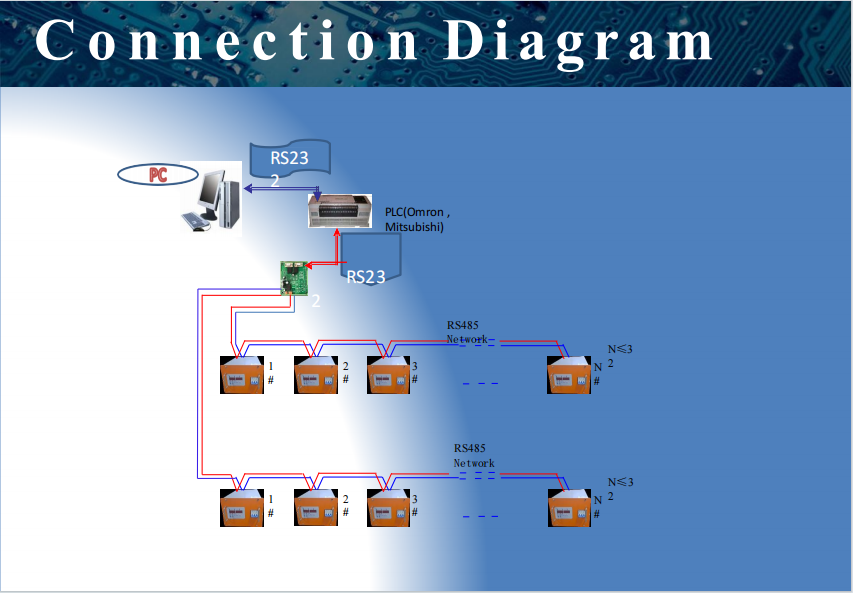

Control Mode: RS485 Communication
Ripple Factor:<1%
Voltage Regulation Precision:≤0.5%
Current Stabilization Precision:≤0.5%
Working Environment: Indoor only
Environmental Conditions: -10℃ to +45℃
Protection Level:IP20
Cooling Type: Air Cooling
Product Parameters:

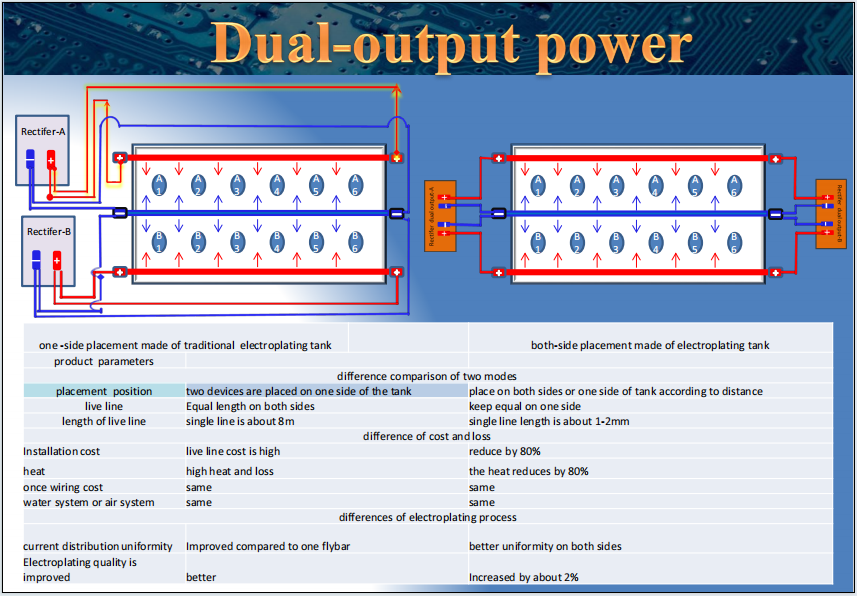

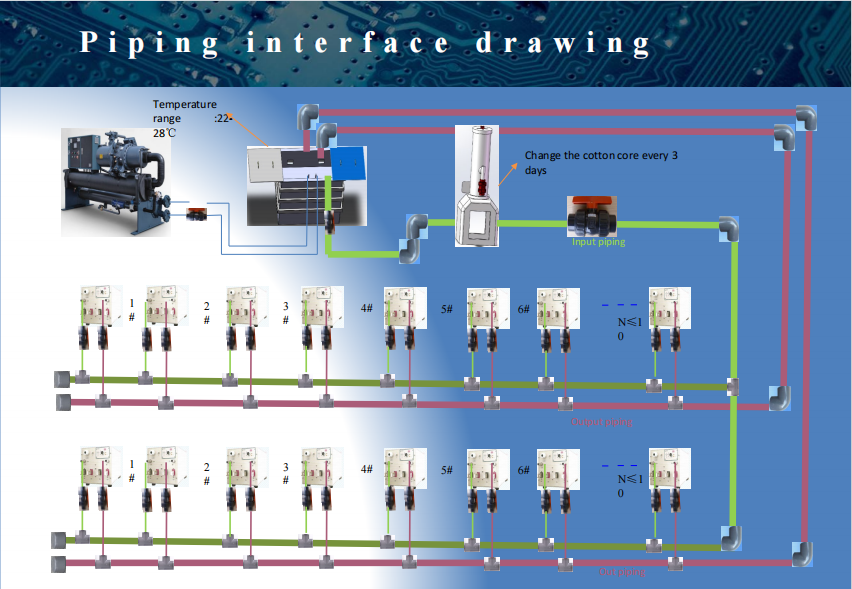

- Single-Side Installation: Two devices placed on a traditional electroplating tank
- Double-Side Installation: Devices placed on both sides or one side of the electroplating tank, depending on distance
- Output Cable Length:
- Single-side cable length: about 8 meters
- Double-side output cable length: about 1-2 millimeters
- Cost and Loss Differences:
- Installation Cost: High for single-side cable, can be reduced by 80%
- Heat: High heat and loss, can be reduced by 80%
- One-time Wiring Cost: Same
- Water or Air System: Same
- Differences in Electroplating Process:
- Current Distribution Uniformity: Improved compared to single-side cable, better uniformity on both sides
- Electroplating Quality Improvement: Improved by about 2%
