PVDF Vertical Pumps for Chemical Nickel Plating Tanks
mao | 2024-04-08
Title: "Optimizing PVDF Vertical Pumps for Chemical Nickel Plating Tanks"
In the world of chemical nickel plating, understanding the operational nuances is key. Let's delve into optimizing PVDF vertical pumps for these applications.
Material Selection:
Choosing the right pump material is crucial. For chemical nickel solutions operating at around 90 degrees Celsius, PVDF pumps are ideal due to their excellent chemical resistance and durability.
Choosing the right pump material is crucial. For chemical nickel solutions operating at around 90 degrees Celsius, PVDF pumps are ideal due to their excellent chemical resistance and durability.
Power Selection:

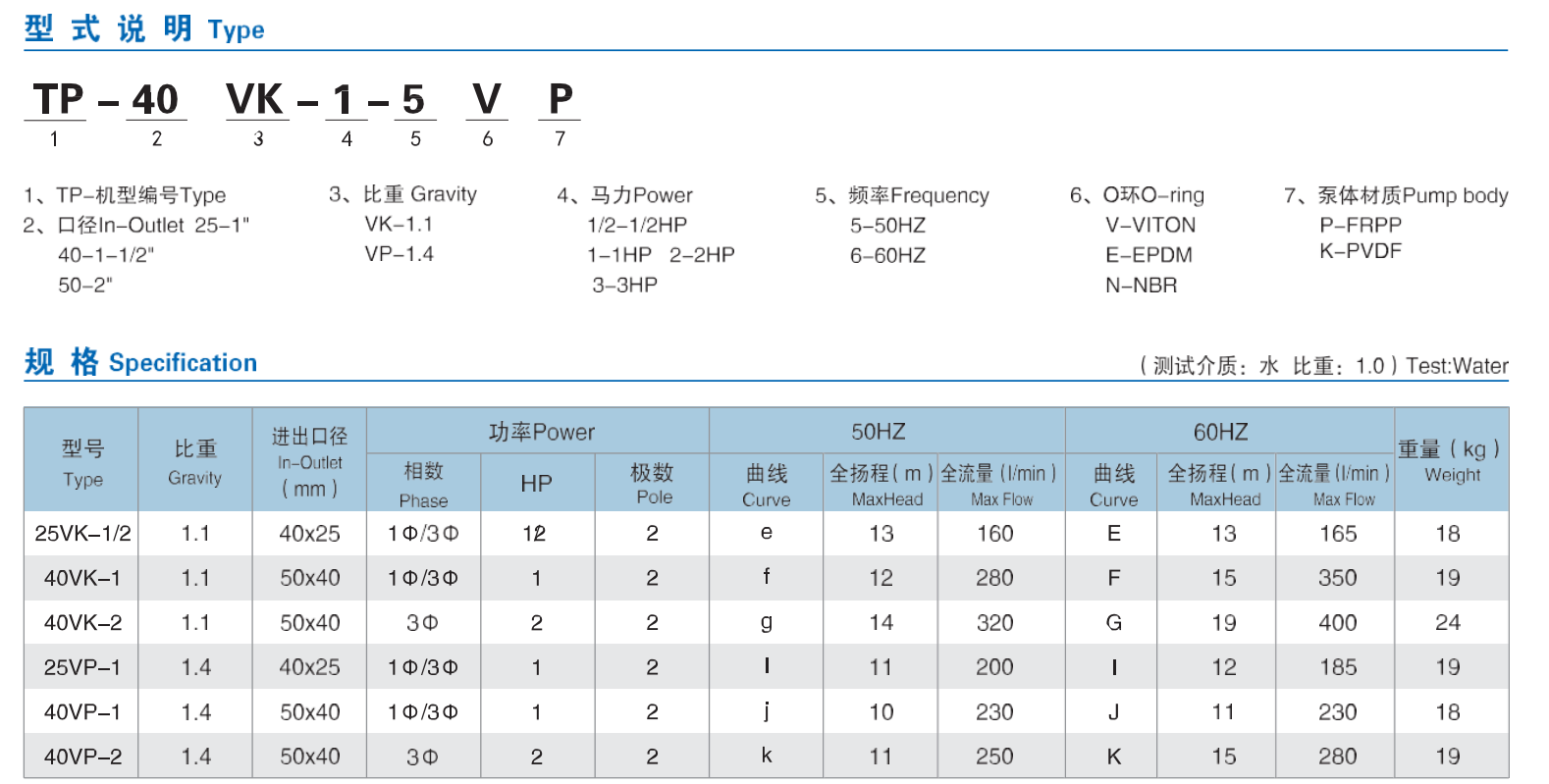

Determining the pump power involves understanding the tank volume and circulation requirements. For example, a 1.5m x 1m x 0.91m nickel plating tank with a volume of 1.3L requires a pump with a flow rate of 10.4 to 13L per hour. We'll include a pump specification table for reference.
Determining the pump power involves understanding the tank volume and circulation requirements. For example, a 1.5m x 1m x 0.91m nickel plating tank with a volume of 1.3L requires a pump with a flow rate of 10.4 to 13L per hour. We'll include a pump specification table for reference.

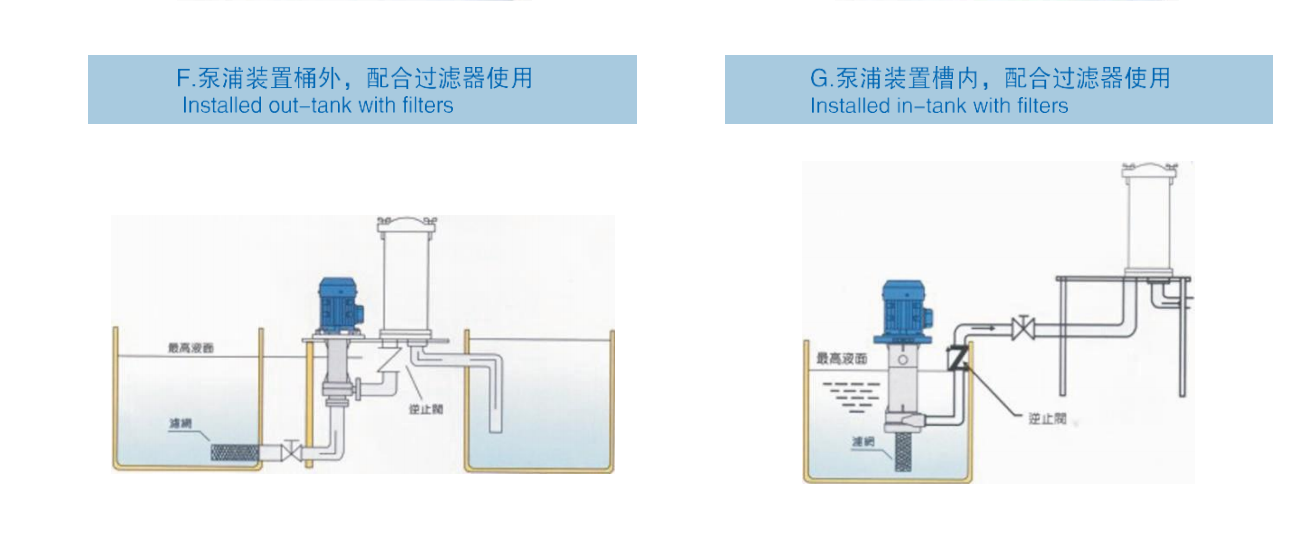

Installation and Safety Measures:
Ensure the high-level liquid hole of the vertical pump is positioned 20mm above the nickel tank's liquid level.
Install an AC contactor and overcurrent protector in the control circuit to safeguard motor operation.
Design start/stop buttons with self-locking and interlock release functions, along with operational and fault indicators.
Plumbing Considerations:
Install the vertical pump's water pipes in two rows at the tank's midpoint. Drill 2.0mm holes every 15mm in the discharge pipe for uniform solution distribution. The inlet pipe should be positioned 20mm from the tank's edge, also with evenly spaced holes for uniform water intake.
Install an AC contactor and overcurrent protector in the control circuit to safeguard motor operation.
Design start/stop buttons with self-locking and interlock release functions, along with operational and fault indicators.
Plumbing Considerations:
Install the vertical pump's water pipes in two rows at the tank's midpoint. Drill 2.0mm holes every 15mm in the discharge pipe for uniform solution distribution. The inlet pipe should be positioned 20mm from the tank's edge, also with evenly spaced holes for uniform water intake.
Component Materials:
Use PVDF ball valves at the pump's inlet and outlet connections for easy maintenance and replacement of filter bucket cotton cores. Opt for PP screws for flange connections instead of stainless steel due to material compatibility considerations.
In conclusion, optimizing PVDF vertical pumps for chemical nickel plating tanks involves meticulous attention to material selection, power sizing, installation details, and safety measures, ensuring efficient and reliable operation.
