               CGM Three-Axis Robot: Achieving High Precision and Full Automation in Industrial Applications

In the realm of modern industrial automation, the use of robotic arms is becoming increasingly widespread, particularly in areas such as fully automated gluing, PCB assembly, and more. As a proud offering from CGM, we introduce a high-performance three-axis robot, providing customers with exceptional precision, stability, and versatility.

Technical Highlights of the High-Precision Three-Axis Robot

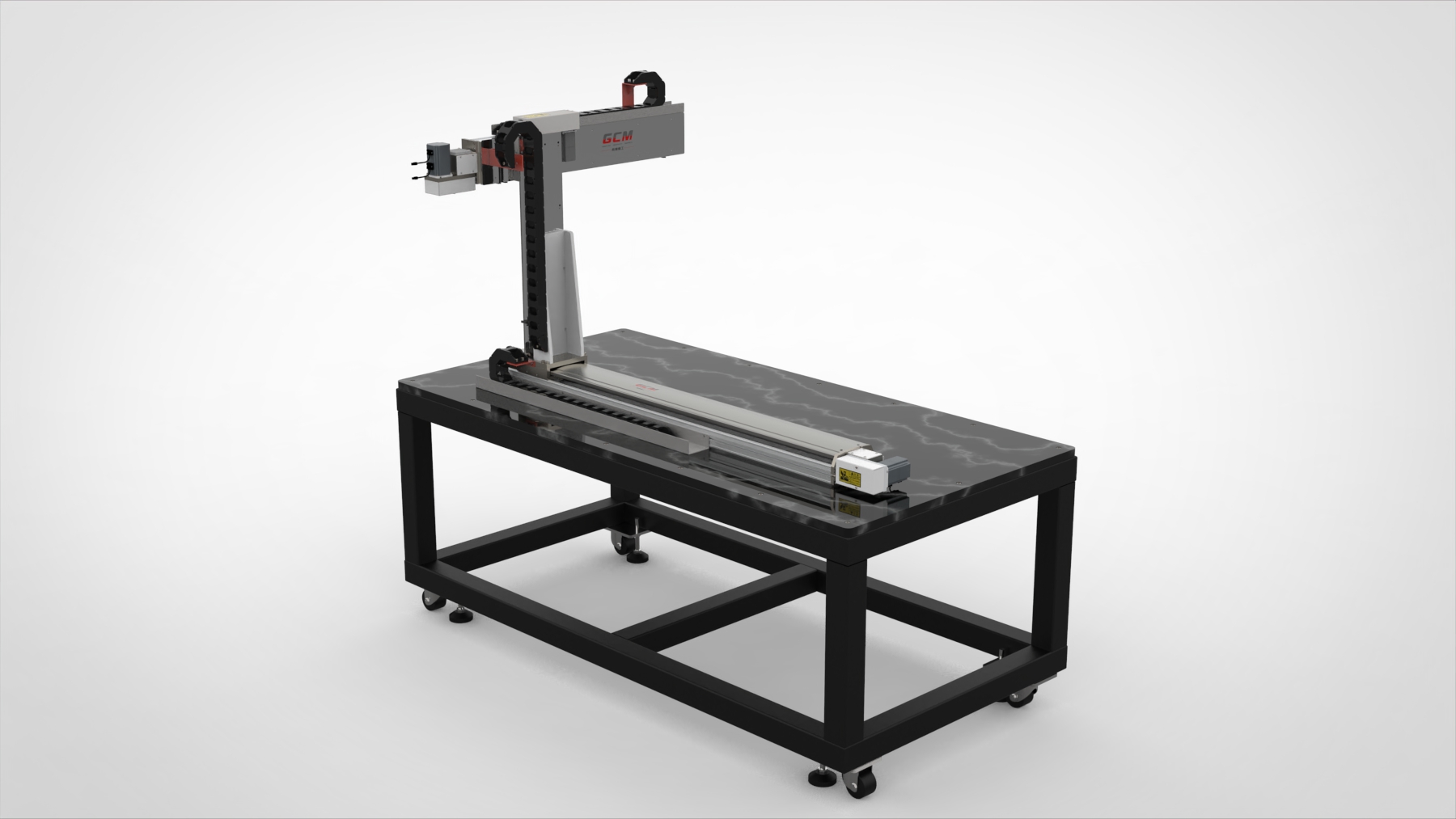

1. Innovative Structure: Clever Combination of Horizontal Linear Belt Mechanical Module and Screw Rod Mechanical Module

Our three-axis robot features a unique combination of a horizontal linear belt mechanical module and a screw rod mechanical module. The horizontal linear belt module offers outstanding horizontal mobility, while the screw rod module provides highly stable support for vertical movements. This innovative structural design ensures outstanding stability and reliability during operations.

2. High Repeatability: ±0.04 Millimeters

Our three-axis robot stands out with an astonishing repeatability of ±0.04 millimeters. This means that in each operation, the robot can achieve precision to an extremely small scale, ensuring consistency and high quality in the products on the production line.

3. Powerful Gripping Capability: 40kg Gripping Weight, 300mm Gripping Range

CGM's three-axis robot boasts exceptional gripping capability, effortlessly handling objects weighing up to 40kg and operating flexibly within a 300mm radius. This versatility makes the robot suitable for a variety of industrial applications.

4. High-Speed Movement: Maximum Speed of 1500 Millimeters/Second

To meet the high efficiency demands of modern production lines, our three-axis robot has a maximum speed of 1500 millimeters per second. This enables the robot to complete complex tasks in a short time, enhancing production efficiency.

5. Advanced Servo System: 400W AC Servo Motor and Ethercat Bus Communication

To ensure the efficient and stable operation of the robot, we employ a 400W AC servo motor and support Ethercat bus communication. This allows the robot to respond quickly to control commands, achieving precise motion control.

Multi-Scenario Applications: From Fully Automated Gluing to Laser Welding

Our three-axis robot is not limited to tasks such as fully automated gluing and PCB assembly; it can also be equipped with a laser welding tool on the Z-axis, expanding its capabilities. Whether it's precision assembly work or high-precision welding tasks, CGM's three-axis robot is up to the challenge.

Conclusion

CGM's three-axis robot stands as a leading choice in modern industrial automation. Its exceptional precision, powerful gripping capability, and versatility make it an ideal solution for industries looking to improve production efficiency and ensure product quality. To learn more about our three-axis robot and other products, please visit our official website: www.linearguider.com. Join CGM in forging a new chapter in the future of industrial automation!
