Vertical pump
ZY-vertical pump
The Chemical Vertical Sump Pumps series are centrifugal pumps designed for vertical installations, with column and volute casing submerged. The motor is mounted above the liquid pumped; the axial suction pipe is placed downward whereas the tangential and outlet pipes are passing through the base plate. The pump shaft can be long up to 4000 mm. Above 2000 mm, the shaft is held by an additional intermediate bearing. Three versions are available according to the column size and the performance: G1 -2 (radial volute) and G3 (axial fumes)
Quantity:
Vertical Chemical pump are realised with extremely resistant materials for pumping aggressive, viscous or even corrosive chemical agents. Therefore these Vertical Chemical pump made of thermoplastic materials can pump acids, hydroxide, salt, high acid mixes, galvanic baths, aromatic hydrocarbons, alcohols, emulsions, seawater or thermal water. These liquids are directly pumped from tanks, basins or even wells with temperatures up to 90°c.
| Characieristics | |
| Fluid | For chemicals |
| operation | With electric motor , magnetic-drive |
| Technology | centrifugal |

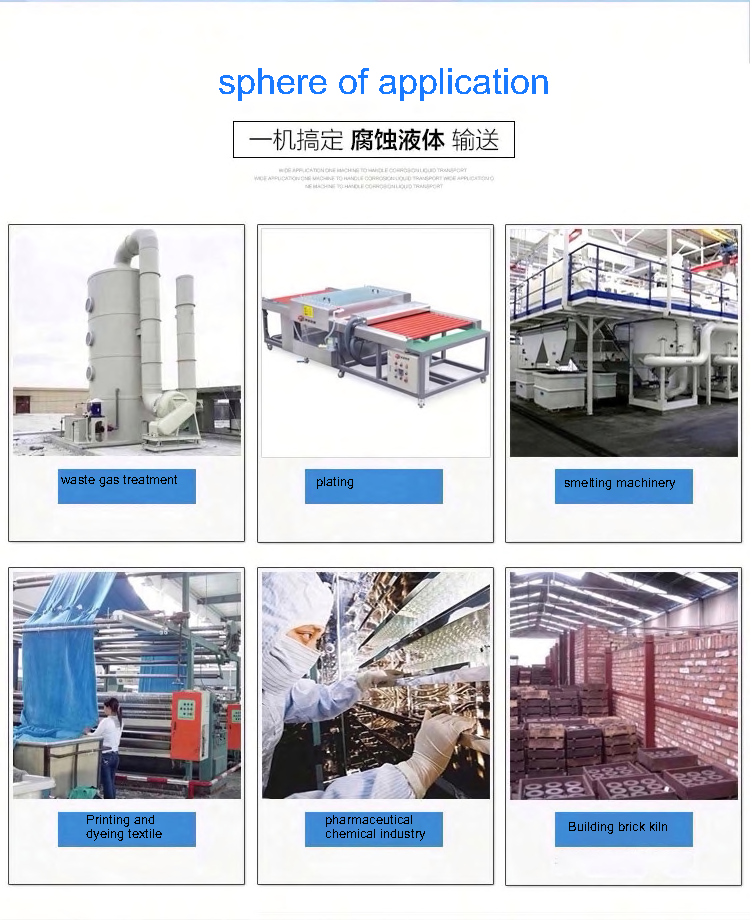

| Domian | industrial , for the chemical industry, for the food and beverage industry, for water treatment |
| Applications | circulation, handling, for transter, service |
| Flow | Min: 0 m³/h |
| Max:55m³/h | |
| Head | Min : 13 m |
| Max: 32 m | |
| Power | Min:0.40(KW) |
| Max: 5KW | |
