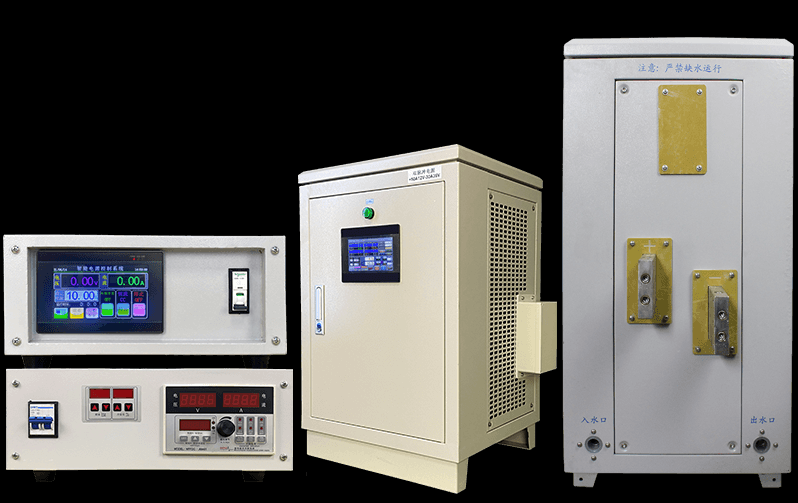

485 control electroplating rectifier

Company Background

With roots in electroplating equipment design since 2003, our company has led the way in implementing MUDBUS 485 (RTU) for electroplating rectifier control since 2006. Our journey has honed our expertise in design and debugging.

Electroplating Rectifier Technology

Basic Operating Principle:

We use a combination of rectifiers, high-frequency switch circuits, nanocrystalline high-frequency transformers, and Schottky regulators to convert input AC power into stable output DC voltage.

485 Communication Technology

Our communication protocol employs a half-duplex mode at 19200 bps, N, 8, 1, ensuring seamless data transfer with electroplating rectifiers and supporting up to 128 slave stations within a 200-meter range.

Integrated Control System

Our 485 master station manager enables smooth communication with devices like OMORM PLC and Mitsubishi PLC without additional protocols, thanks to years of development and optimization.

Real-world Application Case

Initial challenges with isolating feedback signals were overcome, highlighting the need for meticulous design considerations in electroplating rectifiers.

Conclusion

485 communication technology, coupled with careful design measures, guarantees reliability and efficiency in data transmission for electroplating rectifiers, showcasing our commitment to technological excellence.

Encouraging Interaction

We invite your insights and discussions on alternative control methods like Ethercat communication on our website //www.linearguider.com/electroplating-machine-.html.
