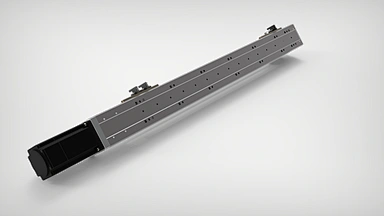

GTH6A linear spindle mechanical module
GTH6A
Linear Spindle Mechanism Linear Spindle Module Linear Spindle System Linear Spindle Assembly
Quantity:
Linear Spindle Mechanism ；Linear Spindle Module ；Linear Spindle System； Linear Spindle Assembly ；Linear Spindle Unit ；Linear Spindle Apparatus； Linear Spindle Device
Product parameters
| specification | ||||||
| Capability | Repeatability(mm) | ±0.01 | ||||
| Screw Lead(mm) | 5 | 10 | 20 | 32 | ||
| Maximum Speed(mm/s) | 250 | 500 | 1000 | 1600 | ||
| Maximum Payload | Horizontal(mm) | 20 | 20 | 10 | 8 | |
| Vertical(mm) | 9 | 5 | 3 | / | ||
| Rated Thrust(mm) | 341 | 170 | 106 | 85 | ||

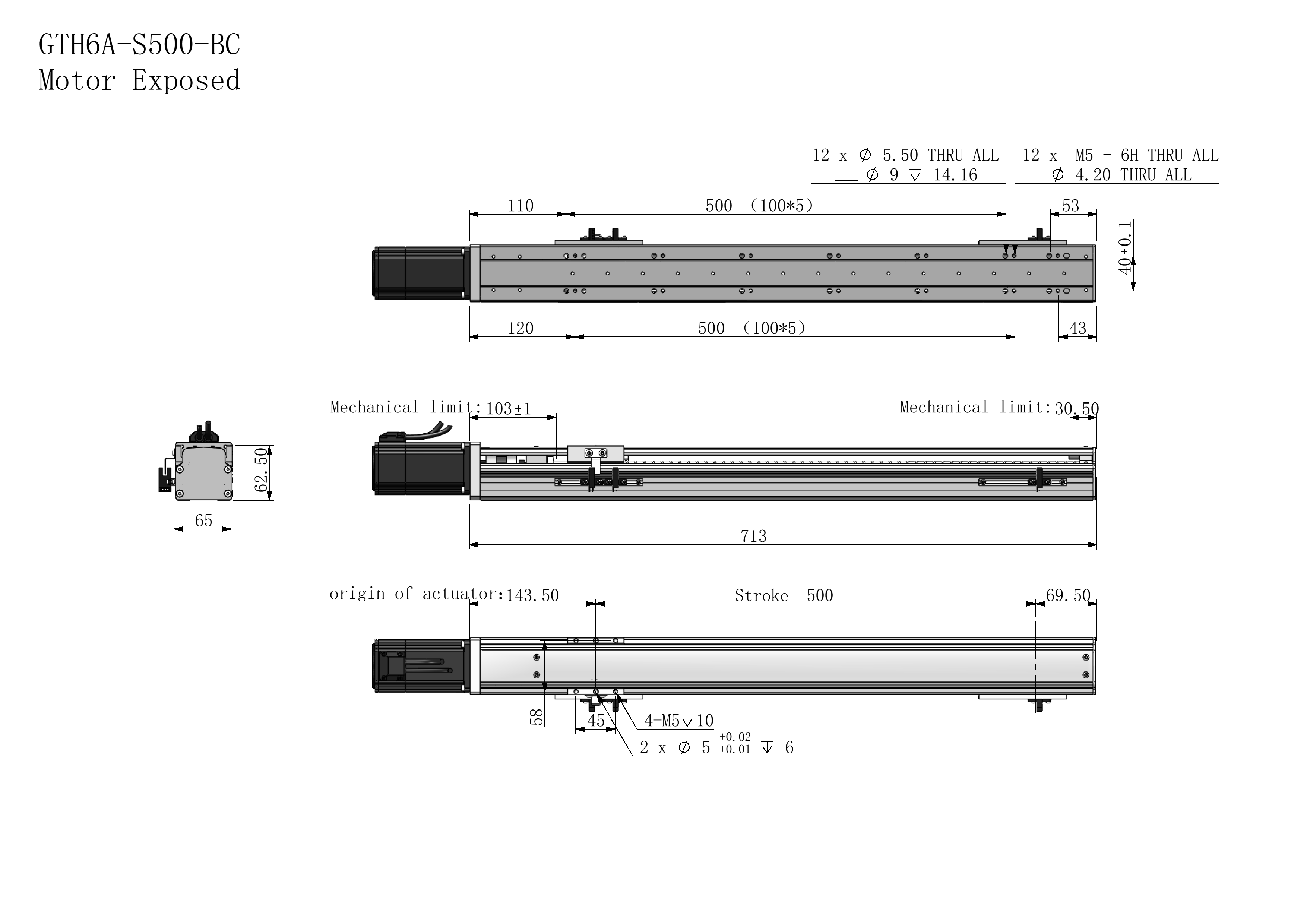

| Stroke Pitch(mm) | 100-1000mm 50mm pitch | |||||

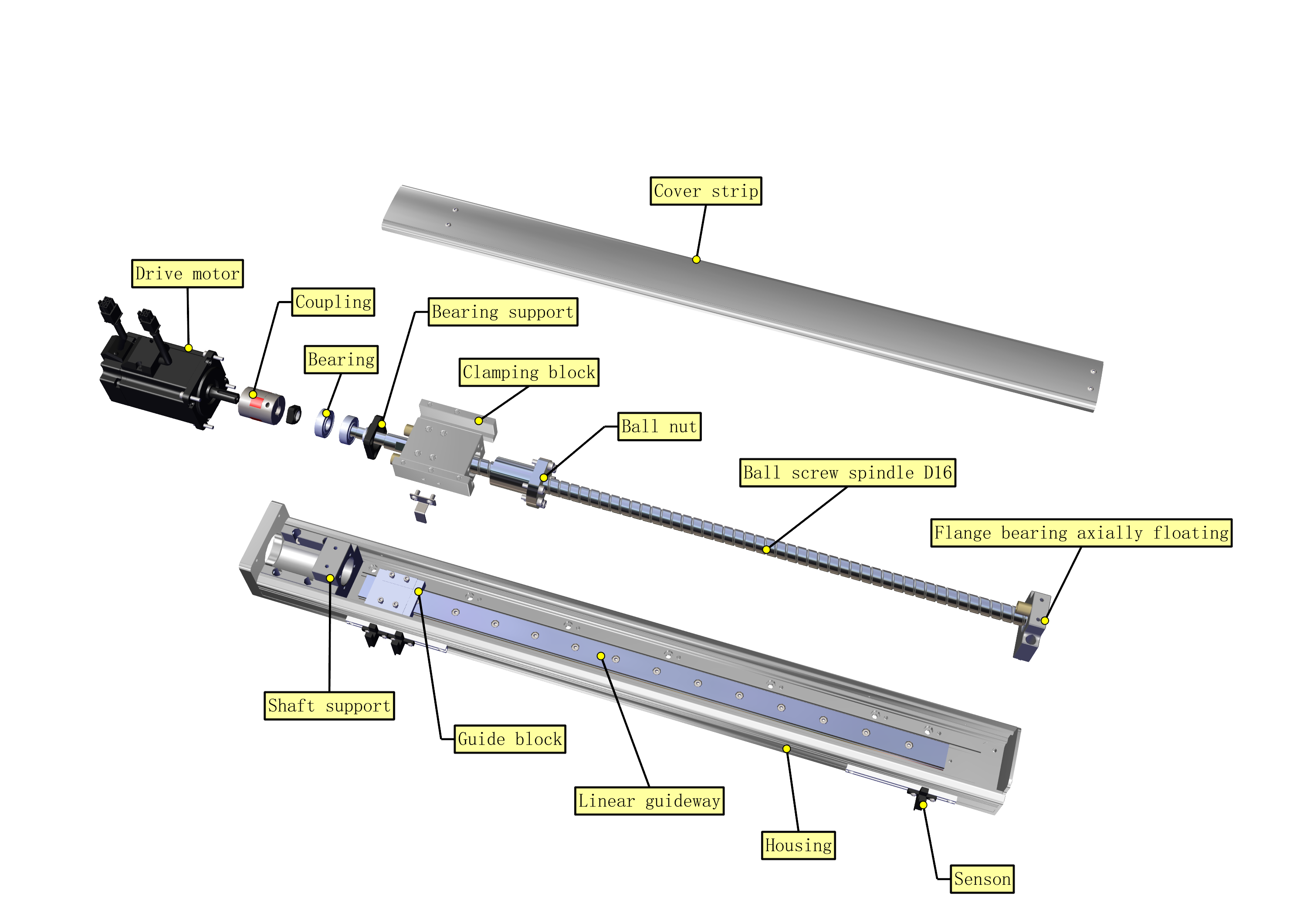

| Parts | Ac servo Motor output (W) | 100 | ||||
| Ball screw diameter φ(mm) | C7 φ16 | |||||
| High Rigidity Linear Guide(mm) | 24x8.5 | |||||
| Coupling(mm) | 8x10 | |||||
| Home sensor | Outside | Omoron EE-sx672(NPN) | ||||

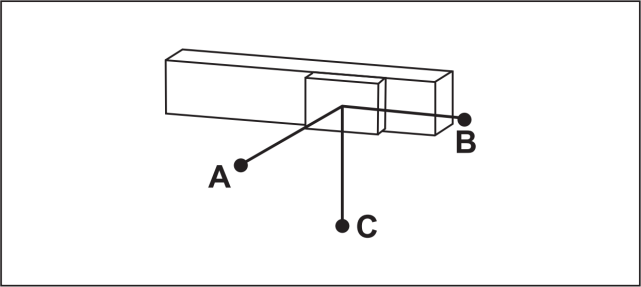

| Allowable Overhang （N.M) | ||||
| Horizontal Installation | A | B | C | |
| lead 5 | 30kg | 424 | 24 | 25 |
| 50kg | 0 | 0 | 0 | |
| / | / | / | / | |
| lead 10 | 15kg | 394 | 76 | 79 |
| 25kg | 184 | 22 | 25 | |
| 30kg | 111 | / | / | |
| lead 20 | 5kg | 937 | 282 | 259 |
| 10kg | 487 | 121 | 116 | |
| 22kg | 236 | 40 | 44 | |
| lead 32 | 5kg | 940 | 285 | 264 |
| 10kg | 490 | 125 | 120 | |
| 15kg | 240 | 45 | 48 | |

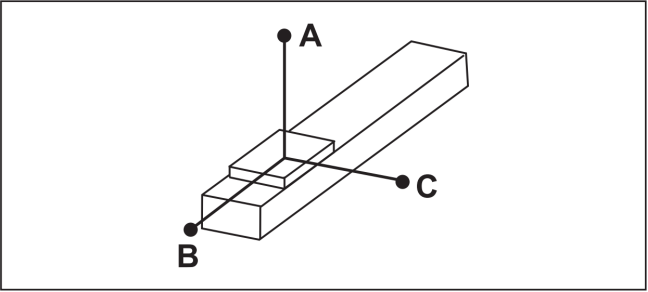

| Allowable Overhang （N.M) | ||||
| Wall Installation | A | B | C | |
| lead 5 | 10kg | 105 | 50 | 1400 |
| 20kg | 22 | 0 | 538 | |
| 30kg | 0 | 0 | 0 | |
| lead 10 | 10kg | 100 | 50 | 545 |
| 20kg | 20 | 0 | 221 | |
| 30kg | 0 | 0 | 0 | |
| lead 20 | 5kg | 116 | 58 | 605 |
| 10kg | 24 | 0 | 253 | |
| 22kg | 0 | 0 | 0 | |
| lead 32 | 5kg | 251 | 211 | 903 |
| 10kg | 97 | 49 | 436 | |
| 15kg | 23 | 0 | 153 | |
| Allowable Overhang （N.M) | Static Loading Moment | |||||
| Vertical Installation | A | C | MY | 110(N.M) | ||
| lead 5 | 5kg | 100 | 145 | MP | 110(N.M) | |
| 10kg | 50 | 90 | MR | 120(N.M) | ||
| 12kg | 23 | 63 | ||||
| lead 10 | 4kg | 335 | 375 | |||
| 6kg | 140 | 180 | ||||
| 8kg | 100 | 140 | ||||
| lead 20 | 1kg | 620 | 620 | |||
| 2kg | 680 | 680 | ||||
| 5kg | 310 | 350 | ||||
| lead 32 | 1kg | 580 | 580 | |||
| 2kg | 645 | 645 | ||||
| 3kg | 310 | 350 | ||||
CGM specializes in the professional development and production of Linear Spindle Assemblies and Linear Spindle Devices
