GTH7 linear spindle mechanical module
GTH7
The Linear Spindle Module and Linear Spindle Mechanism from CGM Company are compact, high-precision mechanical modules that integrate features such as rapid response and exceptional positioning accuracy. They deliver outstanding performance and comprehensive operational advantages to users.
Quantity:
The Linear Spindle Module and Linear Spindle Mechanism from CGM Company are compact, high-precision mechanical modules that integrate features such as rapid response and exceptional The Linear Spindle Module and Linear Spindle Mechanism from CGM Company are compact, high-precision mechanical modules that integrate features such as rapid response and exceptional positioning accuracy. They deliver outstanding performance and comprehensive operational advantages to users.
| specification | ||||||
| Capability | Repeatability(mm) | ±0.01 | ||||
| Screw Lead(mm) | 5 | 10 | 20 | 32 | ||
| Maximum Speed(mm/s) | 250 | 500 | 1000 | 1600 | ||
| Maximum Payload | Horizontal(mm) | 30 | 30 | 15 | 10 | |
| Vertical(mm) | 15 | 10 | 5 | 2 | ||
| Rated Thrust(mm) | 341 | 170 | 106 | 85 | ||
| Stroke Pitch(mm) | 100-1000mm 50mm pitch | |||||

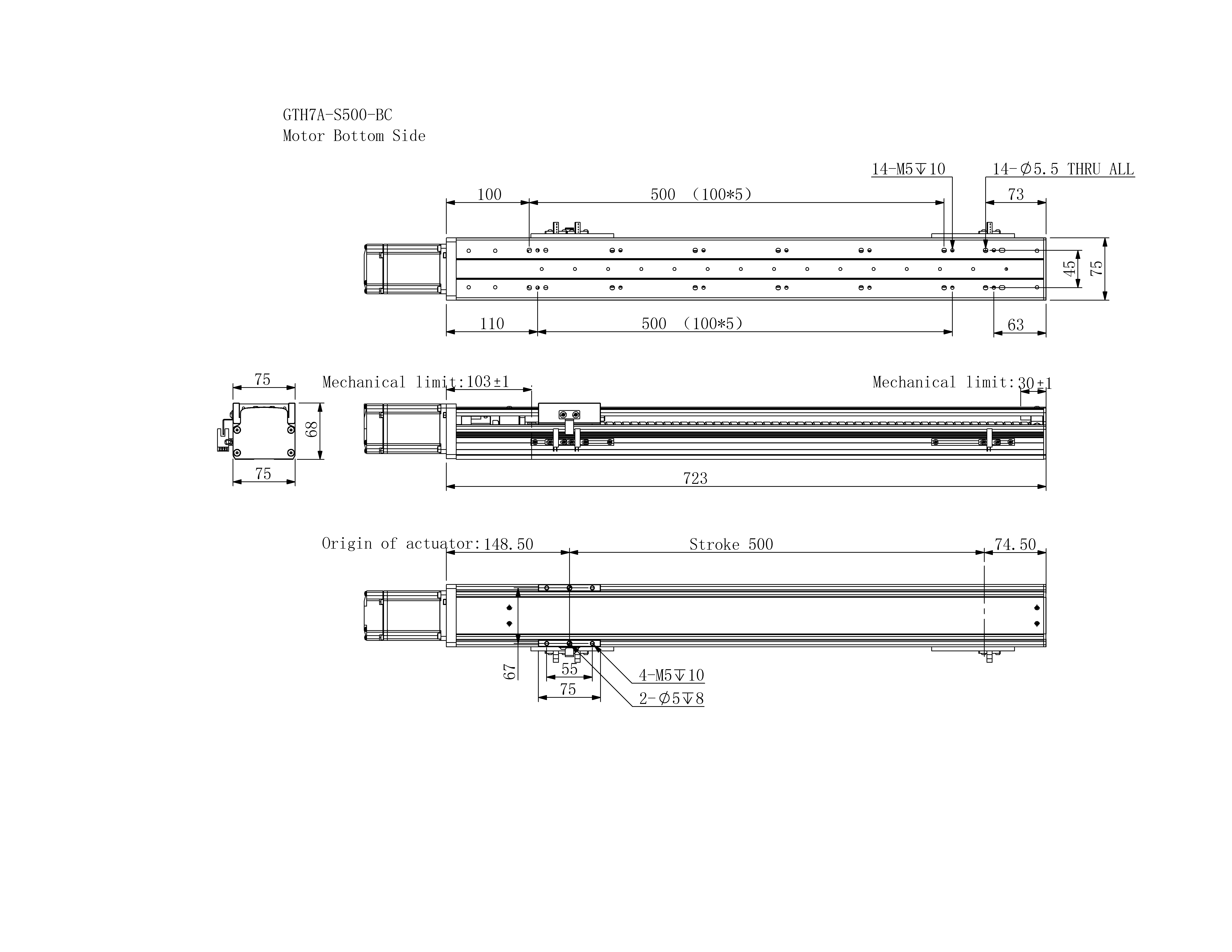

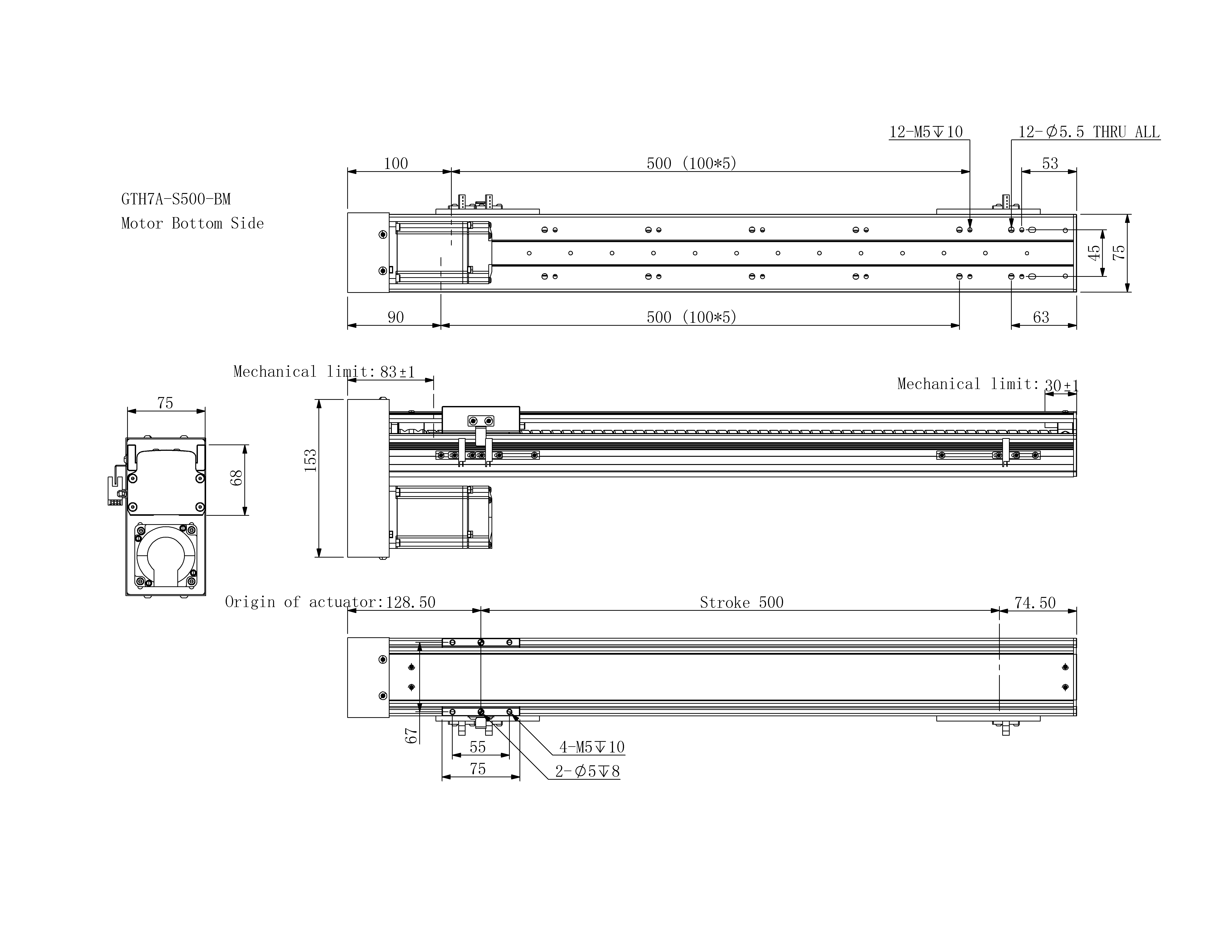

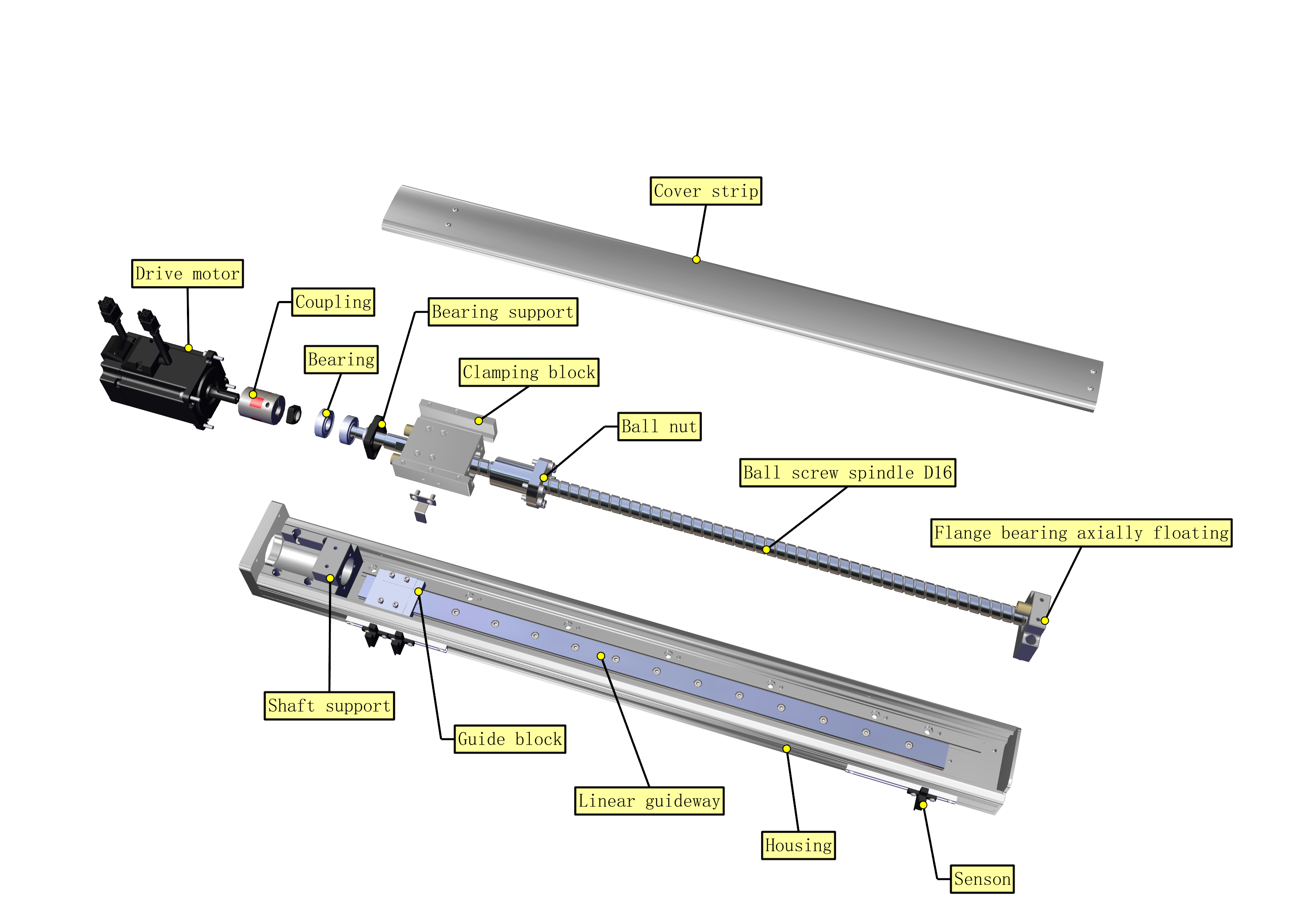

| Parts | Ac servo Motor output (W) | 200 | ||||
| Ball screw diameter φ(mm) | C7 φ16 | |||||
| High Rigidity Linear Guide(mm) | 24x8.5 | |||||
| Coupling(mm) | 10x14 | |||||
| Home sensor | Outside | Omoron EE-sx672(NPN) | ||||

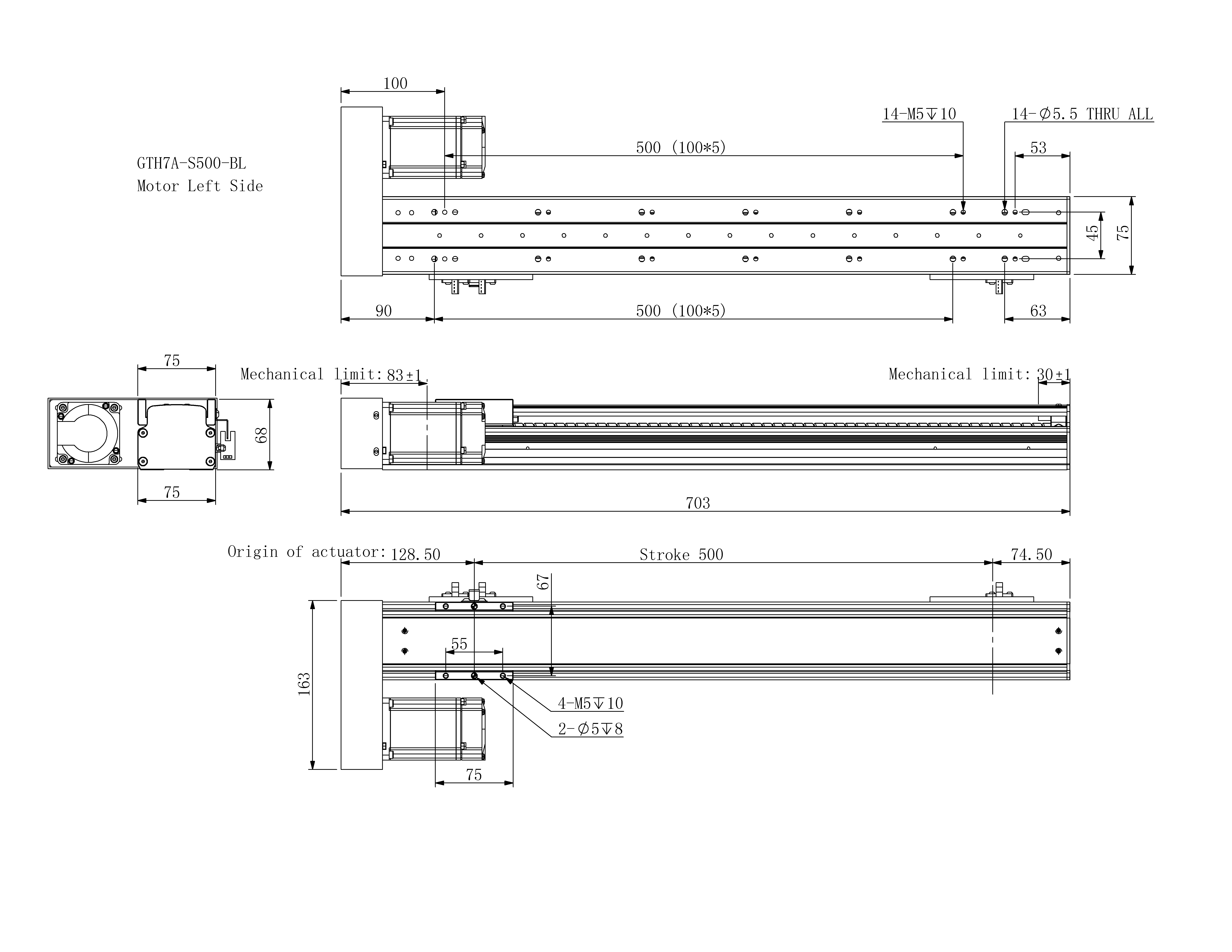

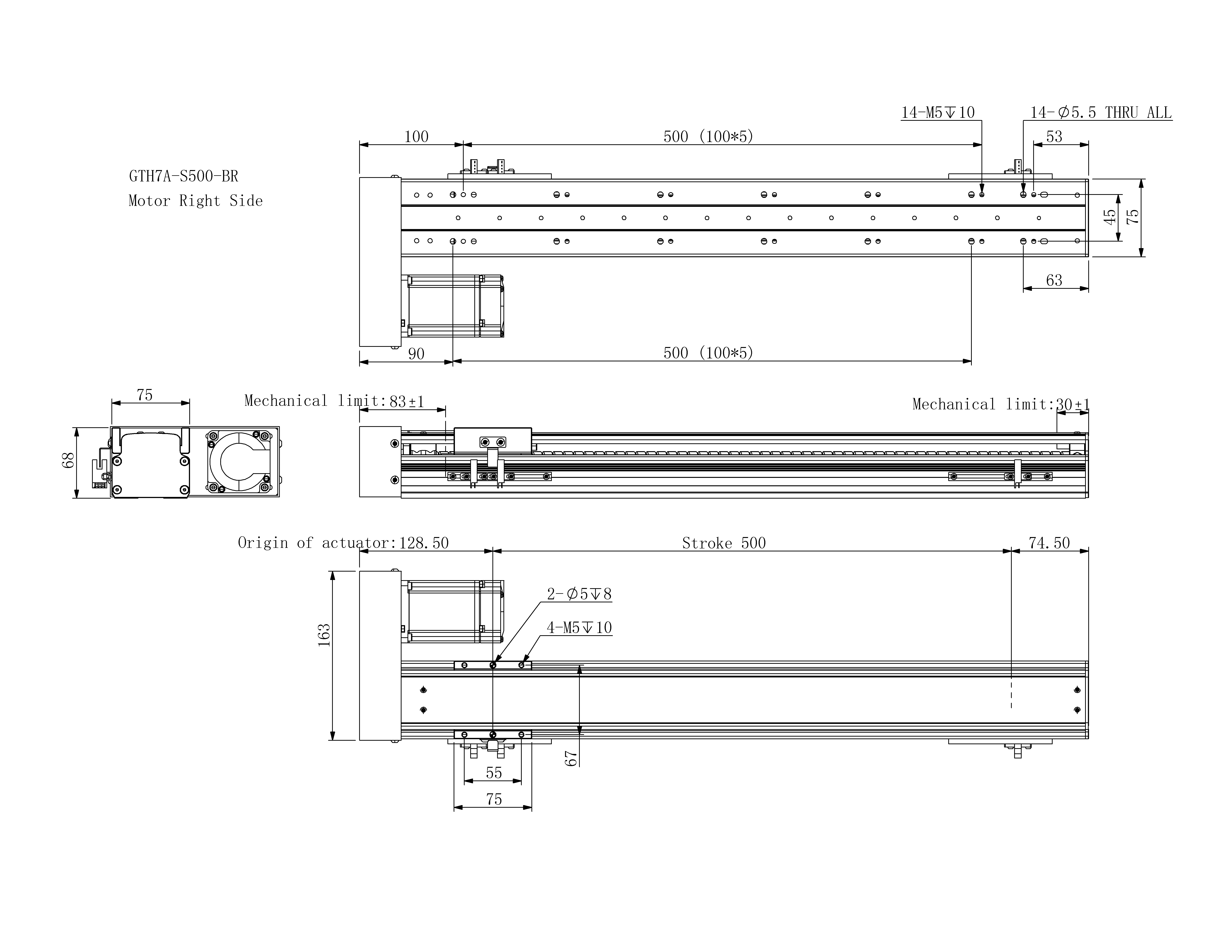

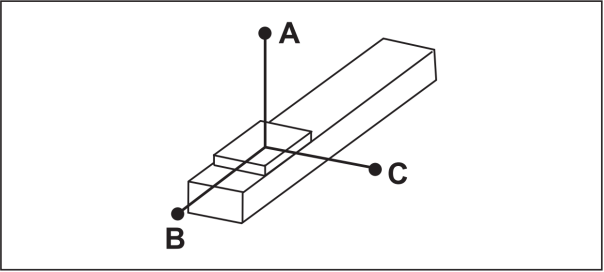

| Allowable Overhang （N.M) | ||||
| Horizontal Installation | A | B | C | |
| lead 5 | 15kg | 145 | 125 | 107 |
| 20kg | 121 | 95 | 89 | |
| 25kg | 68 | 52 | 28 | |
| lead 10 | 8kg | 141 | 116 | 95 |
| 10kg | 87 | 64 | 35 | |
| 12kg | 39 | 15 | 12 | |
| lead 20 | 4kg | 335 | 248 | 223 |
| 5kg | 236 | 155 | 130 | |
| 6kg | 165 | 50 | 41 | |
| lead 32 | 2kg | 352 | 273 | 285 |
| 5kg | 236 | 195 | 223 | |
| 6kg | 80 | 23 | 15 | |
| Allowable Overhang （N.M) | ||||
| Wall Installation | A | B | C | |
| lead 5 | 15kg | 26 | 65 | 136 |
| 20kg | 12 | 57 | 89 | |
| 35kg | 0 | 0 | 11 | |
| lead 10 | 7kg | 55 | 95 | 153 |
| 8kg | 12 | 51 | 73 | |
| 10kg | 0 | 3 | 21 | |
| lead 20 | 4kg | 102 | 121 | 197 |
| 5kg | 48 | 93 | 135 | |
| 6kg | 5 | 25 | 61 | |
| lead 32 | 2kg | 100 | 121 | 195 |
| 5kg | 20 | 86 | 156 | |
| 6kg | 35 | 50 | 85 | |
| Allowable Overhang （N.M) | |||
| Vertical Installation | A | C | |
| lead 5 | 3kg | 377 | 378 |
| 6kg | 203 | 205 | |
| 9kg | 25 | 25 | |
| lead 10 | 1kg | 520 | 523 |
| 3kg | 384 | 384 | |
| 5kg | 89 | 92 | |
| lead 20 | 2kg | 452 | 452 |
| 3kg | 211 | 210 | |
| 4kg | 19 | 29 | |
| lead 32 | 1kg | 452 | 452 |
| 2kg | 152 | 245 | |
| 3kg | 20 | 30 | |
MY=70(N.M) ; MP=80(N.M) ； MR =75(N.M).
