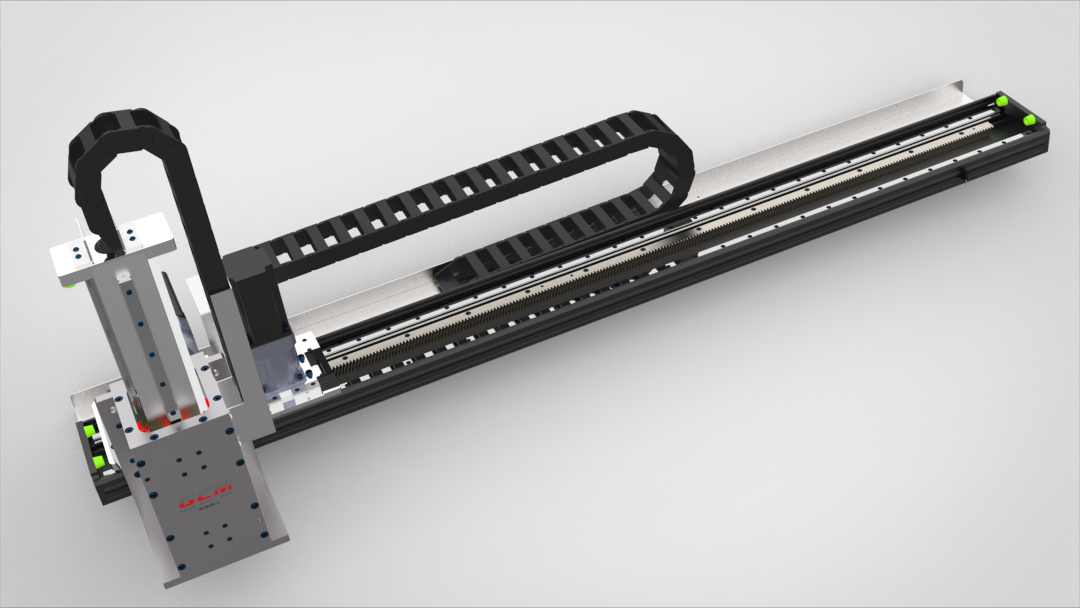

bushing ball cantilever robot arm

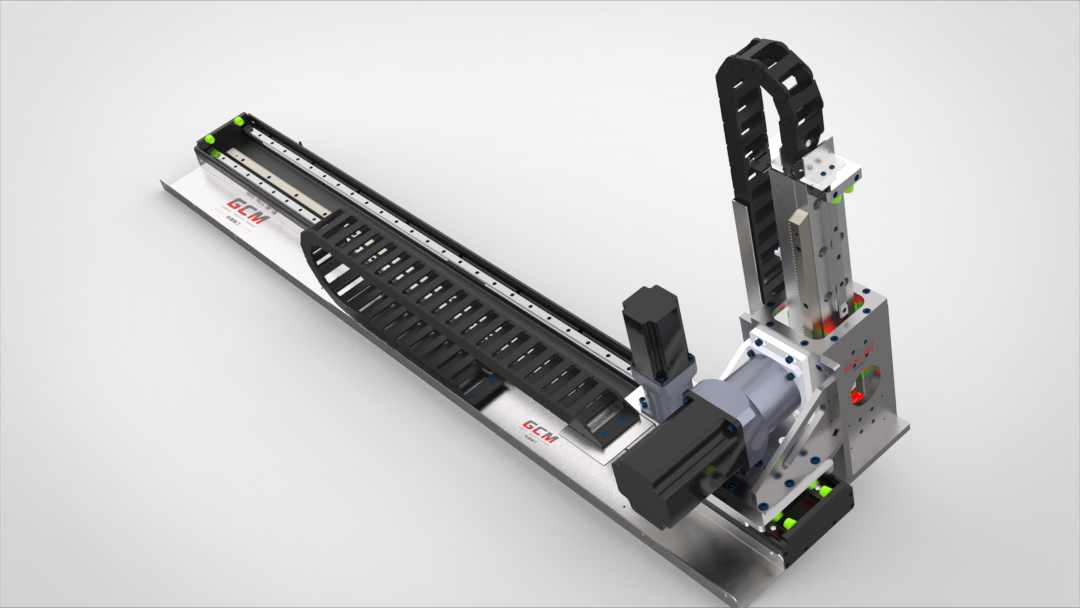

In the modern manufacturing industry, the development of robotic technology not only enhances production efficiency but also brings about more flexible and intelligent solutions across various sectors. As a leading player in the robotics field, CGM proudly introduces the GZH178 Cantilever Robot Arm, delivering outstanding performance and highly customizable solutions for clients.

Solid Construction and Design

The GZH178 Cantilever Robot Arm stands out with its robust design. Our mechanical engineers have placed special emphasis on solid construction during the design process, ensuring the product maintains exceptional stability and durability under various working conditions. This feature enables the robot arm to execute tasks in diverse industrial environments, meeting clients' high demands for reliability.

Bushing Ball Transmission

In the transmission section, we have employed advanced bushing ball transmission technology. This not only enhances the precision of the robot arm but also reduces friction and noise during motion. The application of bushing ball technology enables the GZH178 robot arm to perform exceptionally well under high-speed and high-load conditions, providing users with a more stable and efficient working experience.

GTH17 Series Specifications

• Repeatability: ±0.04mm
• Maximum Speed: 2000 (mm/s)
• Maximum Payload Horizontal: 55KG
• Maximum Payload Vertical: 30KG
• Rated Thrust: 204 (N)
• Stroke Pitch: 100-3050 mm

High-Performance Components

• AC Servo Motor Output: 750W
• High Rigidity Linear Guide: 20*15.5mm
• Sensor: EE-SX672

Highly Customizable

The distinctive feature of the GZH178 Cantilever Robot Arm lies in its highly customizable nature. Composed of gears, racks, and mechanical modules, the length of the robot arm can be tailored to the specific requirements of the client, reaching a maximum length of 20 meters. This level of customization makes the GZH178 suitable for various application scenarios, providing clients with more flexible solutions.

Performance Parameters

The performance parameters of the GZH178 robot arm are outstanding:

• Repeatability of ±0.04mm ensures high-precision execution of each operation.
• A maximum speed of 2000mm/s provides efficient work performance.
• Horizontal payload capacity of up to 55KG and vertical payload capacity of 30KG make it suitable for various working scenarios.
• A rated thrust of 204N ensures stable operation even under high-load conditions.

The CGM GZH178 Cantilever Robot Arm features high-performance components, including a 750W AC servo motor output, 20*15.5mm high rigidity linear guide, and EE-SX672 sensor, guaranteeing exceptional performance in various complex conditions.

In conclusion, the CGM GZH178 Cantilever Robot Arm, with its robust design, advanced bushing ball transmission technology, and high customization capabilities, provides reliable and efficient automation solutions across industries. We look forward to creating greater value and broader development opportunities for clients through this exceptional product.

For more information about the GZH178 Cantilever Robot Arm, please visit the official CGM website.
