Unlocking Precision: CNC Turning in Mold and Die Manufacturing

In the realm of manufacturing, where precision reigns supreme, CGM stands at the forefront of innovation. With our state-of-the-art Precision CNC Turning equipment, we breathe life into the intricate world of mold and die manufacturing. Let's delve into the pivotal role of CNC turning in shaping the future of this industry.

Precision in Every Detail

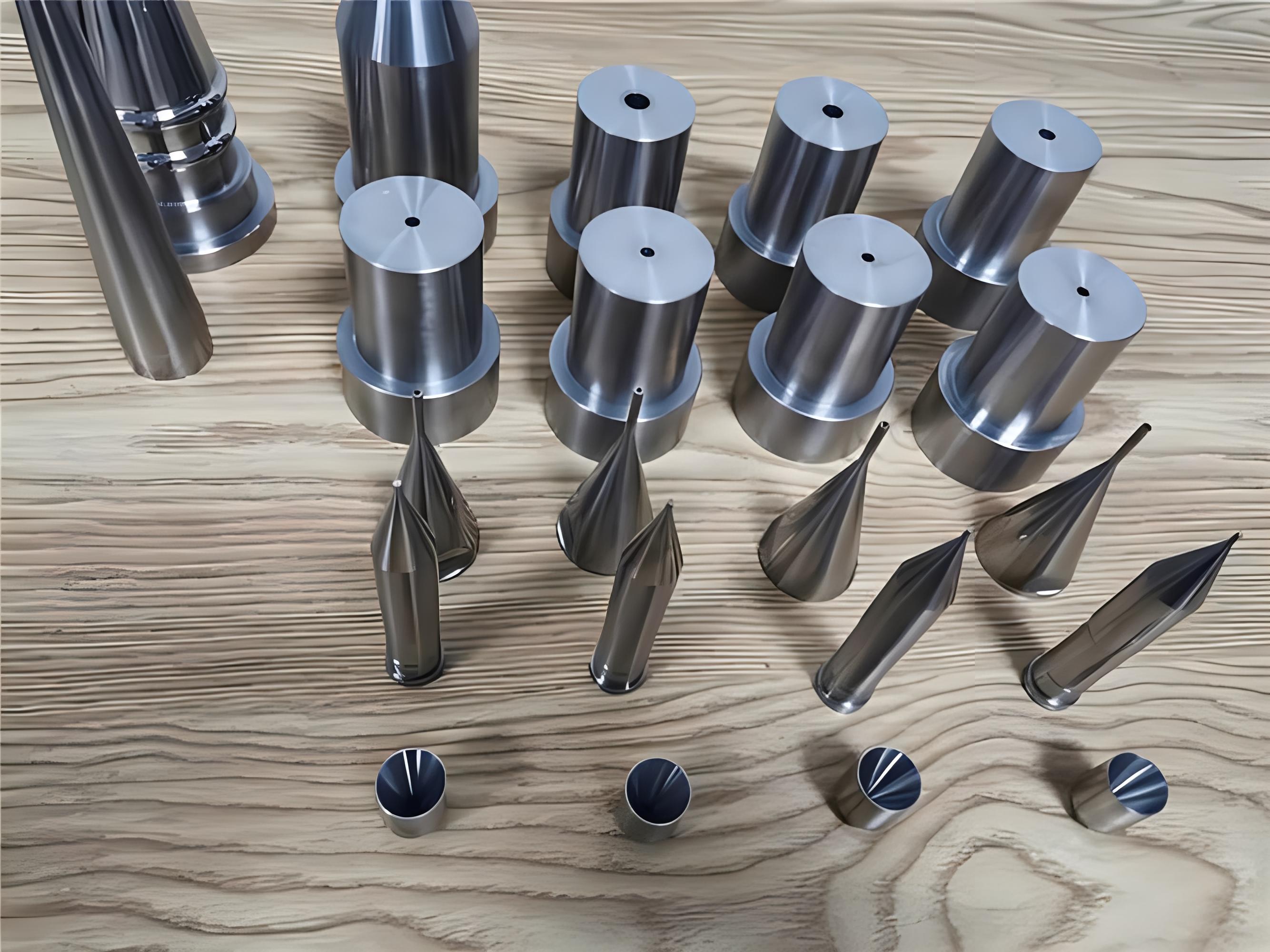

1. Crafting the Core and Cavity: At the heart of every mold lies its core and cavity, defining the product's shape and form. With CNC turning, we carve out these vital components with unparalleled accuracy, ensuring precise replication of designs and flawless molding processes.

2. Sleek Slides and Guide Pins: Smooth operation hinges upon the interaction of slides and guide pins within molds. Our CNC-turned slides and guide pins guarantee seamless movement and precise alignment, laying the foundation for impeccable mold performance.

3. Sturdy Bases and Fixture Clamps: Stability is key in mold manufacturing, and our CNC-turned bases and fixture clamps provide the robust foundation needed for reliable operations. With our precision engineering, we ensure secure fastening and optimal positioning, minimizing errors and maximizing productivity.

4. Cooling Channels and Nozzles: Efficient cooling is critical to the molding process, and CNC turning enables the creation of intricate cooling channels and precision nozzles. By optimizing heat dissipation and material flow, we enhance productivity and product quality, delivering molds that perform flawlessly under pressure.

5. Efficient Gates and Venting Slots: Gates and venting slots are the gatekeepers of quality in mold manufacturing, facilitating material flow and air evacuation. With CNC turning, we meticulously craft these features to exact specifications, ensuring smooth material flow and eliminating defects.

Precision Craftsmanship, Powered by CGM

At CGM, precision is not just a goal; it's our standard. With our fleet of 30 automatic Precision CNC Turning devices and three five-axis CNC horizontal machines, we deliver unmatched accuracy to the mold and die manufacturing industry.

Machine Specifications and Precision:

• Linear Accuracy: ±0.002mm to ±0.005mm
• Roundness Accuracy: ±0.003mm to ±0.008mm
• Angular Accuracy: Typically ±0.01 degrees to ±0.05 degrees
• Dimensional Repeatability: ±0.002mm to ±0.005mm
• Geometric Repeatability: ±0.01mm to ±0.02mm
• Surface Quality Consistency: Ra (Average Roughness) 0.2 to 0.8 micrometers; Rz (Maximum Peak-to-Valley Height) 2 to 8 micrometers; Rq 0.3 to 1.2 micrometers.

Precision Redefined

In the dynamic world of mold and die manufacturing, precision is not just a luxury; it's a necessity. With CNC turning at the helm, CGM continues to redefine the boundaries of precision engineering, shaping the future of manufacturing, one meticulously crafted mold at a time.

For more information about our CNC turning capabilities and services, visit our website at www.linearguider.com. Join us as we embark on a journey of precision and innovation, transforming concepts into reality with every turn.
