Precision Control in CNC Turning for Die Casting Mold Manufacturing

In the realm of die casting mold manufacturing, precision is paramount. CNC turning plays a crucial role in achieving this precision, particularly in the control of key manufacturing processes. At CGM, we understand the importance of precision control in die casting mold production, and our advanced CNC turning equipment ensures that we meet the highest standards of quality and accuracy.

Advanced CNC Turning Equipment: With 30 automatic Precision CNC Turning devices and three five-axis CNC horizontal machines, CGM is equipped with state-of-the-art machinery for die casting mold manufacturing. Our advanced equipment enables us to achieve exceptional precision and consistency in the manufacturing process.

Equipment Specifications and Precision: Our CNC turning equipment boasts impressive precision specifications. Linear accuracy ranges from ±0.002mm to ±0.005mm, roundness accuracy from ±0.003mm to ±0.008mm, and angular accuracy typically between ±0.01 degrees to ±0.05 degrees. Additionally, our machines offer remarkable repeatability, with dimensional and geometric shape repeatability ranging from ±0.002mm to ±0.005mm and ±0.01mm to ±0.02mm, respectively. Surface quality consistency is also ensured, with Ra (average roughness) ranging from 0.2 to 0.8 micrometers and Rz (maximum peak height) from 2 to 8 micrometers, and Rq from 0.3 to 1.2 micrometers.

Key Process Controls in CNC Turning for Die Casting Mold Manufacturing:

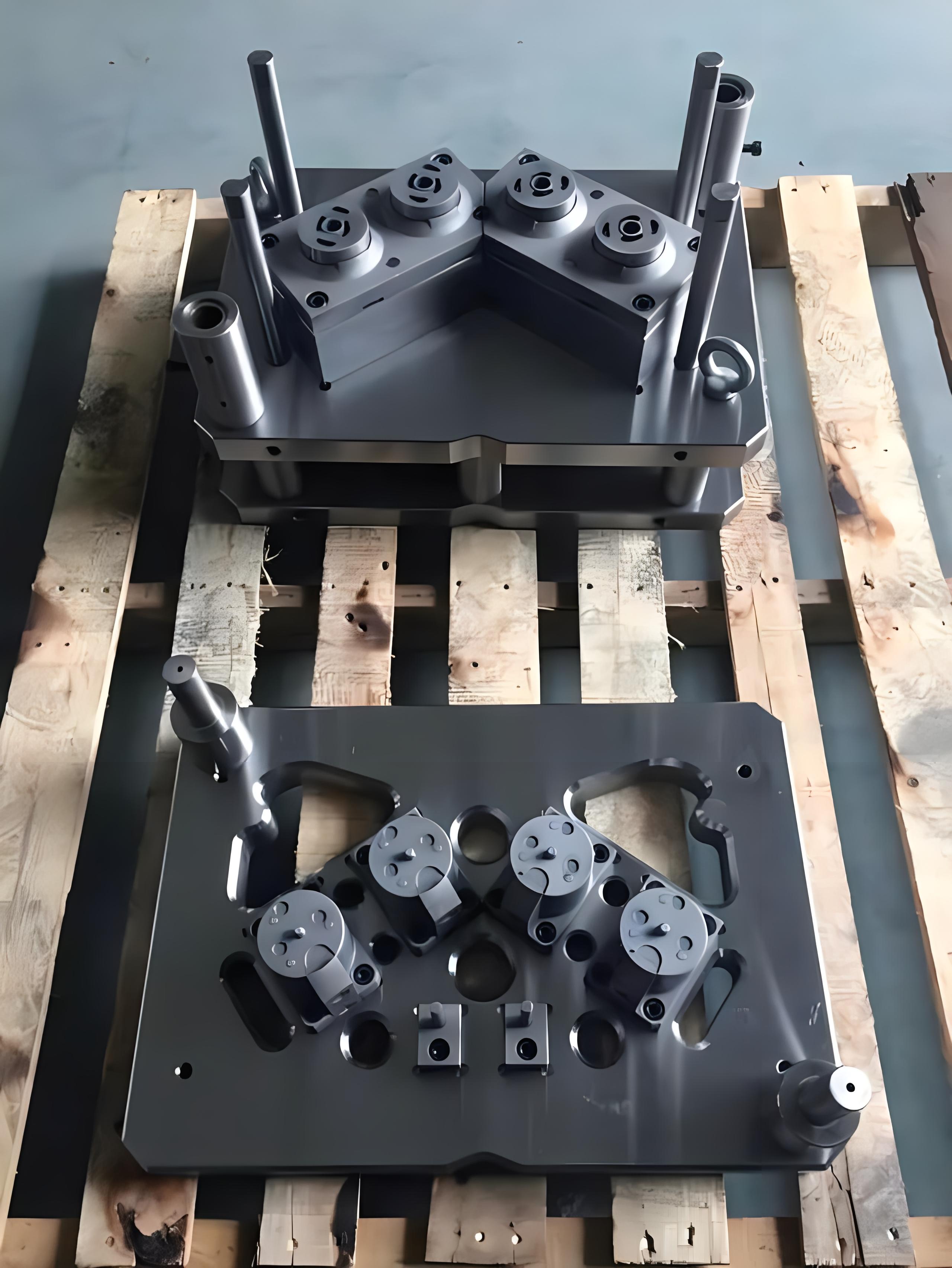

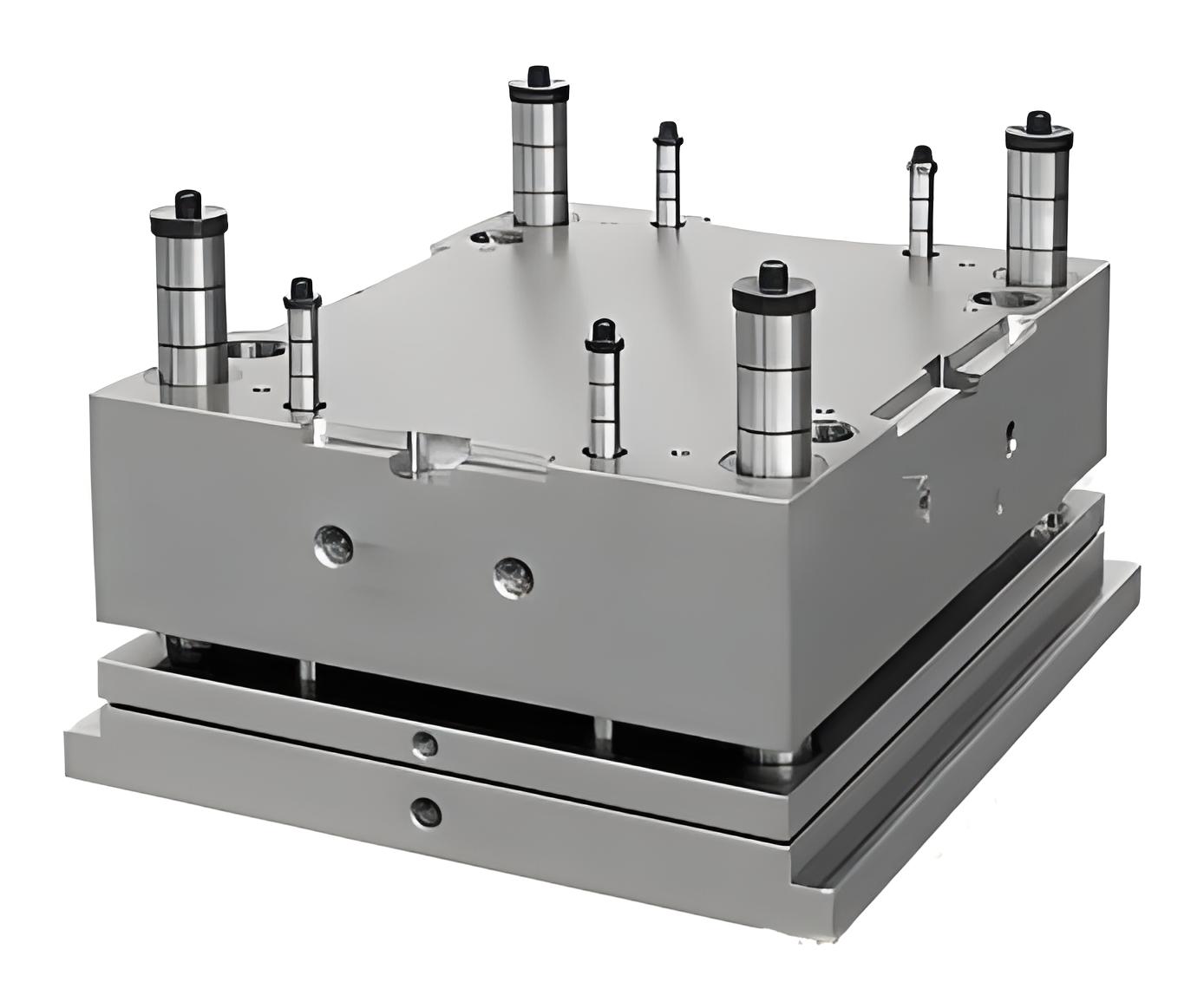

1. Precise Structure Machining: CNC turning is used to machine various structural components of die casting molds, including cavities, cores, guide posts, and more. This precision machining ensures dimensional accuracy and consistency of mold components.

2. Surface Finish Control: Surface finish is crucial for the quality and performance of die casting molds. CNC turning allows for precise surface finishing techniques such as grinding, polishing, and brushing, ensuring smooth and flawless mold surfaces.

3. Thread Machining: Many die casting molds require precise threading, such as threaded holes and shafts. CNC turning efficiently produces various precision threads, ensuring optimal fit and functionality of mold components.

4. Dimensional Accuracy Assurance: CNC turning technology enables high-precision machining of mold components, ensuring dimensional accuracy and tolerance control as per specifications, thus guaranteeing the precision and stability of the final product.

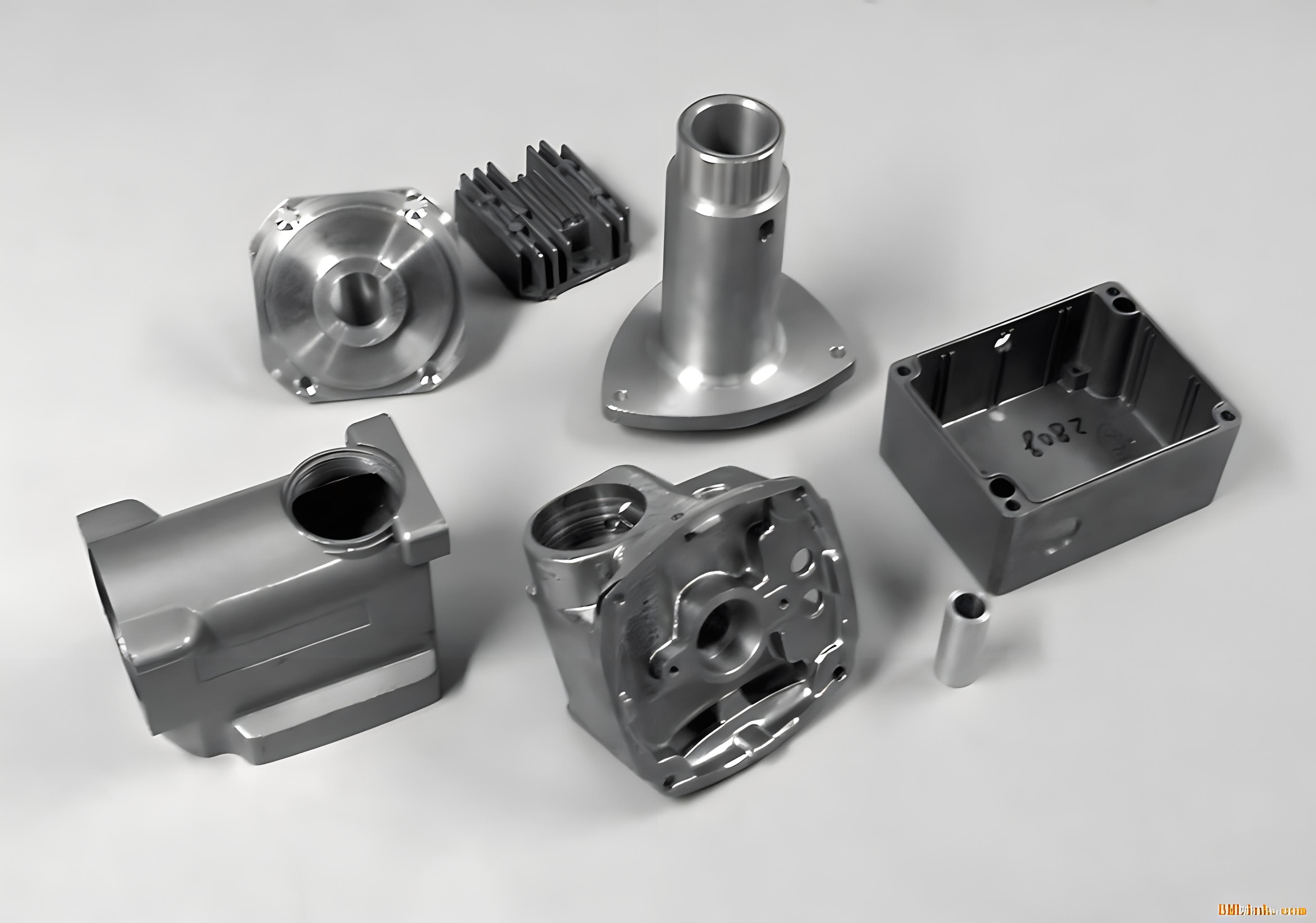

5. Locating Hole and Surface Machining: Accurate locating holes and surfaces are essential for proper assembly and performance of die casting molds. CNC turning accurately machines various locating holes and surfaces, ensuring precise positioning and stable connections between mold components.

Through precision control in CNC turning, CGM ensures the highest quality standards in die casting mold manufacturing, meeting the stringent requirements of our clients and contributing to the advancement of the industry.
