Electroplating Rectifier Enclosure Design: The Key to Corrosion Resistance

Introduction:

In the electroplating industry, water-cooled electroplating rectifiers play an irreplaceable role. However, due to the high concentration of acidic substances in the electroplating environment, traditional materials are prone to corrosion, shortening the service life of rectifiers and increasing failure rates. Therefore, correct design and fabrication of the electroplating rectifier enclosure are crucial.

Application Background in the Electroplating Industry:

Electroplating, as a crucial surface treatment technique, finds extensive application in areas such as PCB electroplating workshops. In this process, water-cooled electroplating rectifiers are essential equipment to ensure the quality and stability of electroplating.

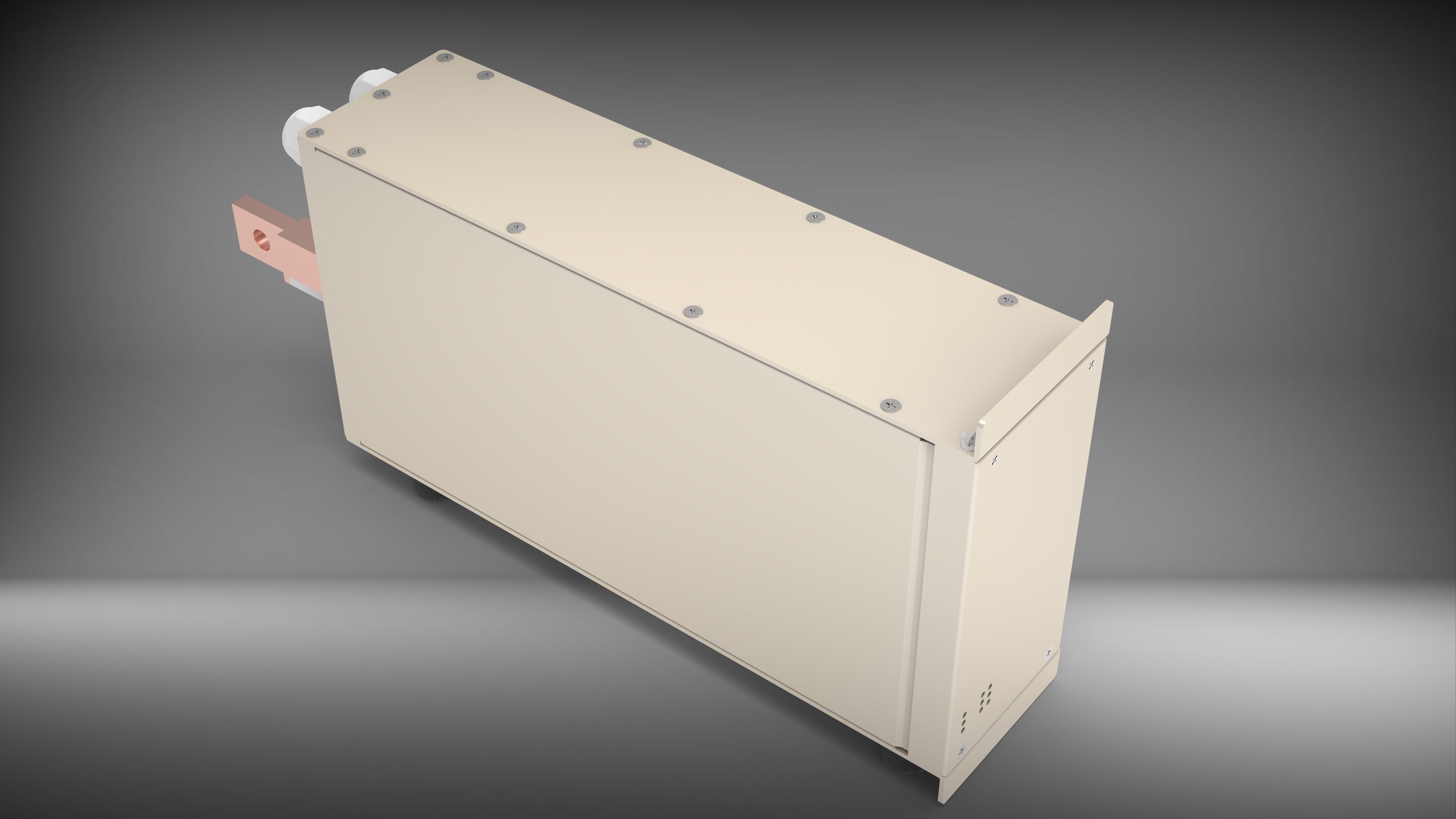

Choice of Corrosion-Resistant Materials:

Considering the unique characteristics of the electroplating environment, we choose materials such as stainless steel sheet metal or PVC/PP boards for the enclosure, ensuring excellent corrosion resistance. Optimization of the enclosure's sealing effectively isolates corrosive gases, protecting control panels and electronic components, thereby extending the rectifier's lifespan.

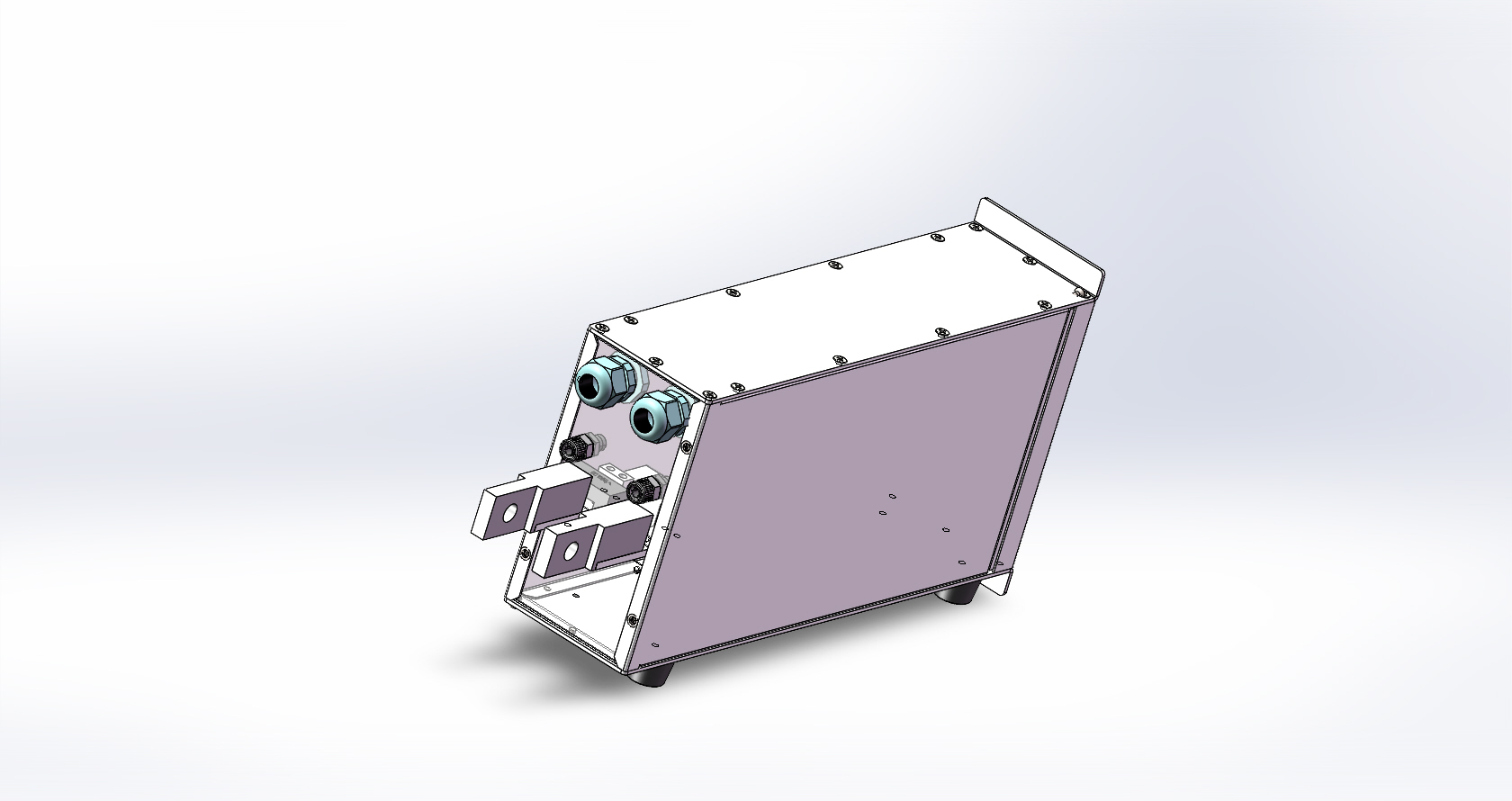

Fabrication Process and Design Considerations:

The use of CNC laser cutting and CNC welding technologies ensures the precise fabrication of the enclosure. Through stress analysis, considerations for the actions of installation technicians, and the convenience of automated robotic installations, we achieve a harmonious balance between machine stability and aesthetic appeal.

Equipment Maintenance and Signal Isolation Design:

Full consideration of equipment maintainability in the design ensures that maintenance personnel and technicians can easily repair and diagnose the equipment. Signal isolation and shielding design are crucial, especially in high-frequency operations, ensuring normal functionality.

Successful Case:

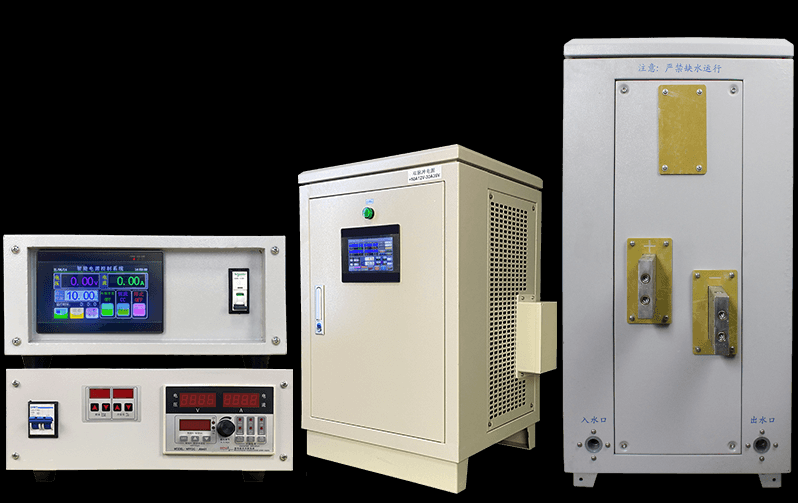

Our company's designed and manufactured water-cooled electroplating rectifiers have been installed in PCB electroplating workshops for 12 years. Utilizing MODUS(RTU) communication technology, the 48 units maintain the fresh appearance and outstanding performance observed at the time of delivery.

Conclusion:

In summary, the design and fabrication of electroplating rectifier enclosures are key to ensuring stable equipment operation over an extended period. The selection of corrosion-resistant materials is a core element. If you have further questions or express interest in electroplating rectifiers, please visit our company website www.linearguider.com. We look forward to engaging in in-depth discussions and collaborations.
