CNC Turning Process and Technology for Marine Engine Components

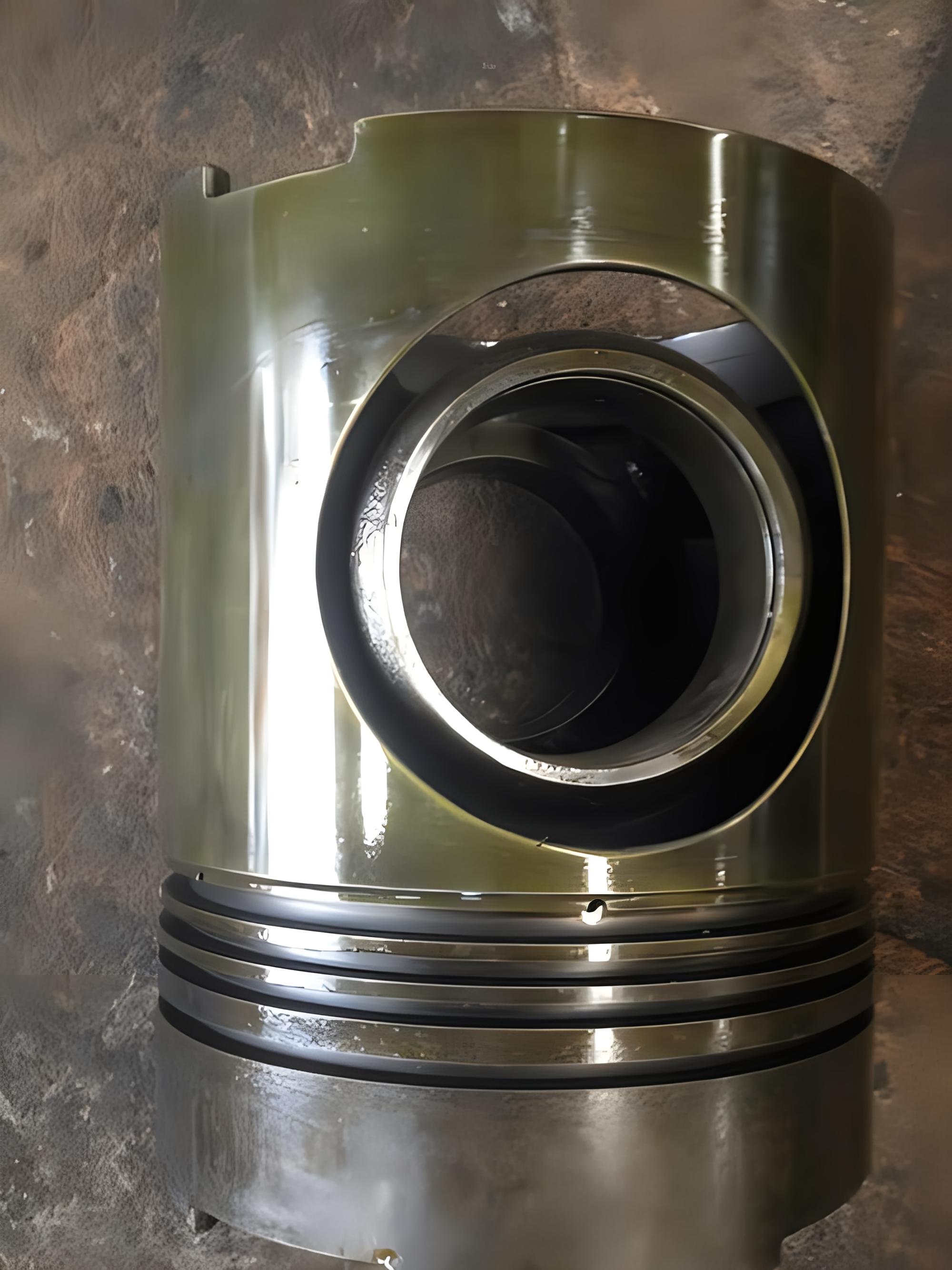

With the support of 30 automatic Precision CNC Turning devices and three five axis CNC horizontal devices at CGM, we are dedicated to providing high-precision machining services for marine engine components. Whether it's engine crankshafts, cylinder blocks and heads, connecting rods, flywheels, gears, or bearings, we have advanced technology and extensive experience to achieve the highest level of machining quality.

CNC Turning Process

1. Design and Planning: Our machining process begins with design and planning. We work closely with clients to understand their requirements and develop machining plans and programs.

2. Material Preparation: When selecting materials, we focus on quality and reliability, ensuring that the chosen materials meet customer requirements and are suitable for specific applications.

3. Workpiece Clamping: We use specialized fixtures to securely clamp the workpiece to the machine tool, ensuring stability and precision during the machining process.

4. Programming: Our team of engineers utilizes advanced CAM software to write CNC machining programs, considering factors such as cutting paths, cutting parameters, and tool selection to achieve optimal machining results.

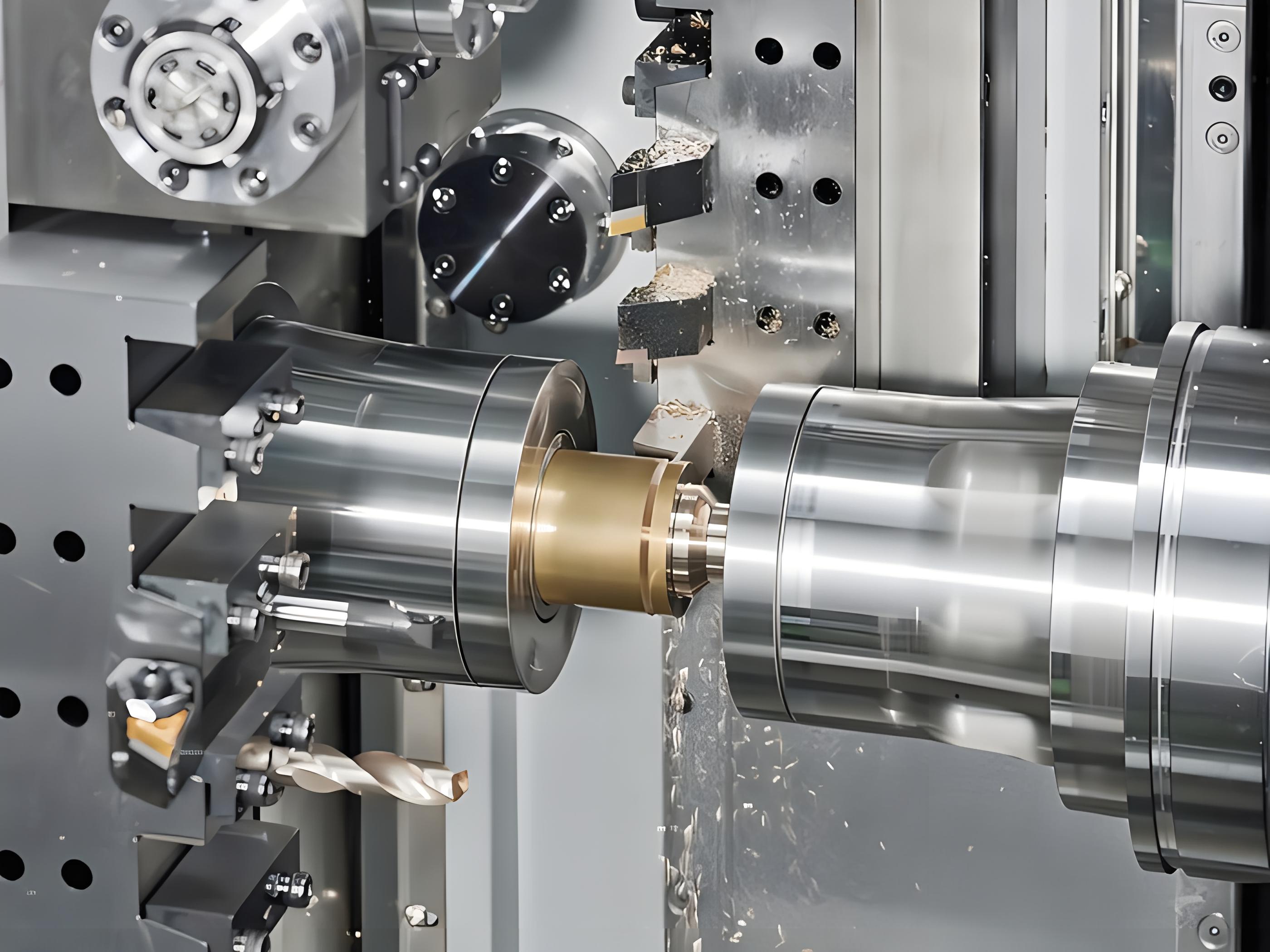

5. Turning Process: Through our company's equipped precision CNC lathes, we perform turning processes. These machines feature outstanding performance and highly automated functions, ensuring accuracy and efficiency during the machining process.

6. Finishing Operations: After turning, we may perform additional finishing operations such as grinding, polishing, or drilling to further improve the surface quality and dimensional accuracy of the components.

7. Inspection and Quality Control: We strictly adhere to quality control procedures, conducting comprehensive inspections of the machined components to ensure that their dimensions, shapes, and surface quality meet design requirements.

Machining Accuracy and Equipment Parameters

• Accuracy:

  • Linear Accuracy: ±0.002mm to ±0.005mm
  • Roundness Accuracy: ±0.003mm to ±0.008mm
  • Angular Accuracy: ±0.01 degrees to ±0.05 degrees

• Repeatability:

  • Dimensional Repeatability: ±0.002mm to ±0.005mm
  • Geometric Shape Repeatability: ±0.01mm to ±0.02mm

• Surface Quality:

  • Average Roughness (Ra): 0.2 to 0.8 micrometers
  • Maximum Peak Height (Rz): 2 to 8 micrometers
  • Rq: 0.3 to 1.2 micrometers

Conclusion

CGM provides unparalleled solutions for CNC turning machining of marine engine components with its advanced equipment and professional technical team. We are committed to providing customers with high-quality, high-precision machining services to meet their most stringent requirements. For more information, please visit our website: www.linearguider.com.
