Precision Machining Techniques of CNC Turning in Injection Mold Manufacturing

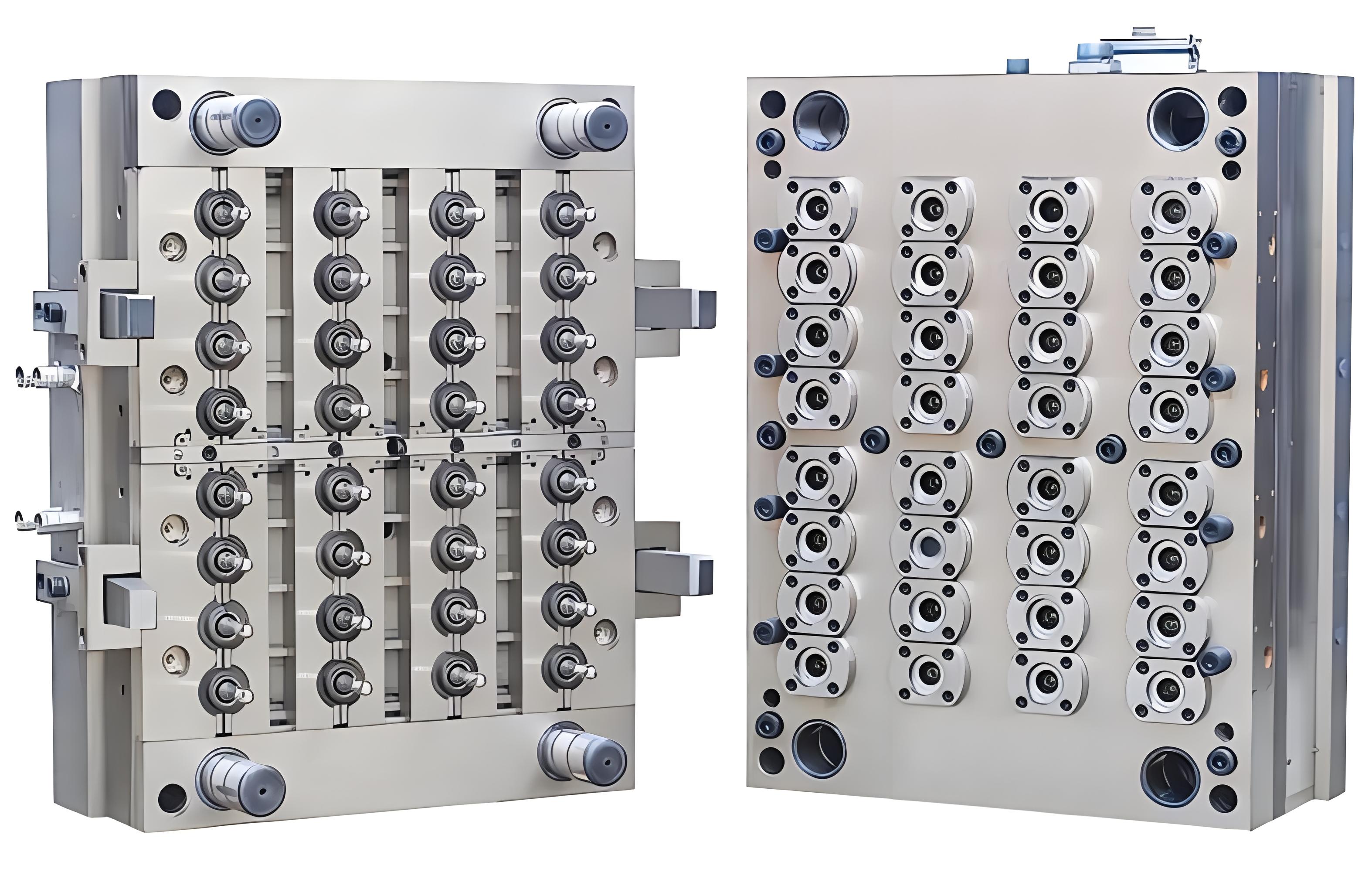

In the realm of injection mold manufacturing, precision is the cornerstone of success. At CGM, we harness the power of CNC turning technology to achieve unparalleled precision in the production of injection molds. Our commitment to excellence is reflected in our state-of-the-art equipment and meticulous machining techniques.

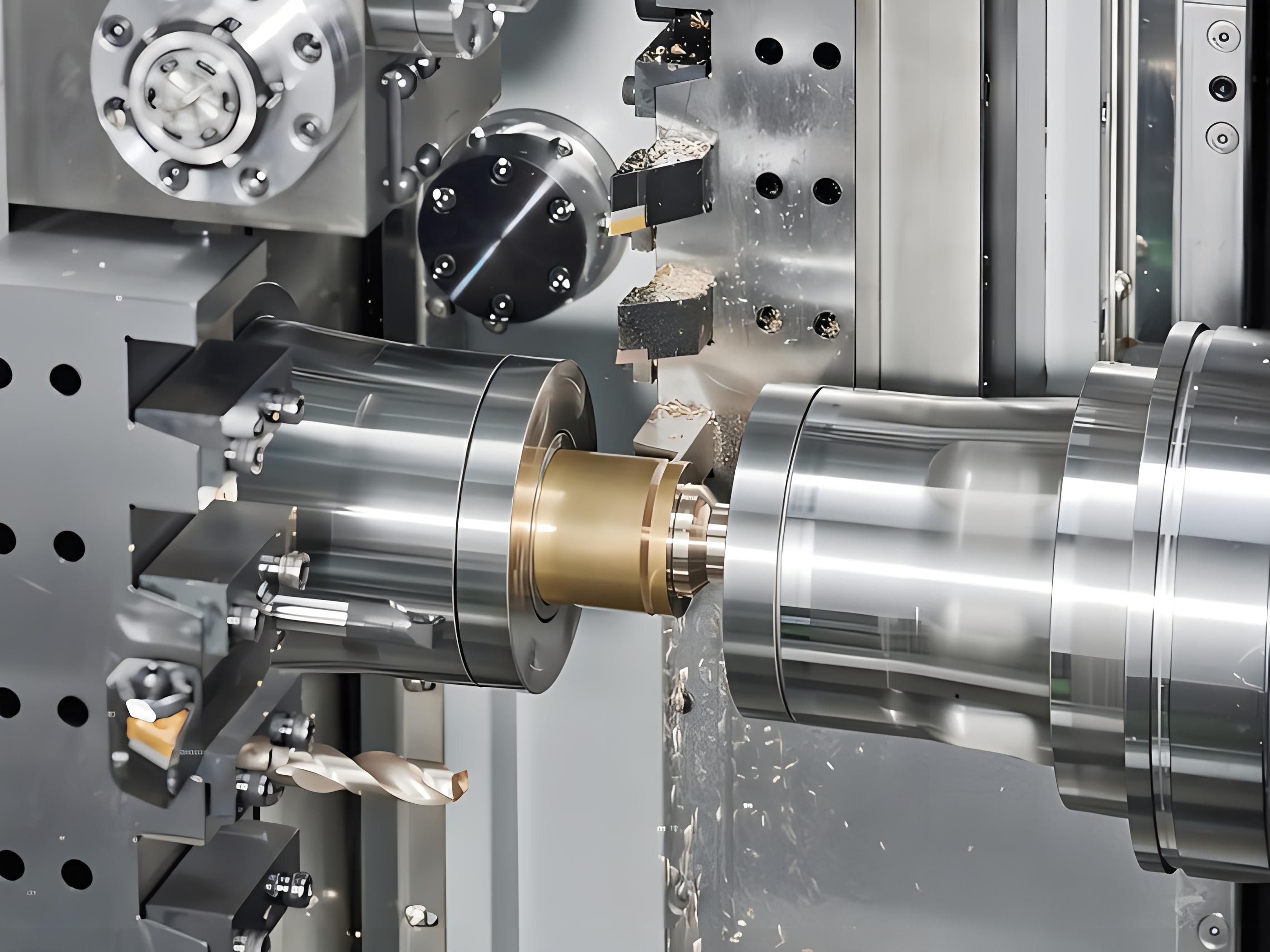

Advanced CNC Turning Equipment: With a fleet of 30 automatic Precision CNC Turning devices and three five-axis CNC horizontal machines, CGM stands at the forefront of precision manufacturing. Our cutting-edge equipment is equipped to handle the most intricate of tasks with utmost precision and consistency.

Equipment Specifications and Precision: Our CNC turning equipment boasts remarkable precision, with linear accuracy ranging from ±0.002mm to ±0.005mm and roundness accuracy from ±0.003mm to ±0.008mm. Angle precision typically falls within ±0.01 degrees to ±0.05 degrees. Moreover, our machines ensure exceptional repeatability, with dimensional and geometric shape repeatability ranging from ±0.002mm to ±0.005mm and ±0.01mm to ±0.02mm, respectively. Surface quality consistency is also guaranteed, with Ra (average roughness) ranging from 0.2 to 0.8 micrometers and Rz (maximum peak height) from 2 to 8 micrometers. Rq ranges from 0.3 to 1.2 micrometers, ensuring the highest standards of surface finish.

Precision Machining Techniques:

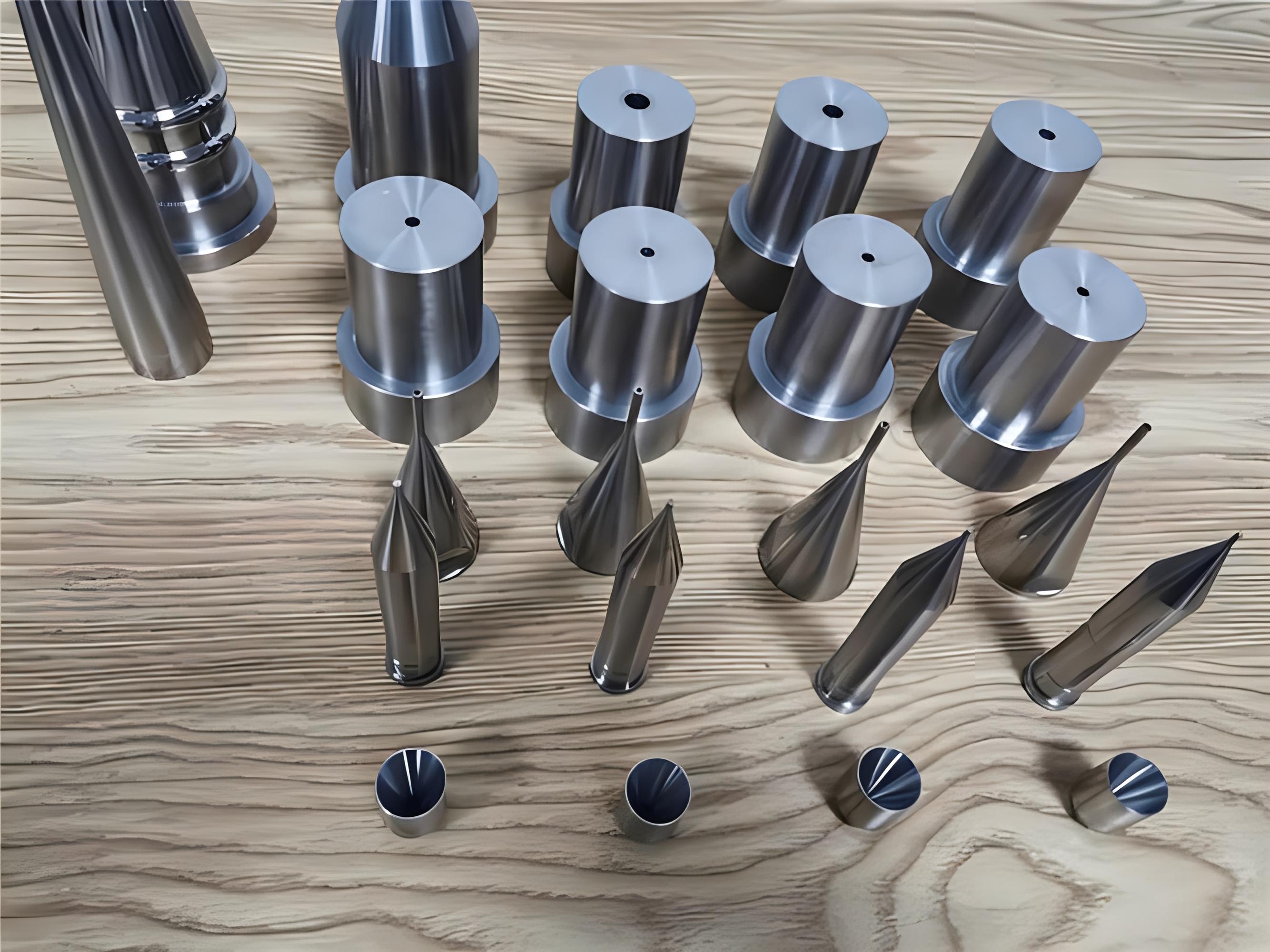

1. Complex Geometry Machining: Our CNC turning technology enables precise machining of intricate geometries required in injection mold cavities, cores, and inserts. Complex shapes and features are effortlessly replicated with unparalleled accuracy.

2. Tight Tolerance Machining: With our advanced equipment and precise machining techniques, we can achieve tight tolerances required for injection mold components. This ensures perfect fit and functionality of the mold assembly.

3. Surface Finish Optimization: CNC turning allows for precise control over surface finishes, ensuring smooth and flawless surfaces essential for quality injection molding. Techniques such as grinding, polishing, and texturing are meticulously applied to achieve the desired surface finish.

4. Thread Machining: Injection molds often require precise threading for components such as screw holes and inserts. Our CNC turning technology enables efficient and accurate machining of various thread profiles, ensuring optimal fit and functionality.

Conclusion: In summary, CNC turning plays a crucial role in achieving the precision and quality demanded in injection mold manufacturing. At CGM, our commitment to excellence, coupled with our advanced technology and meticulous machining techniques, ensures the production of high-quality injection molds that meet the most stringent requirements of our clients. For more information about our CNC turning capabilities and injection mold manufacturing solutions, visit our website at www.linearguider.com.
