                               CGM GTH17 Series: The Optimal Choice for Linear Bearing Power in Industry 4.0

---

As Industry 4.0 continues its rapid advancement, linear bearings play an increasingly crucial role in modern manufacturing. We are proud to announce that CGM's (www.linearguider.com) series of linear bearing products has achieved remarkable success, establishing itself as the premier choice in the era of Industry 4.0.

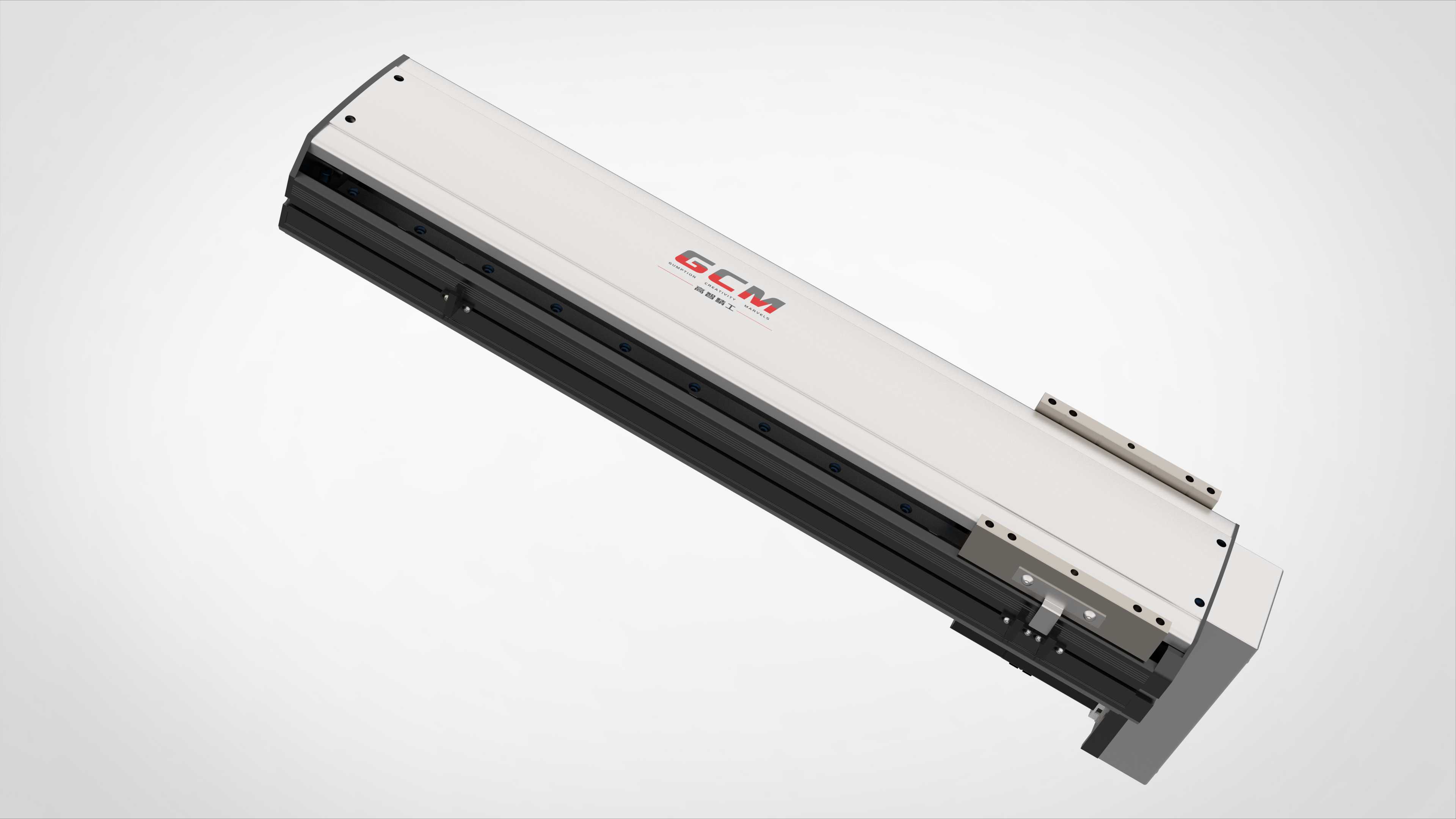

Product Overview: GTH17 Series

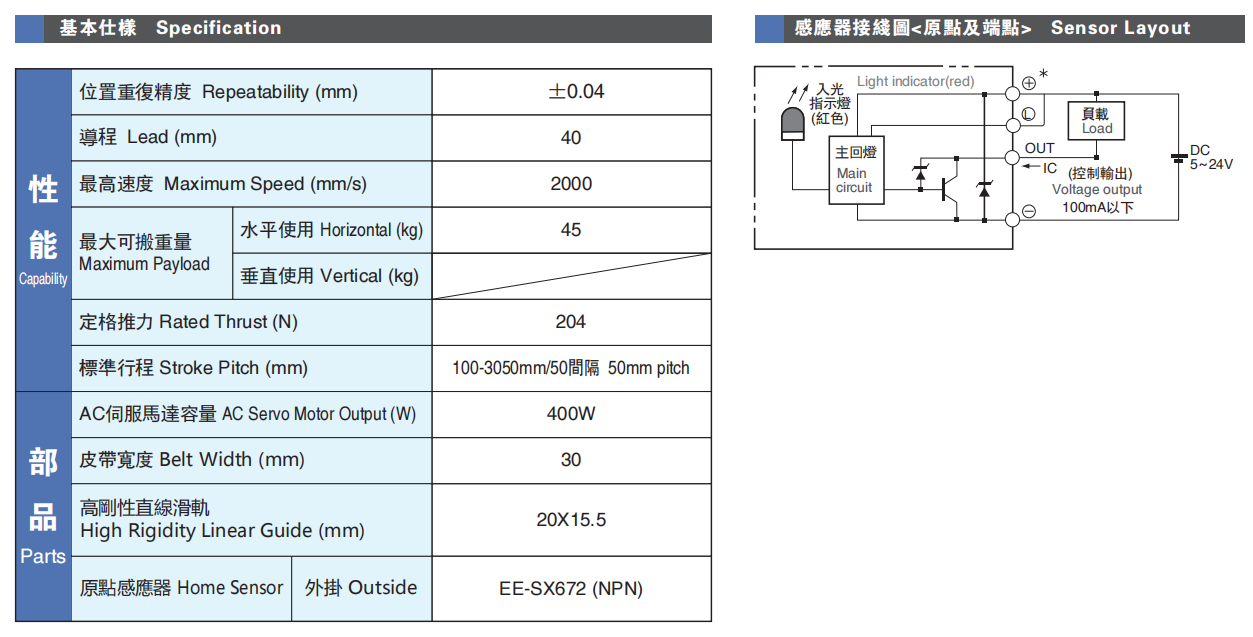

Our product series, particularly the GTH17 series, represents the pinnacle of CGM's expertise in linear bearings. Here are some key performance parameters of the GTH17 series:

• Repeatability: ±0.04mm, ensuring precise positioning in demanding manufacturing environments.

• Lead: 40mm, providing ideal conditions for efficient motion.

• Maximum Speed: 2000 (mm/s), achieving rapid and precise movements.

• Maximum Load (Horizontal/Vertical): 55KG, ensuring stability under various working conditions.

• Rated Thrust: 204 (N), guaranteeing outstanding performance under high-pressure situations.

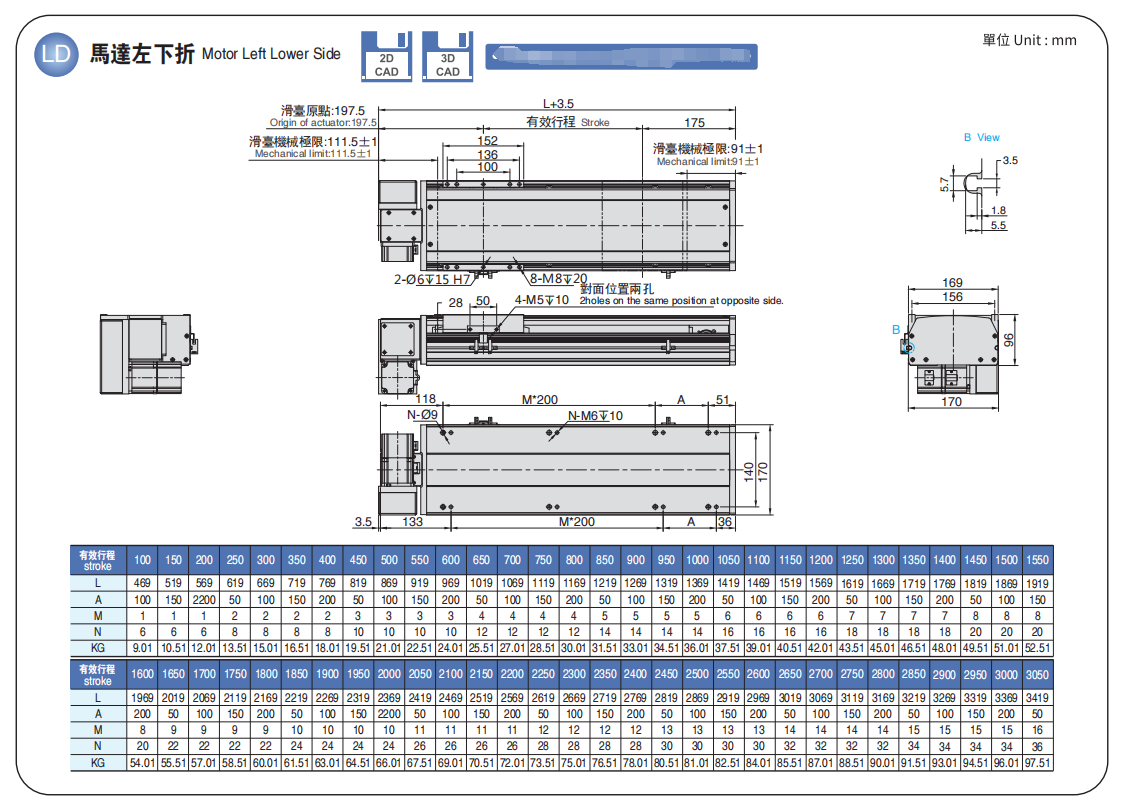

• Stroke Pitch: 100-3050 mm, adapting to different-sized work environments.

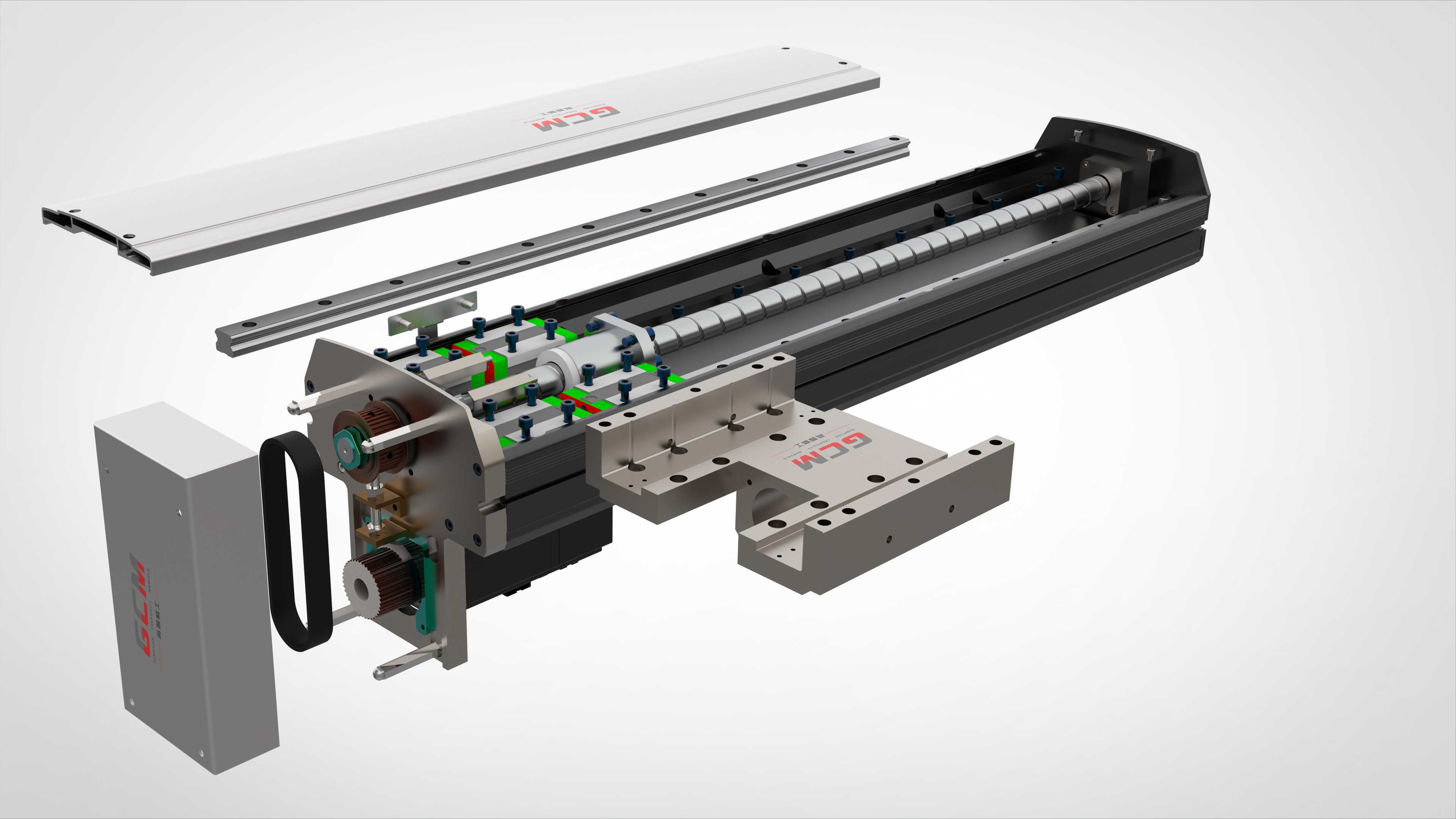

Carefully Selected Components

Every component of the CGM GTH17 series undergoes rigorous computational testing and careful selection to ensure the overall system's excellent performance. Here are some key components:

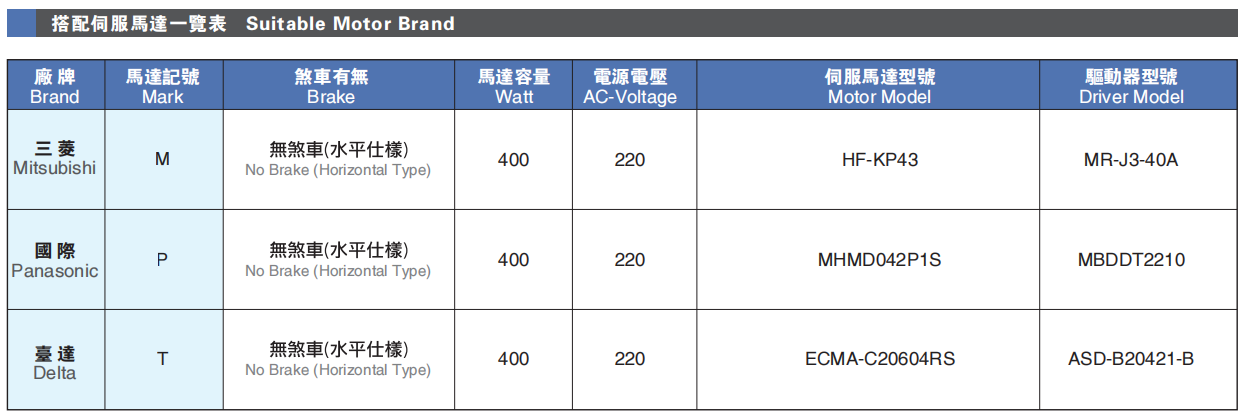

• AC Servo Motor Output: 400W, providing ample power support for the system.

• Belt Width: 30mm, ensuring the reliability of the transmission system.

• High Rigidity Linear Guide: 20*15.5mm, offering exceptional stability for the system.

• Sensor: EE-SX672, providing accurate feedback to ensure system precision.

Each component undergoes stringent computational testing by CGM to ensure optimal performance under various conditions.

Mature Product, Ten Years of Optimization

Our GTH17 series is not just a mature product but the result of ten years of practice and continuous optimization. We listen to customer feedback, iterate, and improve our products to maintain their industry-leading position.

Contributing to Industry 4.0

In the era of Industry 4.0, precision linear bearing systems are crucial for manufacturing success. CGM's GTH17 series aims to contribute to Industry 4.0, providing a reliable, efficient, and precise linear bearing solution for the manufacturing industry.

Whether you seek efficient production or a trustworthy linear bearing system, CGM's GTH17 series is your ideal choice. Let's embrace the challenges of Industry 4.0 together, driving innovation and development in manufacturing. Thank you for choosing CGM and achieving excellence.
