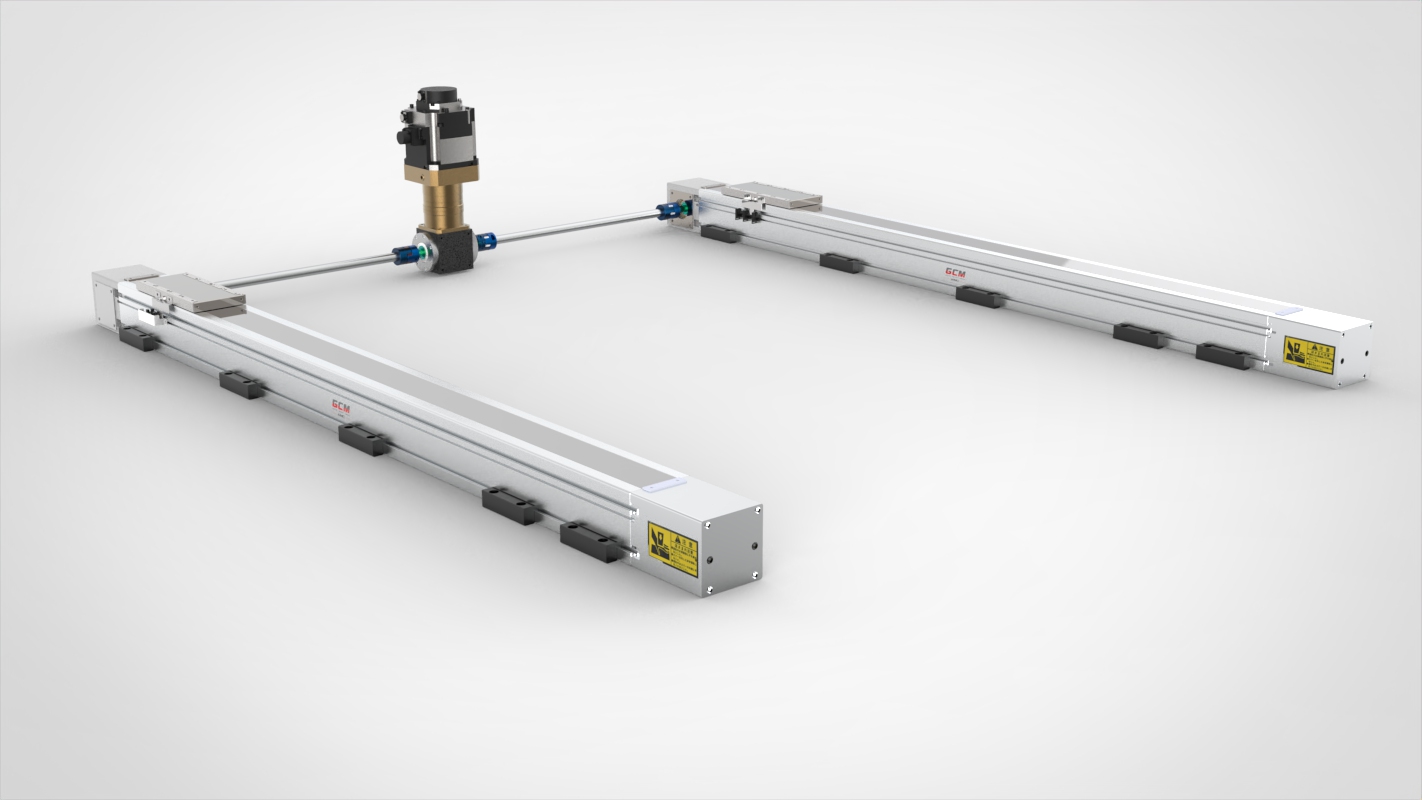

MG110-S1200 Linkage Module
In today's industrial automation field, high load capacity, high speed, and high precision linkage modules play a crucial role. We are pleased to introduce the new MG110-S1200 linkage module, which combines high load capacity, fast transmission, and precise positioning, providing a fresh solution for the transmission and positioning control of various industrial automation equipment.
Technical Specifications Overview:
- Product Model: MG110-S1200 Linkage Module

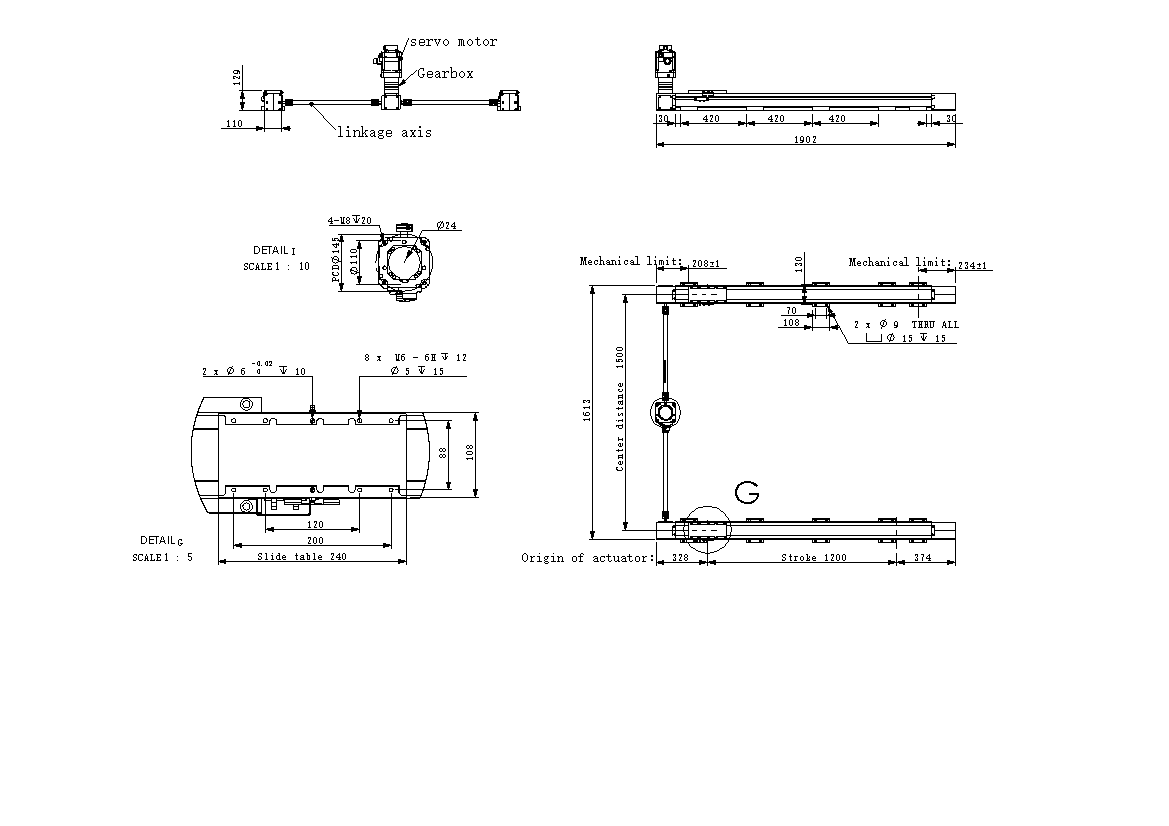

- Dimensions: L1900W1610H129 (combined height)
- Linkage Center Distance: 1500mm
- Load Capacity: 150KG
- Speed: 1200mm/s
- Stroke: 1200mm
- Lead: 250mm (5M*50 teeth)
- Drive Components: 5M50 teeth synchronous pulley, synchronous belt
- Guide Rail: GH25CA
- Linkage Shaft: 20mm shaft diameter
- Coupler: P40-49-18-20
- Gear Reduction: 7:1 ratio
- Servo Motor: 4.77N.M (1KW2000R/MIN)
- Sensor: Omron NPN672
- Repeatability: ±0.1MM
- Key Features: High load capacity, high-speed transmission, high precision positioning, space-saving design, stability and reliability
Blog Content:
The introduction of the MG110-S1200 linkage module marks an innovative leap forward in the industrial automation sector. This module not only boasts a high load capacity, with a maximum load of 150KG suitable for heavy-duty equipment transmission and control, but also achieves remarkable transmission speed, reaching a maximum speed of 1200mm/s, greatly enhancing production efficiency and response speed.
Furthermore, the high precision positioning of the MG110-S1200 linkage module is noteworthy. With a repeatability of ±0.1MM, it ensures the accuracy and stability of each positioning, which is crucial for precise operations and stable production processes in industrial automation equipment.
The space-saving design of this module aligns with modern industrial requirements for equipment installation space. Its compact dimensions and small footprint make it suitable for installation in limited spaces, providing greater flexibility in factory layout and equipment configuration.
Additionally, the MG110-S1200 linkage module employs high-quality drive components and servo motors, ensuring fast and smooth transmission operation, stability, and reliability, providing robust support for industrial production.
Wide Range of Applications:
The MG110-S1200 linkage module is suitable for various industrial automation equipment, including but not limited to mechanical processing equipment, automated production lines, medical equipment, electronic device manufacturing, and the automotive industry. It demonstrates outstanding performance and reliability in both transmission and positioning control applications.
Contact Us:
For inquiries, orders, or further information about the MG110-S1200 linkage module or other products, please visit our official website at www.linearguider.com or contact our sales team. We look forward to collaborating with you and driving the development and progress of industrial automation technology together!
