                                             The Application of CNC Turning in Mold and Die Manufacturing

In the realm of manufacturing, precision is paramount, particularly in mold and die production where intricate components are vital for shaping final products. At CGM, we leverage CNC turning technology to meet the demands of this exacting field.

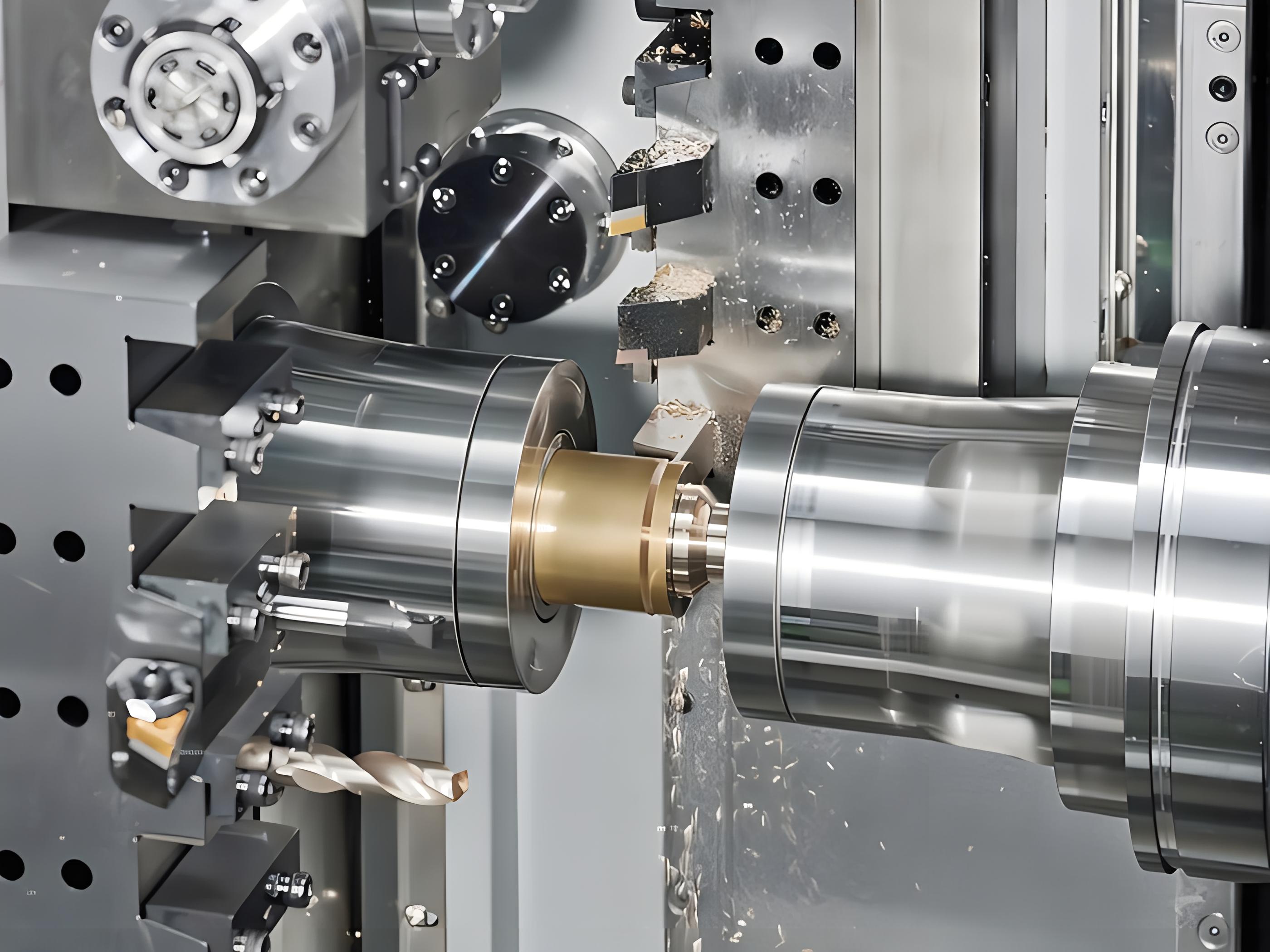

Advanced CNC Turning Equipment: With 30 automatic Precision CNC Turning devices and three five-axis CNC horizontal machines, CGM boasts cutting-edge equipment. This advanced machinery ensures superior precision and consistency in the manufacturing process, aligning perfectly with the intricate needs of mold and die production.

Equipment Specifications and Precision: Our CNC turning equipment boasts impressive precision, with linear accuracy ranging from ±0.002mm to ±0.005mm, roundness accuracy from ±0.003mm to ±0.008mm, and angular accuracy typically between ±0.01 degrees to ±0.05 degrees. Additionally, our machines offer remarkable repeatability, with dimensional and geometric shape repeatability ranging from ±0.002mm to ±0.005mm and ±0.01mm to ±0.02mm, respectively. Surface quality consistency is also ensured, with Ra (average roughness) ranging from 0.2 to 0.8 micrometers and Rz (maximum peak height) from 2 to 8 micrometers.

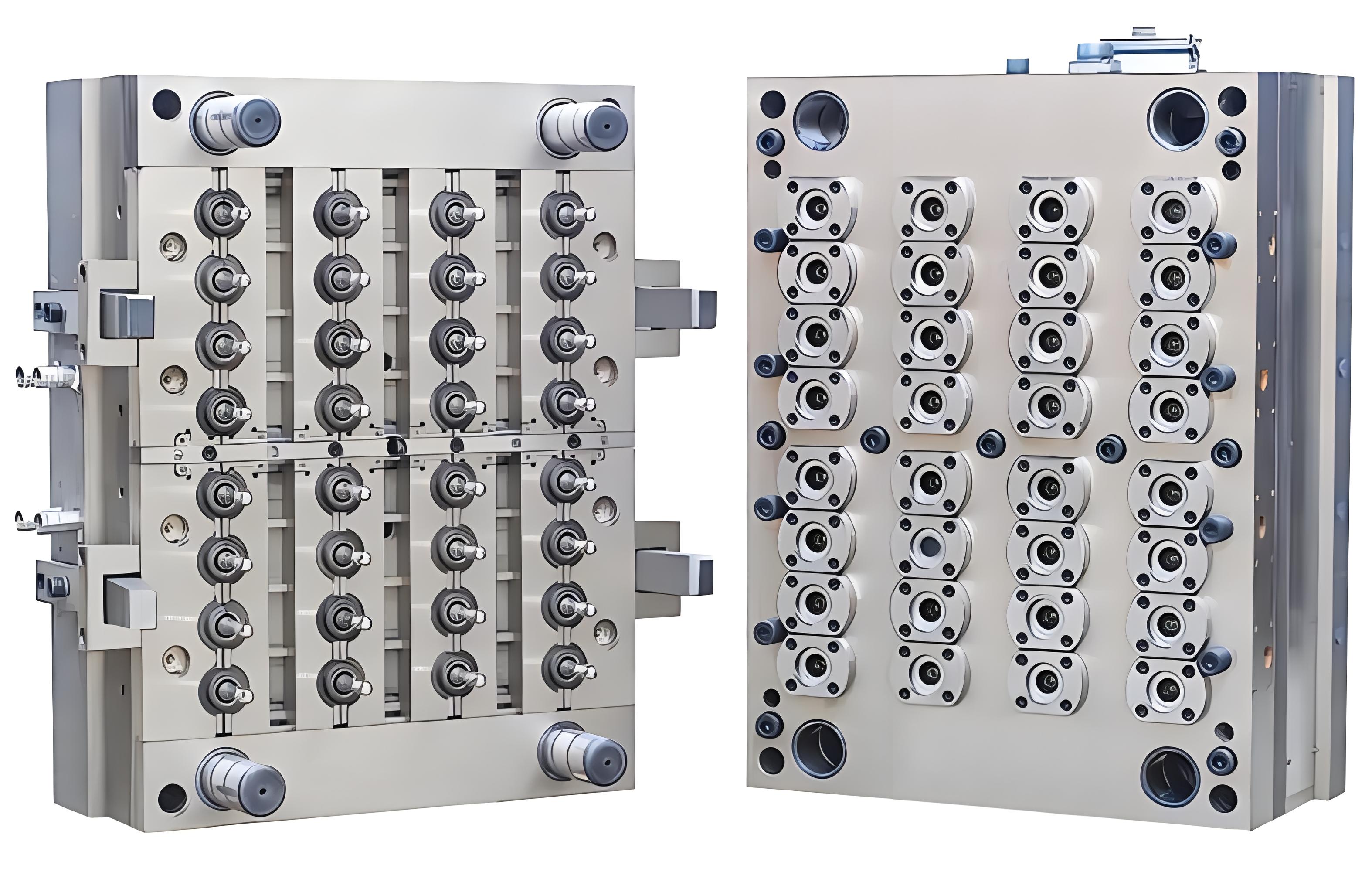

Applications in Mold and Die Manufacturing:

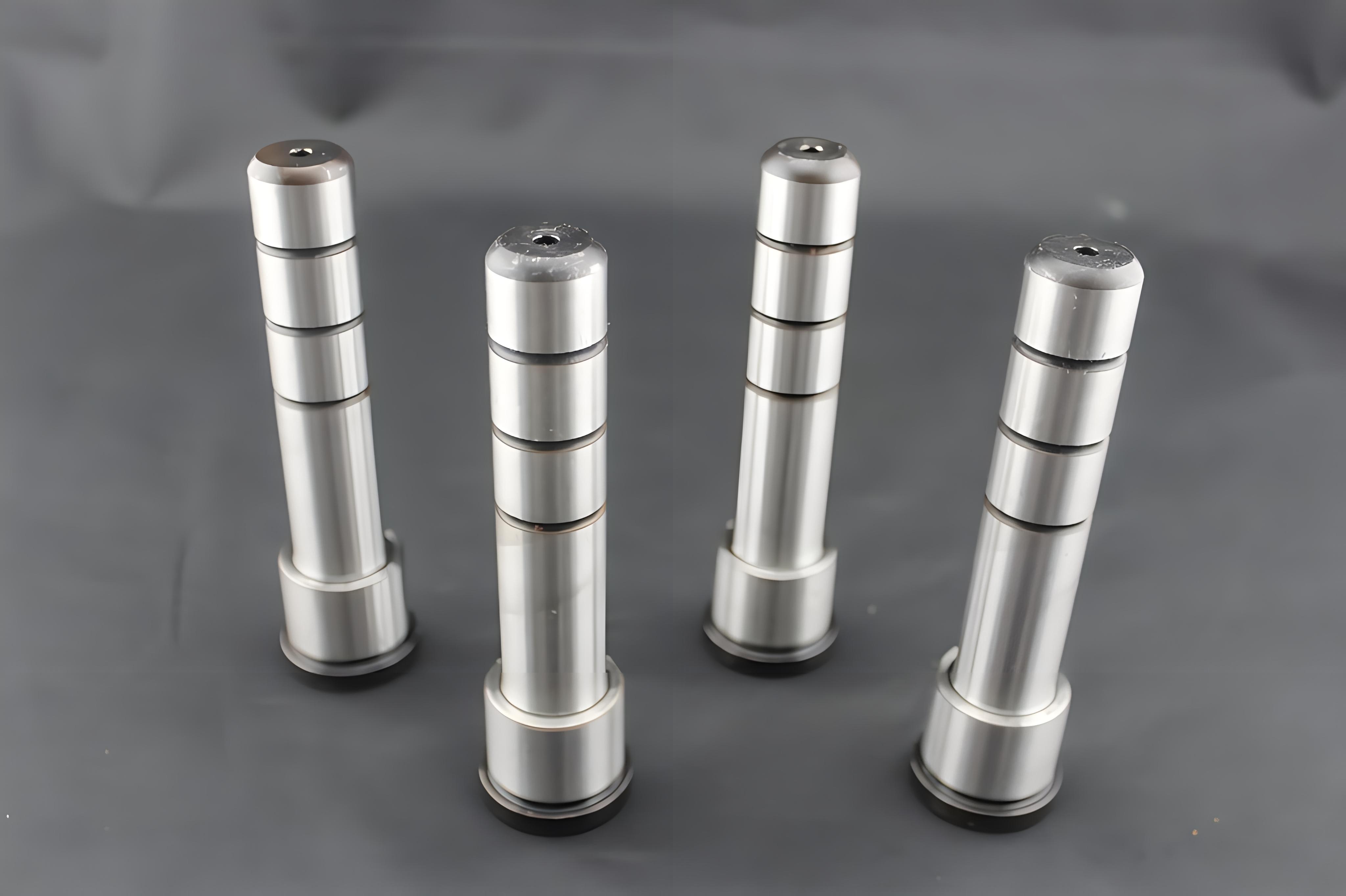

1. Part Machining: CNC turning is instrumental in machining various components within molds and dies, including core blanks, cavities, guide posts, and locating pins. This technology allows for precise fabrication of complex shapes and structures required in mold manufacturing.

2. Surface Finishing: The surface finish of molds is critical for the quality and appearance of final products. CNC turning enables fine surface finishing techniques such as grinding, polishing, and brushing, ensuring smooth, even surfaces with the desired quality.

3. Thread Machining: Many molds require precise threading structures, such as threaded holes and shafts. CNC turning efficiently produces various precision threads, ensuring optimal fit and connection between mold components.

4. Locating Hole and Surface Machining: Precise locating holes and surfaces are essential for mold assembly and performance. CNC turning accurately machines various locating holes and surfaces, ensuring precise positioning and stable connections between mold components.

5. Customized Machining: Mold manufacturing often demands customized machining to meet specific product production requirements. CNC turning's flexibility and adaptability allow for personalized machining according to customer needs, enhancing the flexibility and efficiency of mold manufacturing.

In conclusion, CNC turning technology plays a pivotal role in mold and die manufacturing, offering unparalleled precision, versatility, and customization capabilities. At CGM, we are committed to leveraging this advanced technology to meet the evolving needs of the industry and deliver superior mold and die solutions to our clients.
