linear axis mechanical module

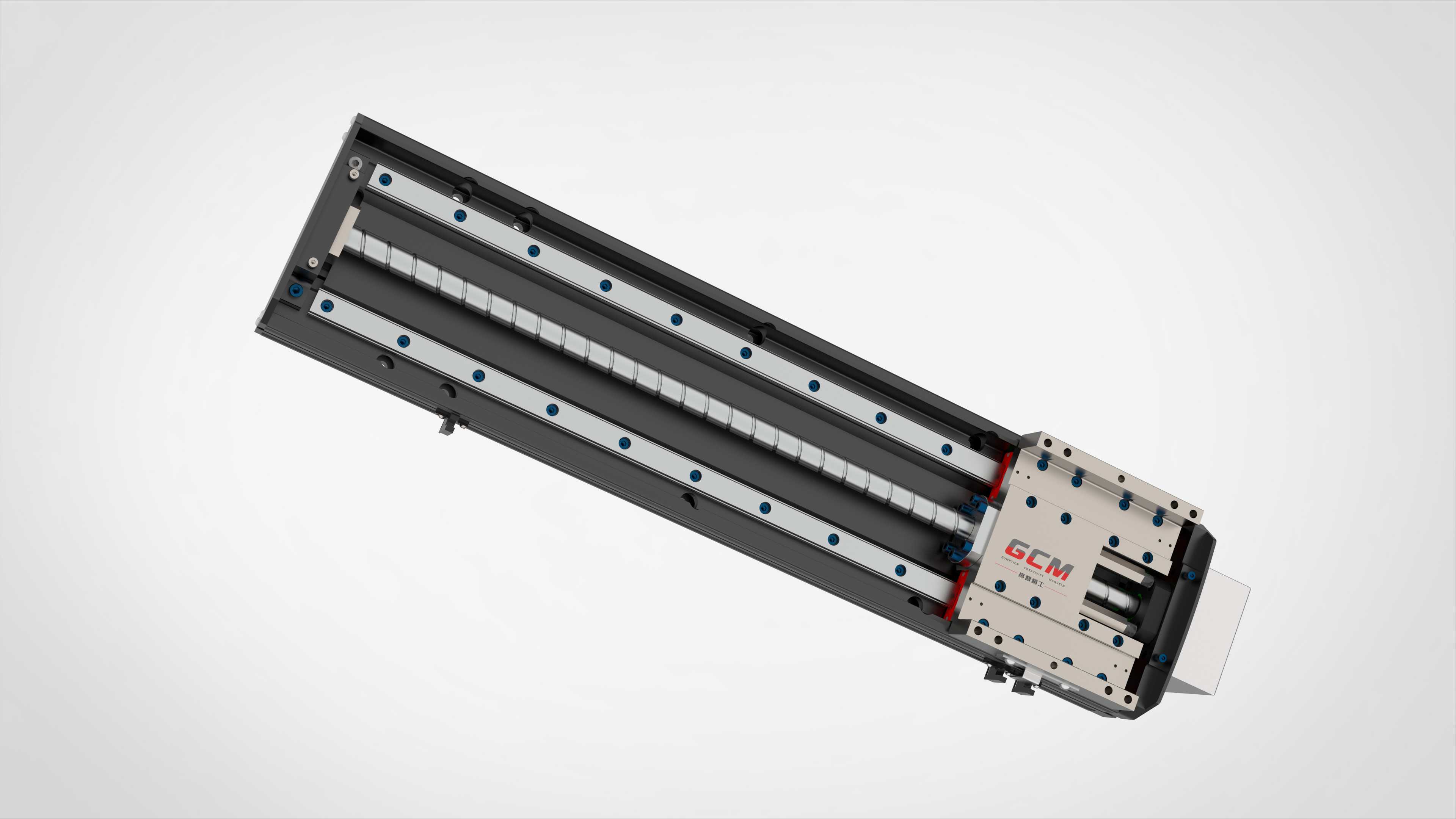

In the era of Industry 4.0, the rapid advancement of smart manufacturing technologies has become crucial for enterprises to enhance productivity and efficiency. CGM (www.linearguider.com) presents the GTH17 series linear axis spindle mechanical module, a result of 10 years of practical experience and optimization, providing outstanding solutions for manufacturing industries worldwide.

Key Features

1. High Precision

• Repeatability: ±0.04mm, ensuring accurate machining and assembly.
• Lead: 40mm, meeting the requirements of various industrial applications.

2. High-Speed Movement

• Maximum Speed: 2000mm/s, boosting production efficiency and accelerating manufacturing processes.

3. Powerful Load Capacity

• Maximum Horizontal Payload: 35KG, suitable for a variety of machining tasks.

4. High Thrust

• Rated Thrust: 200N, ensuring stable pushing force for complex manufacturing tasks.

5. Diverse Stroke Range

• Stroke Range: 100-3050mm, catering to different machining needs.

High-Quality Components

1. AC Servo Motor Output

• Output Power: 400W, ensuring an efficient and reliable drive system.

2. Belt Width

• Belt Width: 30mm, ensuring robust and stable transmission.

3. High Rigidity Linear Guide

• Dimensions: 15*12.5mm, providing excellent smooth motion and torsional rigidity.

4. Sensor

• Utilizing high-performance sensor EE-SX672 for real-time monitoring of system operation.

CGM's Commitment

The GTH17 series is the culmination of CGM's many years of expertise in the field of mechanical manufacturing, representing a commitment to high standards, quality, and efficiency. We proudly announce that this series has undergone extensive practical validation, delivering exceptional performance and reliability to our customers.

Our Partnership Program

We sincerely invite agents from around the globe to join our team and contribute to the advancement of Industry 4.0. As a partner with CGM, you will benefit from professional training, extensive market support, and lucrative profit returns. By collaborating with us, you gain access to advanced technical support to provide the best solutions for your customers.

Conclusion

The GTH17 series is CGM's proactive response to Industry 4.0, offering innovative technology for the manufacturing industry. We look forward to joining hands with more outstanding partners to make a greater contribution to the prosperity of the global manufacturing industry. Join us in exploring the future and creating a brighter manufacturing landscape together.
