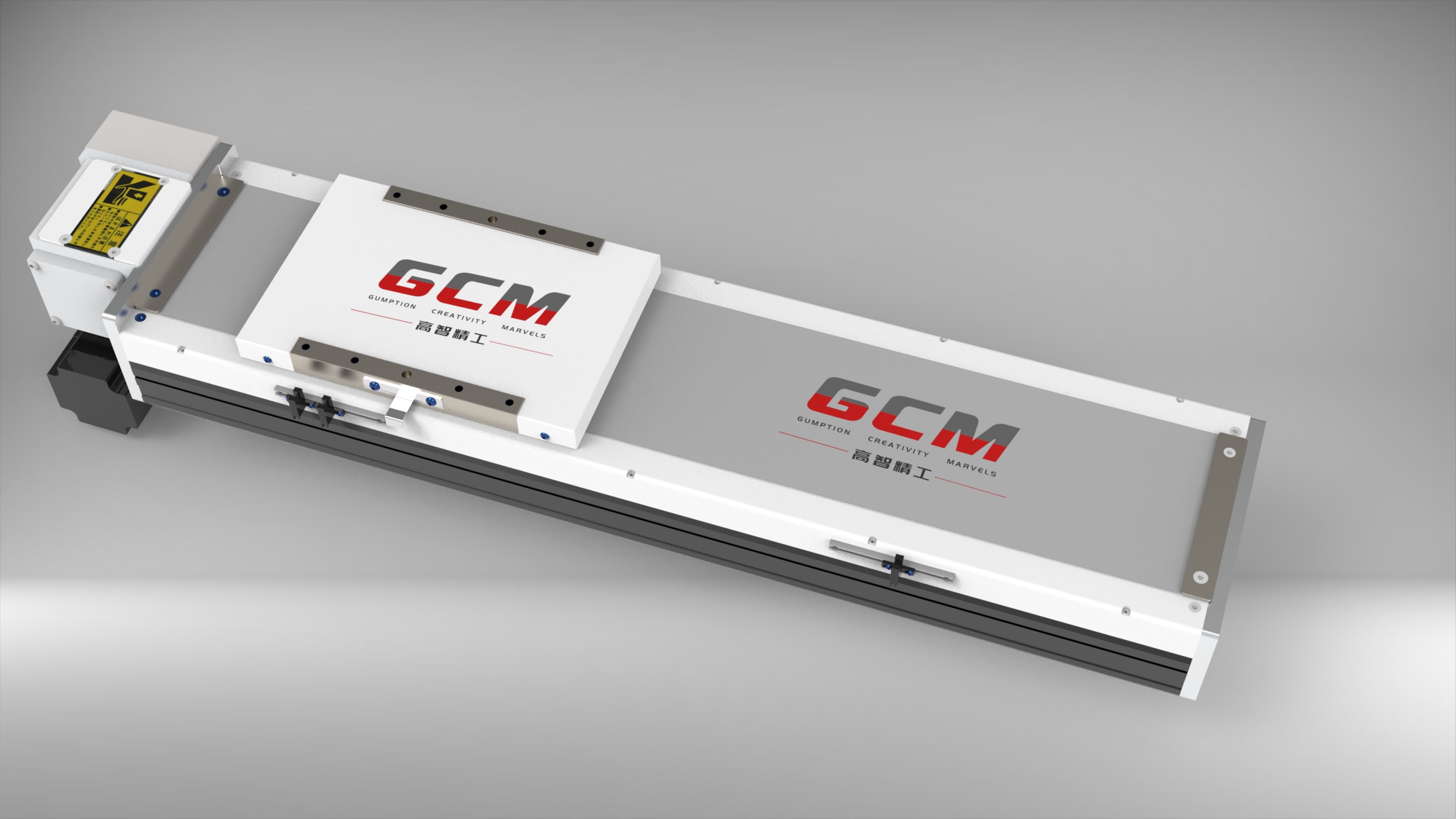

kx adapter linear axis mechanical module - belt drive

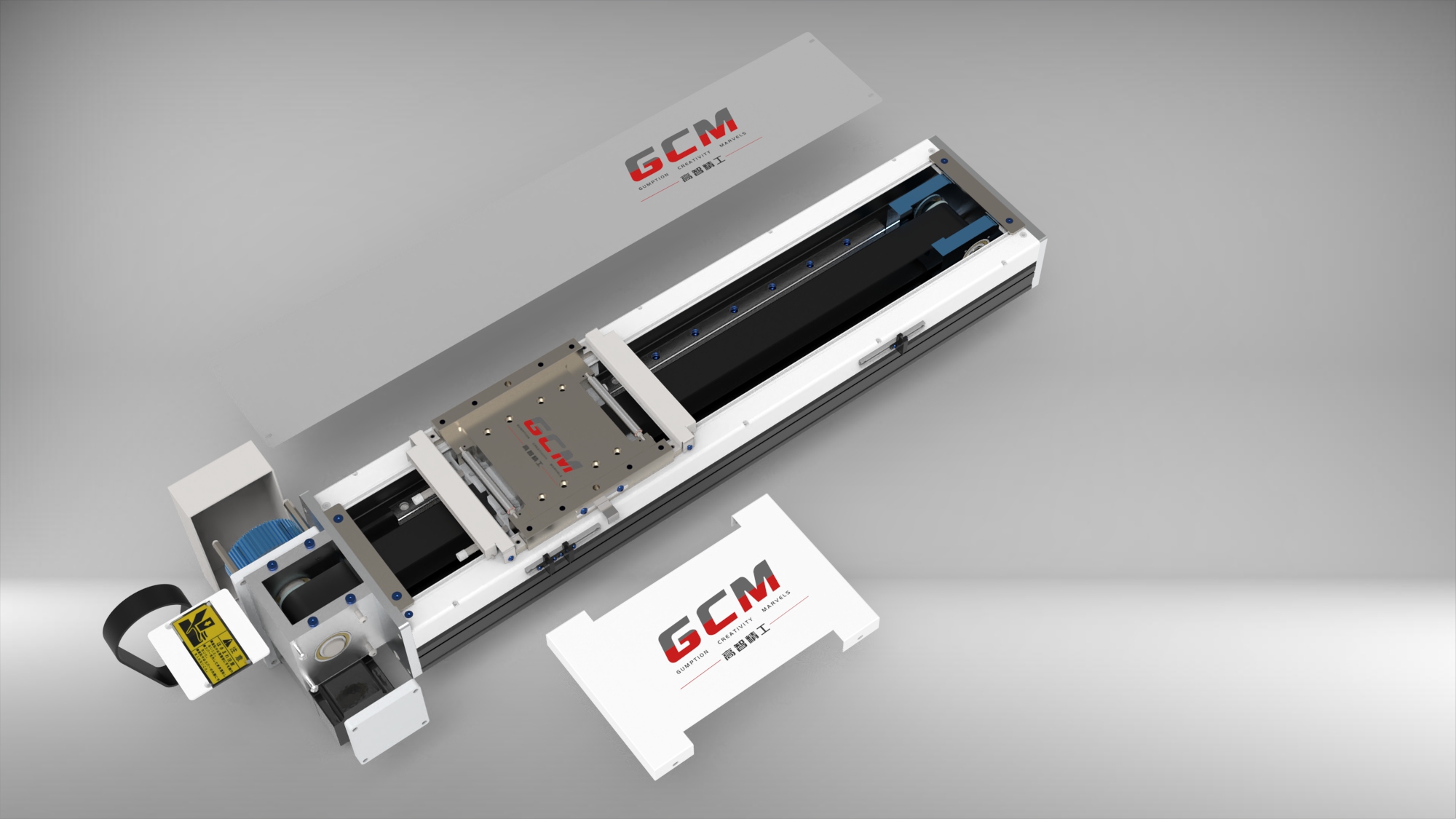

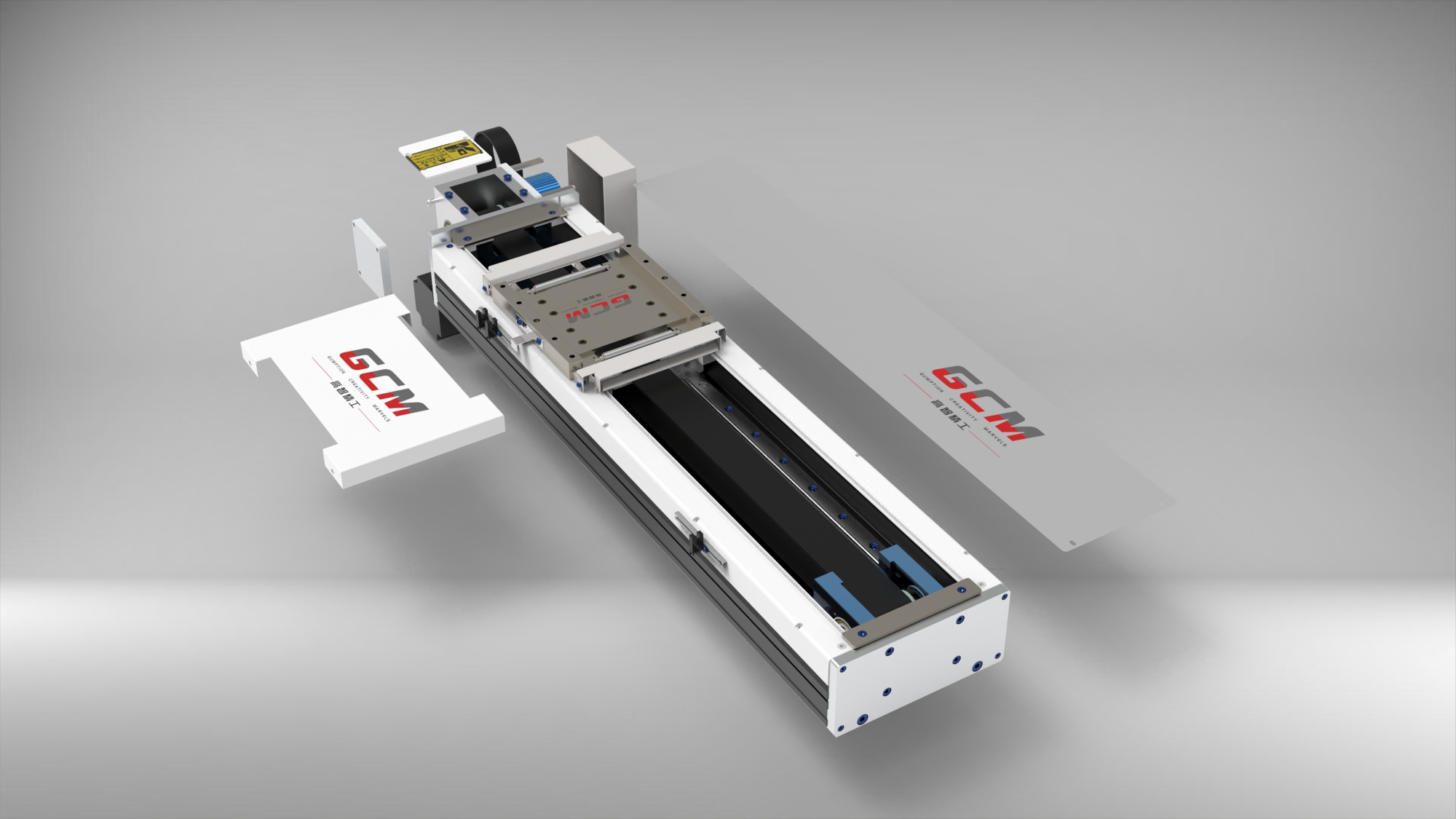

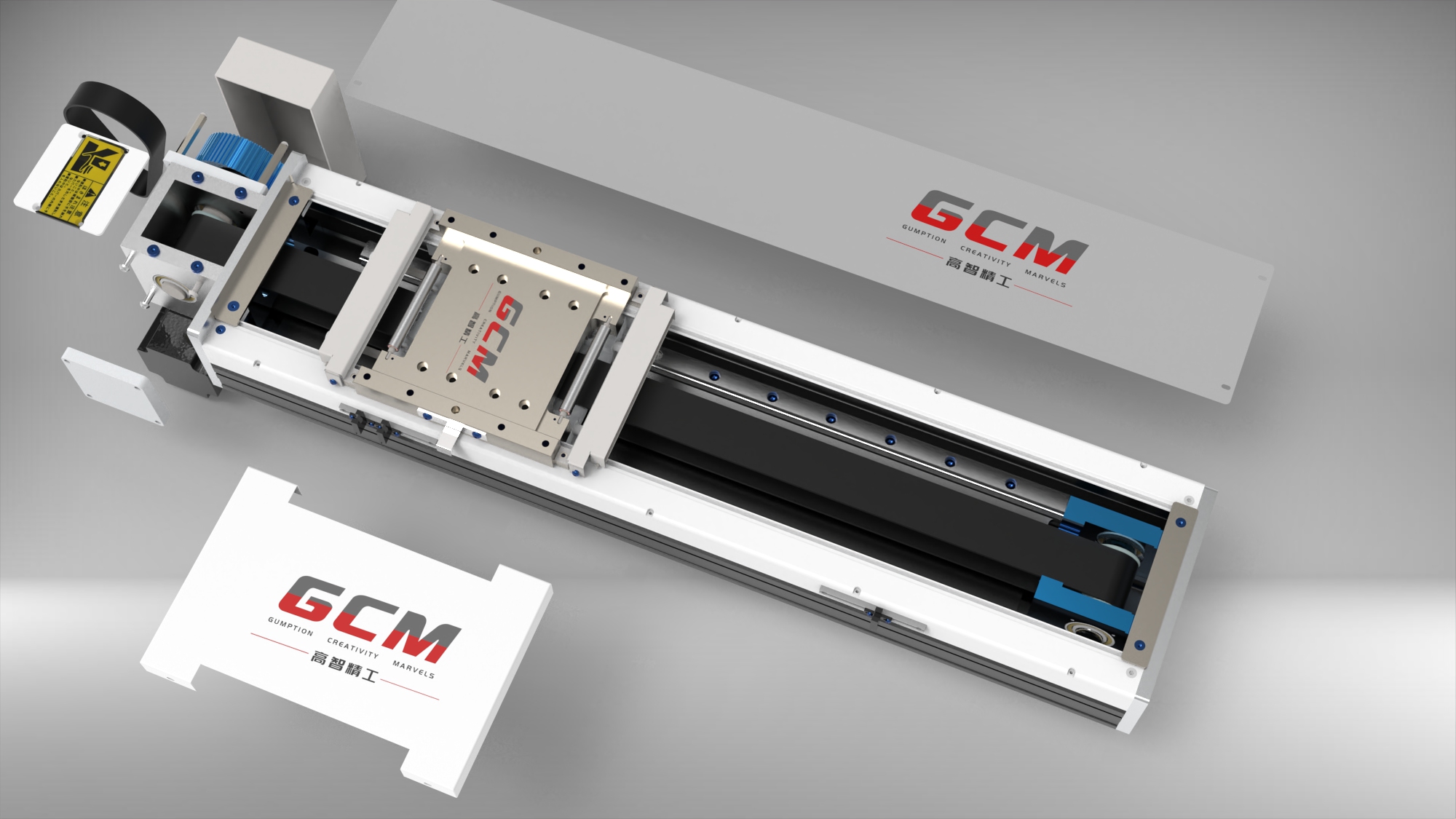

                                                  CGM GCB22 Series: High-Precision, Easy-to-Install Linear Drive Mechanical Module

In the realm of modern industrial production, the significance of high-precision, easy-to-install linear drive mechanical modules cannot be overstated. CGM is proud to introduce our GCB22 series, a linear drive mechanical module featuring advanced belt drive technology, offering outstanding performance and reliability to our customers.

Product Highlights

1. Innovative Design: The Block Series 5 Application

The GCB22 series incorporates The Block Series 5, ensuring a secure and stable connection for the drive belt. This innovative design not only enhances product reliability but also provides users with superior operational performance.

2. Convenient Secondary Development Configuration: KX Adapter

Considering the needs of secondary development, we have configured the standard KX Adapter, enabling users to conveniently undertake secondary development to meet diverse application requirements.

Technical Specifications

• Servo Speed (mm): 500; 1000; 1500; 2000; 2500; 3000
• Gear Reducer: 1/3
• Max Speed (mm/s): 280; 560; 840; 1120; 1400; 1680
• Max Load (kg) Horizontal: 95; 95; 95; 85; 65; 60
• Repeatability (mm): ±0.05
• Lead (mm): 100 (if equipped with 1/3 Gear Reducer, then lead = 33.33)
• Rated Thrust (N): 400
• Range of Travel (mm): 100-4500mm/50
• Servo Motor Output (W): 750W
• Synchronous Belt Width (mm): 50
• Linear Guide SPC (MM): W23*22 (2 SET)
• Sensor: Omron EE-SX674 (NPN)

Guide: the rotation of the servo motor & straight distance of the sliding table

If you have special requirements, please inform us first

Application Examples

The GCB22 series finds extensive applications in various scenarios, including but not limited to:

• Part arrangement
• Workpiece pressing
• Part gluing
• Coordinated pressing
• 3D coating
• Dual-door settings
• Simultaneous double-sided detection
• Screw locking
• SMT device
• Retrieval and placement of parts for multiple detection devices
• Collaborative dispensing
• Collaborative screw locking

Whatever your requirements may be, CGM's GCB22 series of linear drive mechanical modules is an ideal choice for your industrial automation solution. Feel free to visit our official website www.linearguider.com for more detailed information or directly contact our sales team. We are committed to providing you with professional solutions and services.
