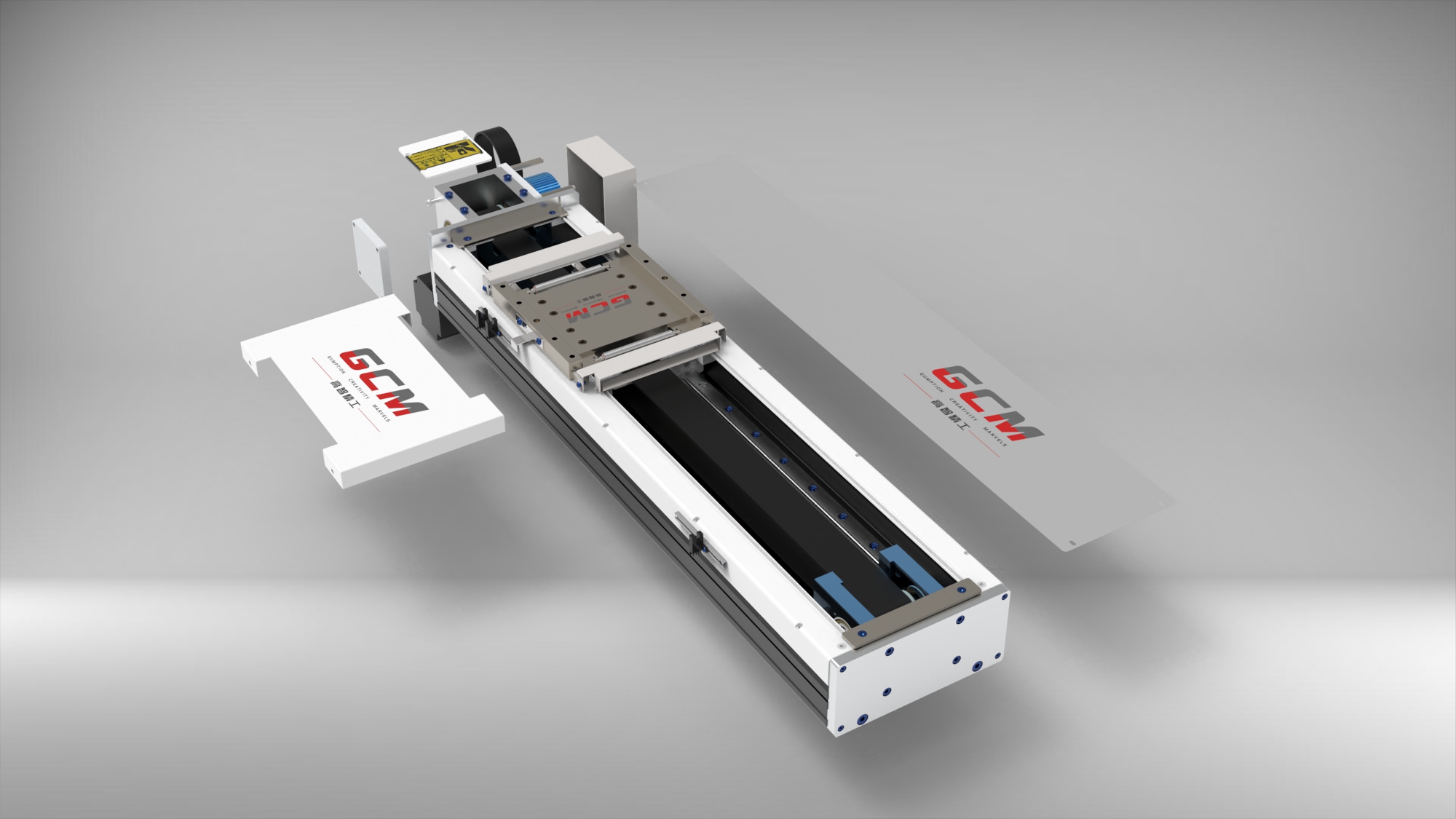

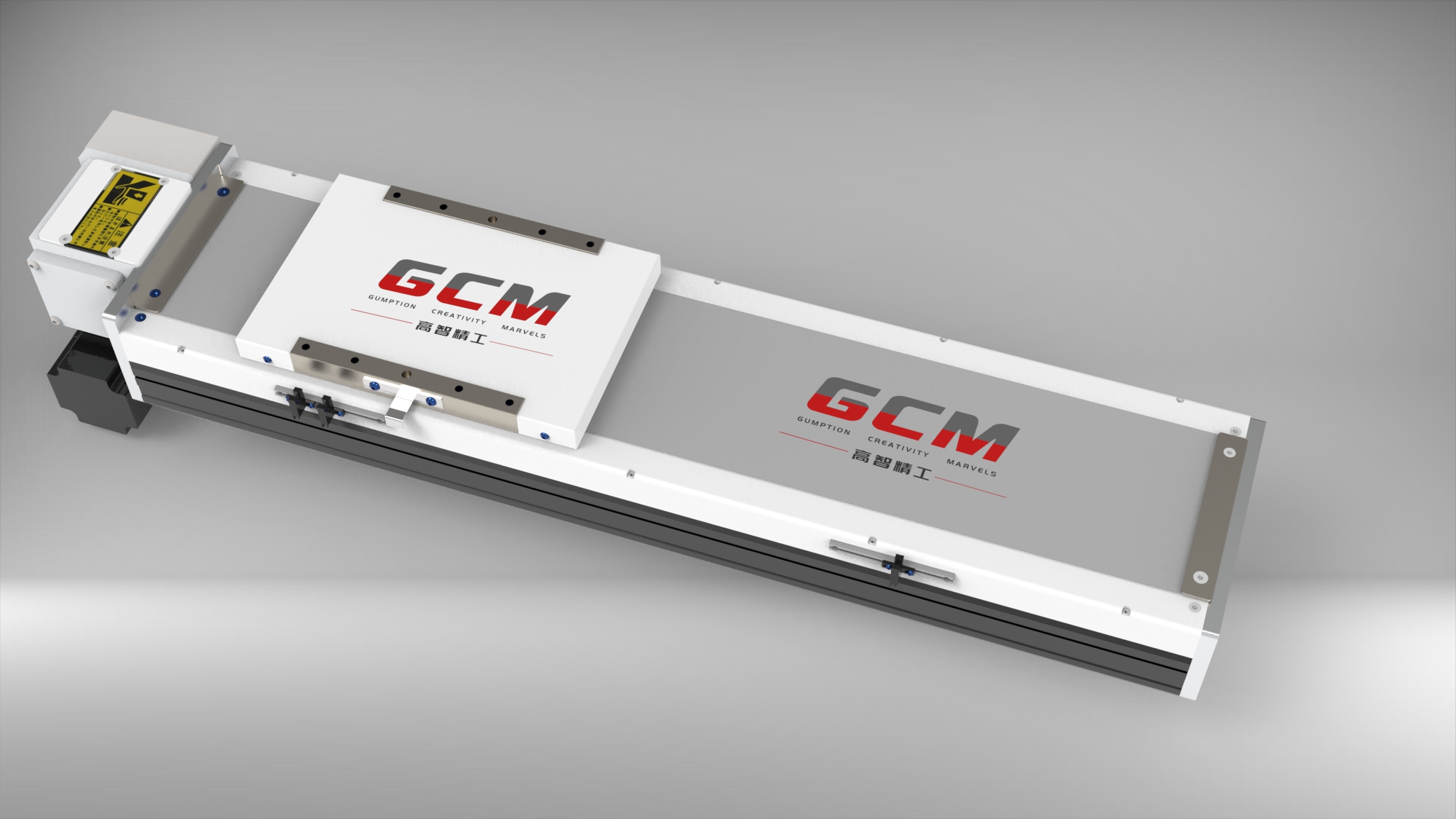

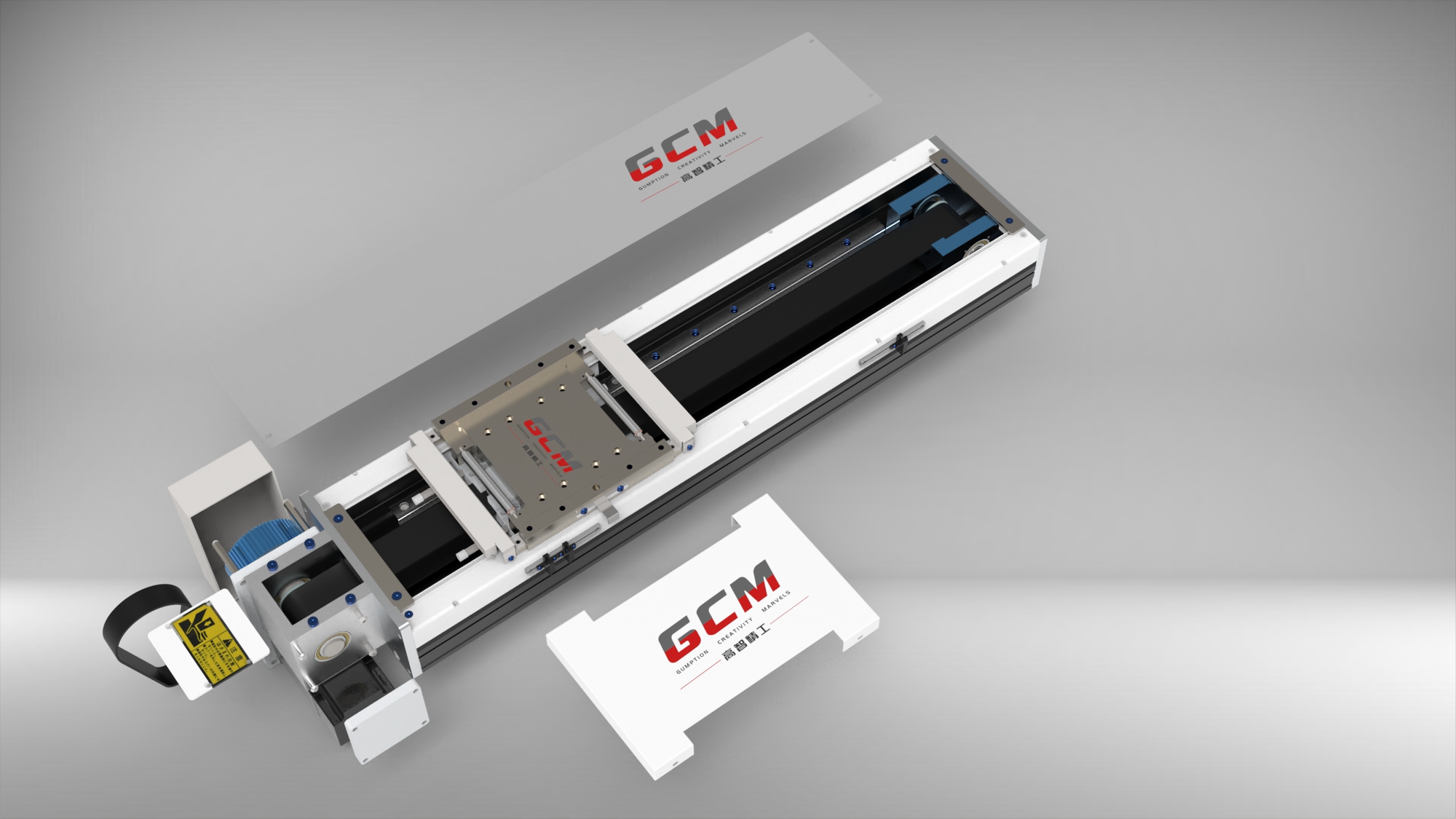

                                                                                                                     CGM Linear Axis Mechanical Module - Belt Drive: Precision with GCB22 Series

Welcome to the official website of CGM. Today, we are excited to introduce our latest product series: the Linear Axis Mechanical Module - Belt Drive, specifically the GCB22 series. In this blog post, we will delve into the key features, performance parameters, and versatile applications of this innovative product.

Product Highlights

1. Powerful Torque Performance

The GCB22 series is a precision and easy-to-install linear actuator mechanical component. Its torque performance undergoes rigorous servo motor torque calculations to ensure product reliability. Under normal circumstances, we guarantee a torque 1.5 times the actual workload to ensure the normal operation of the product.

2. Stable Linear Motion

Linear blocks are critical components to ensure linear motion, and we have fully mastered this technology. Whether at speeds of 500mm/s or 3000mm/s, we provide stable linear motion, ensuring precision in your work.

3. Various Performance Parameters to Meet Your Needs

• Servo speed (mm): 500; 1000; 1500; 2000; 2500; 3000
• Gear reducer: 1/3
• Max speed (mm/s): 280; 560; 840; 1120; 1400; 1680
• Max load (kg) horizontal: 95; 95; 95; 85; 65; 60
• Repeatability (mm): ±0.05
• Lead (mm): 100 (if equipped with 1/3 Gear reducer then lead=33.33)
• Rated thrust (N): 400
• Range of travel (mm): 100-4500mm/50
• Servo motor output (W): 750W
• Synchronous belt width (mm): 50
• Linear guide SPC (MM): W23*22 (2 SET)
• Sensor: Omron EE-SX674 (NPN)

4. Wide Range of Applications

This product can be widely used in part arrangement, workpiece pressing, part gluing, matching pressing, three-dimensional coating, dual-door settings, simultaneous dual-sided detection, screw locking, chip mounting devices, picking and placing parts for multiple detection devices, collaborative gluing, collaborative screw locking, and many more applications.

Conclusion

CGM is dedicated to providing high-performance, high-quality mechanical module products, and the GCB22 series is a testament to our relentless efforts. We firmly believe that this series will meet your various needs in terms of performance and reliability. If you have any special requirements, please feel free to let us know, and we will be happy to provide customized services.

Thank you for your interest in the latest products from CGM. We look forward to providing robust support for your industrial automation applications!
