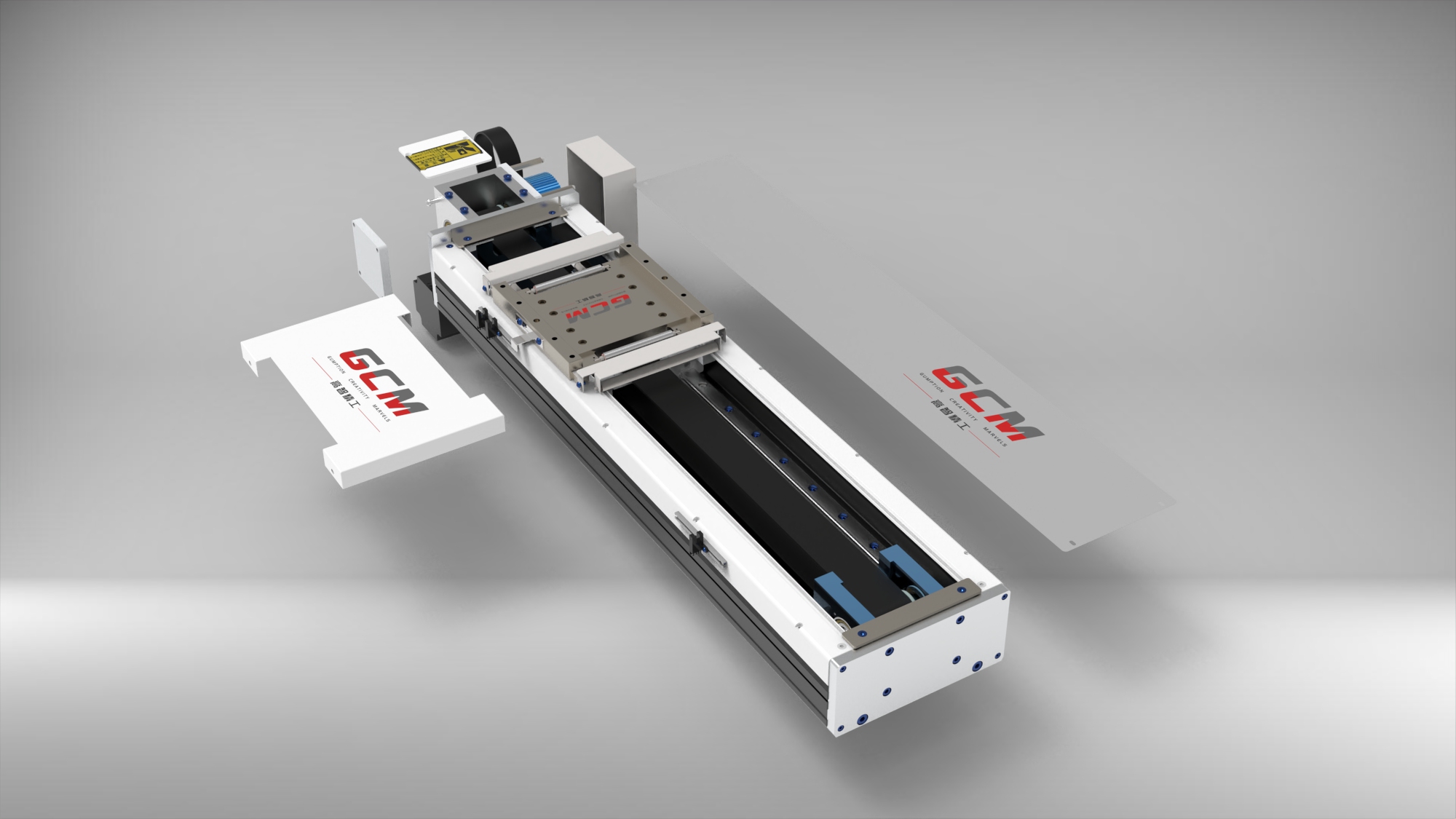

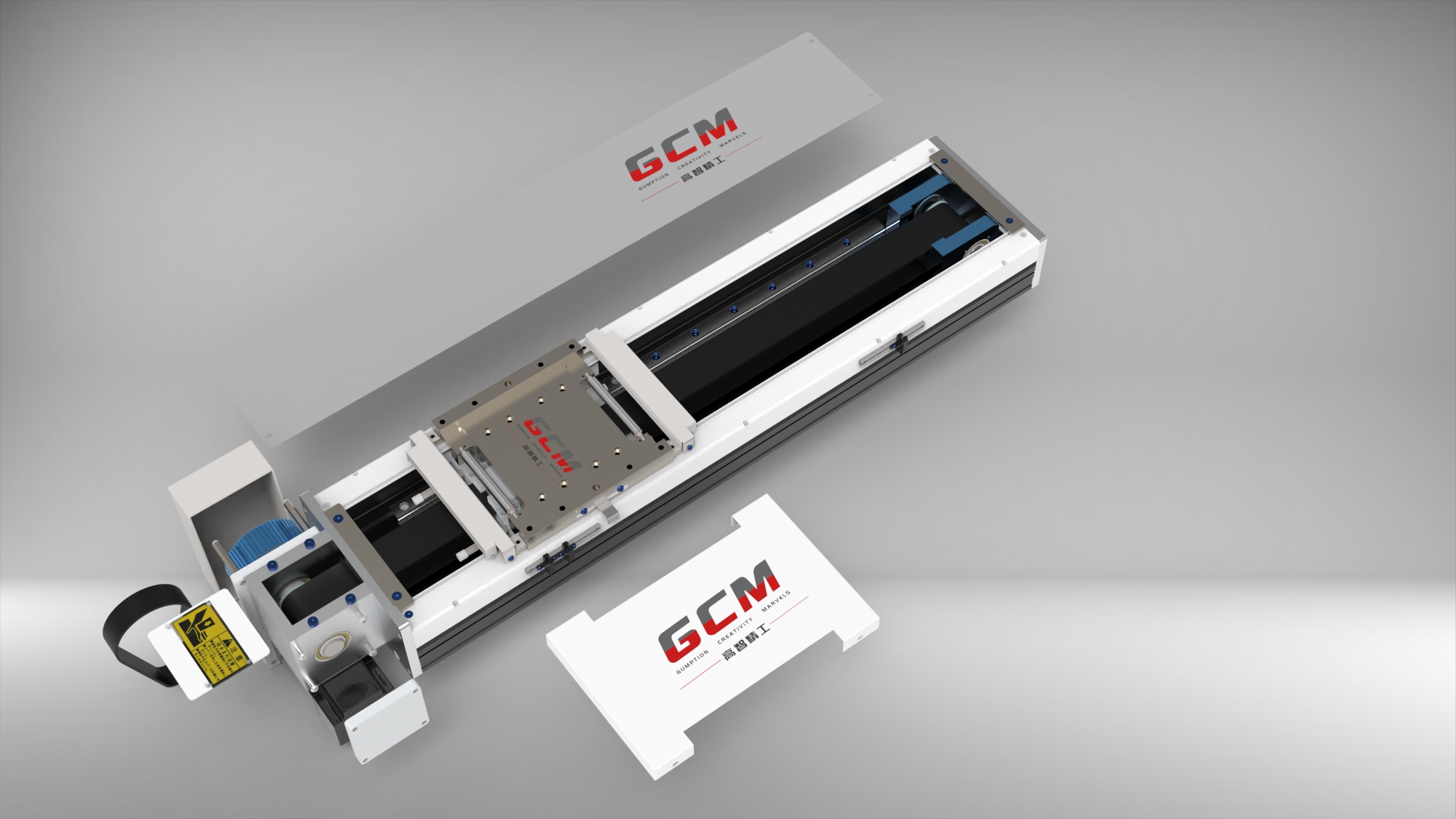

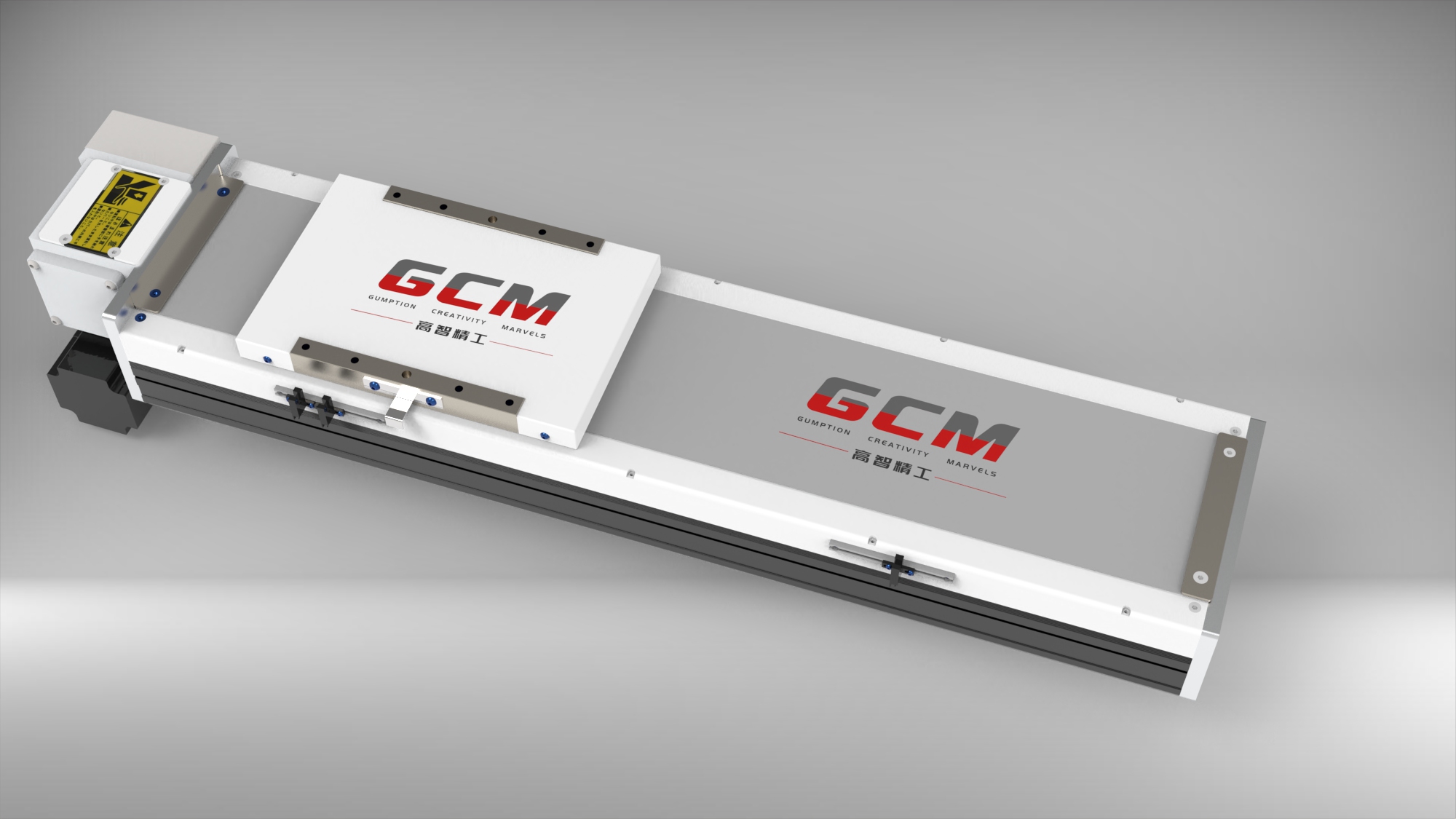

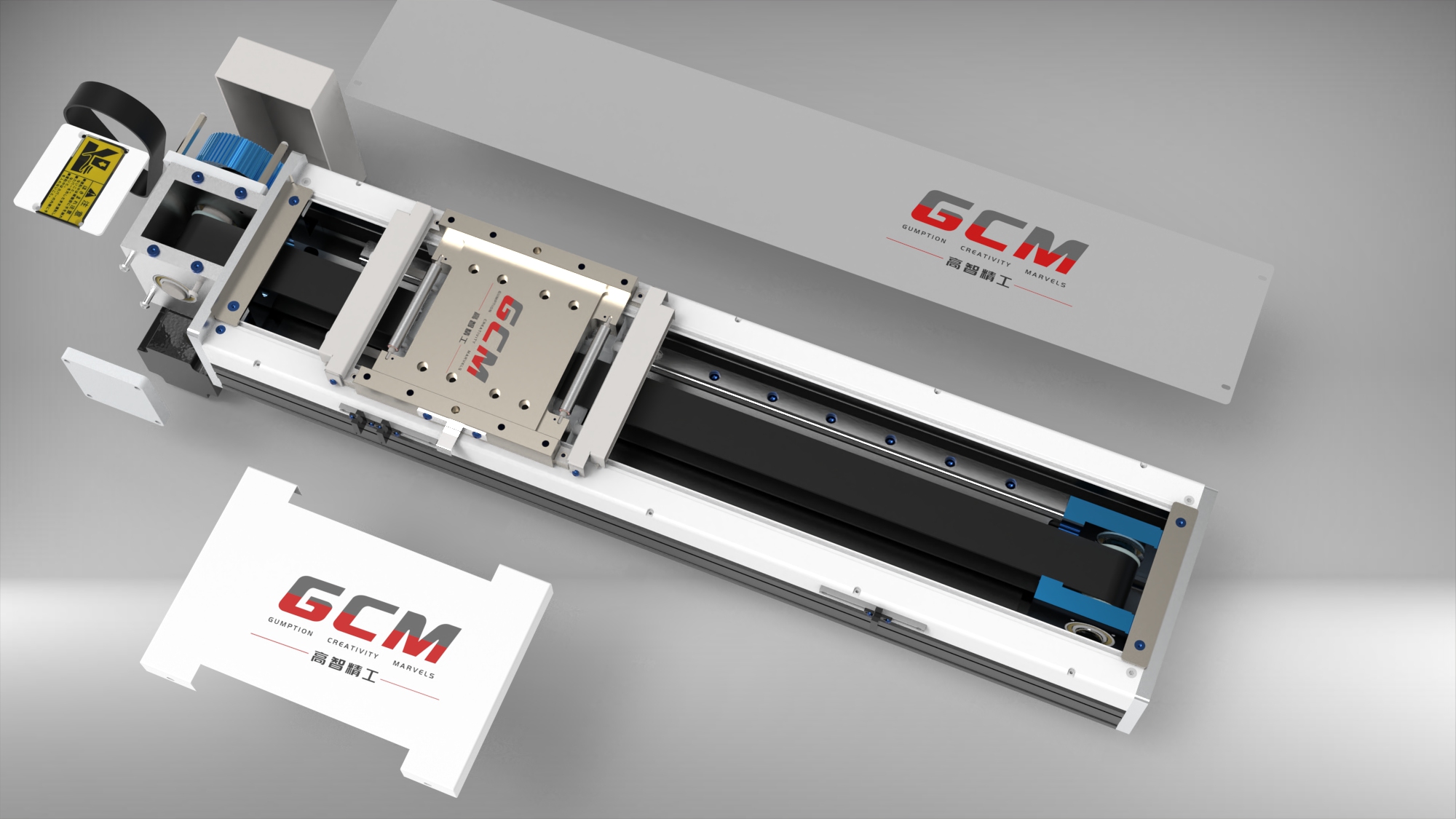

CGM llinear axis mechanical module - belt drive

In the modern manufacturing industry, linear bearing modules play a crucial role in providing efficient and accurate power transmission for various applications. CGM is proud to introduce our latest product line - the GCB22 Series, incorporating high-precision angular contact ball bearings and an advanced transmission structure to deliver outstanding performance and reliability to our customers.

Product Highlights

1. High-Precision Angular Contact Ball Bearings

The GCB22 Series employs high-precision angular contact ball bearings, ensuring excellent stability and durability of the system. These bearings not only provide exceptional load capacity but also maintain outstanding precision during high-speed motion, making them an ideal choice for applications requiring high performance.

2. Advanced Ball Bushing Warehouse Structure Technology

We have introduced advanced Ball Bushing Warehouse structure technology, ensuring excellent motion smoothness in various industrial environments. This technology guarantees a long service life and minimal maintenance requirements for the bearing system, providing a reliable solution to our customers.

3. Multiple Specifications Available

The GCB22 Series offers a range of specifications to meet the diverse needs of different applications. With travel ranges from 500mm to 4500mm, various speed, load, and precision options, our products are suitable for a wide range of complex industrial automation scenarios.

4. Advanced Transmission Structure

Our products feature an advanced transmission structure, including a 1/3 gear reducer, ensuring efficient energy transfer and excellent speed control. The Max speed can reach up to 1680mm/s, meeting the requirements of different manufacturing processes.

5. Wide Range of Application Scenarios

The GCB22 Series finds extensive applications in part arrangement, workpiece insertion, parts gluing, matching pressing, 3D coating, double-door settings, simultaneous double-sided detection, screw locking, chip mounting devices, picking and placing parts in multiple detection devices, collaborative dispensing, collaborative screw locking, and more, providing comprehensive solutions to our customers.

Technical Specifications

• Servo Speed (mm): 500; 1000; 1500; 2000; 2500; 3000
• Gear Reducer: 1/3
• Max Speed (mm/s): 280; 560; 840; 1120; 1400; 1680
• Max Load (kg) Horizontal: 95; 95; 95; 85; 65; 60
• Repeatability (mm): ±0.05
• Lead (mm): 100 (if equipped with 1/3 Gear Reducer, then lead = 33.33)
• Rated Thrust (N): 400
• Range of Travel (mm): 100-4500mm/50
• Servo Motor Output (W): 750W
• Synchronous Belt Width (mm): 50
• Linear Guide SPC (mm): W23*22 (2 SET)
• Sensor: Omron EE-SX674 (NPN)
• Guide: the rotation of the servo motor & straight distance of the sliding table
• If you have special requirements, please inform us first

• CGM is committed to providing customers with cutting-edge, high-performance automation solutions, and the GCB22 Series is a testament to our continuous innovation. For more detailed information, please visit our official website www.linearguider.com or contact our sales team. We look forward to providing comprehensive support for your business and jointly creating a better future.
















•
