CGM llinear axis mechanical module - belt drive

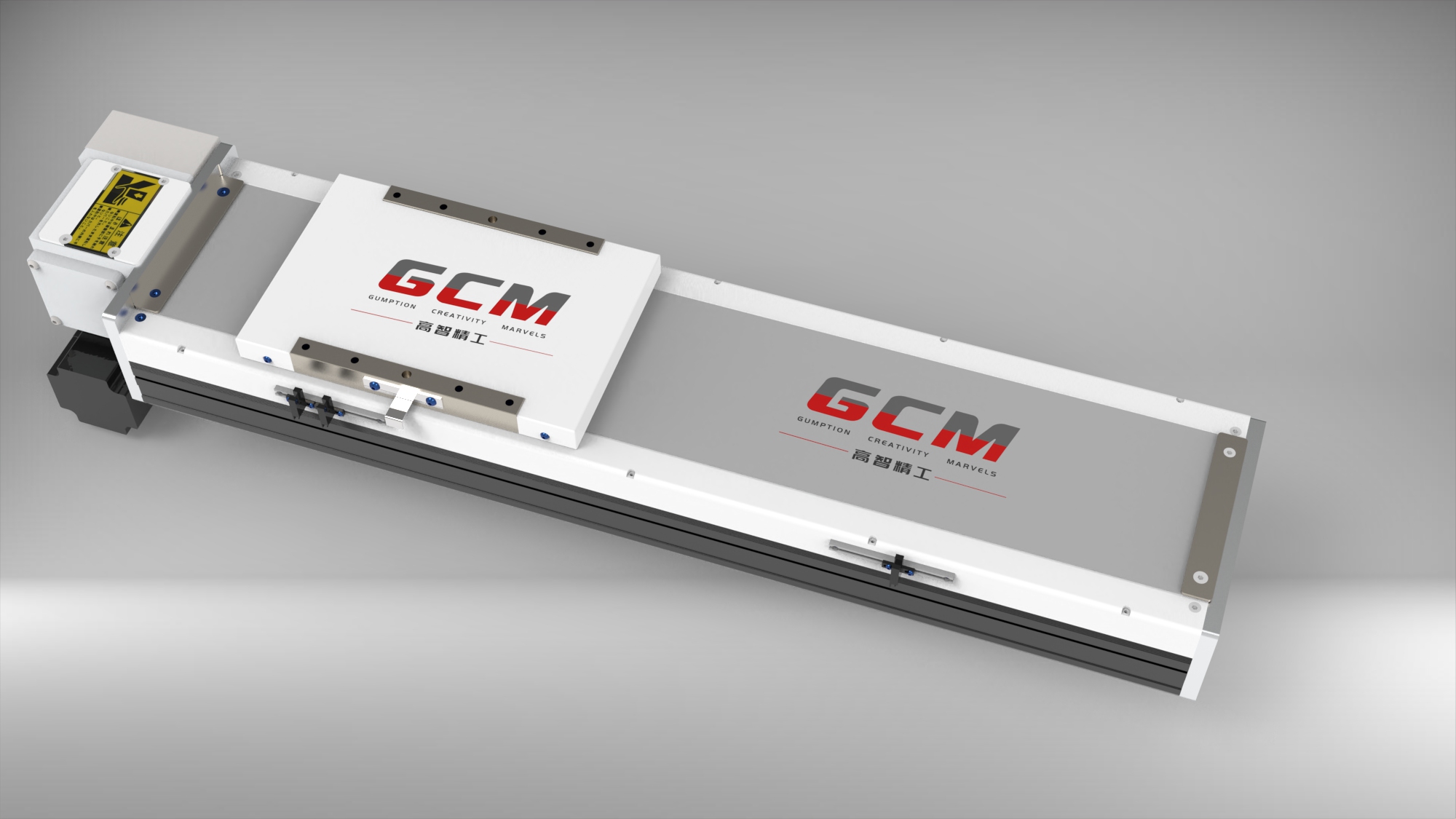

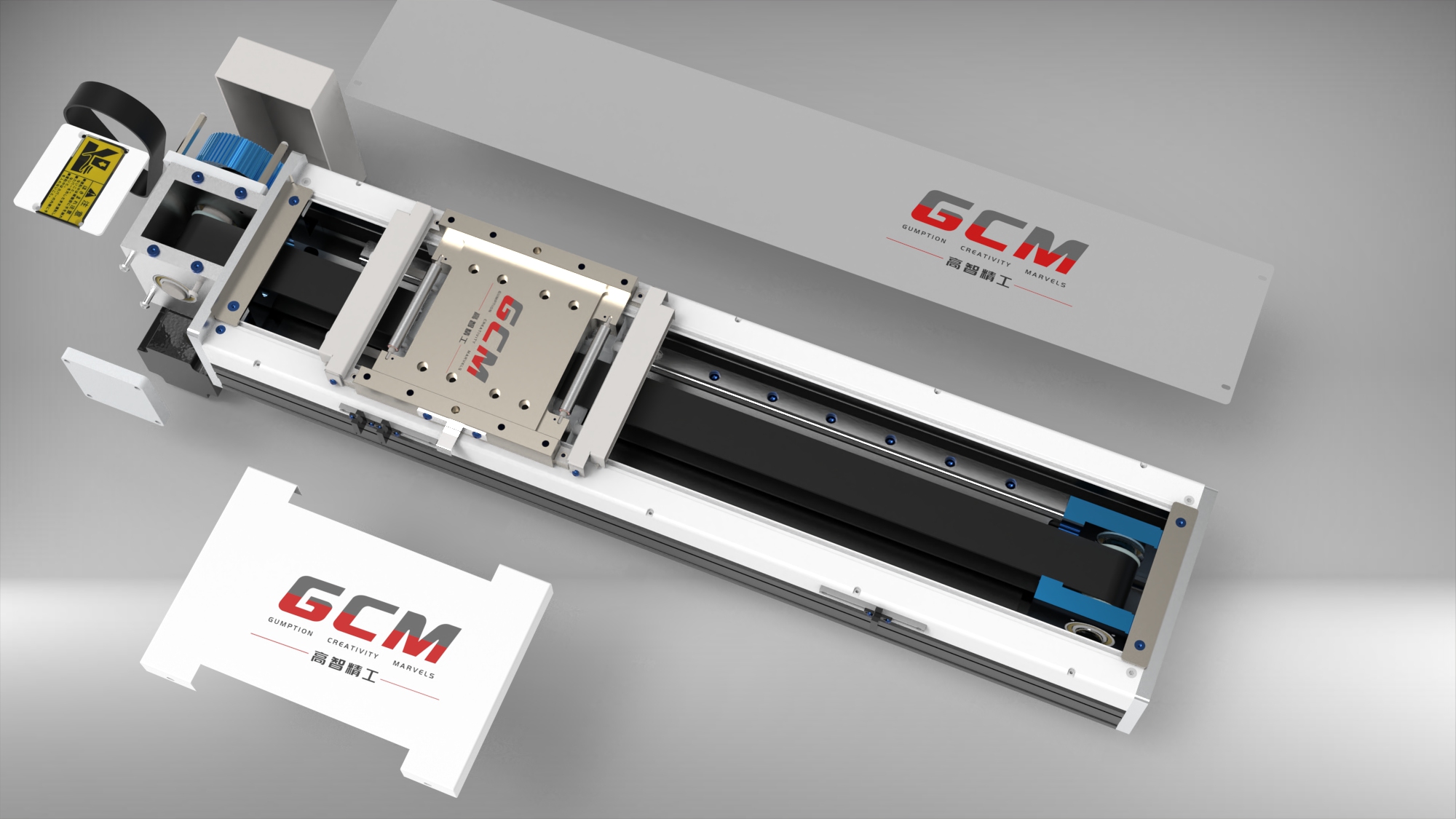

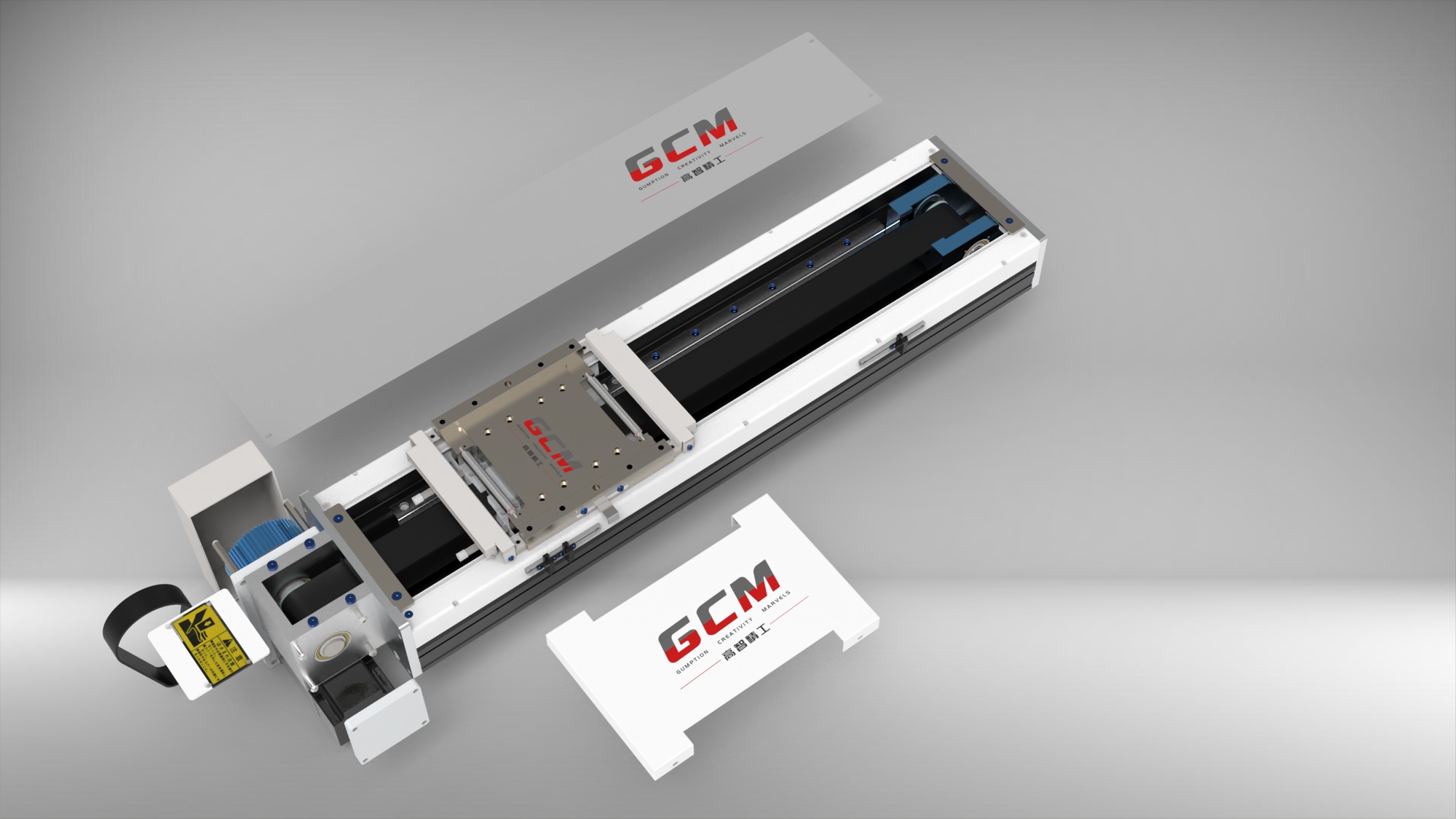

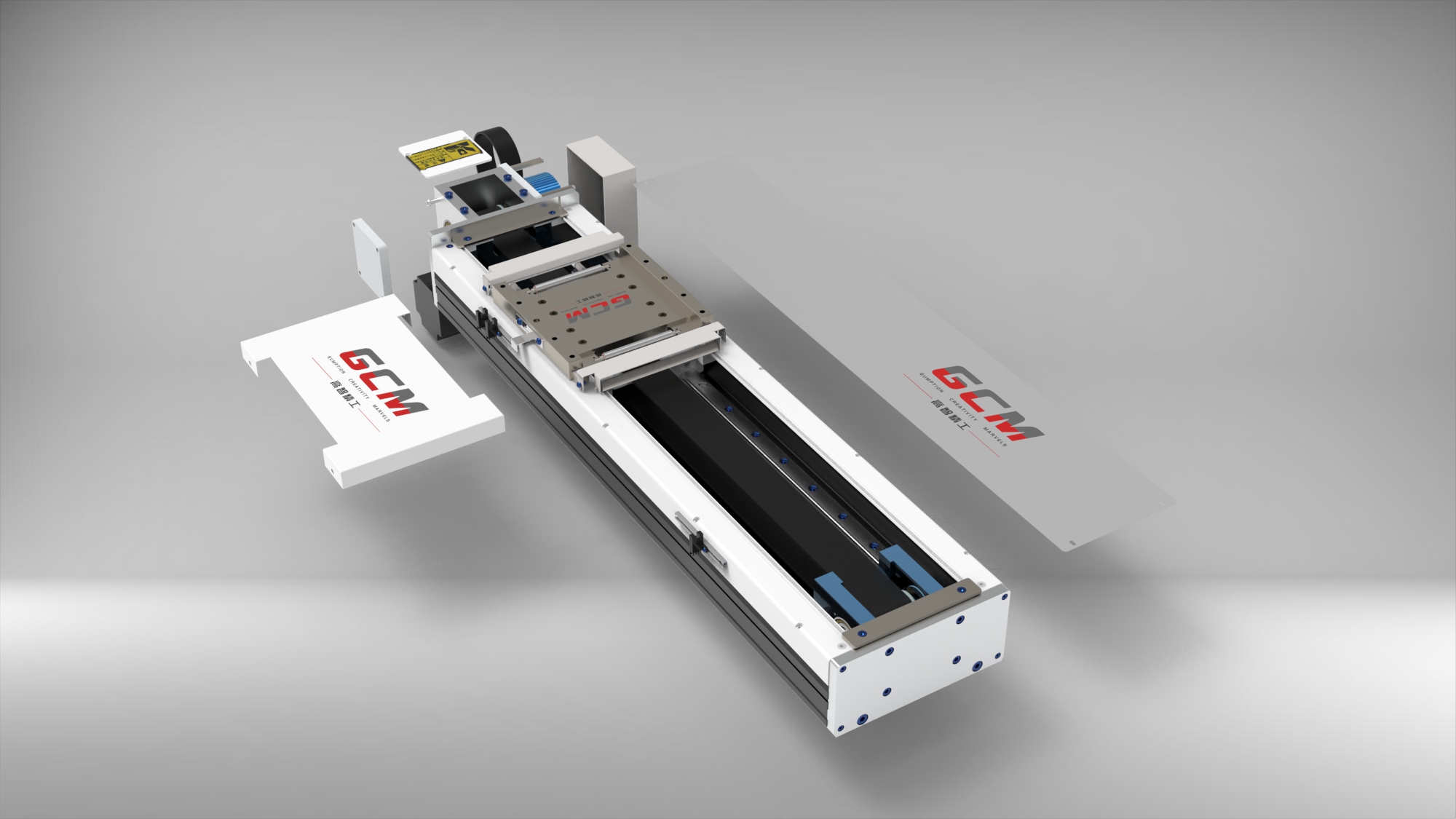

In the realm of modern industrial automation, efficient and precise linear actuators are crucial for driving productivity and ensuring quality. CGM takes pride in introducing its latest product series – GCB22, a precision-engineered and easy-to-install linear actuator featuring an advanced belt drive structure with outstanding torque coefficients, particularly suitable for the precise handling of large load workpieces.

Product Highlights:

1. Multiple Speed Options: The GCB22 series offers a selection of servo speeds, including 500mm/s, 1000mm/s, 1500mm/s, 2000mm/s, 2500mm/s, and 3000mm/s, catering to diverse industrial scenarios.

2. Powerful Torque Performance: Utilizing a 1/3 gear reducer, the GCB22 series linear actuator boasts excellent torque coefficients, enabling it to effortlessly tackle the transportation tasks of large load workpieces.

3. High-Speed Motion: With maximum speeds ranging from 280mm/s to 1680mm/s, it ensures efficient motion control on the production line.

4. Outstanding Repeatability: Achieving a repeatability of ±0.05mm ensures stable and reliable performance with each movement, enhancing work precision.

5. Wide Range of Travel: The GCB22 series linear actuator provides a travel range from 100mm to 4500mm/50, meeting the requirements of various application scenarios.

6. Robust Load Capacity: In the horizontal direction, the maximum load capacity is 95kg, 85kg, 65kg, and 60kg respectively, suitable for a variety of industrial settings.

7. Advanced Sensor Technology: Equipped with an Omron EE-SX674(NPN) sensor, it precisely monitors the motion status of the actuator.

8. Versatile Application Scenarios: The GCB22 series finds widespread applications in scenarios such as workpiece arrangement, workpiece pressing, part gluing, supporting press and more, providing robust support for the intelligentization of production lines.

Technical Specifications:

• Servo Motor Output Power: 750W
• Synchronous Belt Width: 50mm
• Linear Guide Specifications: W23*22 (2 SET)
• Sensor: Omron EE-SX674(NPN)

Conclusion:

The GCB22 series linear actuator represents CGM's latest innovation in the field of mechanical modules. Through advanced belt drive technology, precise design, and outstanding performance, it offers customers an efficient and reliable solution. If you have specific requirements, feel free to inform us, and we will gladly provide customized services. For more information about the GCB22 series, please visit the CGM official website. CGM – providing more efficient and intelligent solutions for your automated production line!
