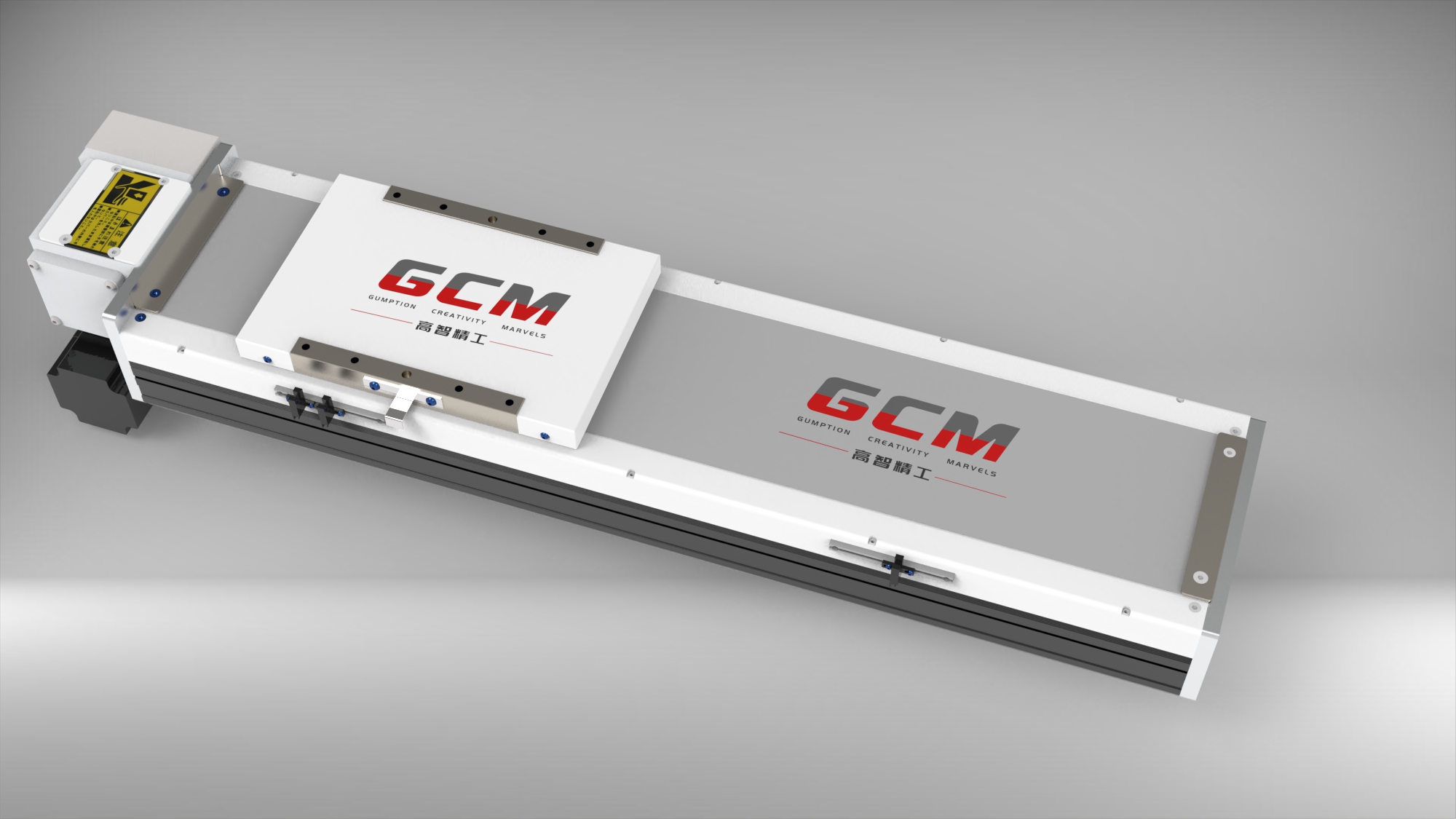

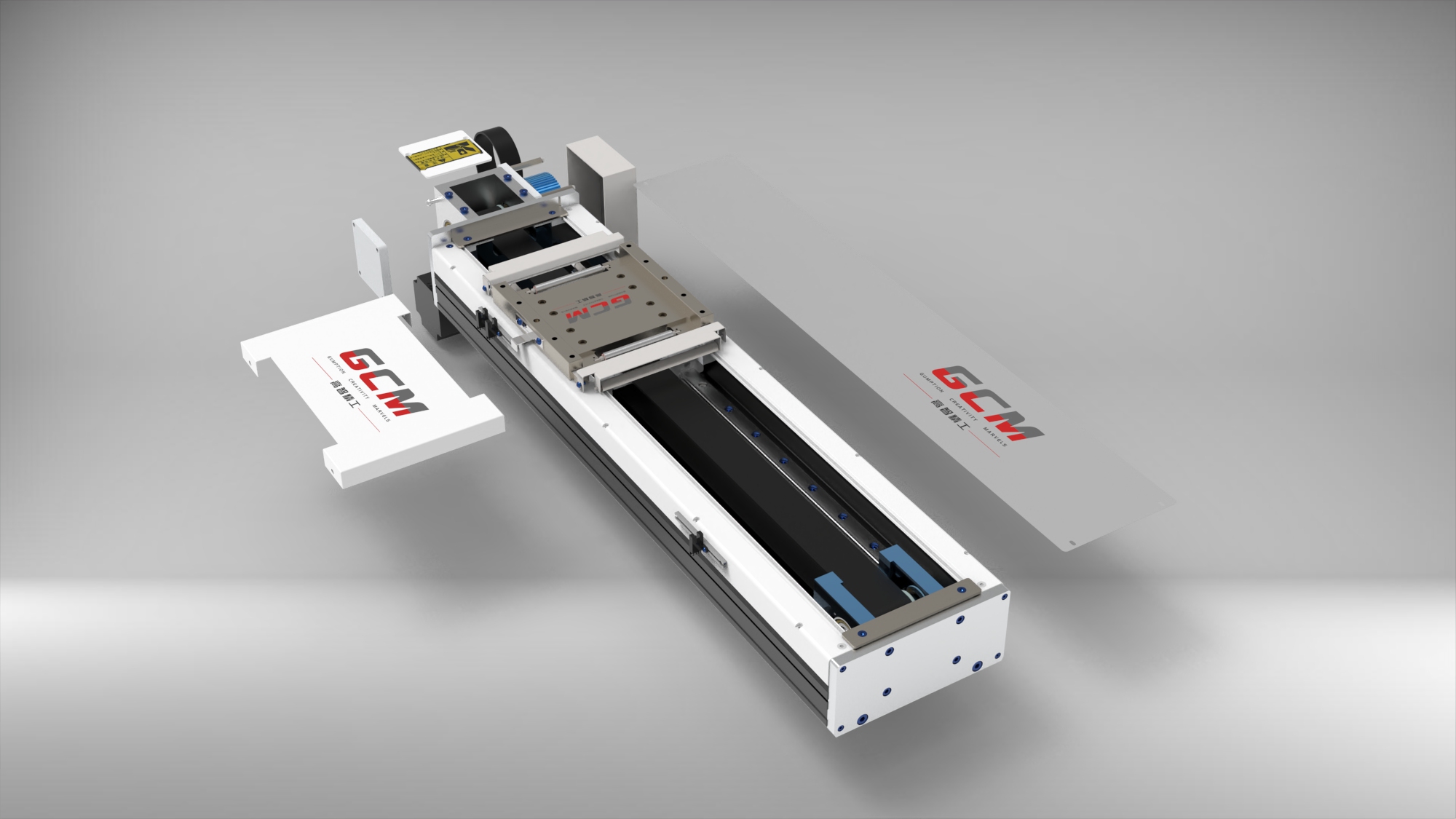

                                                                 Introducing CGM's New GCB22 Series Linear Axis Mechanical Module - Belt Drive for Precision Positioning

In the era of rapid technological advancement, achieving high-precision linear positioning has become a pursuit in various industries. To meet market demands, we are pleased to introduce CGM's latest innovation, the GCB22 Series Linear Axis Mechanical Module - Belt Drive. This series of products utilize advanced eg servo technology as the driving source, providing users with outstanding performance and a convenient installation experience.

Product Overview

Product Name: GCB22 Series Linear Axis Mechanical Module - Belt Drive

Keywords: eg servo, linear acuator, CGM linear axis mechanical module - belt drive

The GCB22 Series is a precision-engineered and easy-to-install mechanical component for linear actuators. Its design aims to assist users in achieving high-precision linear positioning while occupying minimal installation space. The product's driving source employs the efficient eg servo technology, offering users excellent performance and reliability.

Product Highlights

• Servo Speed (mm): 500, 1000, 1500, 2000, 2500, 3000
• Gear Reducer: 1/3
• Max Speed (mm/s): 280, 560, 840, 1120, 1400, 1680
• Max Load (kg) - Horizontal: 95, 95, 95, 85, 65, 60
• Repeatability (mm): ±0.05
• Lead (mm): 100 (if equipped with 1/3 Gear Reducer, then lead=33.33)
• Rated Thrust (N): 400
• Range of Travel (mm): 100 - 4500mm/50
• Servo Motor Output (W): 750W
• Synchronous Belt Width (mm): 50
• Linear Guide SPC (MM): W23*22 (2 SET)
• Sensor: Omron EE-SX674 (NPN)
• Guide: The rotation of the servo motor & straight distance of the sliding table
• Special Requirements: If you have special requirements, please inform us in advance.

Application Examples

The GCB22 Series Linear Axis Mechanical Module - Belt Drive finds widespread applications in various scenarios, including but not limited to:

• Part arrangement
• Workpiece pressing
• Part gluing
• Supporting pressure
• Three-dimensional coating
• Dual door settings
• Simultaneous dual-side detection
• Screw locking
• Chip mounting device
• Retrieving and placing parts to multiple detection devices
• Collaborative dispensing
• Collaborative screw locking

Through the GCB22 Series, we provide users with an outstanding solution, helping them achieve higher efficiency and precision in the fields of industrial automation and precision positioning. Committed to delivering innovative products, CGM welcomes you to visit our official website www.linearguider.com for more detailed information. Thank you for your support!
