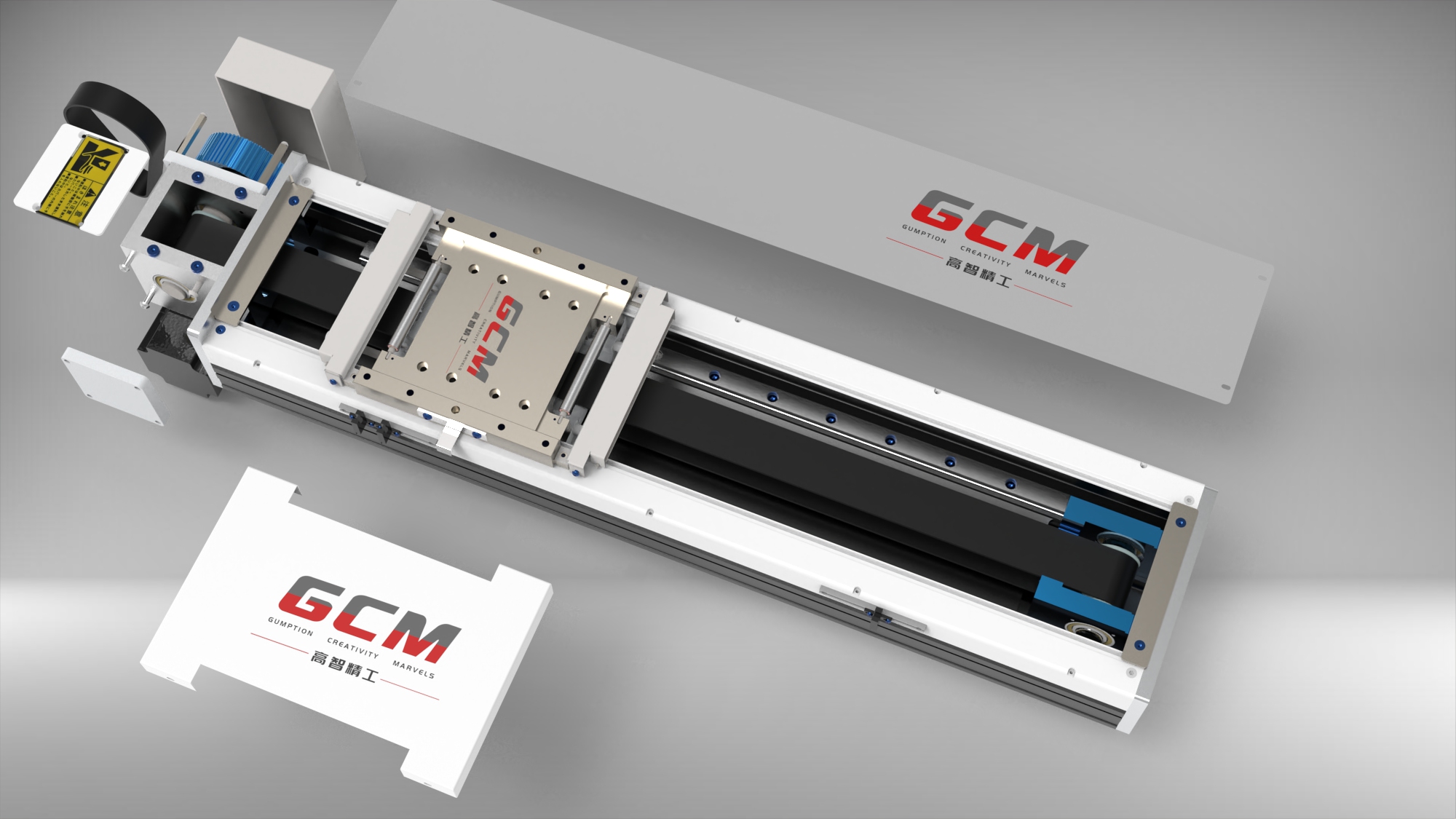

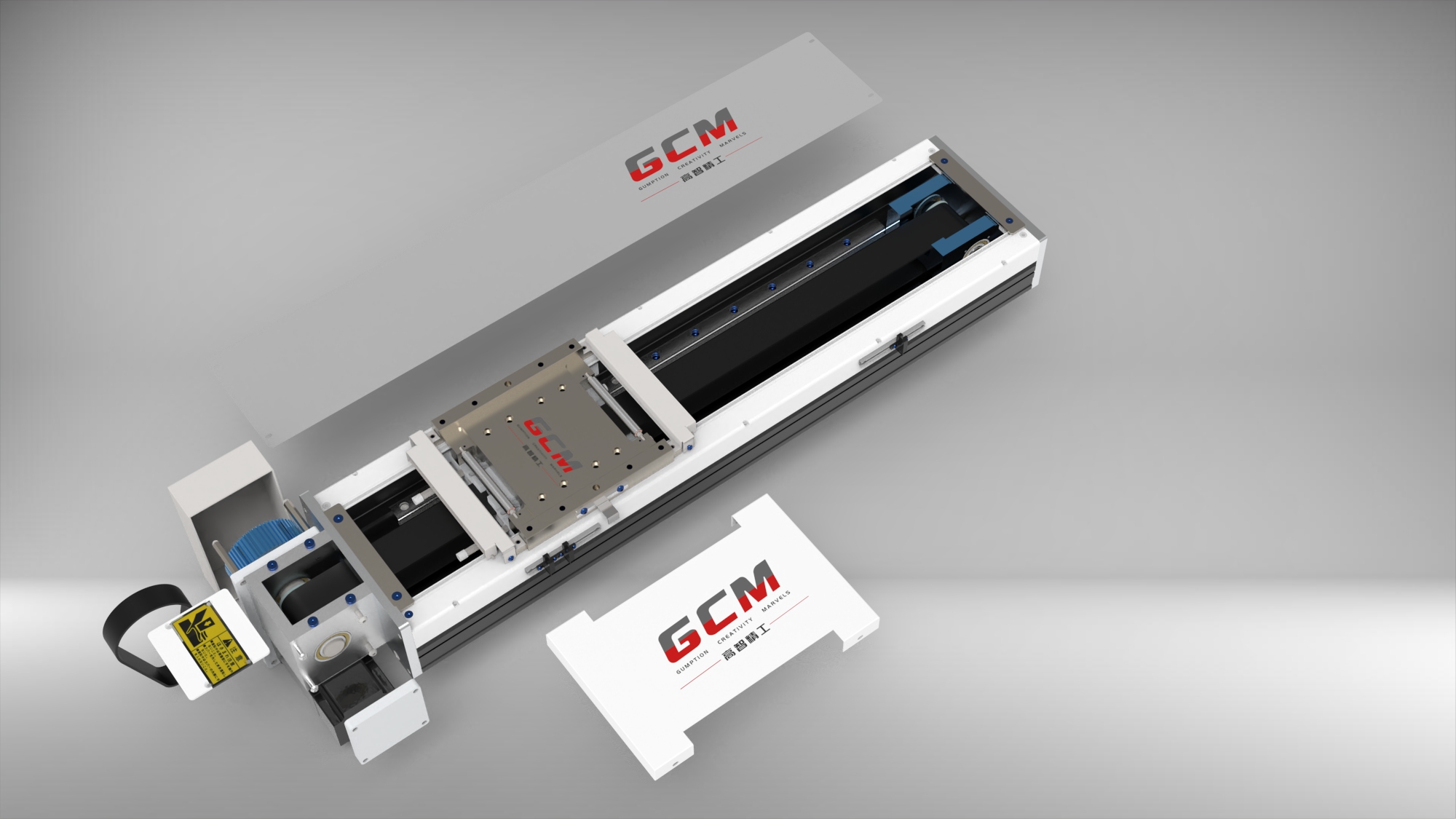

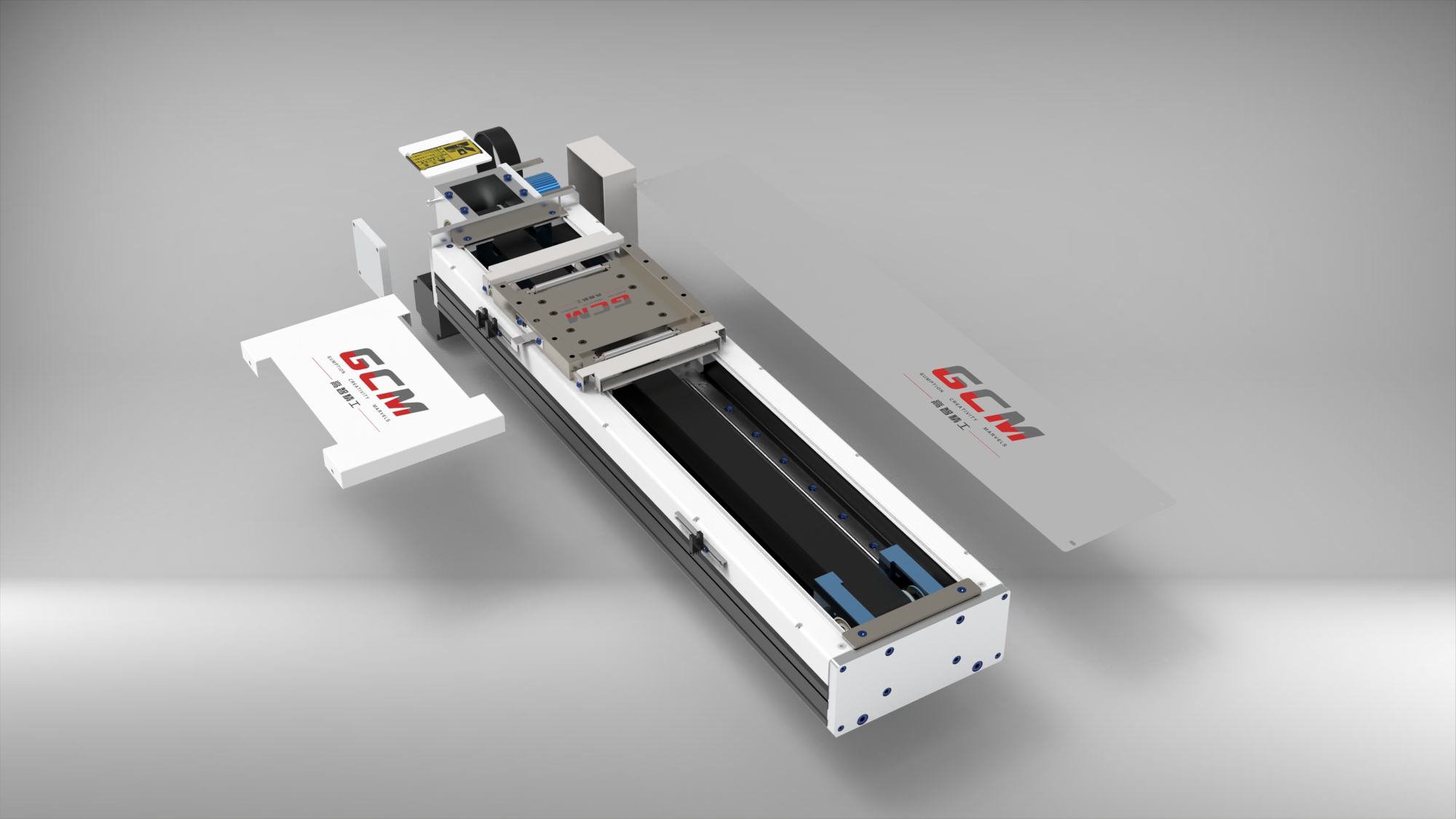

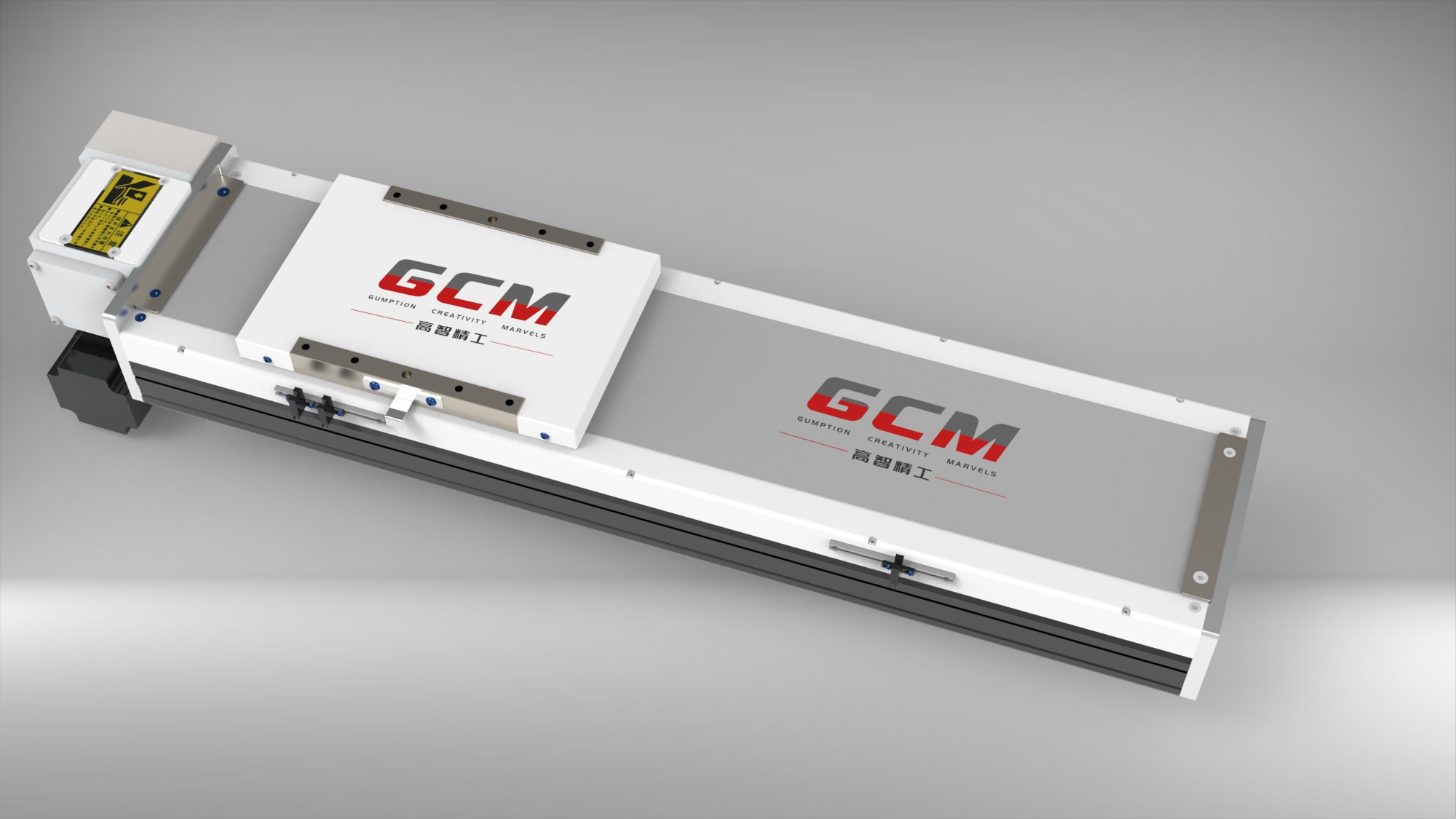

CGM llinear axis mechanical module - belt drive

In the realm of precision engineering, CGM proudly presents its distinguished product line – the GCB22 Series. As we delve into the intricacies of linear motion control, our commitment to innovation and excellence shines through, paving the way for advancements in Industry 4.0.

Unveiling Cutting-edge Technology:

At the core of our GCB22 Series lies the incorporation of Hiwin linear rail technology, ensuring unparalleled accuracy and reliability. The integration of advanced female rod end bearing structures further exemplifies our dedication to pushing the boundaries of mechanical engineering.

Key Product Highlights:

• Servo Speed Options (mm): 500, 1000, 1500, 2000, 2500, 3000
• Gear Reducer: 1/3
• Max Speed (mm/s): 280, 560, 840, 1120, 1400, 1680
• Max Load (kg - Horizontal): 95, 95, 95, 85, 65, 60
• Repeatability (mm): ±0.05
• Lead (mm): 100 (if equipped with 1/3 Gear Reducer, then lead = 33.33)
• Rated Thrust (N): 400
• Range of Travel (mm): 100 - 4500mm/50
• Servo Motor Output (W): 750W
• Synchronous Belt Width (mm): 50
• Linear Guide SPC (MM): W23*22 (2 SET)
• Sensor: Omron EE-SX674 (NPN)

Guiding Innovation: Our GCB22 Series acts as the guiding force, synchronizing the rotation of the servo motor with the straight distance of the sliding table. With a proactive approach to customization, we invite our clients to communicate their unique requirements with us at the outset.

Applications in Real-world Scenarios: The versatility of our product shines through in various applications – from meticulous item arrangement, workpiece compression, and adhesive coating to coordinated pressing, three-dimensional coating, dual-door configurations, simultaneous dual-sided detection, screw locking, patch application, and collaborative processes such as dispensing and screw locking.

A Decade of Excellence: Rooted in a decade of practical experience and continuous refinement, the GCB22 Series stands as a testament to our commitment to quality. As we extend our reach globally, we warmly welcome partnerships with agents worldwide, envisioning a collective contribution to the evolution of Industry 4.0.

Join Us in Shaping the Future: Explore the capabilities of our matured product line at www.linearguider.com. Together, let's empower the future of Industry 4.0. Join CGM in making a significant impact!
