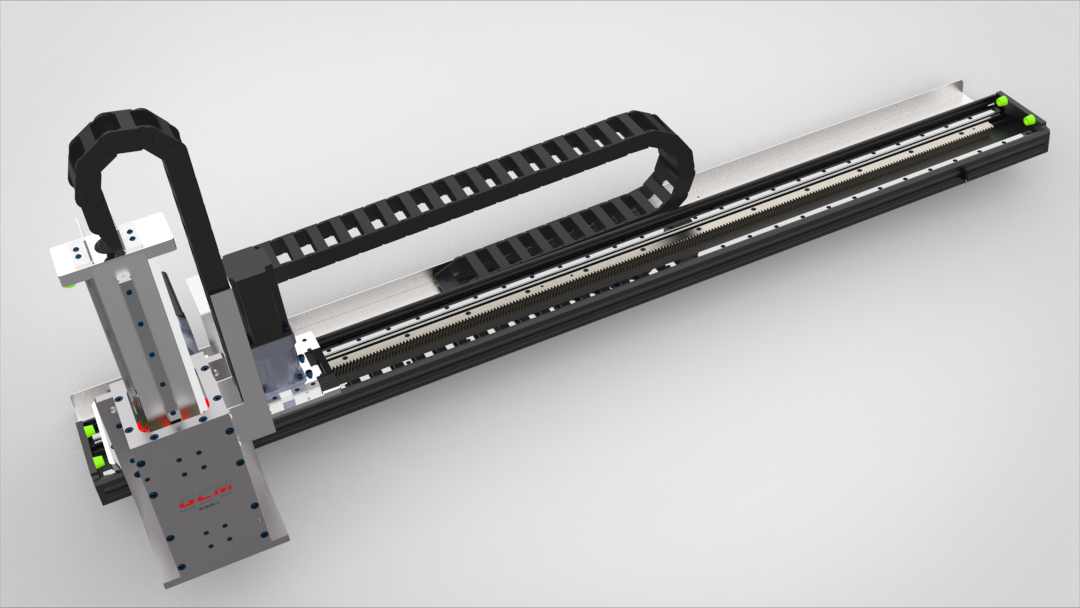

CNC Milling Machines Gear Rack Modules

Exploring the Application of Gear Rack Modules in CNC Machine Tools

In modern manufacturing, CNC machine tools have become crucial equipment for producing high-precision and efficient parts. As one of the core components of CNC machine tools, gear rack modules play an irreplaceable role in improving machine tool performance, precision, and stability. This article will explore the application of gear rack modules in CNC machine tools and delve into their advantages and application scenarios.

Introduction to Gear Rack Modules

A gear rack module is a mechanical transmission system composed of gears and racks. Gears are circular mechanical components with tooth-shaped grooves called teeth, while racks are long, strip-shaped parts with teeth on their surfaces that mesh with gears. By transmitting force and motion through the meshing of teeth, gear rack modules achieve the movement of the machine tool's worktable.

Advantages of Gear Rack Modules

1. High Precision: Gear rack modules utilize the meshing transmission between gears and racks, providing high transmission accuracy to ensure the precise movement of the machine tool's worktable, thereby guaranteeing the precision of machined parts.

2. High Efficiency: Due to the meshing transmission between gears and racks, gear rack modules effectively reduce energy loss, enhancing transmission efficiency and ensuring smooth and efficient machine tool movement.

3. Stability: With a well-designed structure, gear rack modules possess strong load-bearing capacity and stability, ensuring minimal vibration and noise du




   ring high-speed operation, thereby enhancing the stability of machine tool operation.

4. Versatility: Gear rack modules can be customized and optimized according to different requirements, making them suitable for various types of CNC machine tools, including milling machines, lathes, drilling machines, etc., exhibiting strong versatility and adaptability.

Application Scenarios of Gear Rack Modules

1. CNC Milling Machines: In CNC milling machines, gear rack modules are commonly used to control the movement of the worktable and cutting tools, enabling the machining of parts.

2. CNC Lathes: In CNC lathes, gear rack modules are employed to control the relative motion between the workpiece and cutting tools, facilitating the machining of external diameters, internal bores, end faces, etc.

3. CNC Drilling Machines: In CNC drilling machines, gear rack modules are utilized to control the movement of the worktable and drill bits, enabling hole machining operations.

Conclusion

As a vital component of CNC machine tools, gear rack modules play an indispensable role in modern manufacturing. Their advantages of high precision, efficiency, stability, and versatility enable CNC machine tools to meet the diverse demands of complex part machining, driving the manufacturing industry towards higher efficiency and precision. With the continuous progress and development of technology, gear rack modules are expected to play an even more significant role in the field of CNC machine tools, injecting new vitality into the development of the manufacturing industry. //www.linearguider.com/
