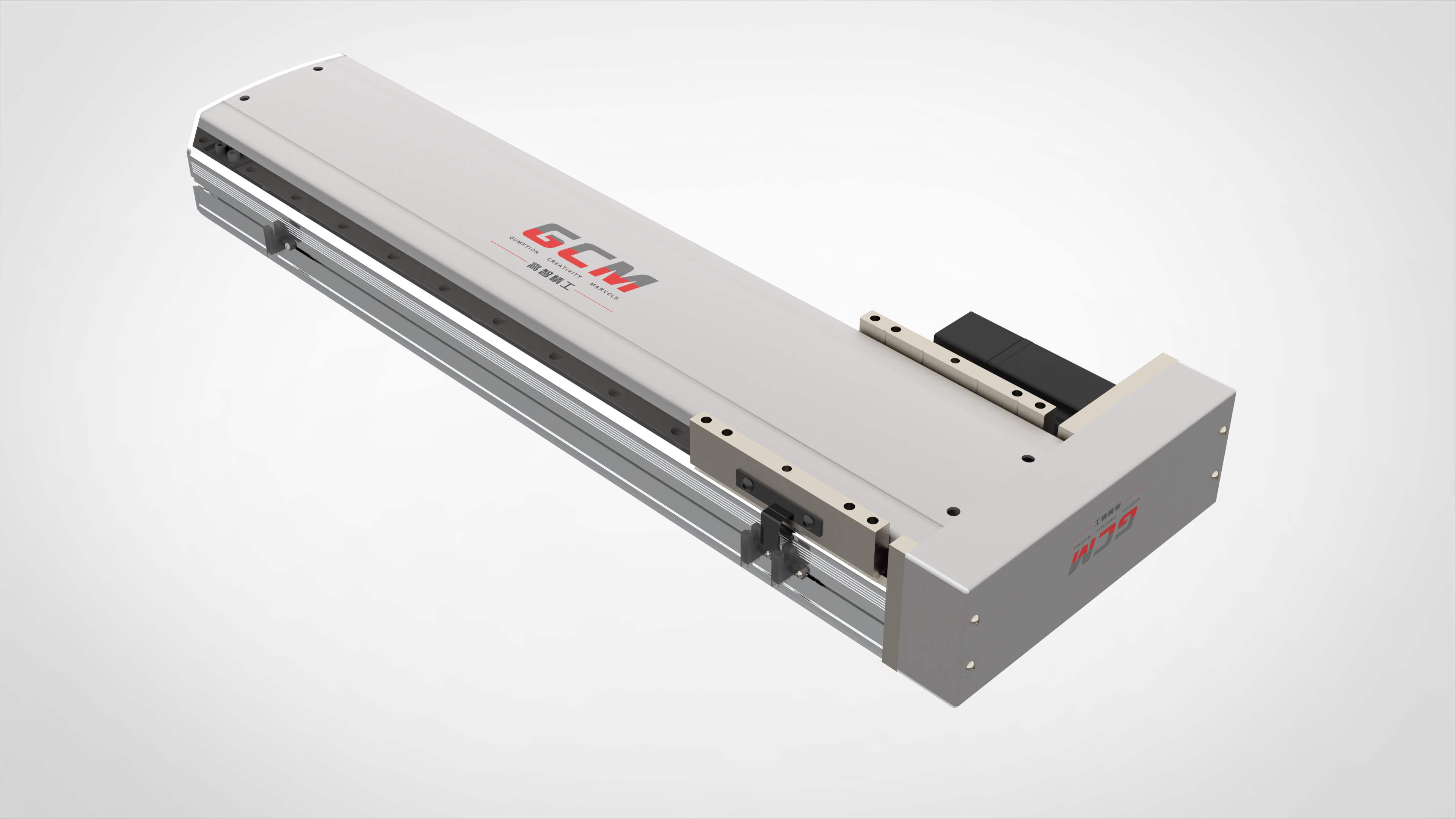

Exploring the High-density precision linear  screw mechanical module  axle : Unveiling the Technical Secrets of Linear Guides

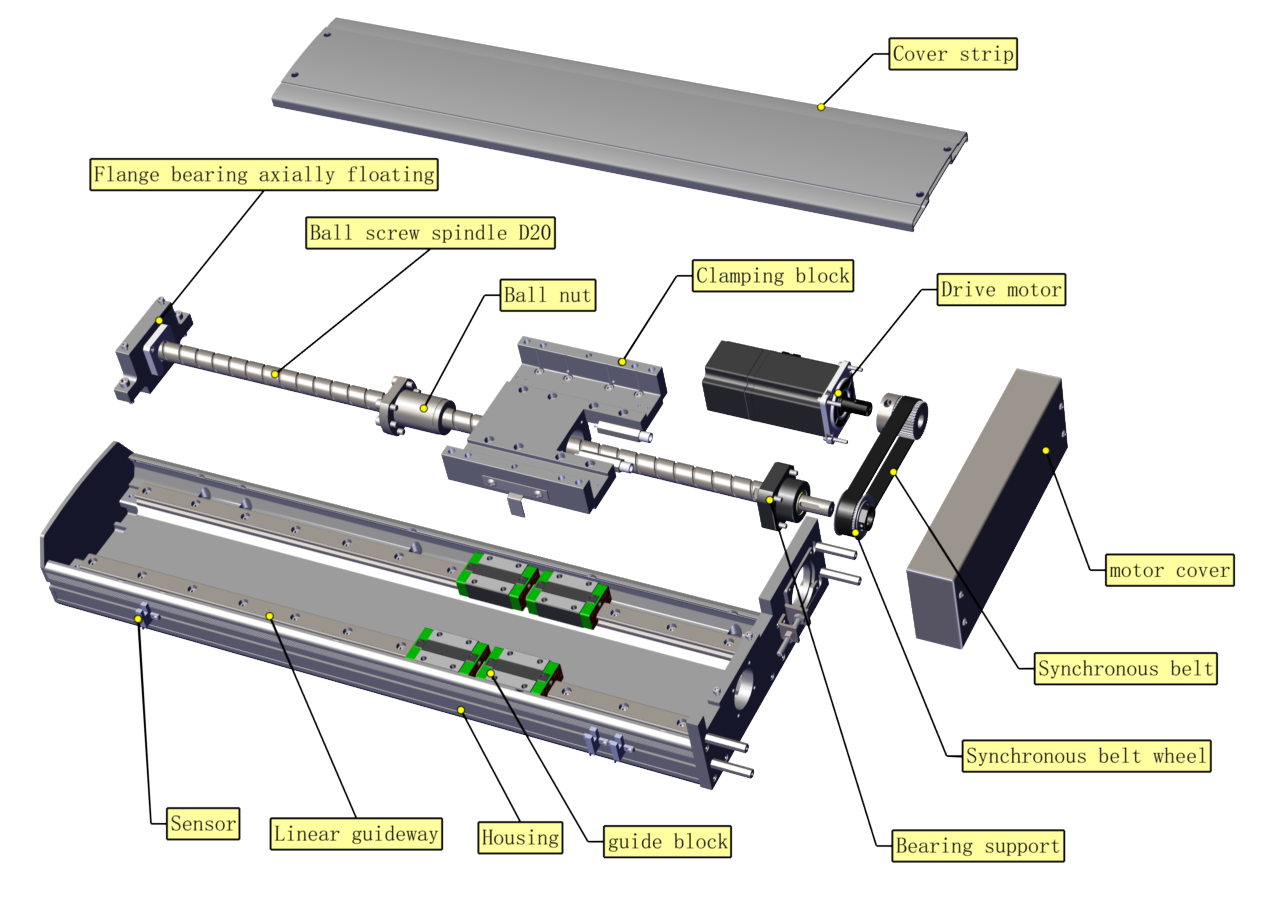

Welcome to the [CGM] blog! I am [zenghui], an engineer at the company. Today, I will delve into our pride and joy, the lead screw mechanical module, revealing its design principles, performance parameters, and its extensive applications in the engineering field.







This table shows the parameter details of this High-density precision linear  screw mechanical module  axle

Model specification Motor output（w） width(mm) Repeatability(mm) ball screw Spec(C7) Max payload(kg) max speeed (mm/s)
outer dia(mm) Lead(mm) horizontal Vertical
GTH22 750W 220 土0.01 25 5 150 55 250
10 150 45 500
25 105 20 1250
40 43 12 5000


  • 750W Powerful Drive First and foremost, let's focus on the core of our product - the powerful motor output. Our lead screw mechanical module is equipped with a high-efficiency 750W motor, providing robust driving force for your projects. This not only ensures efficient energy conversion but also enables outstanding performance in various application scenarios.

  • Compact Design with 220MM Width The compact design of our lead screw mechanical module is a masterpiece of our engineering team. With a width of only 220MM, it is suitable for engineering projects with limited space. This compact design doesn't compromise performance; on the contrary, it offers more flexible installation options, making our module an ideal choice for various industrial applications.

  • Excellent Precision - Repeatability = ±0.01 In the field of engineering, precision is crucial. Our lead screw mechanical module is renowned for its outstanding repeatability of ±0.01. This means that in motion control, the system can achieve remarkable stability and reliability, ensuring precise operations every time.

  • Load-Bearing Capacity - Horizontal 150KG, Vertical 55KG Whether bearing horizontal or vertical loads, our lead screw mechanical module performs exceptionally well. The maximum horizontal load can reach 150KG, while the vertical load can reach 55KG. This remarkable load-bearing capacity makes it suitable for a variety of engineering scenarios, providing users with greater flexibility.

  • Engineer's Perspective As an engineer, I take great pride in this lead screw mechanical module. Our design not only focuses on performance parameters but also concentrates on solving real engineering problems. Every detail is considered to ensure the product excels in various challenges.

  • Application Scenarios This lead screw mechanical module plays a crucial role in various industrial applications, whether in automated production lines, robotics, or other precision motion control systems. Our product is versatile and capable.

  • Learn More Interested in learning more about our lead screw mechanical module? Please visit our official website: www.linearguider.com. There, you will find detailed product specifications, application examples, and information on how to get in touch with us.
