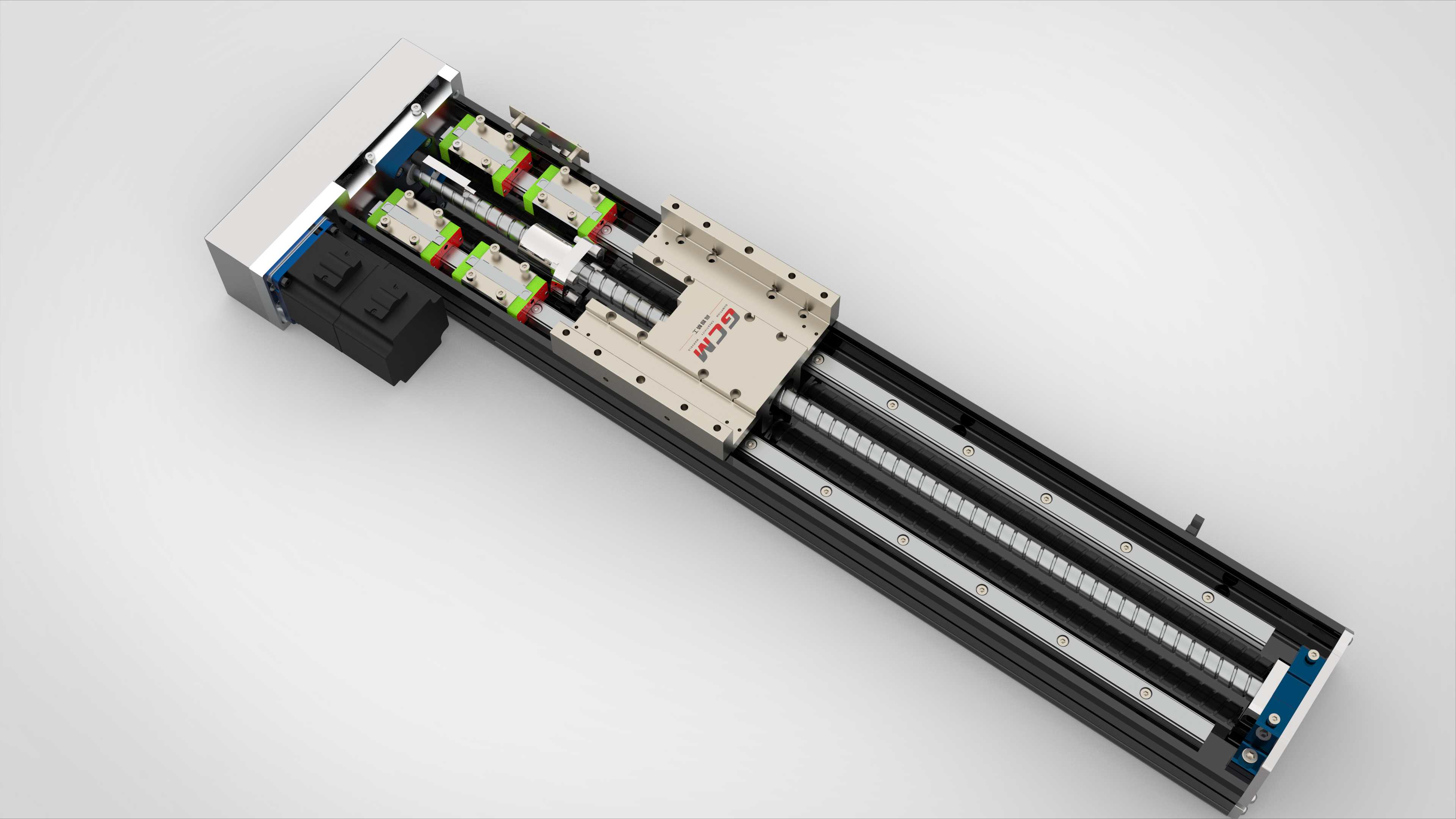

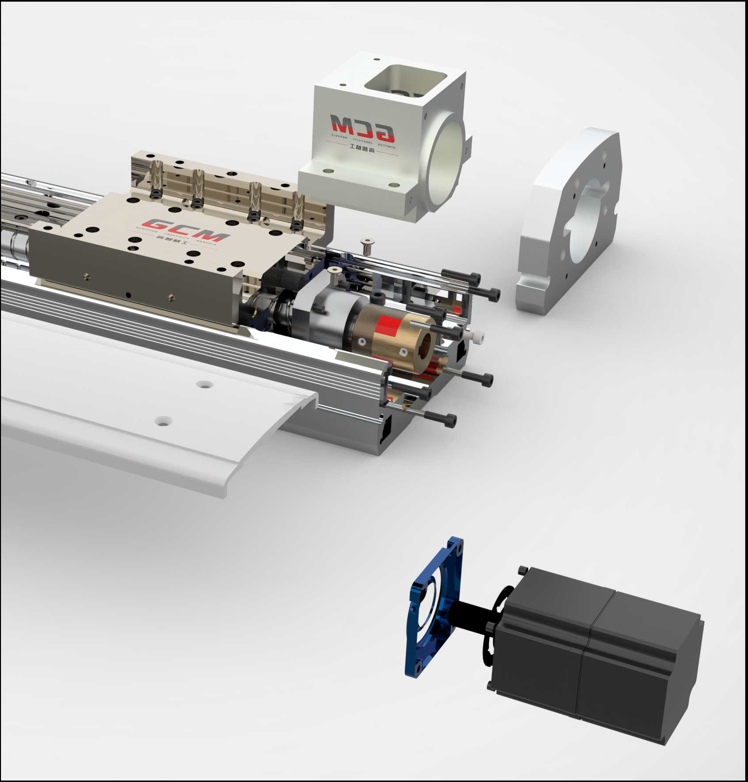

[CGM] 750W Linear Axis Spindle Mechanical Module: Powerful, Efficient, Compact, and Precise

Welcome to [CGM], where we take pride in presenting our latest product – the 750W powerful linear axis spindle mechanical module. This high-efficiency motor, equipped with a lead screw mechanical module, demonstrates outstanding performance in various aspects, providing robust support for engineering projects.

1. Powerful Drive - 750W Efficient Motor

Our linear axis spindle mechanical module features a robust 750W efficient motor, ensuring excellent energy conversion. This core feature guarantees high-efficiency stability, delivering powerful support for engineering projects across diverse applications.

2. Compact Design with 220mm Width

Crafted by our engineering team, the compact design of this module with a mere 220mm width makes it an ideal choice for engineering projects with limited space. The compact design does not compromise on performance; instead, it offers flexible installation options to meet various industrial application requirements.

3. Outstanding Precision - ±0.01 Repeat Accuracy

In the engineering field, precision is crucial. Our linear axis spindle mechanical module is renowned for its outstanding 0.01 repeat accuracy, ensuring remarkable stability and reliability in motion control. This achievement is attributed to the use of precision ball spline shaft:

• Torque and Speed Transmission: Precision ball spline shaft can transmit torque and speed, connecting two rotating components to work together.
• Precision Position Control: The spline shaft's structure allows for higher precision and controllability, ensuring accurate positioning and motion transmission.
• Elimination of Axial Clearance: The spline structure effectively reduces or eliminates axial clearance, enhancing transmission accuracy and responsiveness.
• Reduced Friction and Wear: Ball bearings reduce friction between the shaft and bearings, minimizing energy loss and wear, thus improving transmission efficiency and lifespan.
• Suitable for High Load and High-Speed Applications: Precision ball spline shafts are typically designed to withstand large torque and high speeds, making them suitable for applications requiring high-performance transmission.

4. Load Capacity - 150KG Horizontal, 55KG Vertical

Our mechanical module excels in bearing both horizontal and vertical loads. With a maximum horizontal load capacity of 150KG and a vertical load capacity of 55KG, it provides users with greater flexibility, suitable for a variety of engineering scenarios.

5. Engineer's Perspective

As an engineer, I take great pride in this mechanical module. The design not only emphasizes performance parameters but also focuses on addressing real engineering challenges. Every detail is carefully considered to ensure the product performs exceptionally in various situations.

6. Application Scenarios

This mechanical module plays a crucial role in various industrial applications, including automated production lines, robotics, and other precision motion control systems.

7. Learn More

Would you like to delve deeper into our linear axis spindle mechanical module? Please visit our official website: www.linearguider.com. There, you'll find detailed product specifications, application cases, and contact information.

Conclusion

[CGM]'s linear axis spindle mechanical module is the result of our continuous pursuit of innovation, and we believe it will bring outstanding performance to your engineering projects. If you have any questions or need customized solutions, please feel free to contact our team. Thank you for reading this blog; we hope it provides you with a more in-depth understanding of our product.
