With the continuous development of industrial automation, the application of robotic technology on production lines is becoming increasingly widespread. To meet the industry's demands for high precision, efficiency, and reliability, CGM proudly presents its latest robotic arm product—GZH178 Cantilever Robot Arm. This mechanical arm has garnered attention for its outstanding performance and broad application fields.

Product Features

GTH17 Series

Performance Parameters:

• Repeatability: ±0.04mm
• Lead: 40mm
• Maximum Speed: 2000 (mm/s)
• Maximum Horizontal Payload: 55KG
• Maximum Vertical Payload: 30KG
• Rated Thrust: 204 (N)
• Stroke Pitch: 100-3050 mm

Key Components:

• AC Servo Motor Output: 400W
• Belt Width: 30mm
• High Rigidity Linear Guide: 20*15.5mm
• Sensor: EE-SX672

Application Scenarios

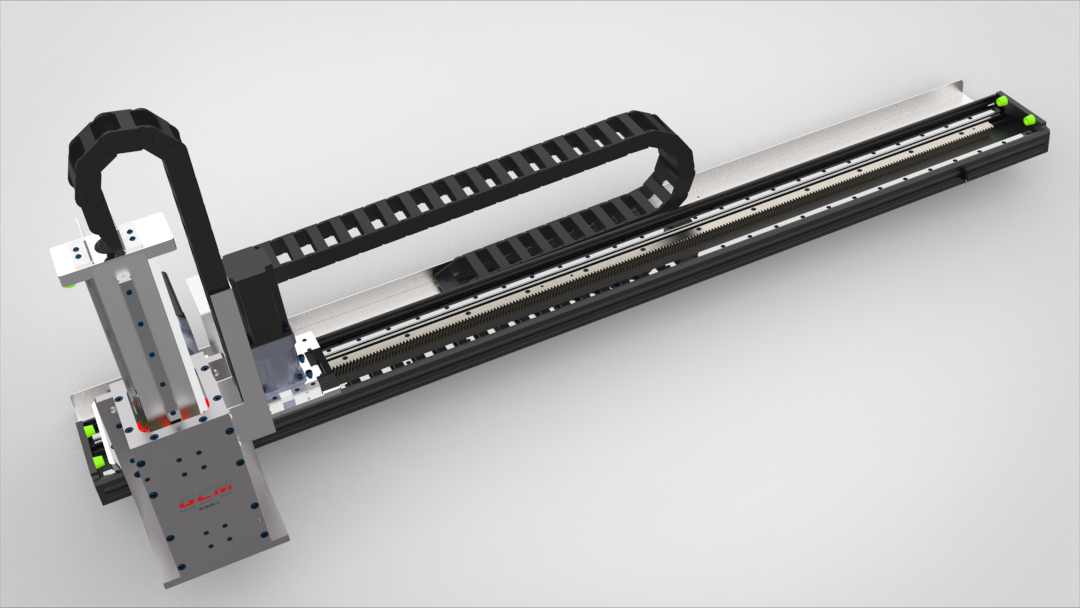

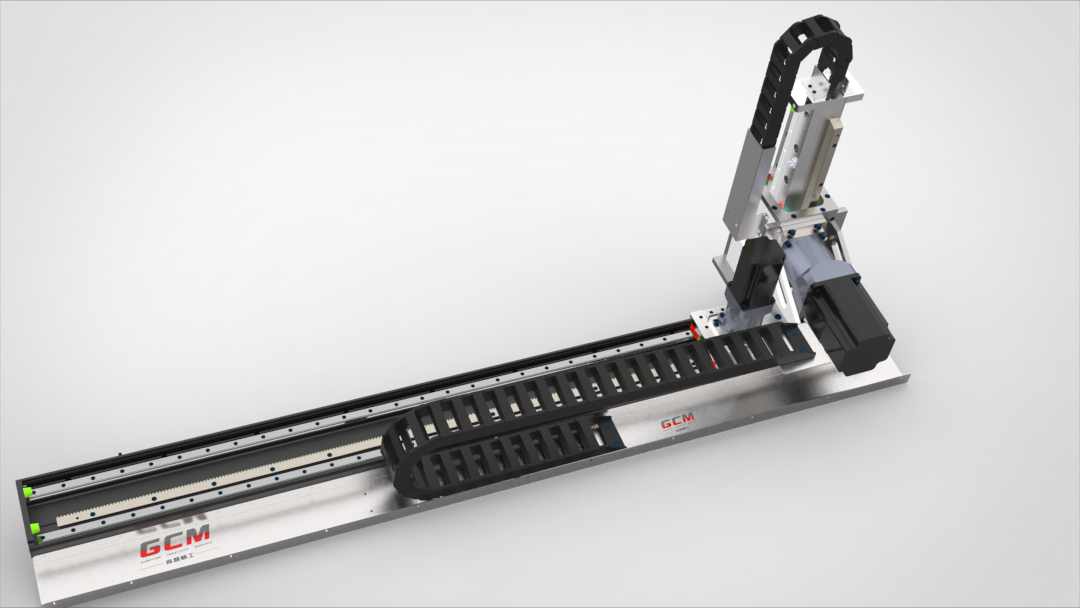

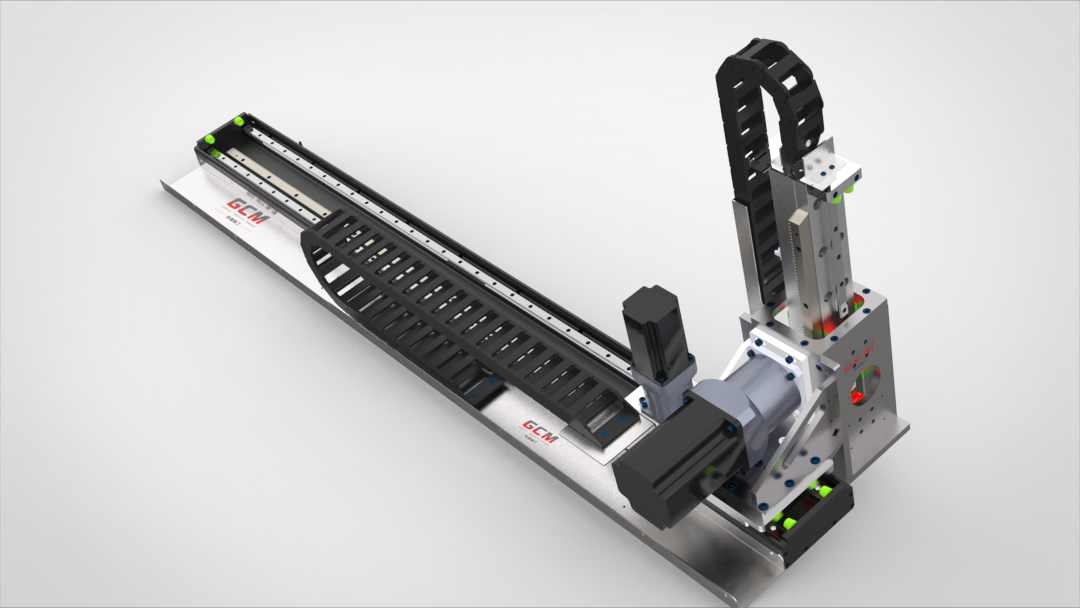

GZH178 Cantilever Robot Arm is a combination of gears, racks, and mechanical modules, designed with precision and exceptional performance. Here are some applicable scenarios:

1. Automated Production Lines

The GZH178 robotic arm demonstrates its powerful positioning and handling capabilities on automated production lines, enabling high-precision assembly and arrangement of products. With a maximum horizontal payload of 55KG and a vertical payload of 30KG, it is an ideal choice for heavy-duty industrial production lines.

2. Logistics and Warehousing

In the logistics and warehousing industry, the GZH178 robotic arm can be used for rapid sorting, handling, and stacking of goods. Its high speed and repeatability provide an efficient and accurate solution for the logistics sector.

3. Machining and Assembly

In the field of machining and assembly, the GZH178 robotic arm leverages its precise positioning and high-speed movement advantages. With a rated thrust of 204N and adjustable stroke pitch, it meets the demands of complex assembly tasks.

4. Electronics Manufacturing

In the electronics manufacturing industry, the GZH178 robotic arm can be employed for the handling and assembly of precision components. Its AC servo motor and high rigidity linear guide ensure highly accurate operations on tiny components.

Conclusion

The GZH178 Cantilever Robot Arm is a pioneering product from CGM, leading the industry with its outstanding performance. Its exceptional performance parameters and diverse application scenarios make it an ideal choice for meeting the needs of various industries. Feel free to visit the www.linearguider.com for more detailed information and to learn how to integrate the GZH178 robotic arm into your production process, enhancing both efficiency and quality.
