                                                                                                  CGM GTH17 Series: The Power of Industry 4.0

With the continuous development in the industrial sector, mechanical automation is playing an increasingly crucial role in the production process. In order to meet the growing market demands, our company CGM proudly introduces a mature product, the GTH17 series linear axis spindle mechanical module, refined through a decade of practice and optimization, contributing to the force behind Industry 4.0.

Product Overview

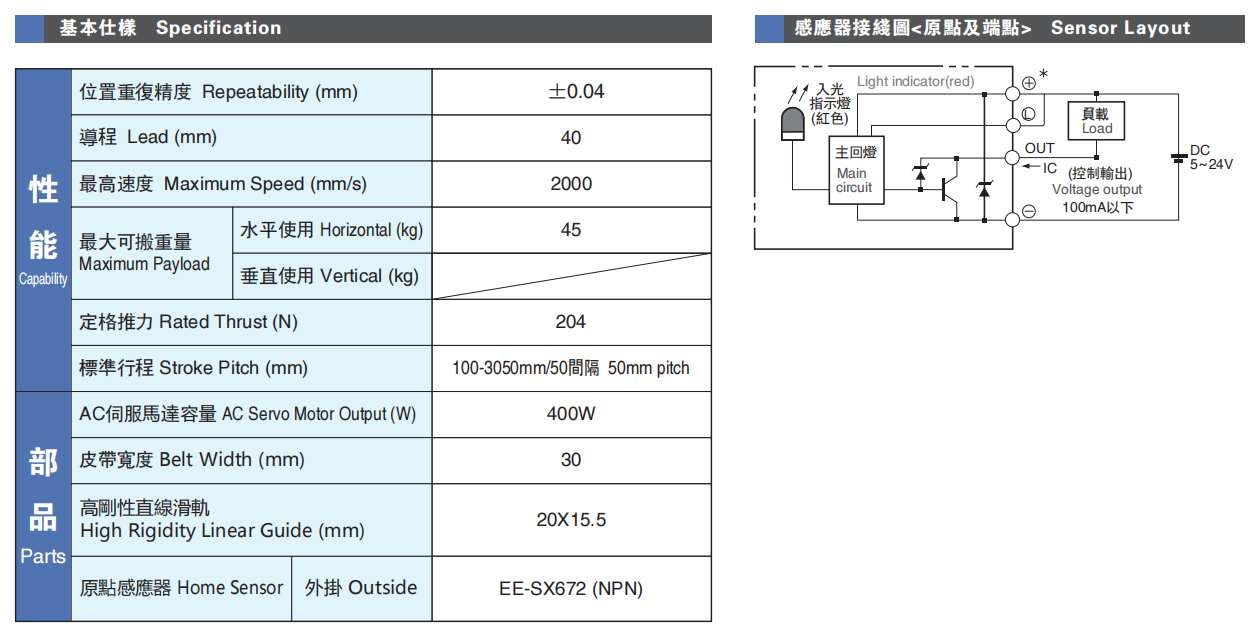

The GTH17 series is renowned for its outstanding performance and stability, standing out as a leader in the field of linear axis spindle mechanical modules. Here are some key performance indicators for this series:

  • Repeatability: ±0.04mm, providing reliable support for high-precision machining.

  • Lead: 40mm, ensuring efficient work speed and stability.

  • Maximum Speed: 2000 (mm/s), providing powerful dynamics for high-speed production.

  • Maximum Payload Horizontal: 55KG, meeting the demands of different industrial scenarios.

  • Maximum Payload Vertical: 55KG, ensuring excellent performance in the vertical direction.

  • Rated Thrust: 204 (N), providing reliable support for thrust in the working environment.

  • Stroke Pitch: 100-3050 mm, catering to various working range requirements.

Optimized Components

The stability and reliability of the GTH17 series are attributed to the carefully selected and rigorously calculated components:

  • AC Servo Motor Output: 400W, delivering powerful power output.

  • Belt Width: 30mm, ensuring stability and efficiency in the transmission system.

  • High Rigidity Linear Guide: 20*15.5mm, providing reliable guiding performance for the system.

  • Sensor: EE-SX672, achieving finer control through precise feedback information.

Each component undergoes strict calculations, ensuring the entire system performs exceptionally well under various working conditions.

Maturity and Optimization

The GTH17 series is not only a mature product but also the result of a decade of practice and optimization. We meticulously refine every detail, continually enhancing product performance to meet customer demands for high performance and reliability.

Recruiting Global Distributors

To better serve global customers, we warmly welcome distributors from around the world to join us. Through collaboration, you will gain access to excellent product support and technical training, contributing together to drive the intelligence of Industry 4.0.

Conclusion

The CGM GTH17 series linear axis spindle mechanical module, with its outstanding performance and stable reliability, will be your ideal choice in the field of industrial automation. Join our partner network to collectively tackle the challenges of the Industry 4.0 era, injecting new vitality into intelligent manufacturing.

Visit our official website at www.linearguider.com for more details about the GTH17 series and other products. Thank you for your interest and support in CGM.

Keywords: CGM, GTH17 Series, Industry 4.0, Linear Axis Spindle Mechanical Module, Repeatability, Lead, Maximum Speed, Maximum Payload, Rated Thrust, High Rigidity Linear Guide, Distributor Recruitment, Intelligent Manufacturing, High Precision Machining.
