Introduction: Introducing the Product
Our company specializes in manufacturing high-precision mechanical components and advanced mechanical modules, dedicated to meeting the personalized needs of our customers. Whether it's producing mechanical components based on customer dimensions or designing unique products from 3D drawings, we leverage extensive customization experience. While maintaining affordability, we stand strong with powerful technological capabilities.
Years of successful experience have earned us the trust of a vast customer base. This article will delve into our acclaimed flagship product - GTH7A linear-axes-spindle-axis, a compact yet highly precise mechanical module.
Product Specifications
| model specification | Motor Output | Width | Repeatability | Ball screw spec | Max payload(kg) | Max speed (mm/s) | ||
| Outer Dia | Lead | Horizontal | vertical | |||||
| GTH7A | 200W | 75 | 土0.01 | 16mm | 5mm | 30kg | 15kg | 250 (mm/s) |
| 10mm | 30kg | 10kg | 500 (mm/s) | |||||
| 20mm | 15kg | 5kg | 1000 (mm/s) | |||||
| 32mm | 10kg | 2kg | 1600 (mm/s) | |||||

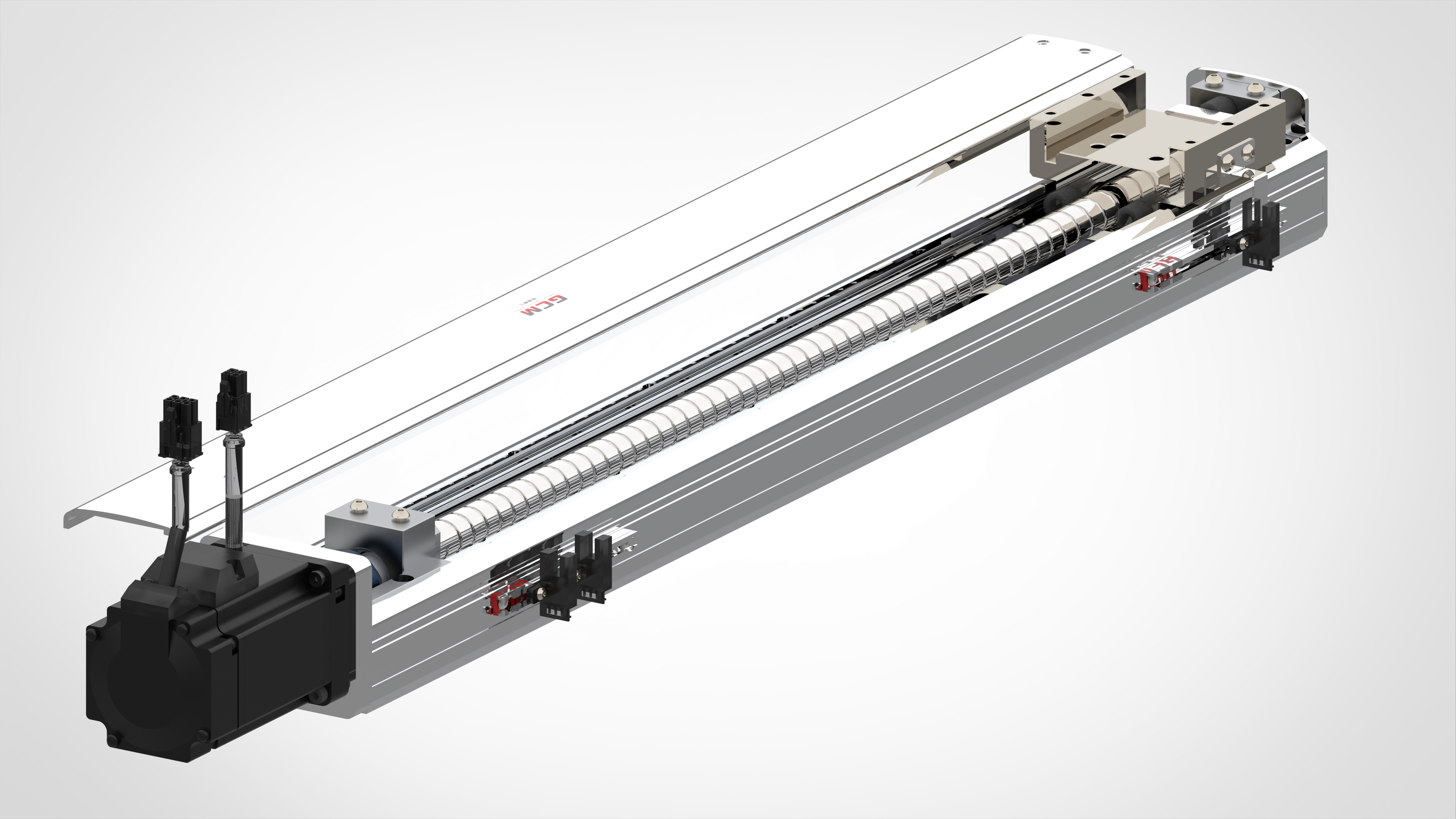

GTH7A linear-axes-spindle-axis is a highly accurate, compact, and robust linear mechanical module. Offering multiple specifications, customers can choose according to their specific needs, even opting for a foldable installation design to accommodate limited installation spaces.
Key Factors in Selecting Mechanical Modules When choosing mechanical modules, customers need to consider various factors, including application environment, precision, speed requirements, and installation methods. Our products, with advantages in sealing, surface treatment technology, and noise control, provide outstanding choices for customers.
Application Areas and Customer Cases GTH7A finds widespread applications across multiple industries, solving challenges for customers with its flexibility and versatility. By sharing real-world cases and customer stories, we showcase the significant achievements of our product in improving efficiency and addressing challenges.
Design and Manufacturing Process Each manufacturing step undergoes rigorous monitoring, including force testing, 2D testing, AOI defect detection, screw rod tension testing, thrust testing, etc. The unique design of GTH7A efficiently converts circular motion into linear motion, achieving origin positioning, front and rear limits, and collision prevention functionalities within limited space.
Customer Service and Support We offer pre-sales technical guidance and post-sales engineer support, along with comprehensive installation guide videos to ensure smooth customer selection and usage debugging processes. Your direct guidance and valuable feedback are welcomed, and we also extend a warm invitation to ambitious individuals to become our company's agents.
Future Outlook GTH7A plays a crucial role in industrial automation and high-precision positioning. With a large design and development team and advanced production equipment, our company will continue to innovate and drive technological advancements. Visit our official website at www.linearguider.com for more detailed information about GTH7A and other products.
Conclusion Whether you are searching for the best mechanical module or are passionate about industrial automation, we look forward to providing you with excellent solutions.
