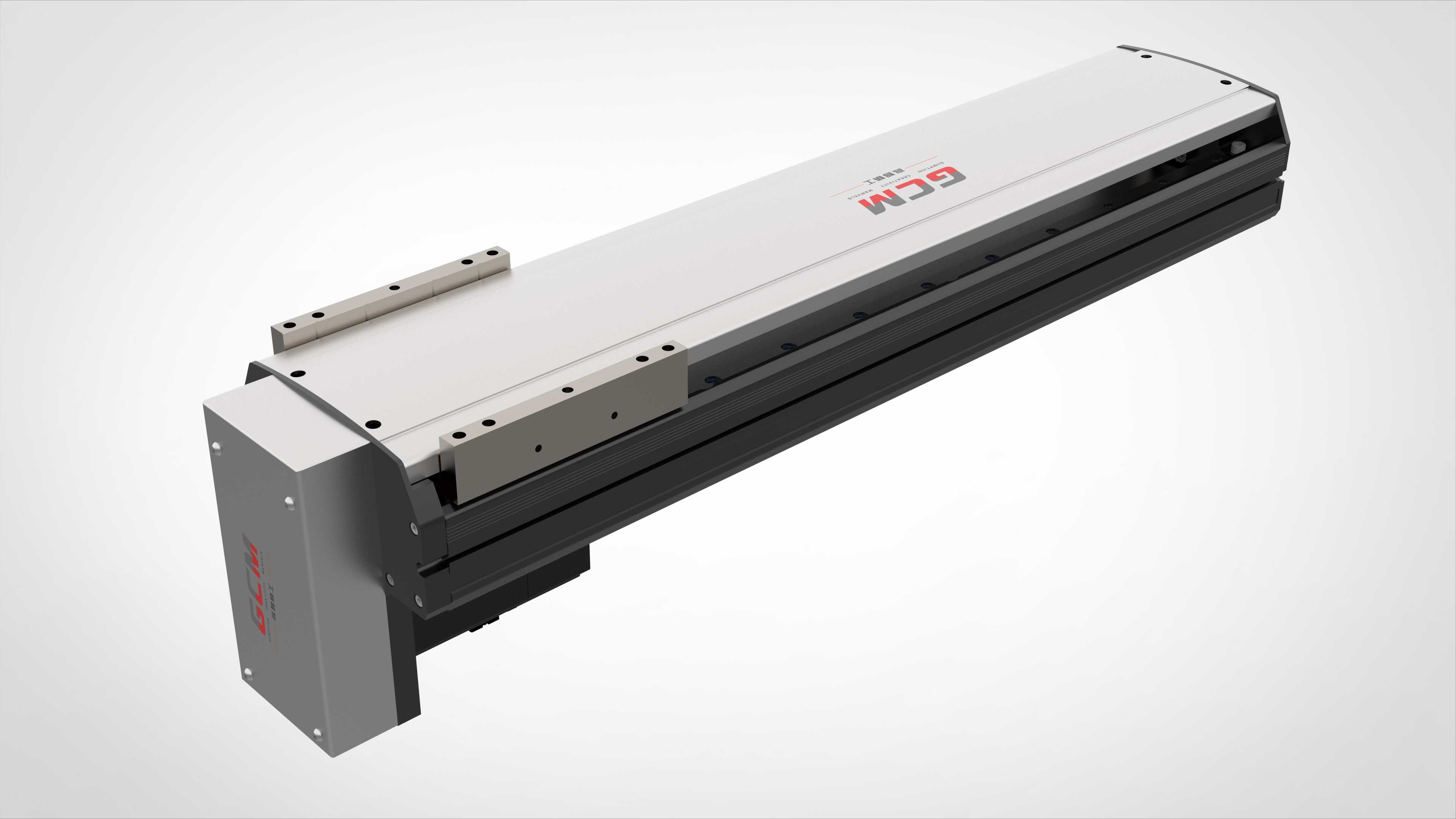

In the era of Industry 4.0, the demand for CNC machine tools is steadily increasing. To meet the high-precision requirements of the manufacturing industry, our company, CGM, proudly introduces the GTH17 series. This comprehensive solution includes linear bearings, guide rails, ball screws, and mechanical modules designed to adapt to various CNC manufacturing needs.

Product Specifications

Capability:

Repeatability: ±0.04mm
Lead: 40mm
Maximum Speed: 2000 (mm/s)

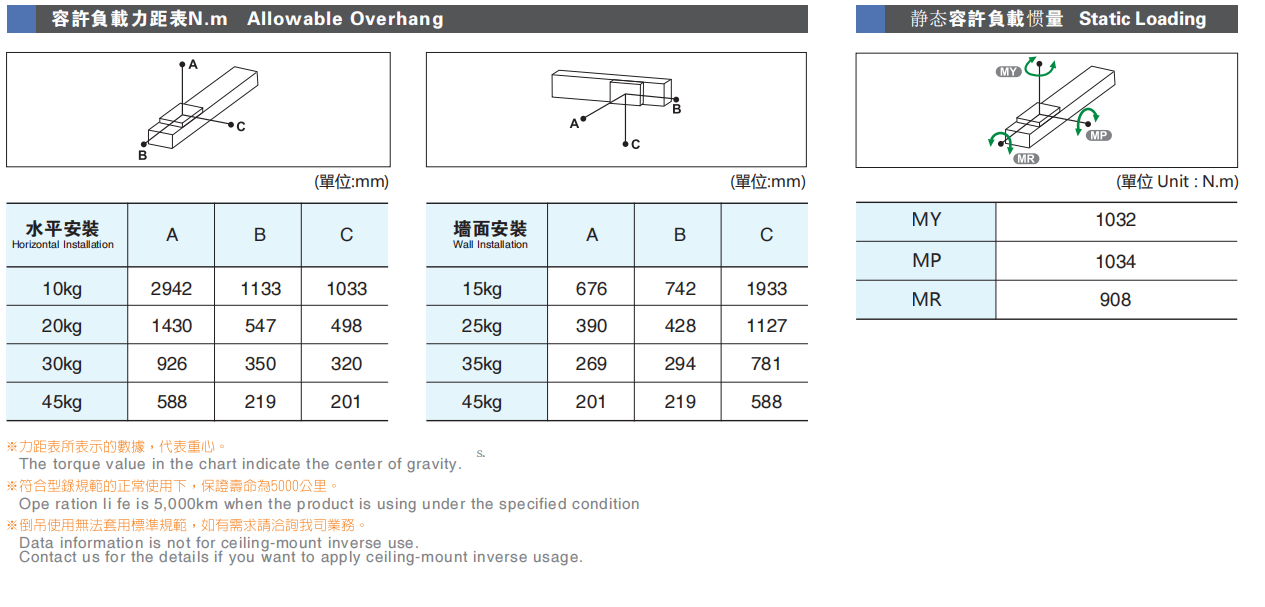

Maximum Payload Horizontal: 55KG
Maximum Payload Vertical: 55KG
Rated Thrust: 204 (N)
Stroke Pitch: 100-3050 mm

Parts:

AC Servo Motor Output: 400W
Belt Width: 30mm
High Rigidity Linear Guide: 20*15.5mm
Sensor: EE-SX672

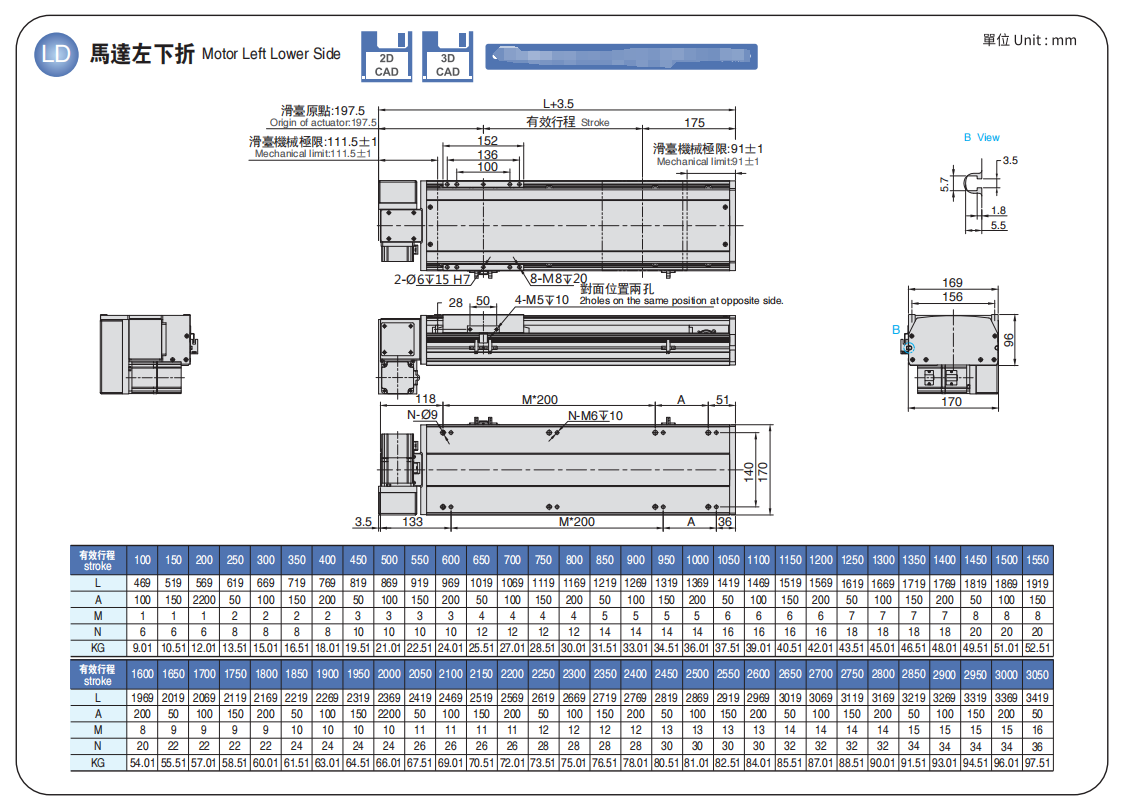

Motor Installation Options: We can provide various motor installation options, including direct connection, downward-facing motor, and right-facing motor, according to customer requirements.

Product Features

The GTH17 series is a mature product developed by our company through 10 years of practice and optimization, boasting the following notable features:

High Repeatability: The GTH17 series offers a repeatability of ±0.04mm, ensuring consistent and reliable precision in every machining operation.
High Speed and Load Capacity: With a maximum speed of 2000 (mm/s) and a maximum horizontal and vertical load capacity of 55KG, it provides a solid foundation for efficient production.
Customizable Motor Installation: Various motor installation options, such as direct connection, downward-facing motor, and right-facing motor, can be tailored to meet different industrial scenarios.
Comprehensive Accessories: Equipped with a 400W AC servo motor, 30mm belt, 20*15.5mm high-rigidity linear guide, and high-performance sensor, ensuring the coordinated operation of the entire system.

Worldwide Agent Recruitment

CGM warmly invites individuals worldwide to join our team of agents. As a distributor of the GTH17 series, you will benefit from:

Advanced product training and technical support
Abundant marketing resources
Competitive distributor policies

Let's join forces to contribute to Industry 4.0 by providing more advanced and reliable CNC manufacturing solutions. If you are interested in becoming our agent, please visit our official website www.linearguider.com or contact our team directly.

CGM, building the future of manufacturing together!
