2. Compact Design with 220MM Width

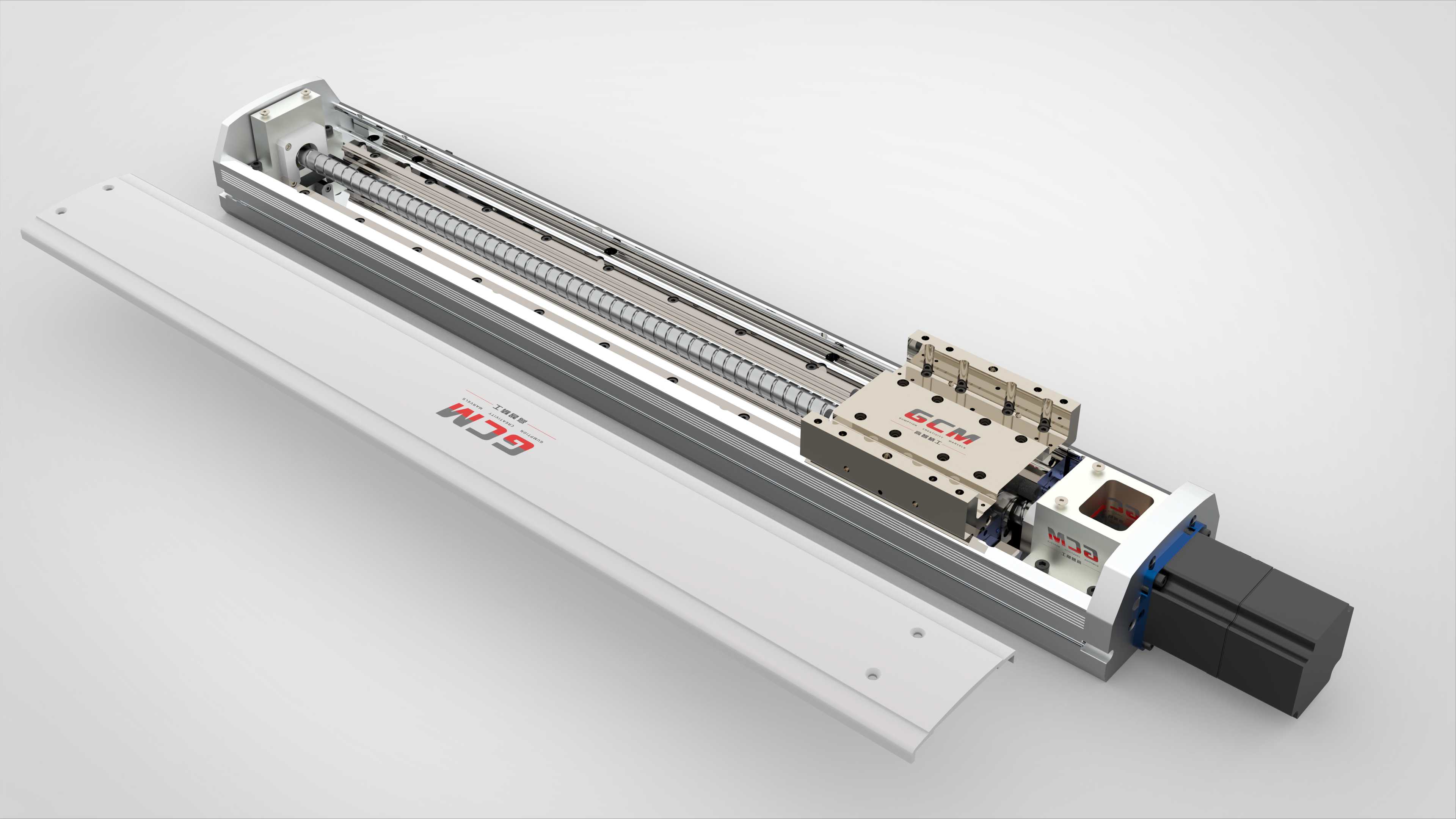

Crafted by our engineering team, the compact design of this module, with a mere 220MM width, makes it an ideal choice for space-constrained engineering projects. The compact design doesn't compromise performance; instead, it offers more flexible installation options to meet the requirements of various industrial applications.

3. Outstanding Precision - Repeatable Accuracy ±0.01

In the field of engineering, precision is paramount. Renowned for its exceptional 0.01 repeatable accuracy, our linear axis spindle mechanical module ensures astonishing stability and reliability in motion control, guaranteeing precise and reliable operations.

4. Load Capacity - Horizontal 150KG, Vertical 55KG

This mechanical module excels in bearing loads in both horizontal and vertical directions. With a maximum horizontal load capacity of 150KG and a vertical load capacity of 55KG, it provides users with greater flexibility, suitable for a variety of engineering scenarios. We use THK Linear Guide to ensure its load capacity.

Key Features:

• High Precision: Advanced manufacturing technology and high-quality materials for applications with stringent precision requirements.
• High Rigidity: Withstand substantial loads, providing stable support to ensure the stability and performance of the mechanical system.
• Low Friction: Utilizes special designs and lubrication systems to reduce friction, enhance smooth motion, and lower system energy consumption.
• Longevity: Employing wear-resistant materials and surface treatment techniques for an extended lifespan, reducing maintenance frequency, and enhancing system reliability.

5. Engineer's Perspective

As engineers, we take pride in this mechanical module. The design not only focuses on performance parameters but also addresses real-world engineering challenges. Every detail is meticulously considered to ensure the product excels in various scenarios.

6. Application Scenarios

This mechanical module plays a crucial role in various industrial applications, including automated production lines, robotics technology, and other precision motion control systems.

7. Learn More

Want to delve deeper into our linear axis spindle mechanical module? Please visit our official website: www.linearguider.com. There, you will find detailed product specifications, application cases, and contact information.

Conclusion

[CGM]’s linear axis spindle mechanical module is the result of our continuous pursuit of innovation, and we believe it will deliver outstanding performance for your engineering projects. For any inquiries or customized solutions, feel free to contact our team. Thank you for reading this blog, and we hope it provides a more in-depth understanding of our product. The THK Rails accessories used in our company ensure the quality of our products.
